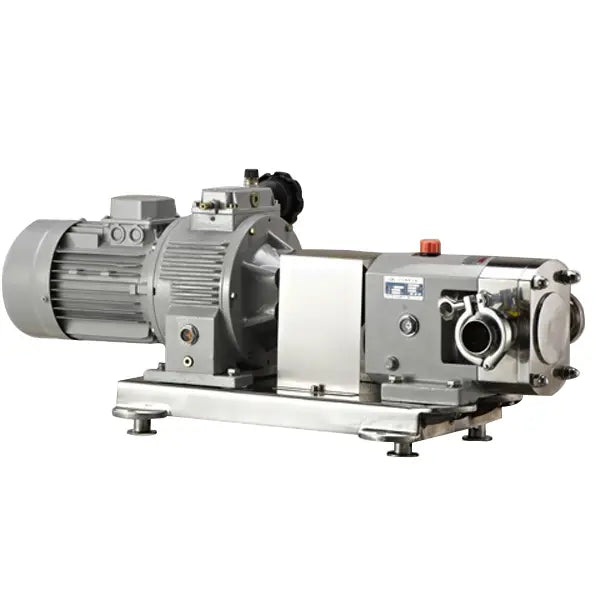

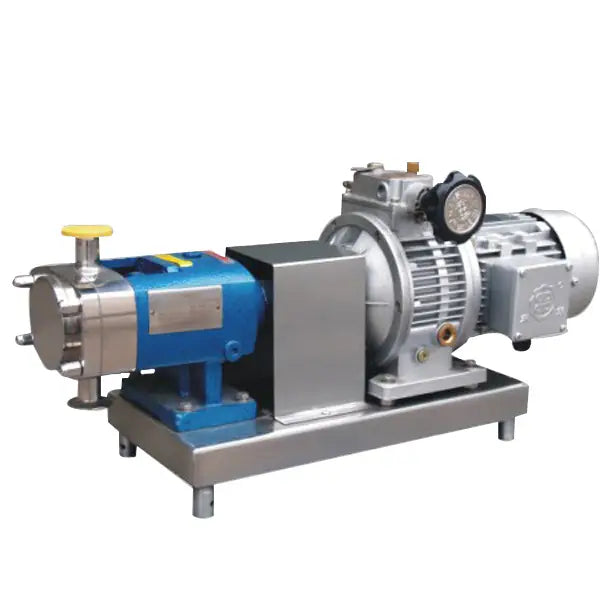

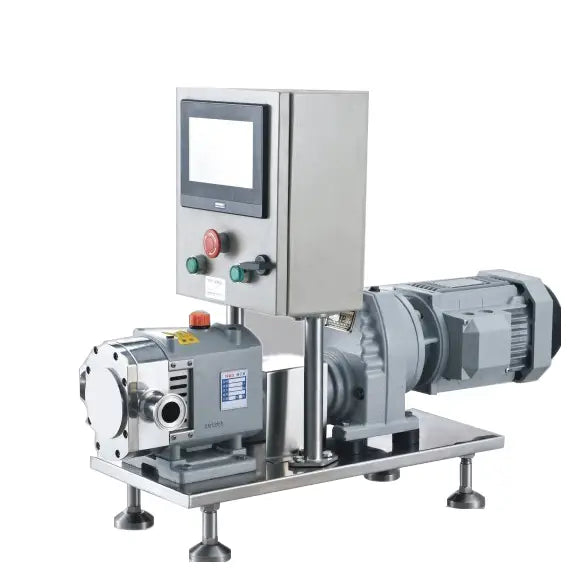

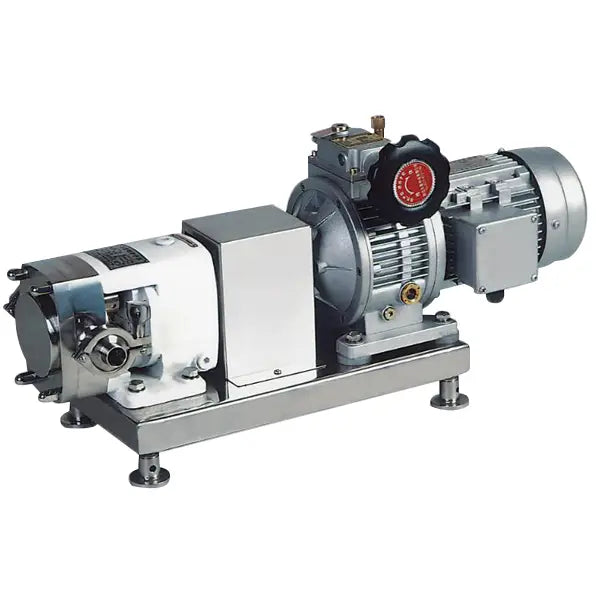

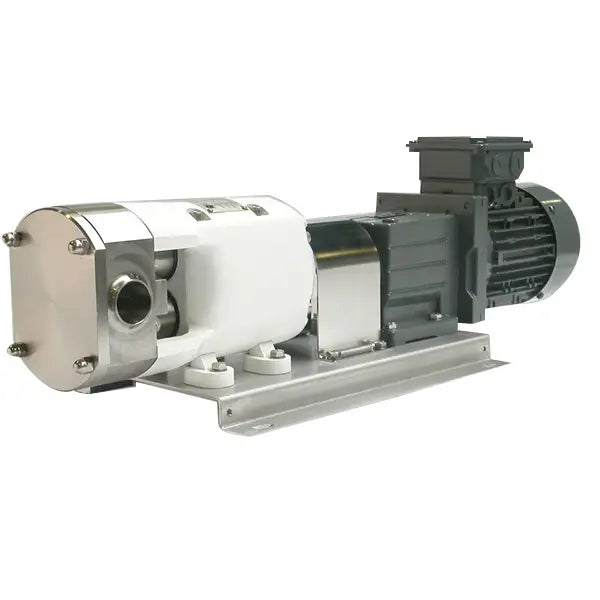

The ZB3A stainless steel sanitary rotary lobe pump is designed for efficient transfer of high-viscosity and shear-sensitive fluids in hygienic processing systems. Its advanced rotary lobe design allows gentle product handling while maintaining stable and consistent flow performance.
Manufactured from high-quality stainless steel (SS304 or SS316L), this pump provides excellent corrosion resistance, hygienic construction, and smooth internal surfaces, ensuring compliance with strict sanitary standards required in hygienic production environments.
Sanitary rotary lobe pumps are widely used in food processing, beverage production, pharmaceutical manufacturing, cosmetic processing, and biotechnology industries, where reliable fluid transfer and product integrity are critical for maintaining product quality.
Material
SS304 / SS316L
Seal Gasket
EPDM (Standard, Approved)
Max. Flow
43,000 L/h
Speed
1–1000 rpm
Max. Pressure
10 bar
Rotor Type
2-leaf, 3-leaf, Butterfly, Single Butterfly
Motor Power
0.55 kW ~ 22 kW
Mechanical Seal
SIC / SiC / EPDM (Standard)
Voltage
110 V, 220 V, 380 V
Motor
ABB / Siemens / Domestic Brand
Motor Frequency
50 Hz, 60 Hz
Available Connection
Clamped, Threaded, Flanged
Applications
Food Processing Systems
Beverage Production Lines
Dairy Processing Equipment
Pharmaceutical Manufacturing
Cosmetic and Personal Care Production
Transfer of High-Viscosity Liquids in Hygienic Pipelines
