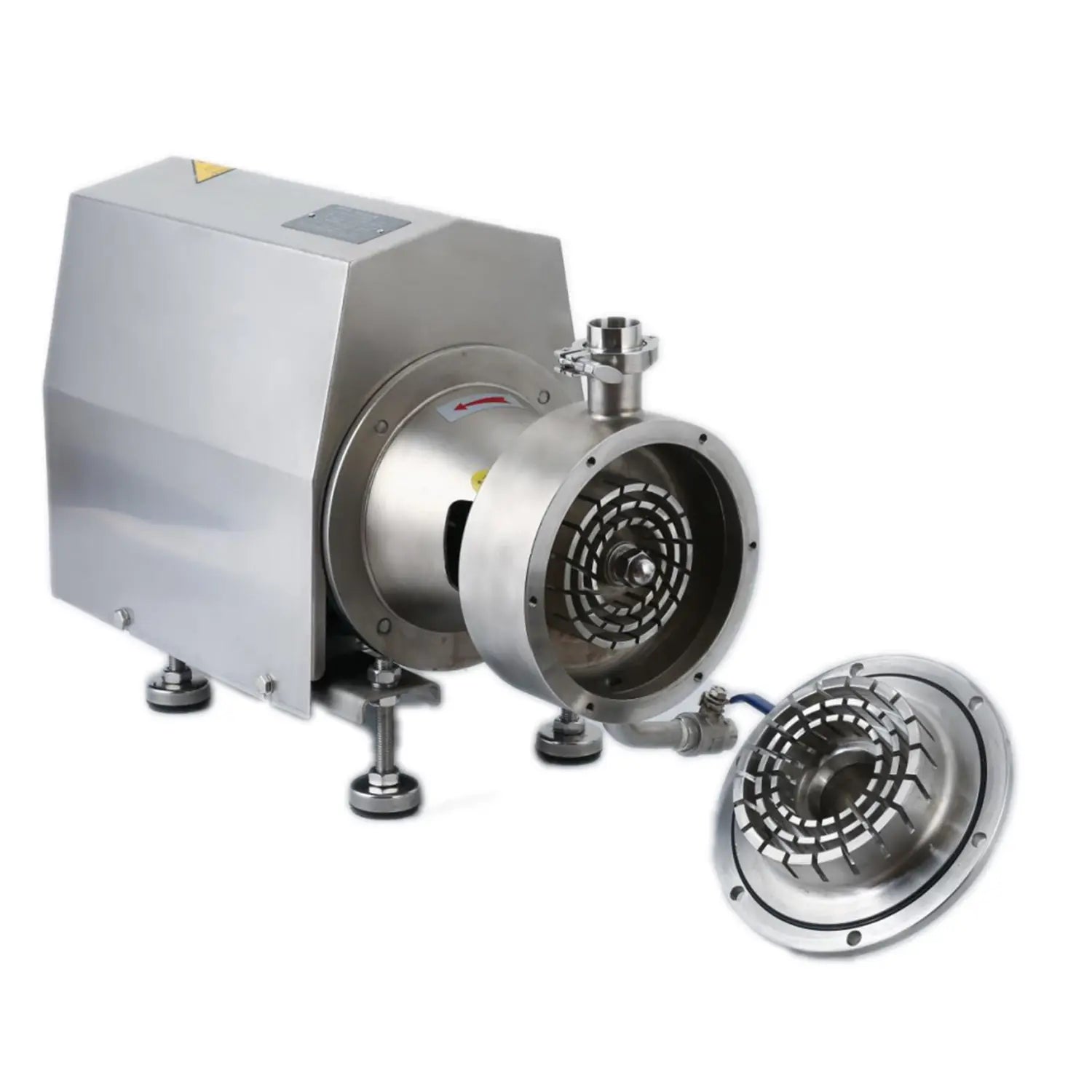

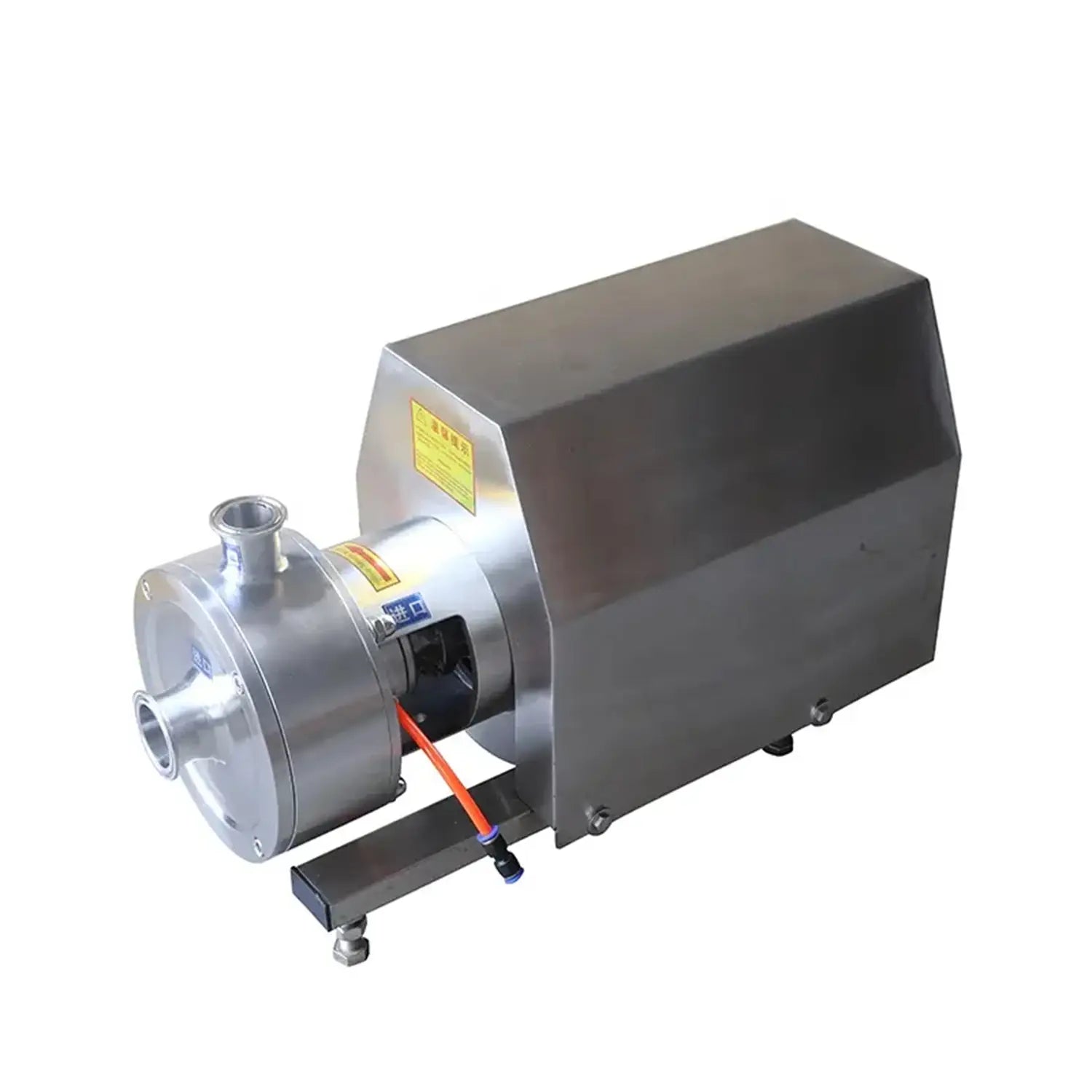

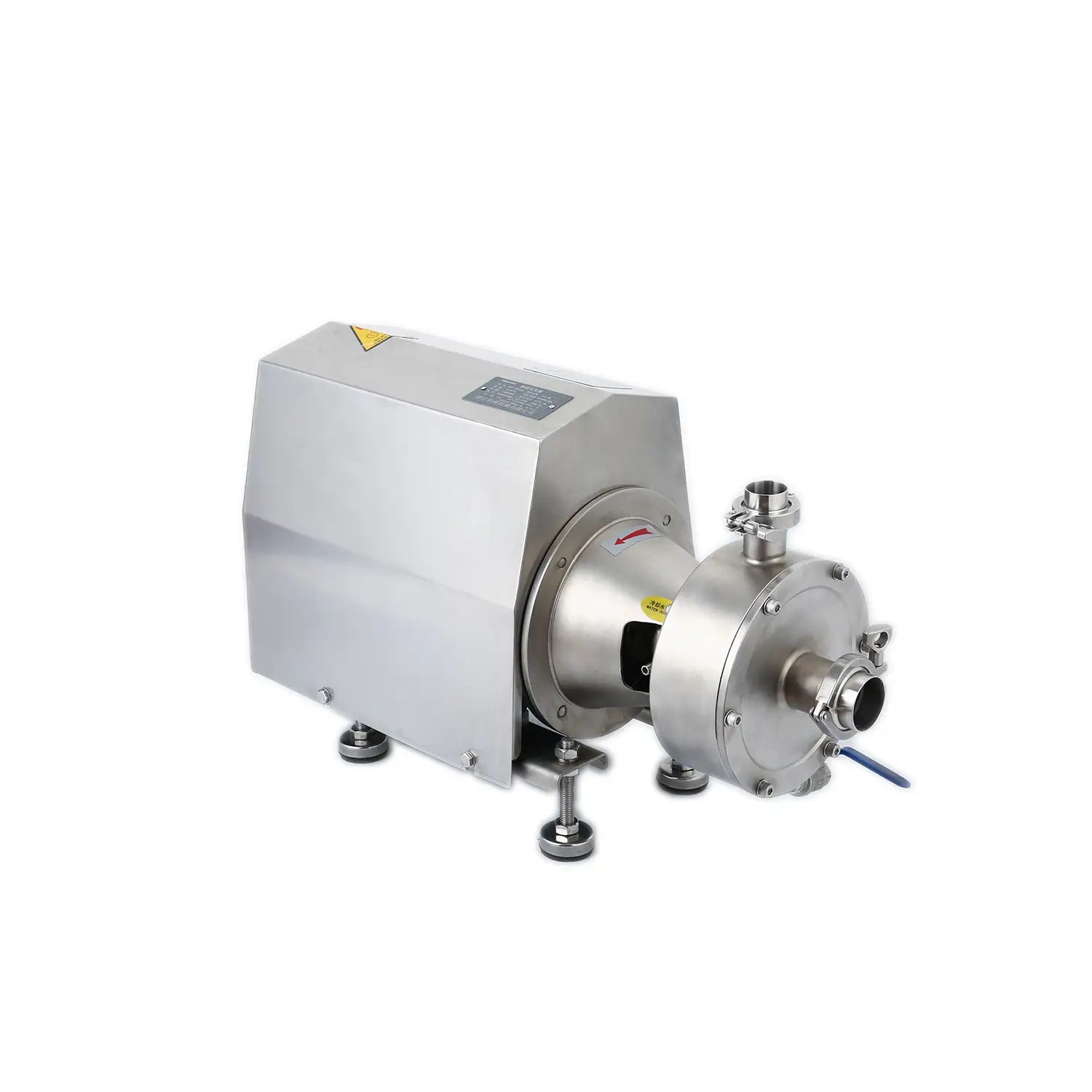

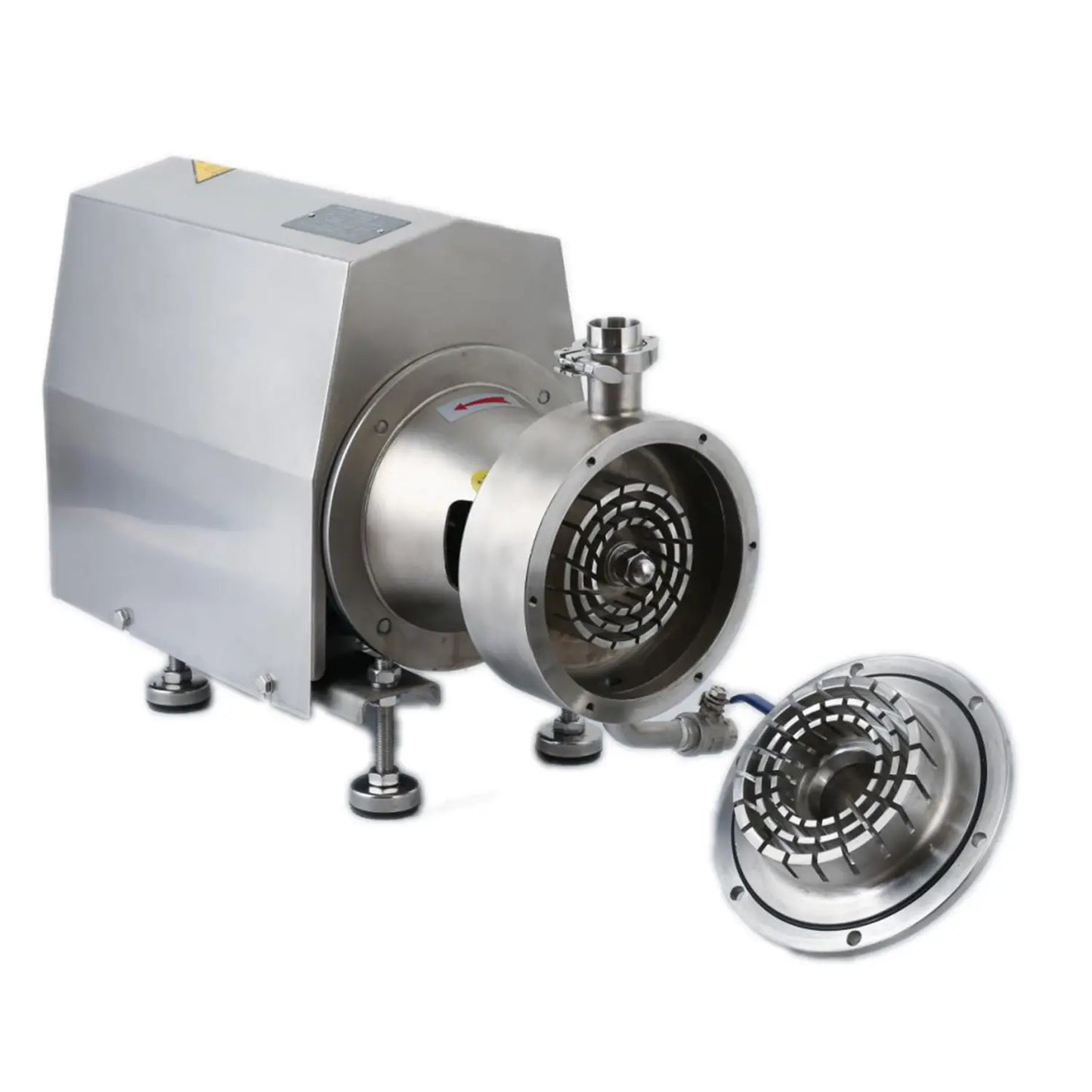

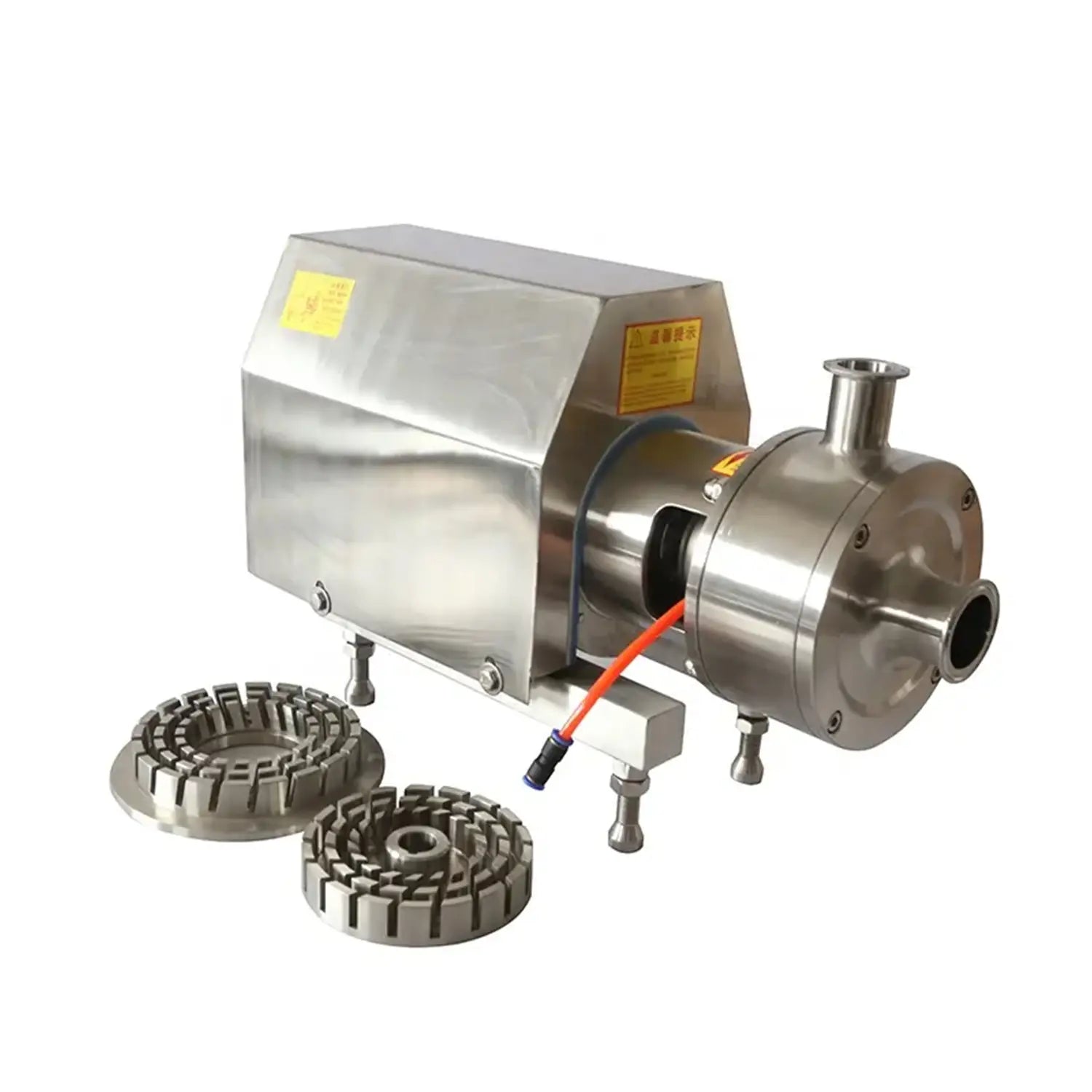

The TRL1 stainless steel single-stage sanitary emulsifying pump is designed to efficiently emulsify, disperse, and homogenize liquids in hygienic processing systems, ensuring consistent product quality and stable mixing performance.
Manufactured from high-quality stainless steel (SS304 or SS316L), this emulsifying pump provides excellent corrosion resistance, hygienic construction, and smooth internal surfaces, allowing reliable operation while maintaining strict sanitary standards in sensitive production environments.
Sanitary high-shear emulsifying pumps are widely used in food processing, beverage production, dairy applications, pharmaceutical manufacturing, and cosmetic formulation, where fine emulsification, uniform mixing, and product stability are essential for high-quality production.
Material
SS304 / SS316L / 1.4301 / 1.4404
Seal Gasket
EPDM, FPM (Viton), NBR
Max. Flow
140 m³/h
Impeller Type
Open Type Impeller
Max. Head
70 m (7 bar)
Temperature Range
-10 ~ 140 °C (14 ~ 284°F)
Motor Power
1.5 kW ~ 30 kW
Mechanical Seal
SIC / C / EPDM (Standard), C / SIC, TC / TC
Voltage
110 V, 220 V, 380 V
Motor
ABB / SIEMENS
Motor Frequency
50 Hz, 60 Hz
Available Connection
Clamped, Threaded, Flanged
Applications
Food Processing Systems
Beverage Production Lines
Dairy Processing Equipment
Pharmaceutical Manufacturing
Cosmetic and Personal Care Production
High-Shear Emulsification Processes
Hygienic Liquid Mixing and Homogenization Systems
