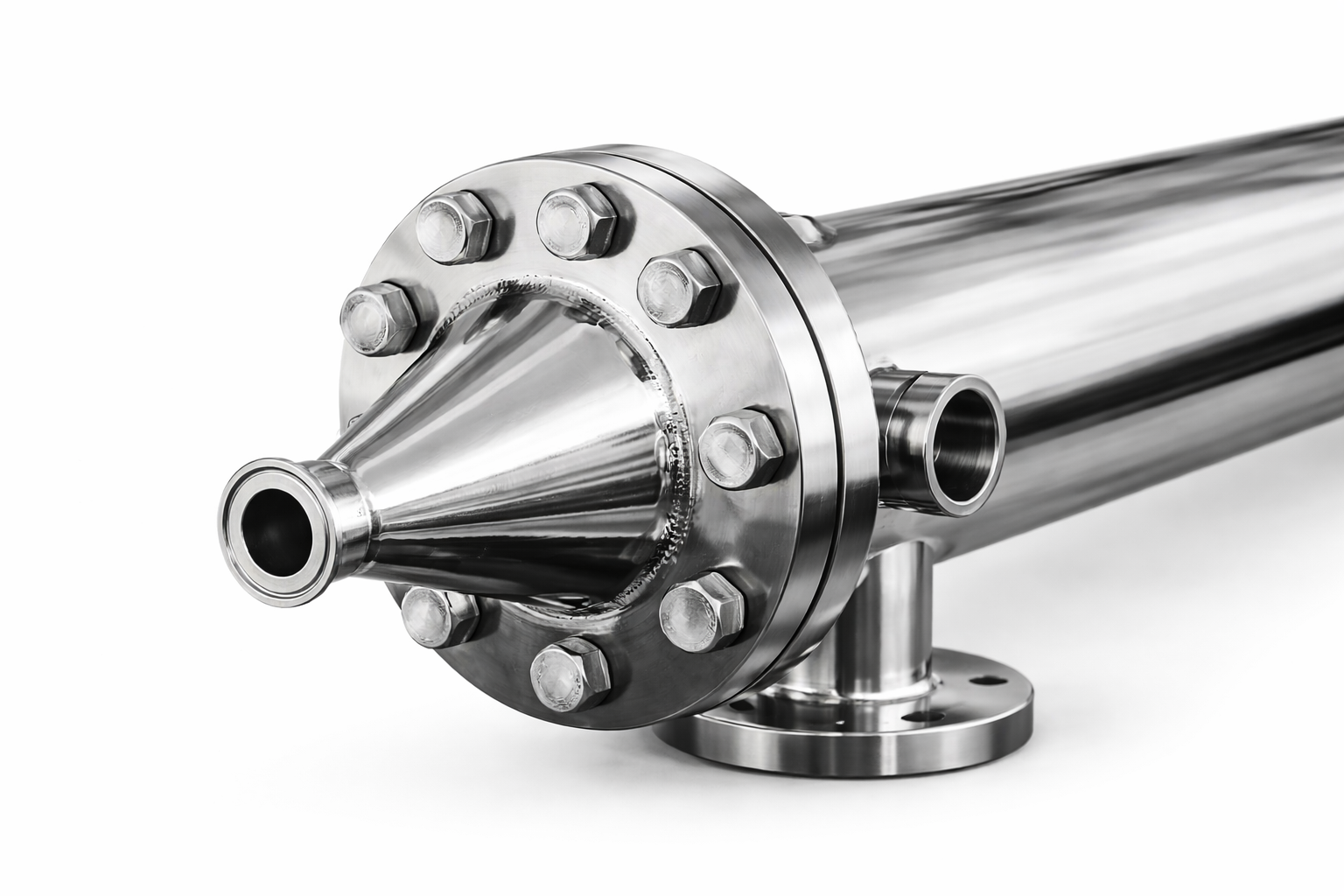

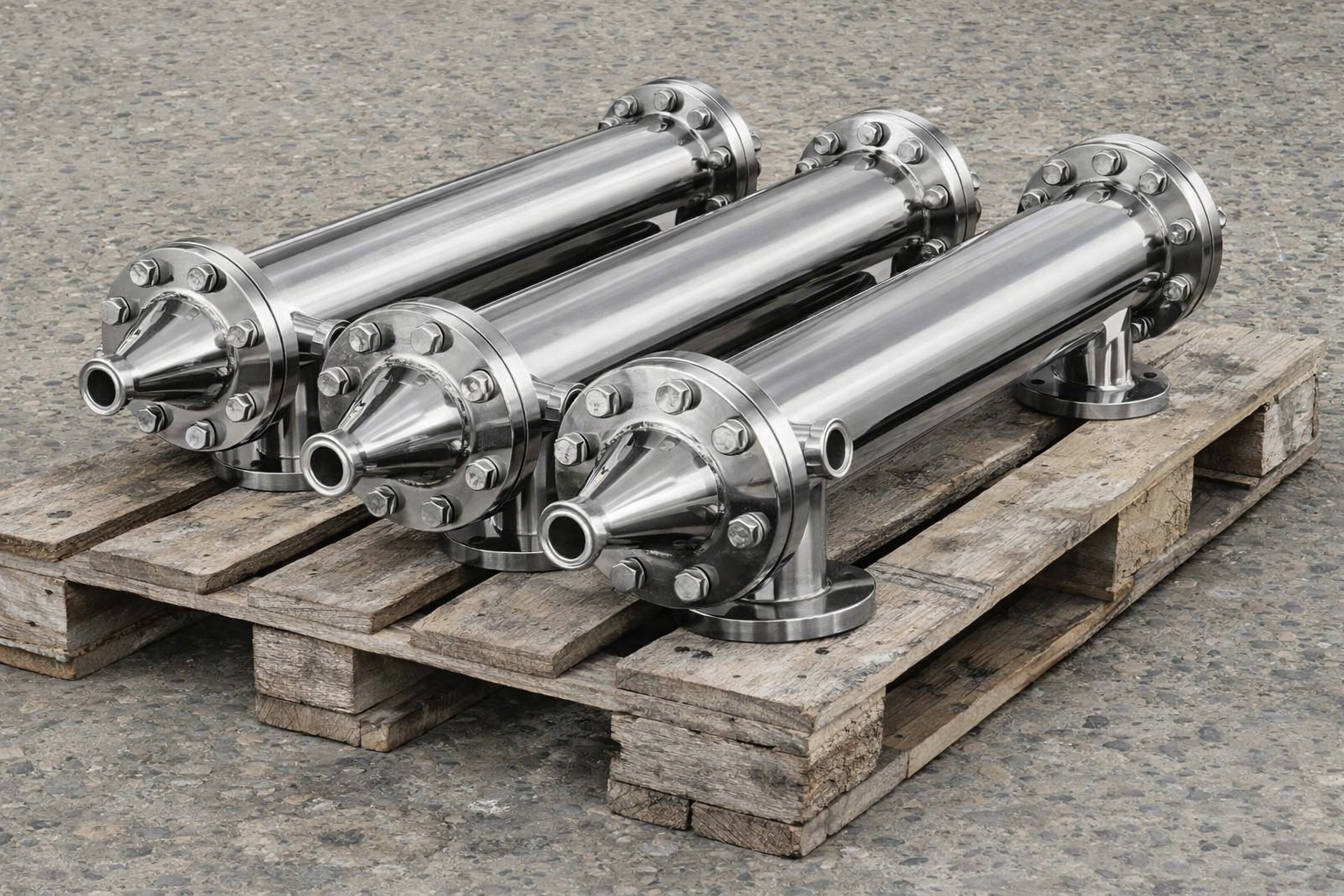

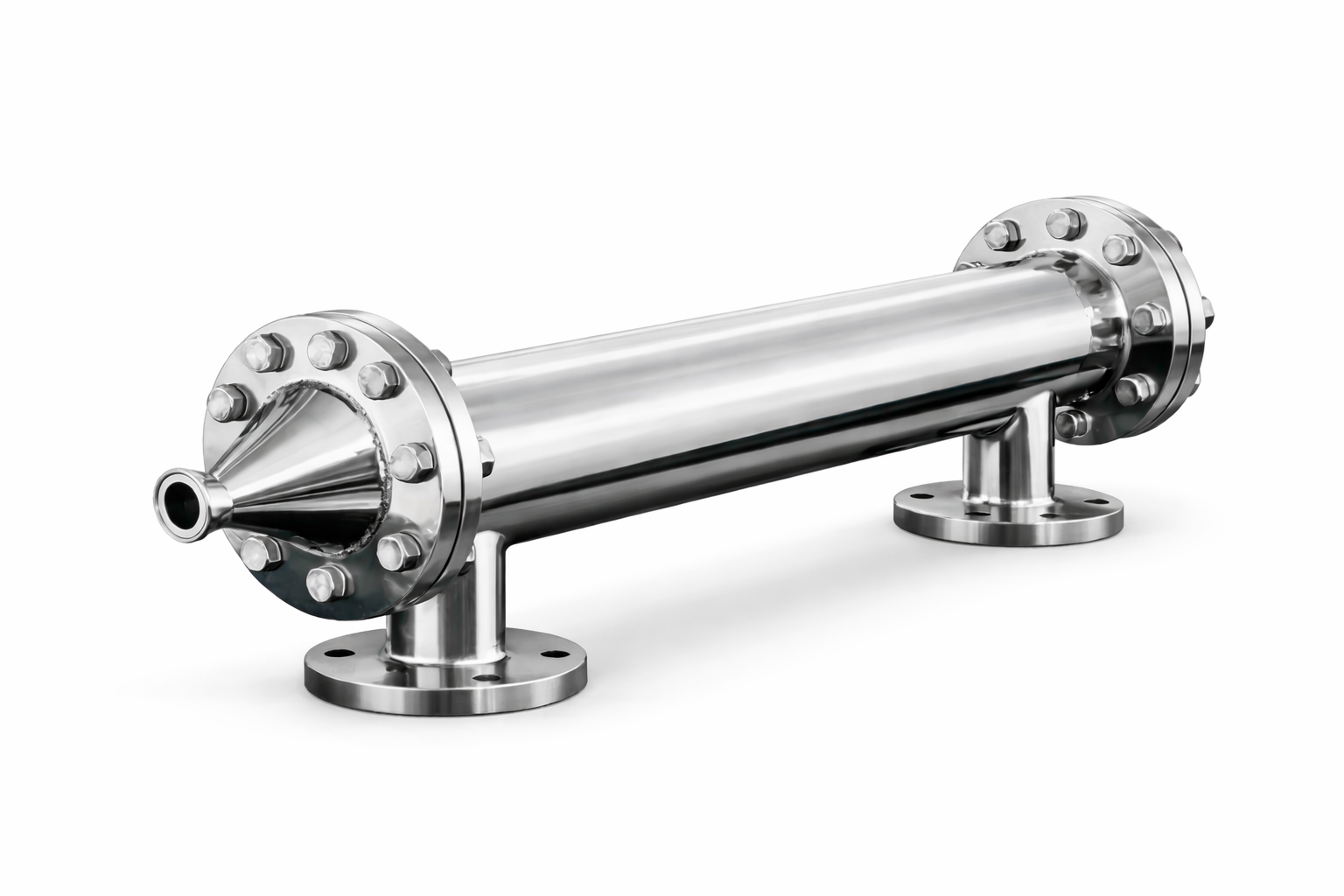

Stainless Steel Tuber Heat Exchanger

The stainless steel tube heat exchanger is designed to provide efficient and reliable heat transfer between fluids in sanitary and industrial processing systems. It is widely used in food processing, dairy production, pharmaceutical manufacturing, chemical processing, and beverage industries where precise temperature control and hygienic operation are essential.

Manufactured from high-quality stainless steel such as SS304, SS316L, duplex SS2205, or super duplex SS2507, this heat exchanger provides excellent corrosion resistance, durable construction, and long-term operational stability in demanding environments.

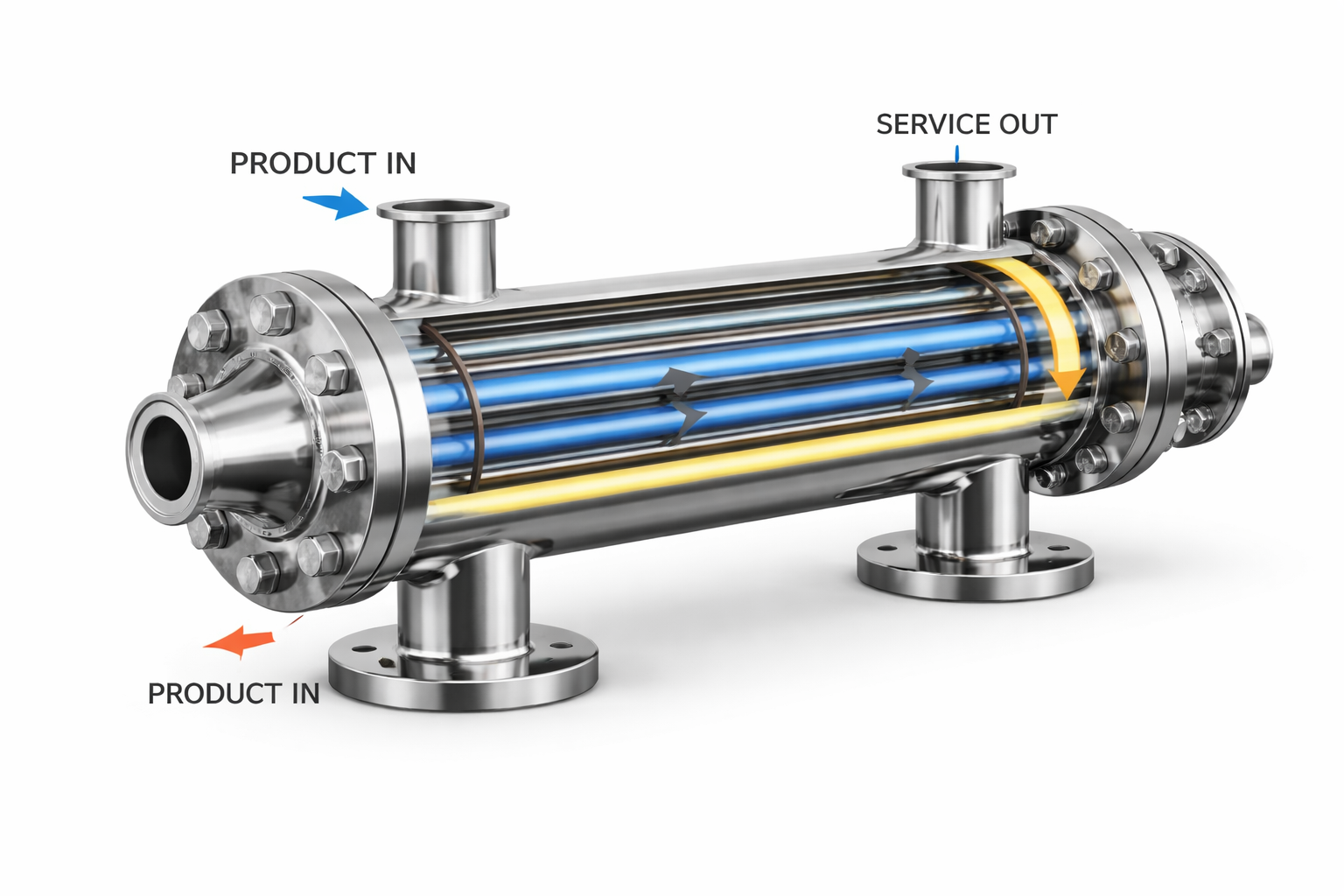

Its tube bundle structure enables stable thermal performance and efficient heat exchange, making it suitable for heating, cooling, pasteurization, condensation, and temperature regulation processes. The sanitary design also allows for easy maintenance and compatibility with hygienic piping systems.

Commodity
Tube Plate Heat Exchanger

Type of Tube Plate Heat Exchanger
Double Tube Plate Heat Exchanger
Single Tube Plate Heat Exchanger

Material Contact Parts
SS304 (1.4301)
SS316L (1.4404)
SS2205
SS2507
Provided with material inspection report

Material Non-contact Parts
SS304 (1.4301)

Sealing Material
NBR
EPDM
Silicone
FKM
(All materials comply with FDA21CFR117.2600)

Flow Rate
30 – 32000 L

Heat Transfer Area
0.05 m²
1.0 m²
1.5 m²
2.0 m²
2.5 m²
3.0 m²

Tube Size
6 mm
8 mm
10 mm
12 mm
14 mm
16 mm
19 mm
25 mm

Heat Transfer Coefficient

Water – Water: 1100 ~ 1400 W/(m²°C)
Water – Steam: 2300 ~ 5700 W/(m²°C)

Connection Type
Union
Internal Thread
Tri-Clamp
Flange

Maximum Pressure
10 bar (145 psi)

Working Pressure
0 – 6 bar (0 – 87 psi)

Design Temperature
14 – 392°F (-10°C ~ +200°C)

Internal Surface Finish
Ra < 0.5 µm

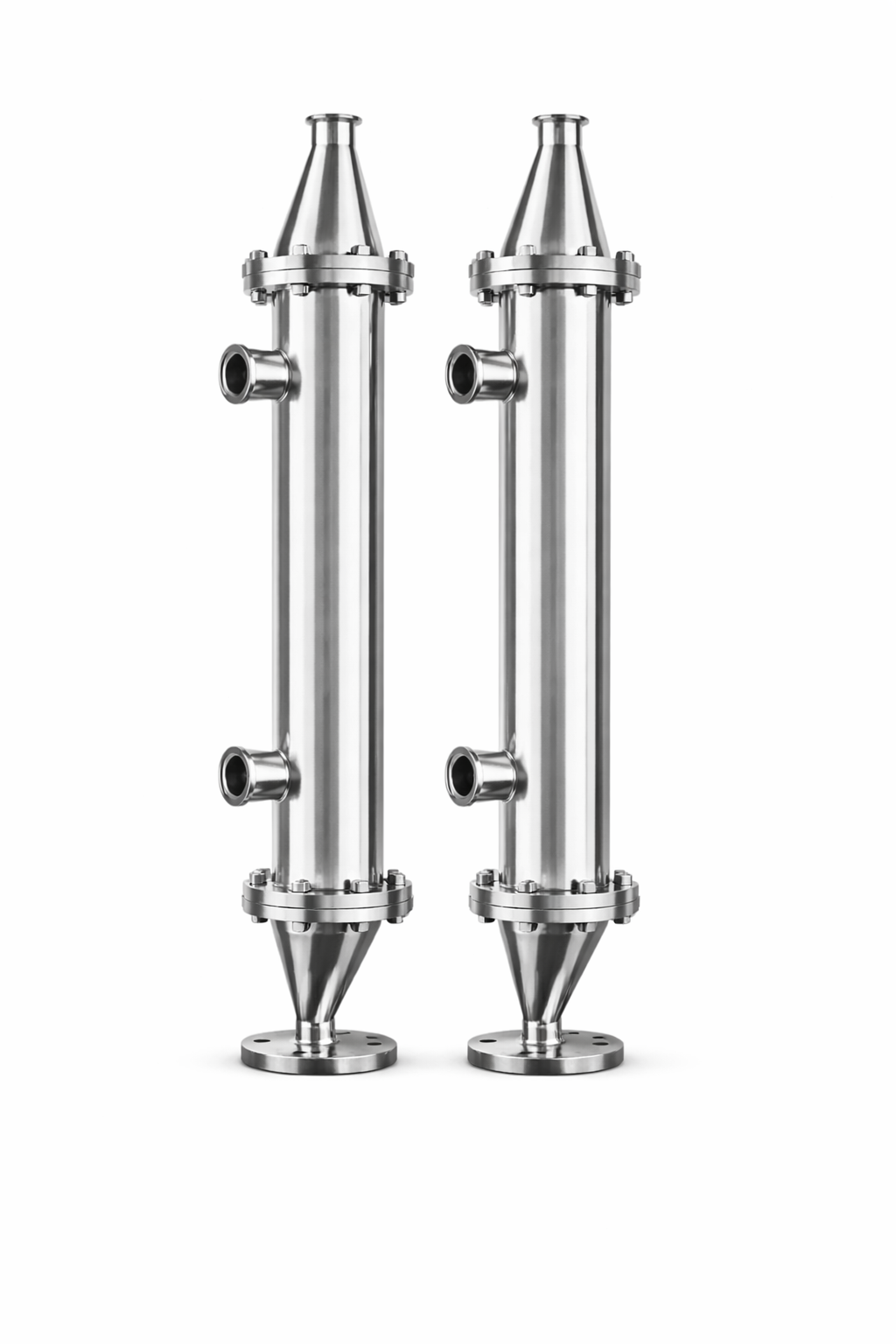

Installation Position
Vertical
Horizontal

Applications

Food and Beverage Processing
Dairy Processing Systems
Pharmaceutical Manufacturing
Chemical Processing Equipment
Beverage Heating and Cooling Systems
Biotechnology Processing
Liquid Pasteurization Systems
