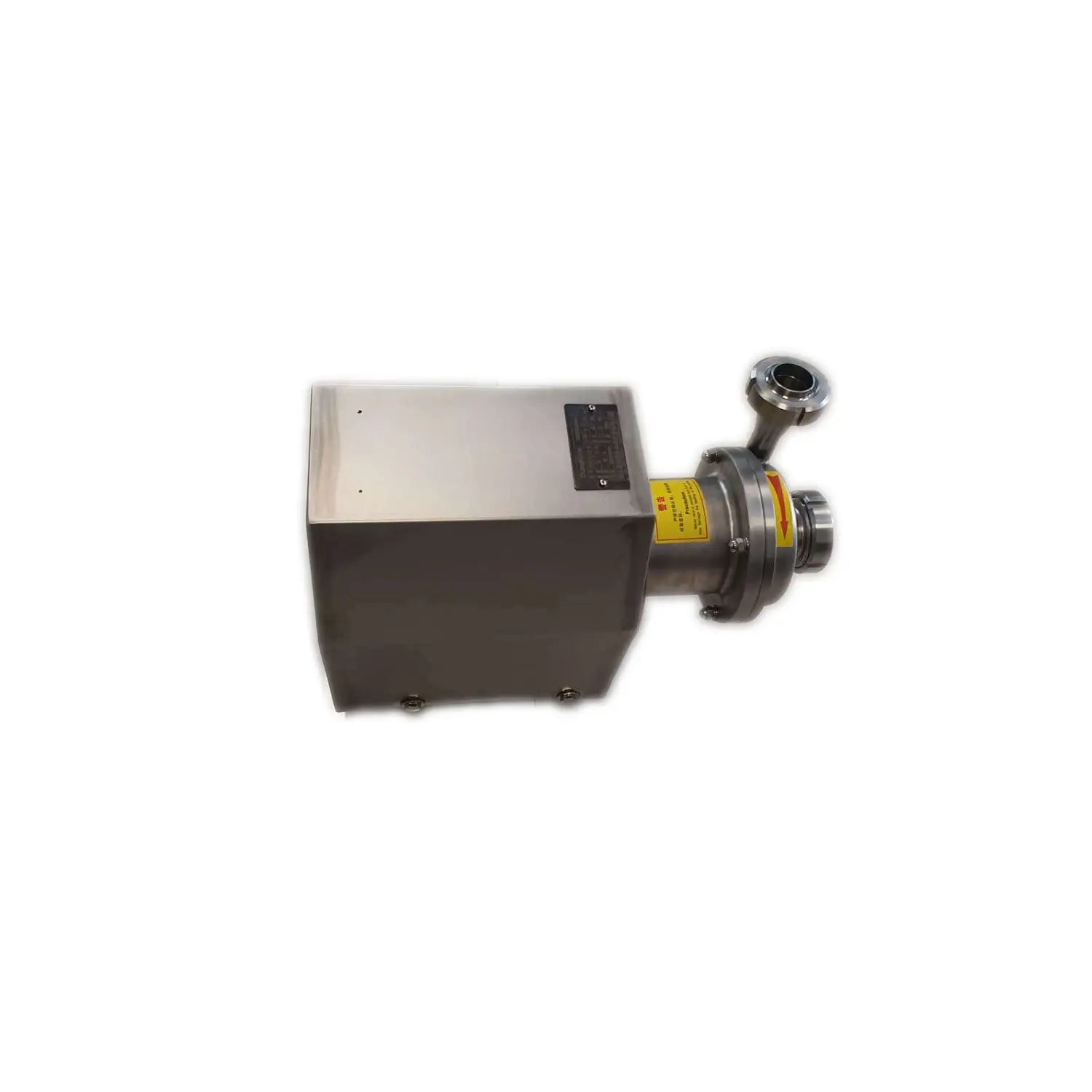

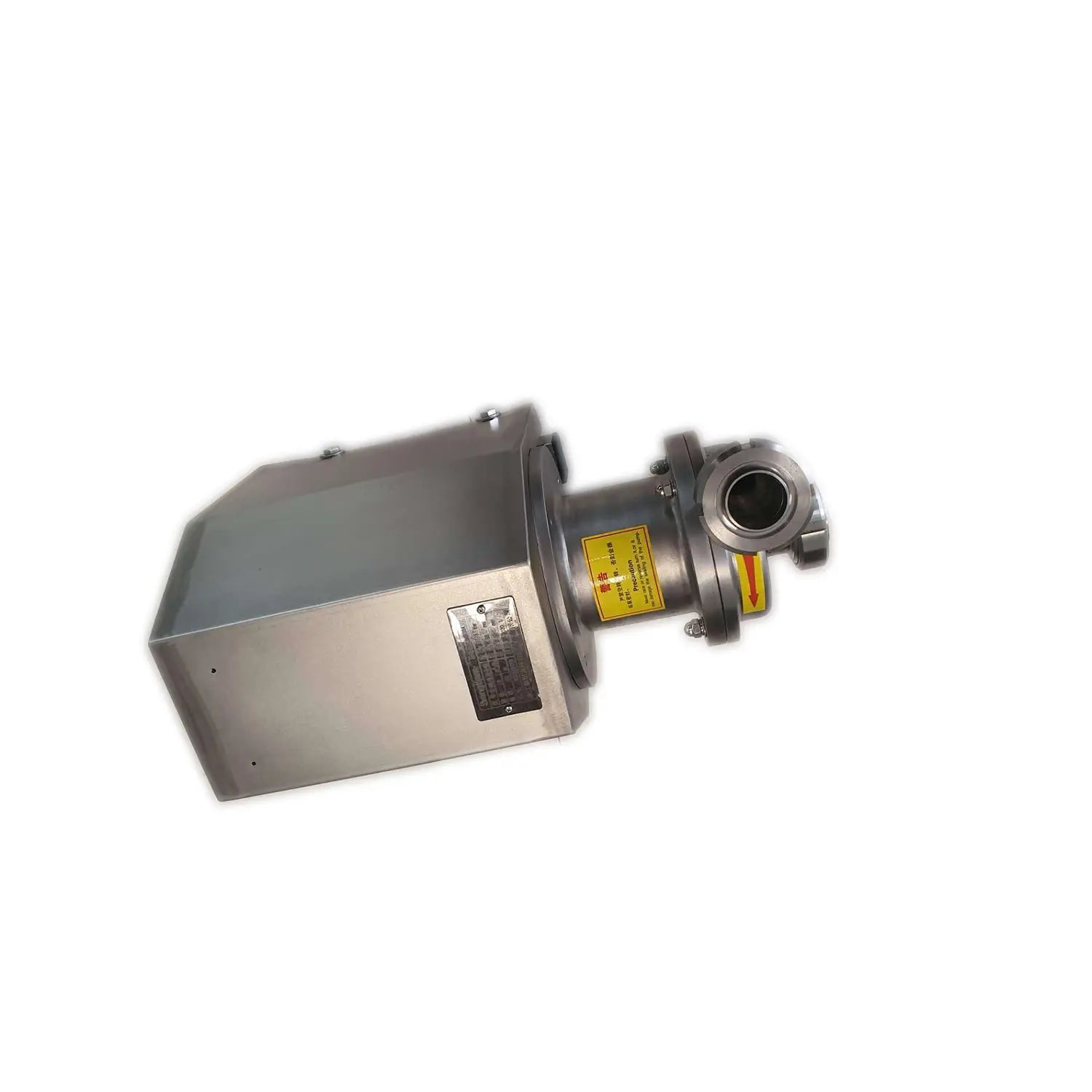

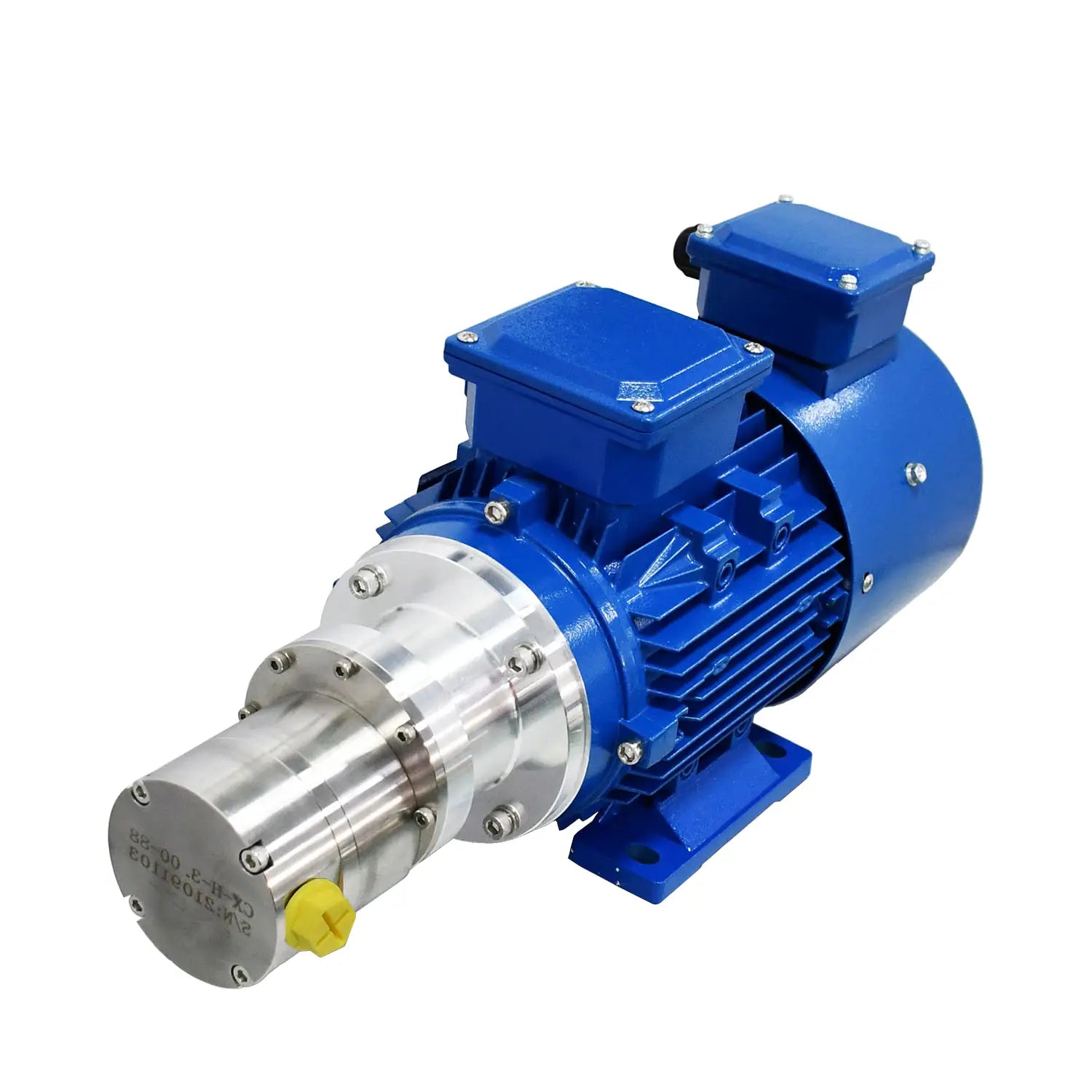

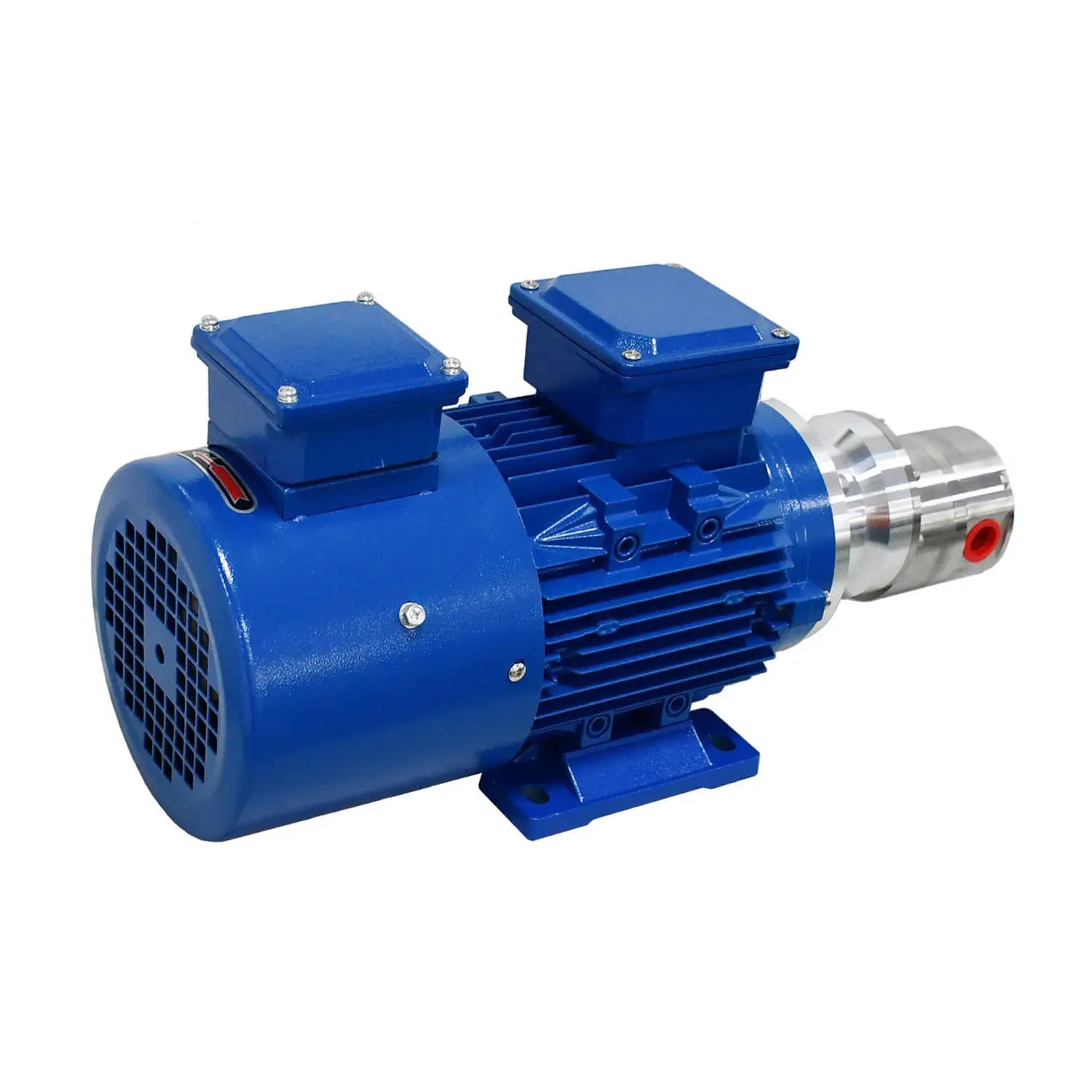

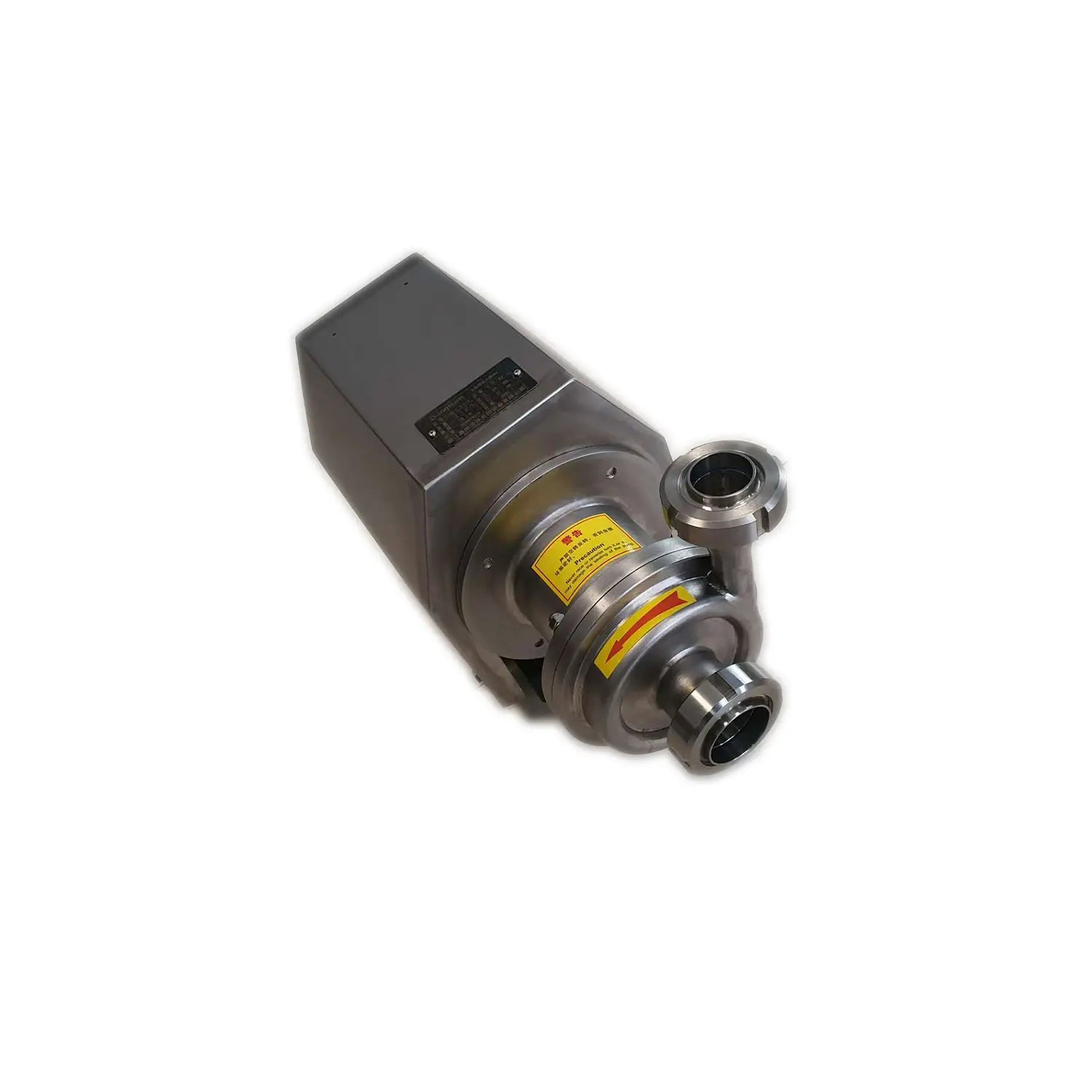

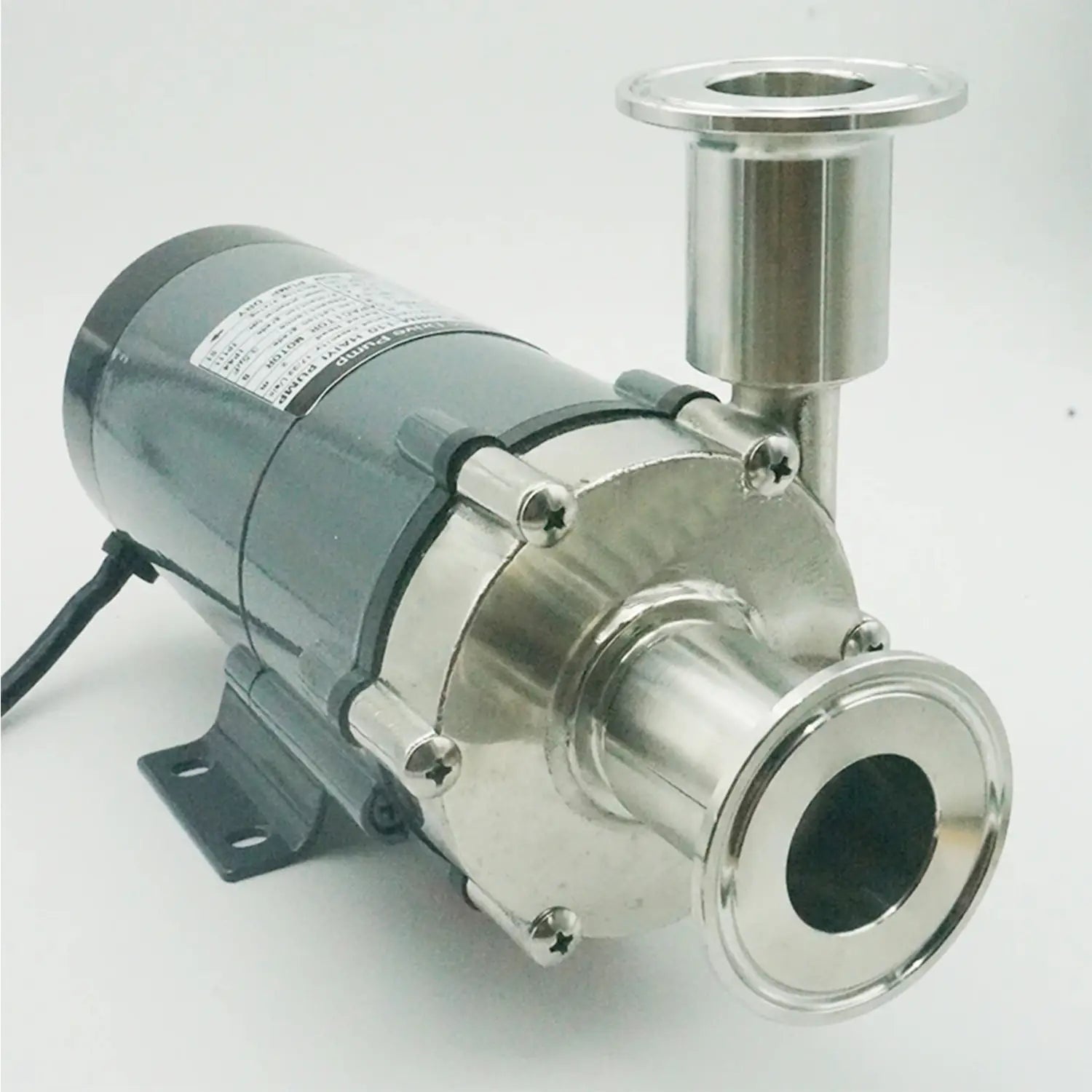

The stainless steel sanitary magnetic pump is designed to provide safe, leak-free fluid transfer in hygienic processing systems, ensuring reliable performance while maintaining strict sanitary standards.
Equipped with a hermetically sealed magnetic drive system, this pump eliminates the need for traditional shaft seals, significantly reducing the risk of leakage and preventing product contamination. This design enhances operational safety and ensures product integrity when handling sensitive fluids.
Manufactured from high-quality stainless steel (SS304 or SS316L), sanitary magnetic pumps offer excellent corrosion resistance, hygienic construction, and smooth internal surfaces, making them ideal for food processing, beverage production, pharmaceutical manufacturing, and chemical applications requiring safe and efficient fluid transfer.
Material
SS304 / SS316L / 1.4301 / 1.4404
Seal Gasket
EPDM, FPM (Viton), NBR
Max. Flow
0.5 – 60 T/H
Full Load Current
0.95 – 30 A
Max. Head
70 m (7 bar)
Temperature Range
-20 ~ 140 °C (-4 ~ 284°F)
Motor Power
1.5 kW ~ 22 kW
Mechanical Seal
SIC / C / EPDM (Standard), C / SIC, TC / TC
Voltage
110 V, 220 V, 380 V
Motor
ABB / SIEMENS
Motor Frequency
50 Hz, 60 Hz
Available Connection
Clamped, Threaded, Flanged
Applications
Food Processing Systems
Beverage Production Lines
Pharmaceutical Manufacturing
Chemical Processing Equipment
Biotechnology Processing Systems
Leak-Free Hygienic Liquid Transfer
Handling of Sensitive or Hazardous Fluids
