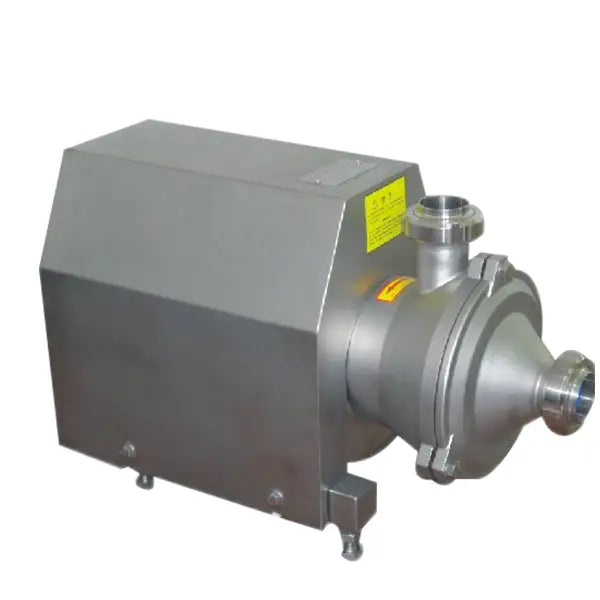

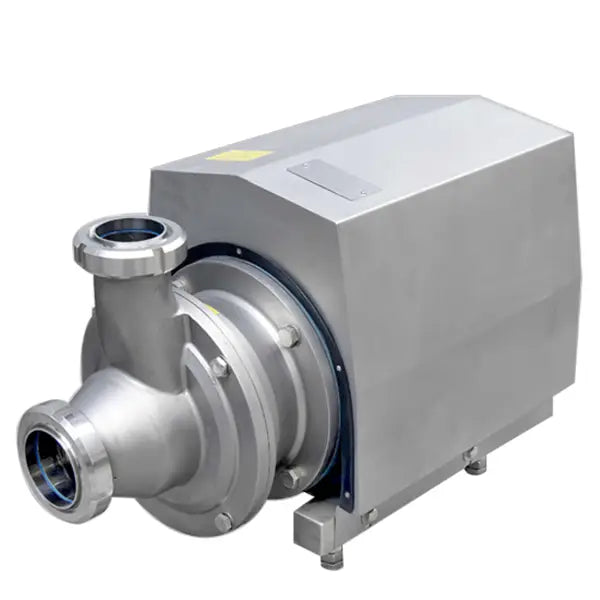

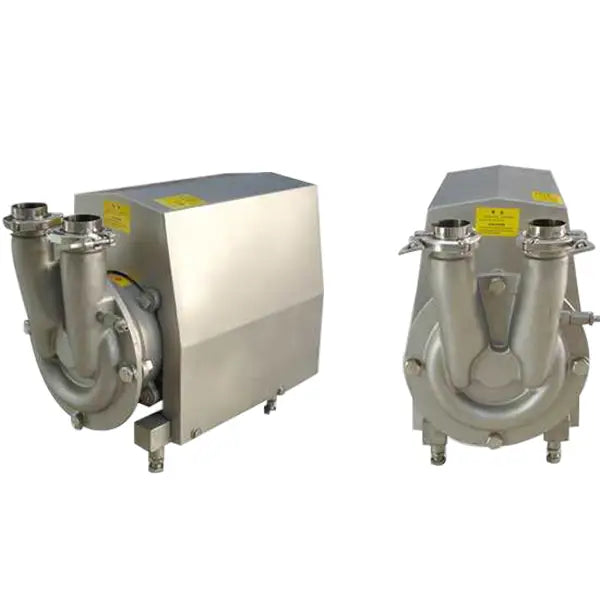

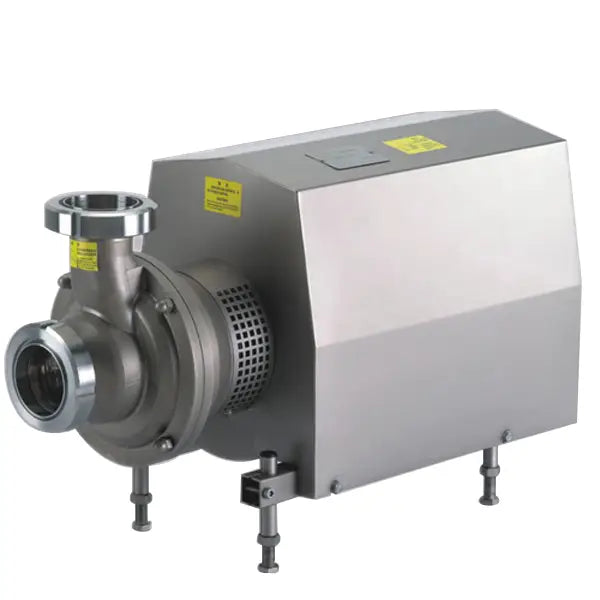

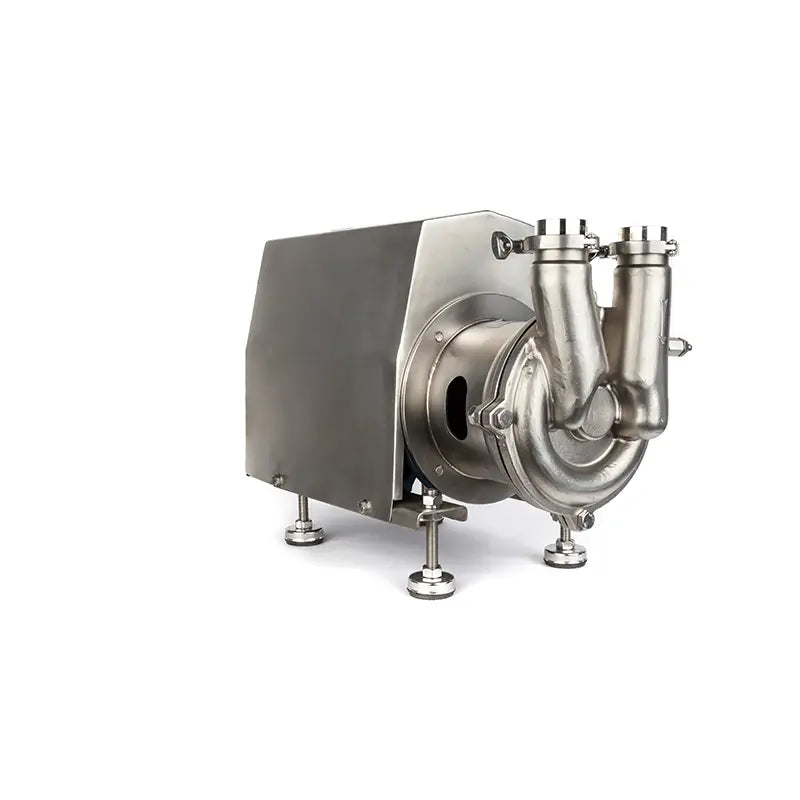

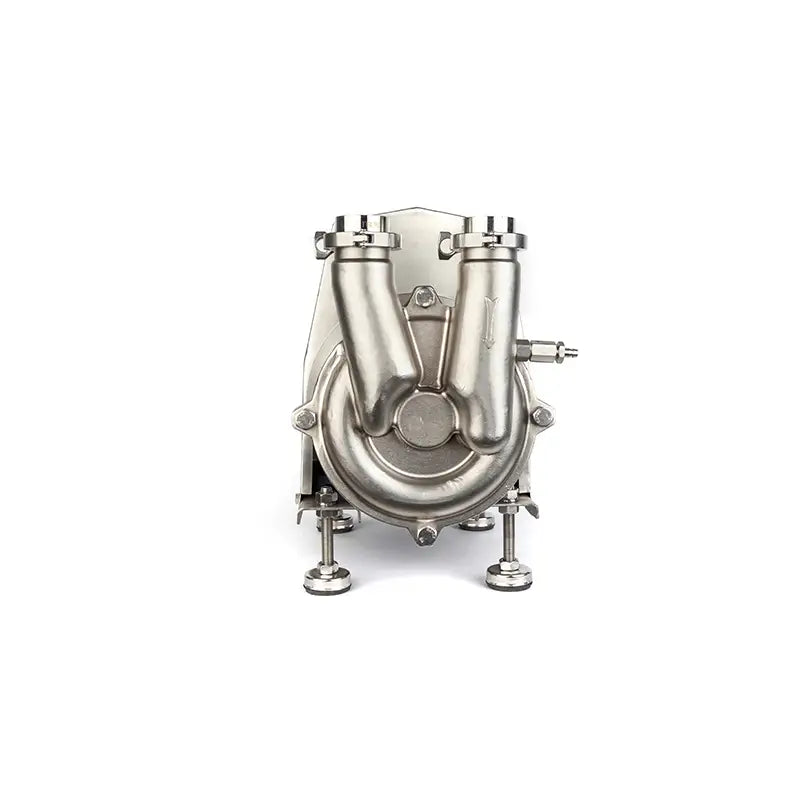

Stainless steel sanitary CIP self-priming pumps are designed to efficiently transfer liquids and cleaning solutions in hygienic processing systems, making them ideal for clean-in-place (CIP) operations in food, beverage, dairy, pharmaceutical, and biotechnology industries.
Manufactured from high-quality stainless steel (SS304 or SS316L), these pumps provide excellent corrosion resistance, hygienic construction, and smooth internal surfaces, ensuring reliable operation while maintaining strict sanitary standards during cleaning and production processes.
Sanitary CIP self-priming pumps feature strong suction capability and stable flow performance, allowing efficient liquid transfer even when the pump is installed above the liquid source, making them highly suitable for tank emptying, CIP return systems, and hygienic fluid transfer applications.
Material
SS316L
Seal Gasket
EPDM, FPM (Viton), NBR
Max. Flow
30 m³/h
Max. Speed
1750 min⁻¹
Max. Head
40 m (4 bar)
Temperature Range
-20 ~ 140 °C (-4 ~ 284°F)
Motor Power
1.5 kW ~ 22 kW
Mechanical Seal
SIC/C/EPDM (Standard), C/SIC, TC/TC
Voltage
110 V, 220 V, 380 V
Motor
ABB / SIEMENS
Motor Frequency
50 Hz, 60 Hz
Available Connection
Clamped, Threaded, Flanged
Applications
CIP Cleaning Systems
Food Processing Equipment
Beverage Production Lines
Dairy Processing Systems
Pharmaceutical Manufacturing
Biotechnology Processing Systems
Hygienic Liquid Transfer in Sanitary Pipelines
