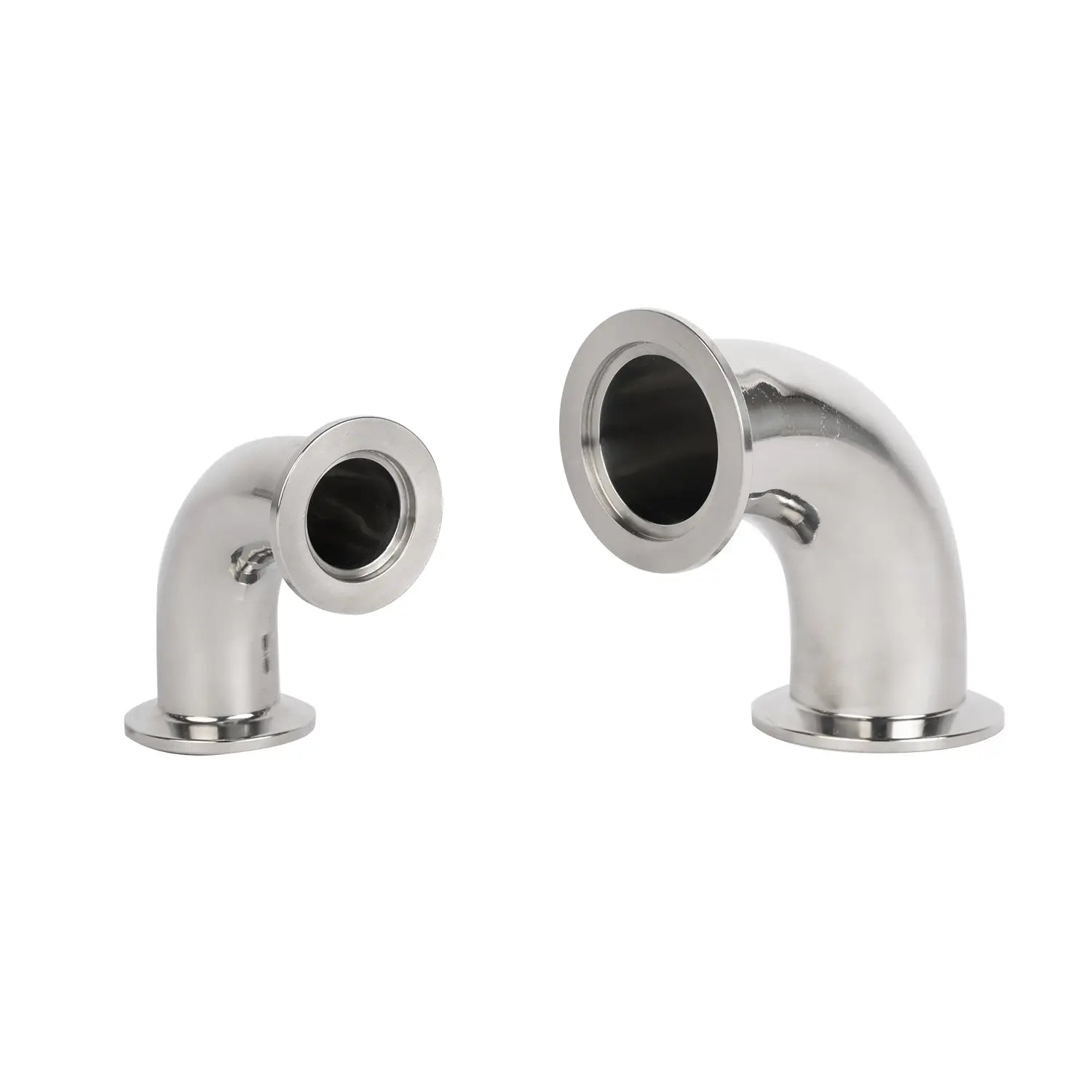

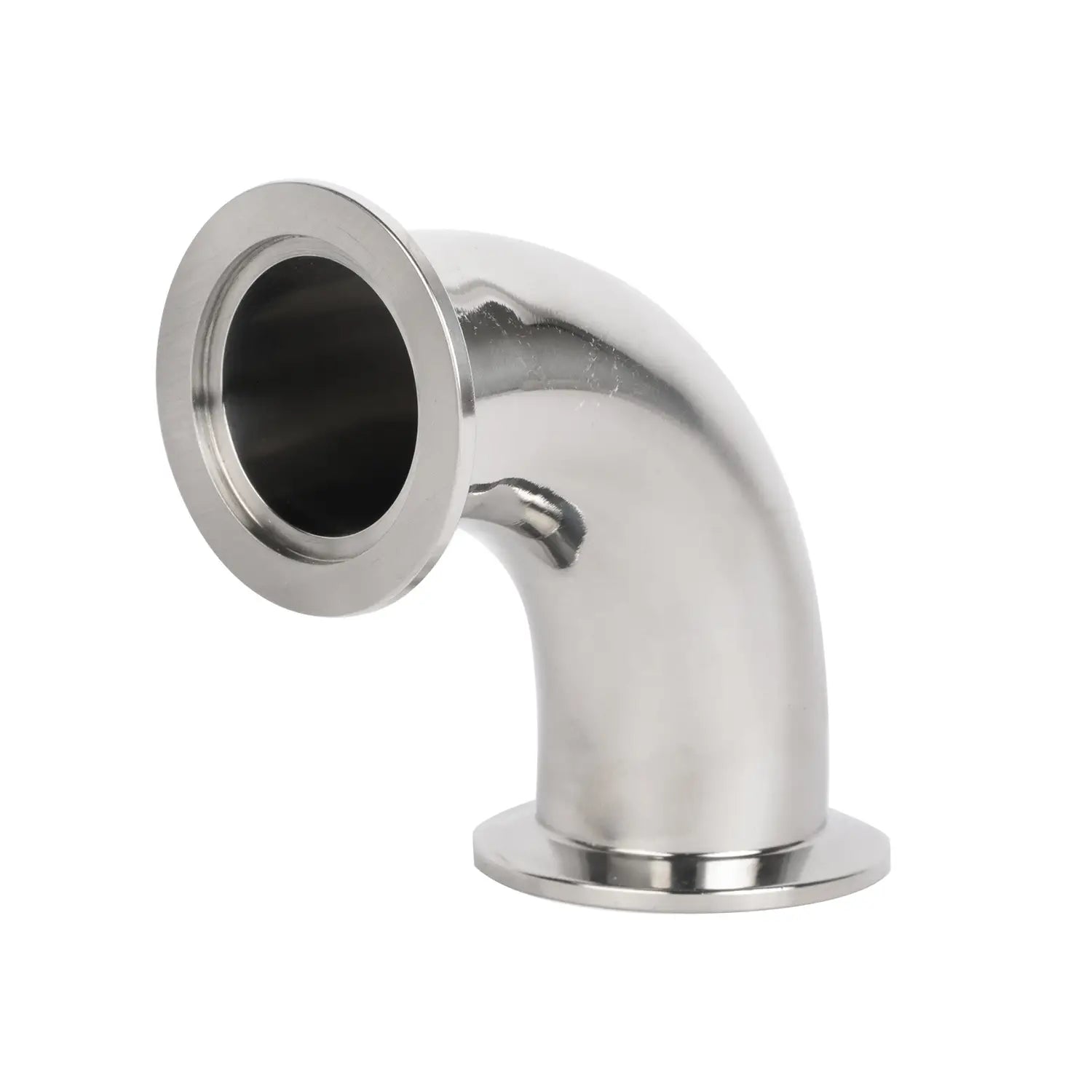

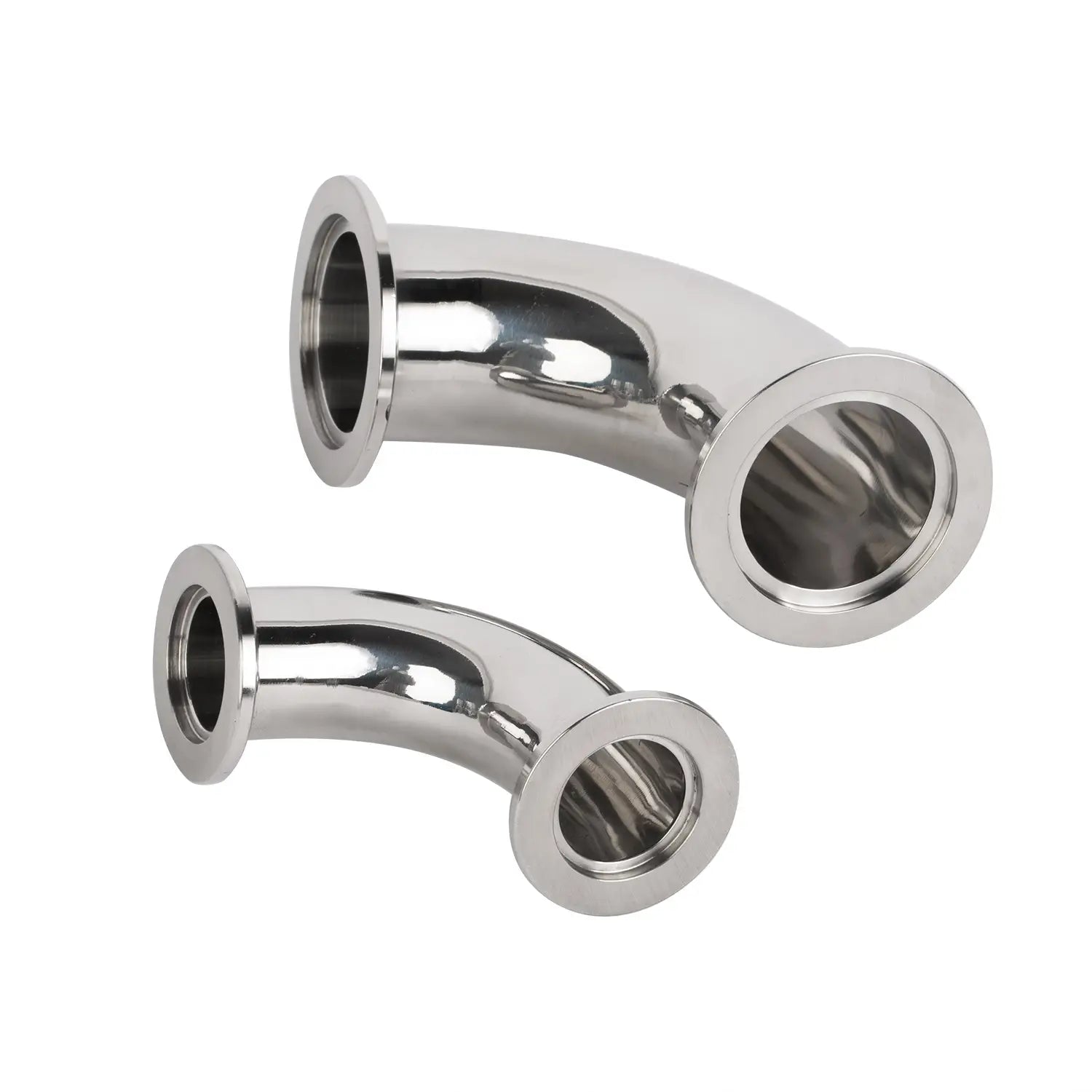

Stainless Steel SMS Sanitary Elbow Bend 90° Degree

The stainless steel sanitary elbow bend 90° is designed to change the direction of fluid flow in hygienic piping systems while maintaining smooth and sanitary transfer conditions. Its precision-engineered structure allows pipelines to navigate corners efficiently while ensuring minimal resistance, reduced turbulence, and stable system performance.

Manufactured from high-quality stainless steel such as SS304 or SS316L, this sanitary elbow bend offers excellent corrosion resistance, strong durability, and long service life. The polished internal surface helps maintain clean flow conditions and prevents product buildup, making it suitable for applications that require strict hygiene and contamination control.

Available in various wall thickness options and layer configurations, the elbow bend can be customized for different operating requirements, including cooling and heating systems. Its hygienic design and flexible connection options make it widely used in industries that demand reliable and sanitary fluid handling systems.

Standard
SMS
DIN
3A
ISO / IDF
AS
BS
BPE

Material (Contact Parts)
SS304 (1.4301)
SS316L (1.4404)
Material inspection report provided

Material (Non-contact Parts)
SS304 (1.4301)

Shape Option
90°
45°
180°
U Shape

Size
1/2" – 12"
DN10 – DN300

Wall Thickness
1.2 mm
1.5 mm
2 mm
2.5 mm
3 mm
4 mm

Connection
Vacuum
Butt Weld
Tri Clamp
Female
Male
Union
Flange

Polish Surface
Mirror
Matte / Brush
Electrolytic

Layer
Single Layer

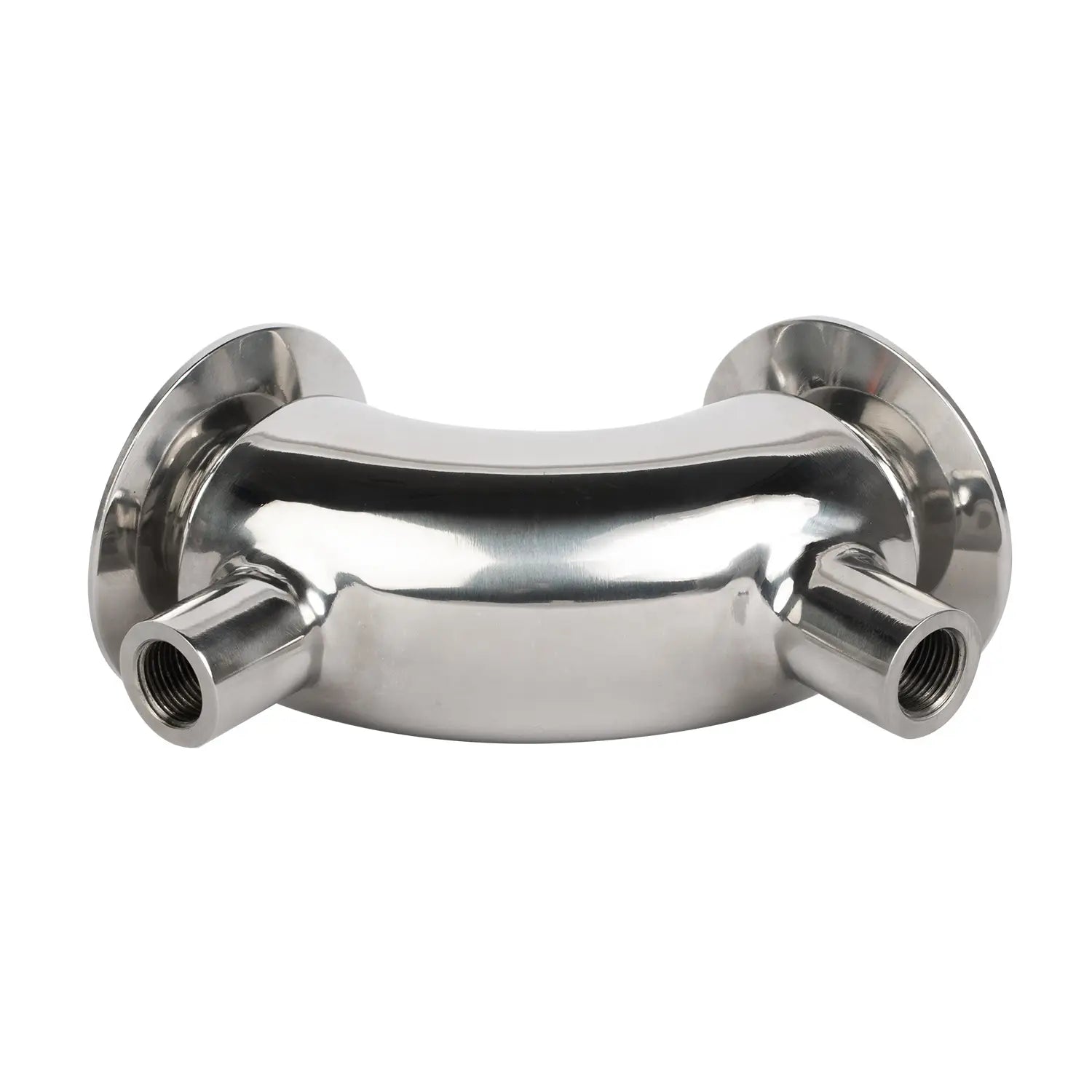

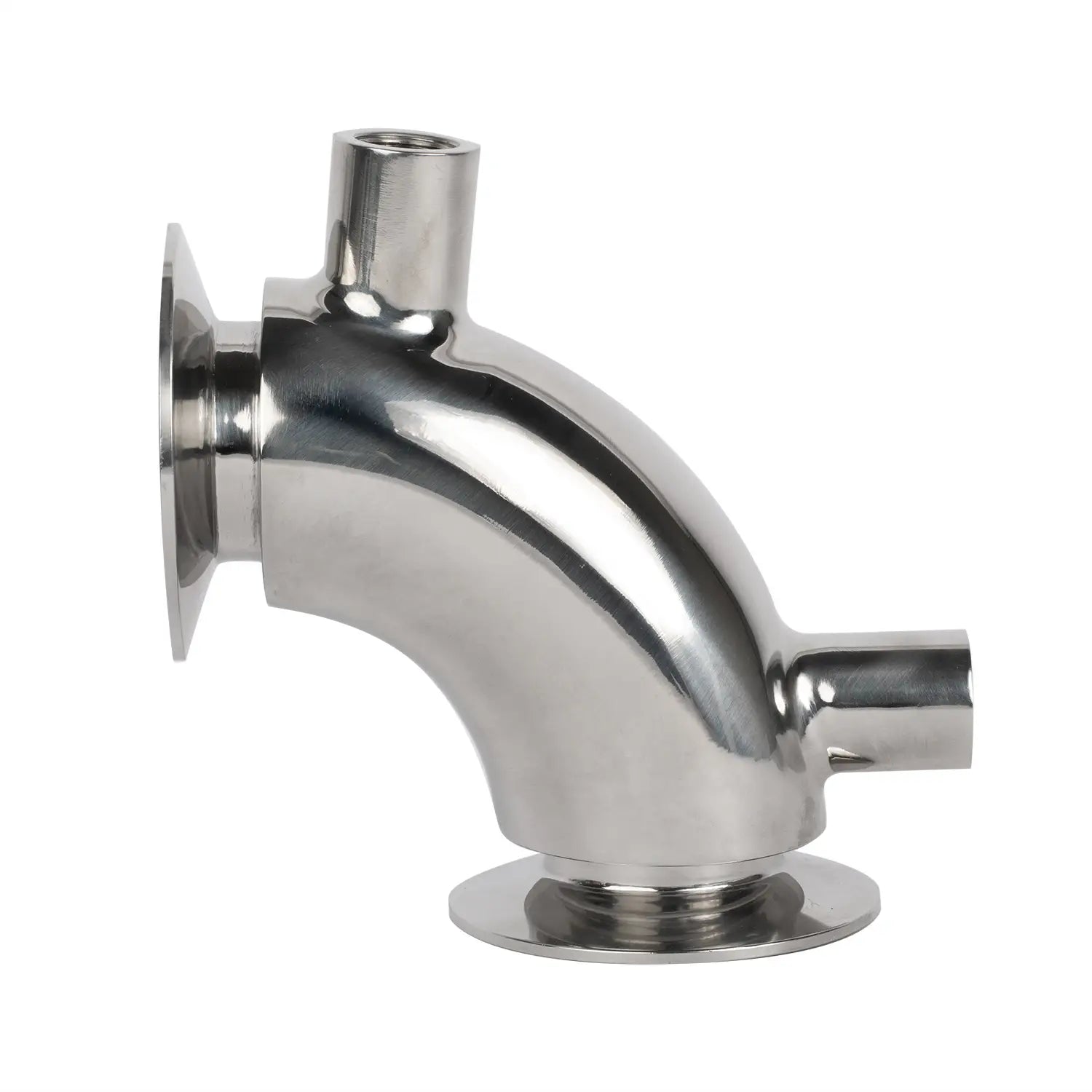

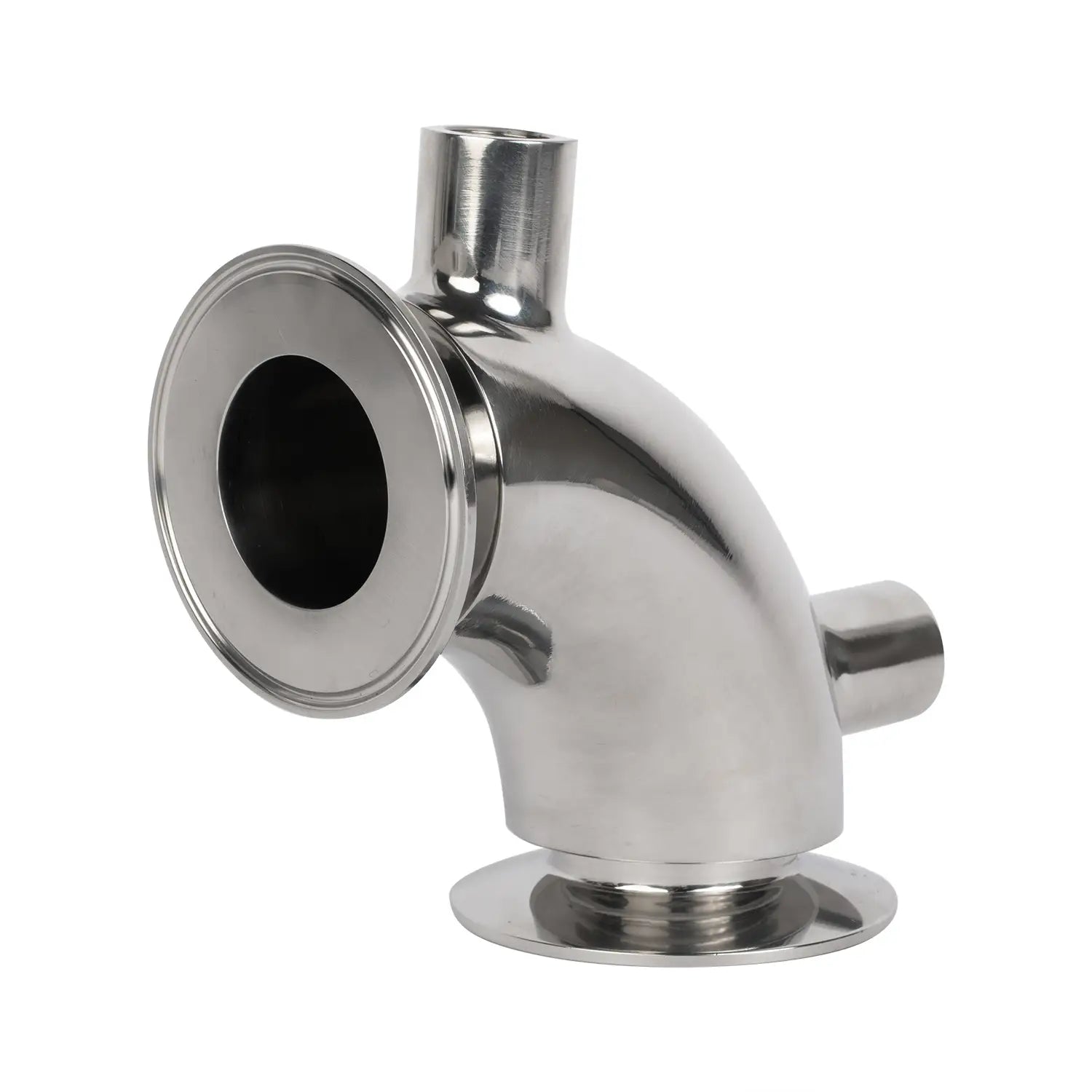

Double Layers for Cooling & Heating

Design Pressure
≤ 10 bar (145 psi)

Working Pressure
5 – 8 bar (72.5 – 116 psi)

External Surface Treatment
Ra 0.8 – 1.6 µm (Ra32 – 64 µin)

Internal Surface Treatment
Ra 0.4 – 0.8 µm (Ra16 – 32 µin)

Support
OEM & ODM available

Certificate
ISO 9001
FDA
SGS
CE

Applications

Food processing systems
Beer and beverage production
Chemical processing pipelines
Biological and pharmaceutical processing
Dairy processing equipment
Cosmetic and sanitary fluid transfer systems
