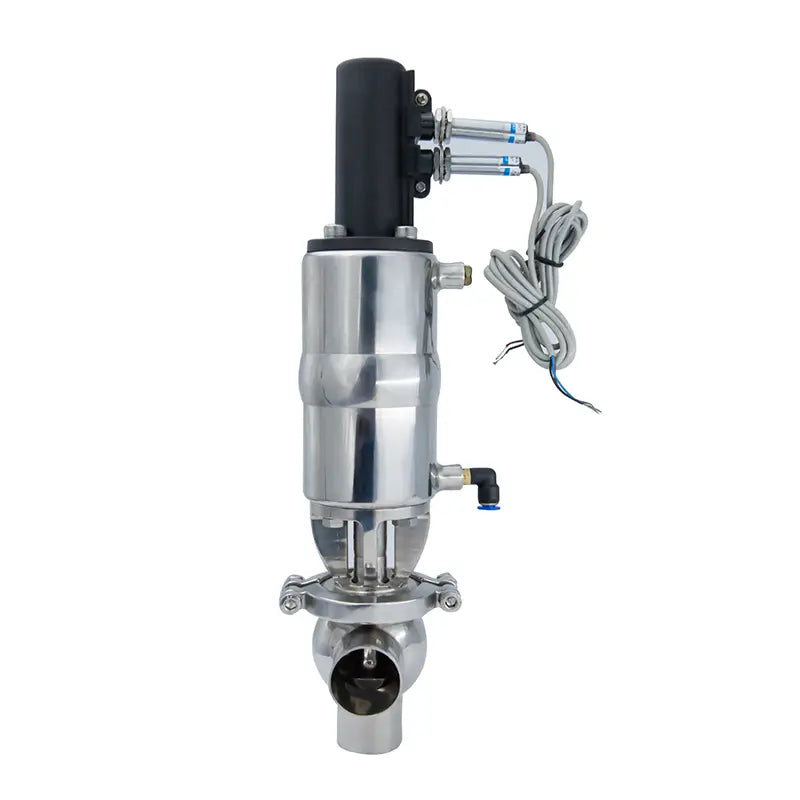

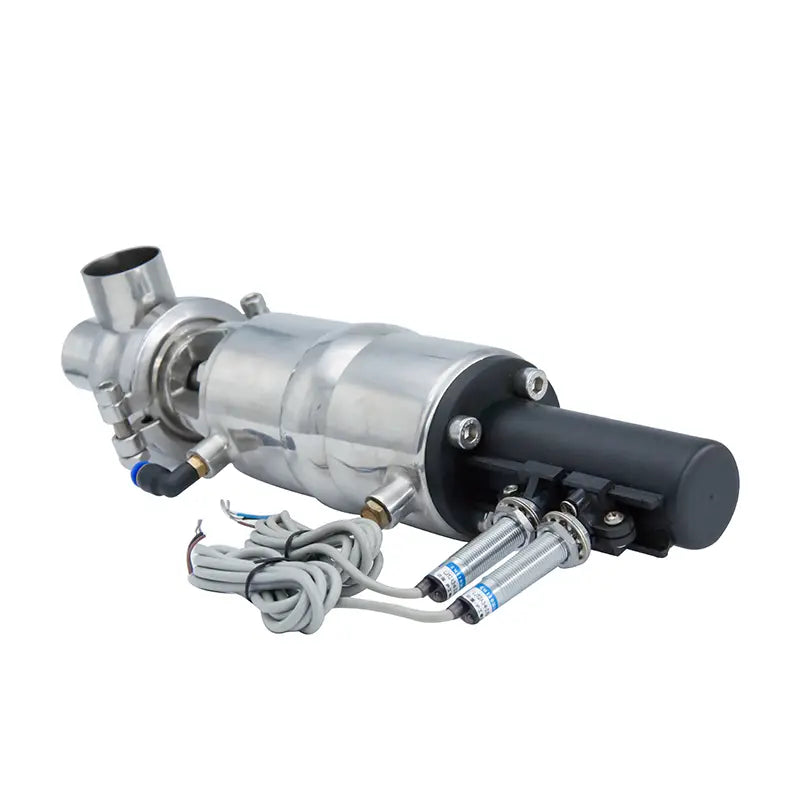

Stainless Steel Sanitation Pneumatic Flow Single Seat Shut-off Valve with Position Sensor

Sanitary pneumatic single seat shut-off valves are designed for hygienic flow control and reliable media isolation in sanitary processing systems. These valves allow operators to control or stop product flow while maintaining strict sanitary standards required in food, beverage, dairy, pharmaceutical, and biotechnology industries.

Manufactured from high-quality stainless steel (SS304 or SS316L), the valve provides excellent corrosion resistance, durability, and reliable sealing performance. The precision-engineered structure ensures smooth operation and dependable shut-off even under demanding processing conditions.

The pneumatic actuator enables automated valve operation, while the integrated position sensor allows real-time monitoring of valve status within automated processing systems. Optional C-Top controllers and additional automation components can be configured depending on process requirements.

Sanitary pneumatic shut-off valves are widely used in beer brewing, beverage production, dairy processing, fruit juice manufacturing, pharmaceutical processing, and biotechnology systems where hygienic flow control and reliable shut-off are essential.

Standard
SMS, DIN, 3A

Material – Contact Parts
SS304 / SS316L (1.4301 / 1.4404)
Material inspection report available

Material – Non-contact Parts
SS304 (1.4301)

Size Range
1/2" – 4" (DN10 – DN100)

Connection Options
Butt Weld
Tri Clamp
Male Thread
Female-Male Thread
Union
Weld-Thread
Flange

Body Combination Models
20 Model, 30 Model
11 Model, 12 Model
21A Model, 22A Model
21 Model, 22 Model
31 Model, 32 Model
111 Model, 112 Model
121 Model, 122 Model
211 Model, 212 Model
221 Model, 222 Model

Power Options
Manual Operation
Stainless Steel Pneumatic Actuator
Position Sensor
C-Top Controller
C-Top Controller (AS-I)

Seal Materials
Silicone
EPDM
FKM
Buna

(All seal materials comply with FDA 21 CFR 177.2600)

Working Pressure
≤ 10 bar (145 psi)

Air Supply Pressure
5 – 8 bar (72.5 – 116 psi)

External Surface Finish
Ra 0.8 – 1.6 μm

Internal Surface Finish
Ra 0.4 – 0.8 μm



Applications

Food Processing
Beverage Production
Dairy Processing
Pharmaceutical Manufacturing
Biotechnology Processing
