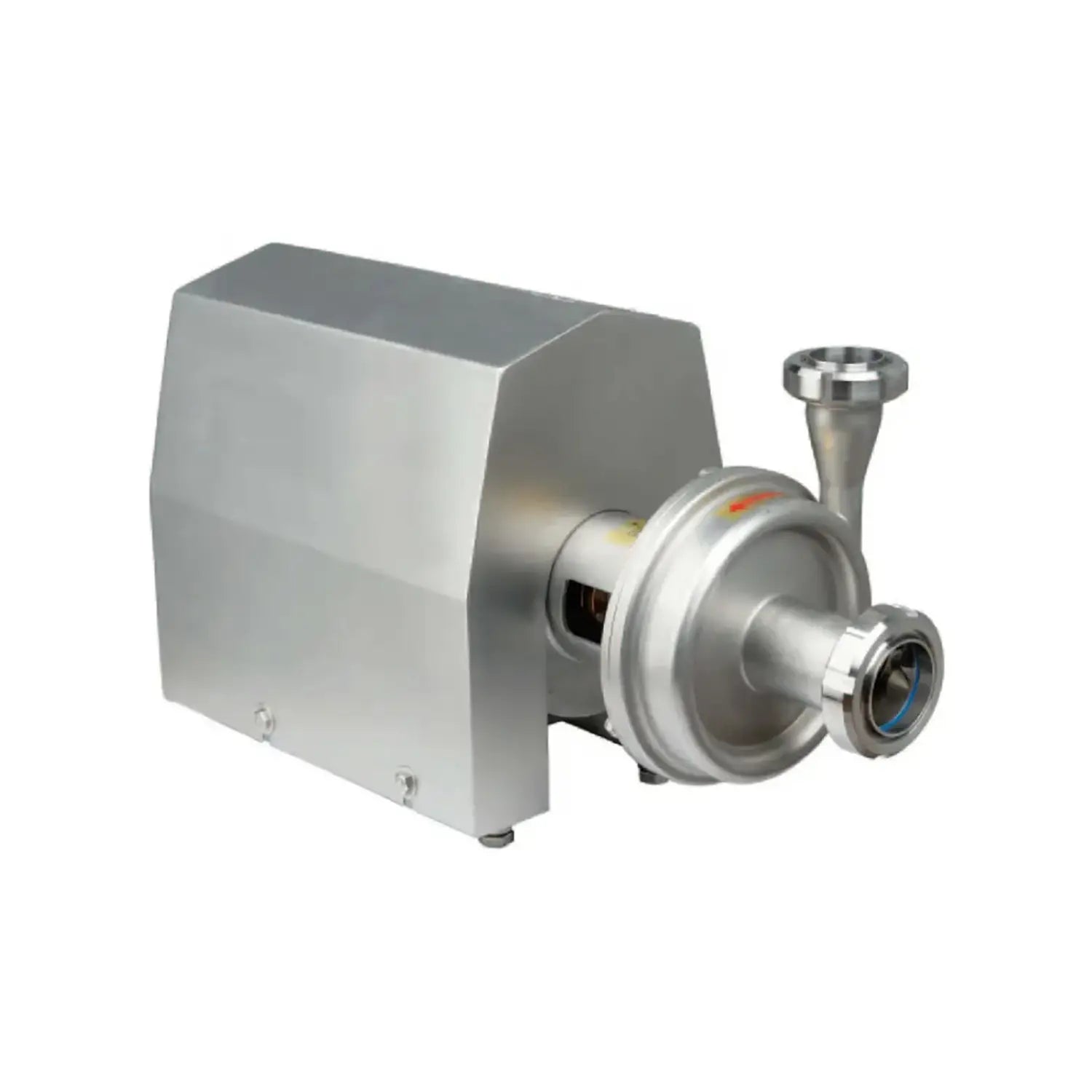

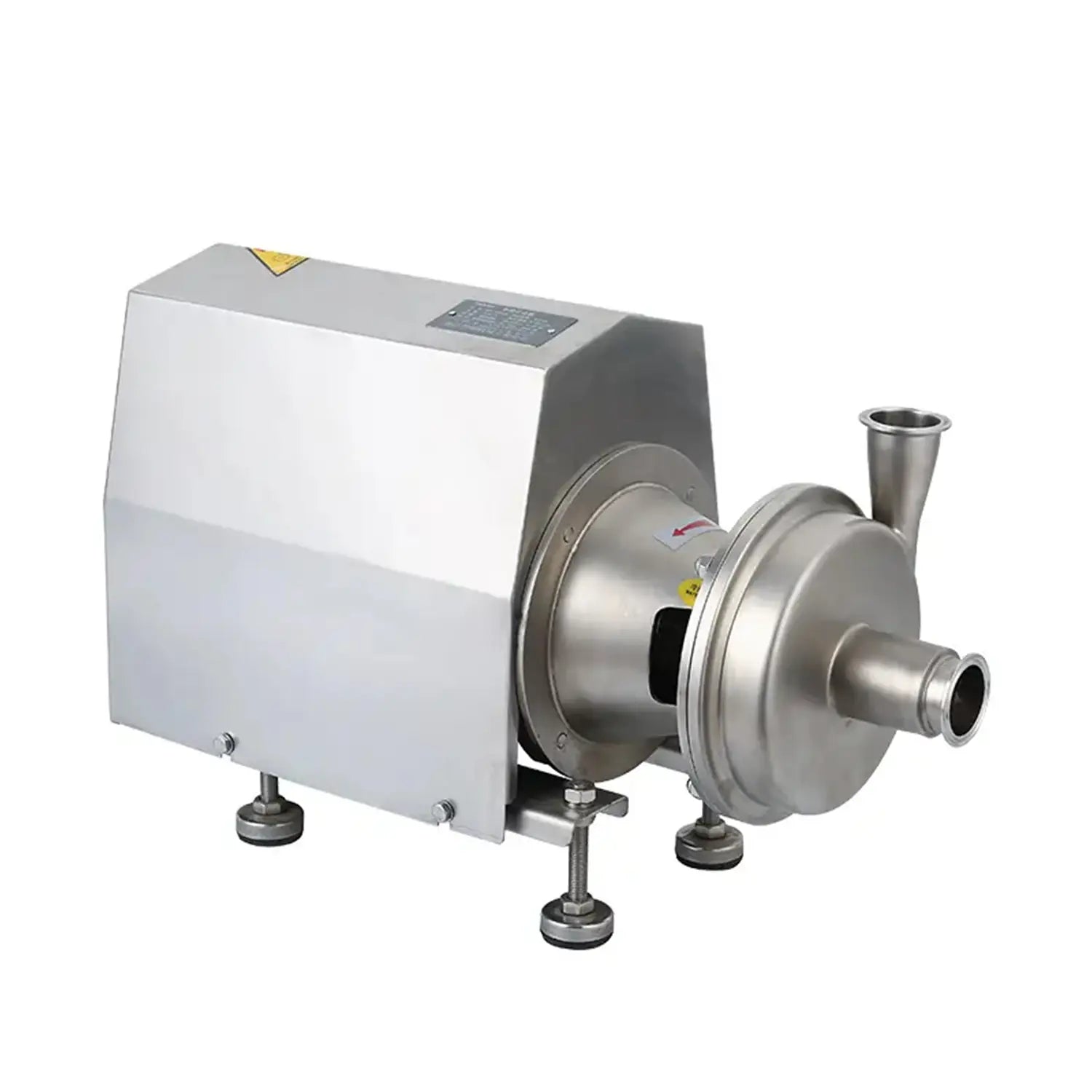

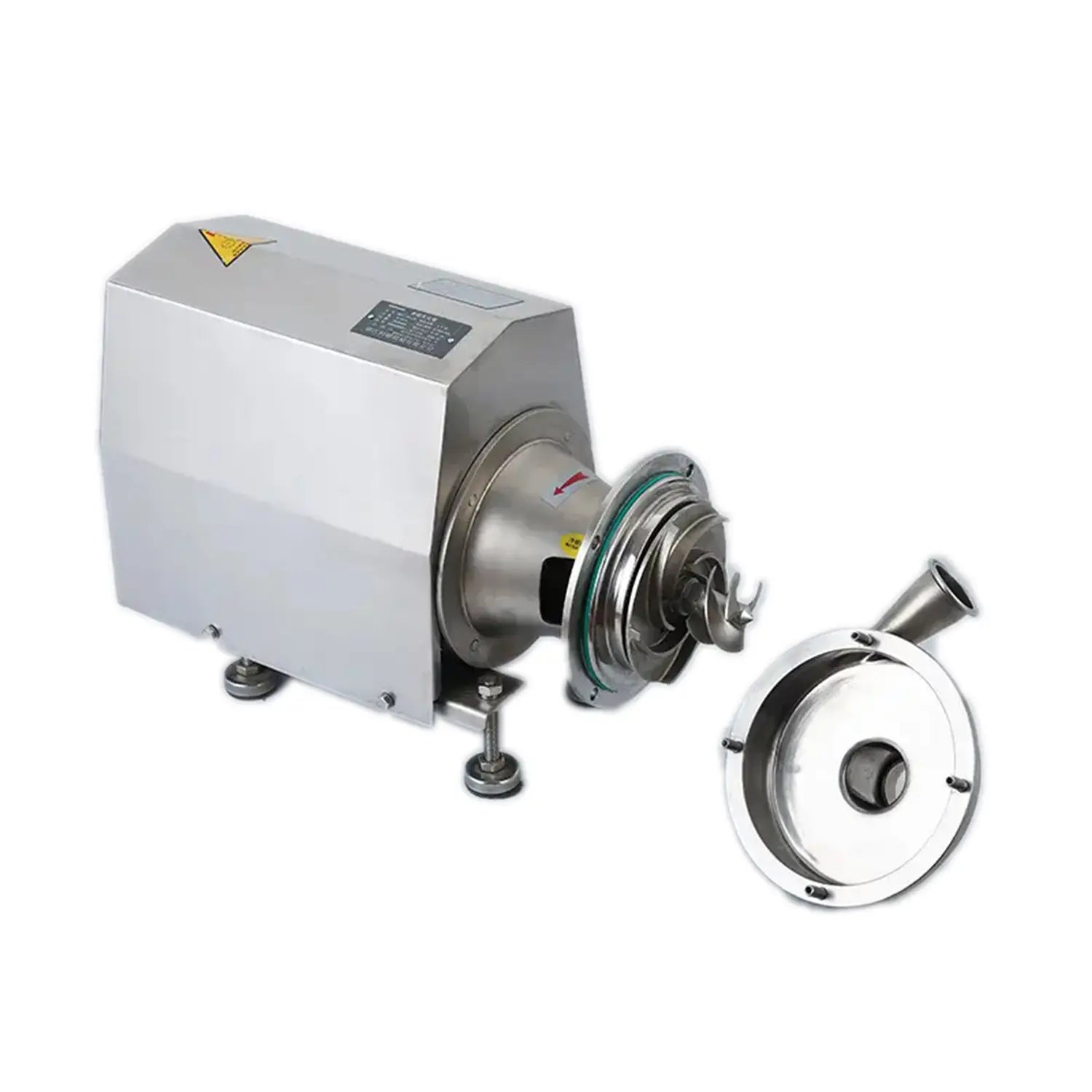

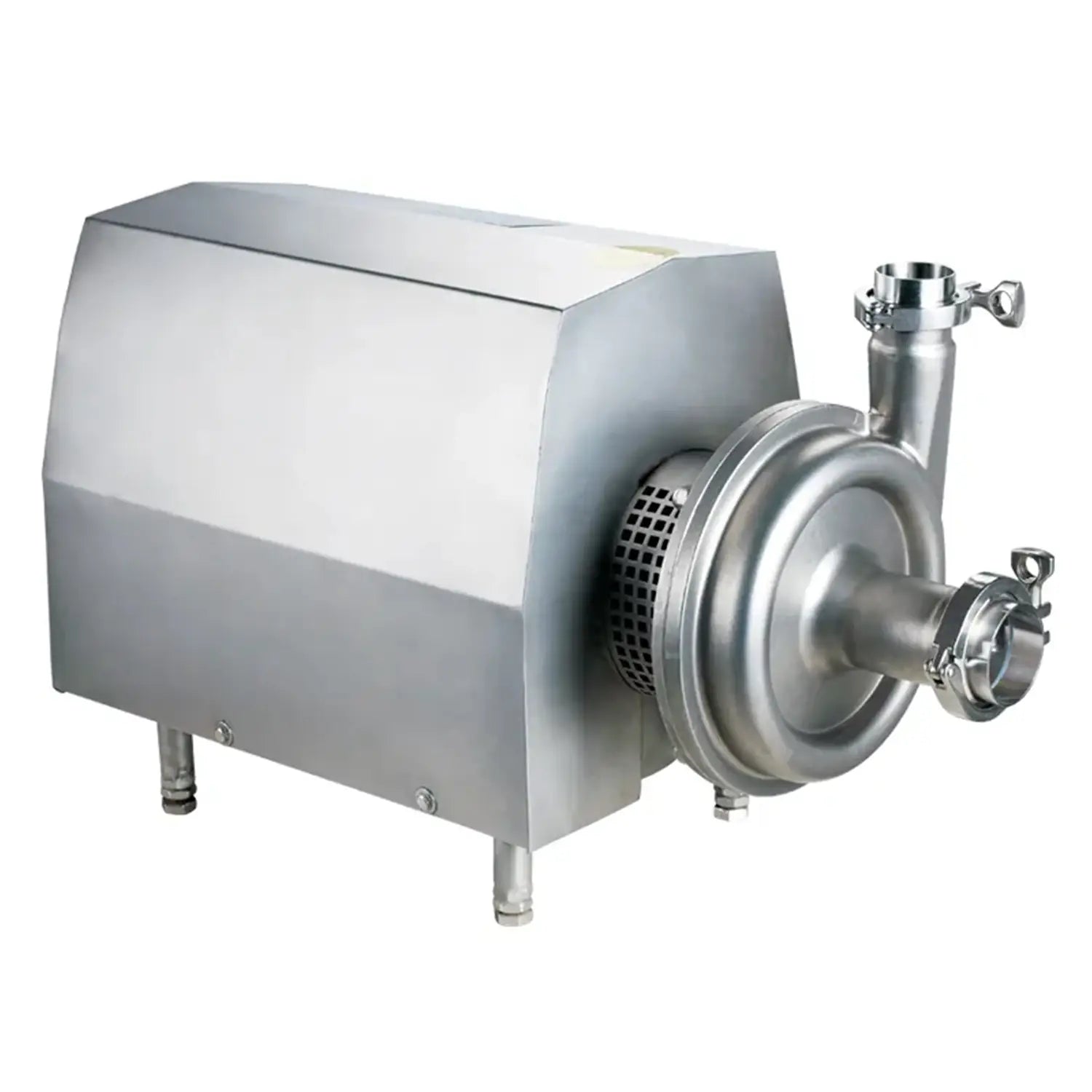

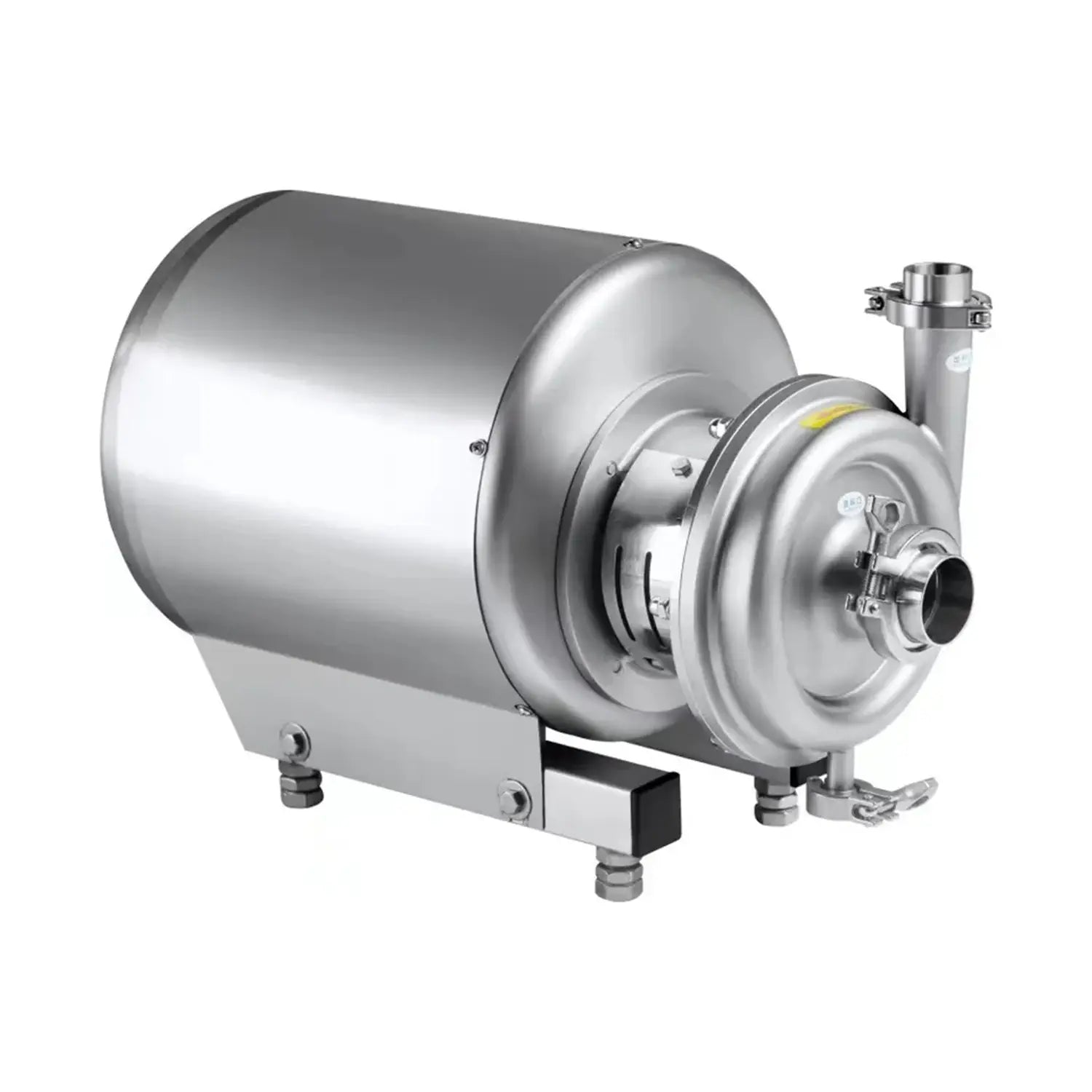

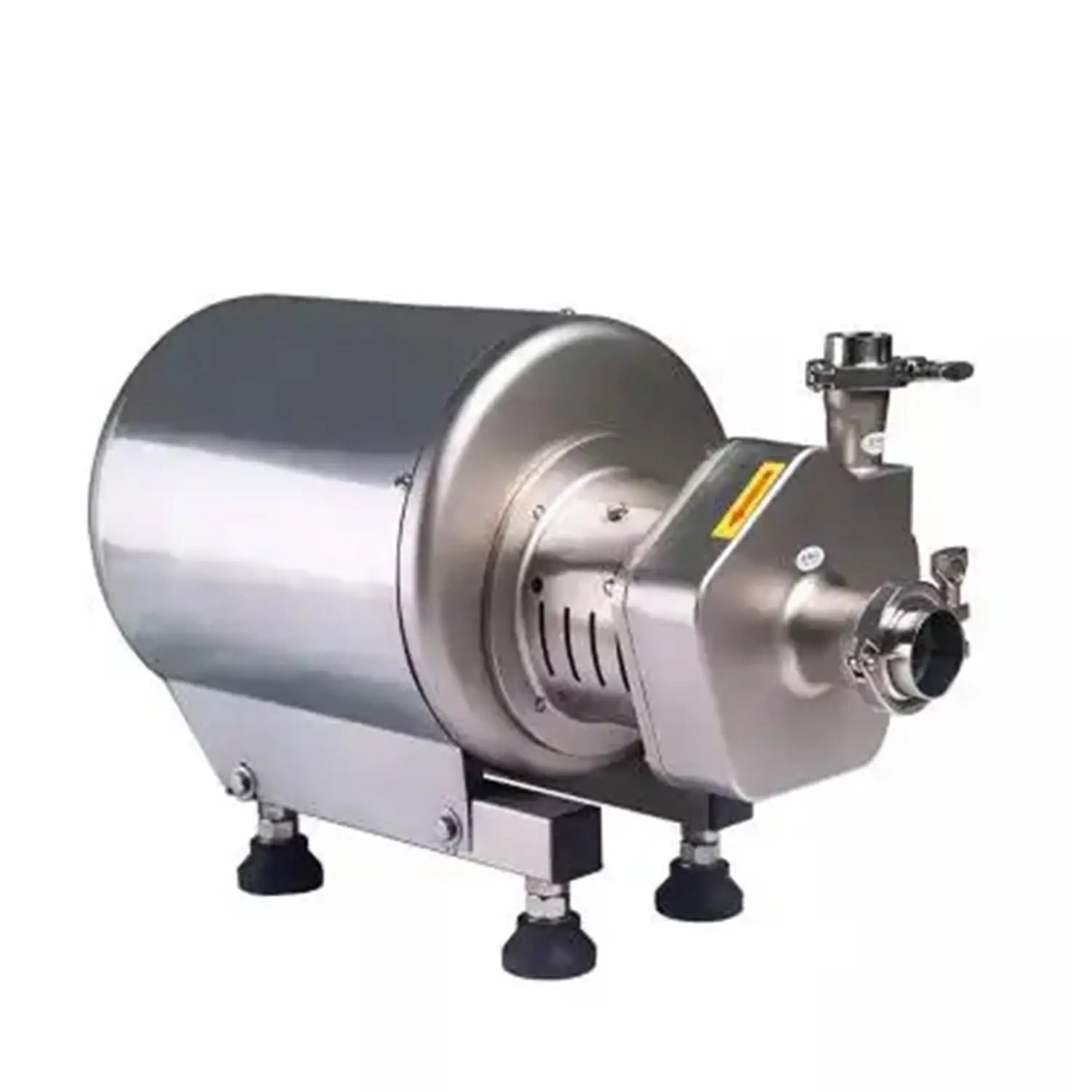

The stainless steel sanitary vacuum negative pressure pump is designed to generate stable vacuum pressure and efficiently transfer liquids or gases in hygienic processing systems. It plays an important role in processes where vacuum conditions are required to maintain product quality and process efficiency.
Manufactured from high-quality stainless steel (SS304 or SS316L), this pump provides excellent corrosion resistance, hygienic construction, and smooth internal surfaces, ensuring reliable operation while maintaining strict sanitary standards.
Sanitary vacuum pumps are widely used in vacuum packaging systems, vacuum drying processes, vacuum distillation, and hygienic fluid transfer applications, delivering stable vacuum performance, efficient operation, and dependable reliability in demanding sanitary production environments.
Material
SS304 / SS316L / 1.4301 / 1.4404
Seal Gasket
EPDM, FPM (Viton), NBR
Max. Flow
140 m³/h
Impeller Type
Open Type Impeller
Semi-Closed Type Impeller
Max. Pressure
0.5 MPa
Temperature Range
-10 ~ 140 °C (14 ~ 284°F)
Motor Power
1.5 kW ~ 30 kW
Mechanical Seal
SIC/C/EPDM (Standard), C/SIC, TC/TC
Voltage
110 V, 220 V, 380 V
Motor
ABB / SIEMENS
Motor Frequency
50 Hz, 60 Hz
Available Connection
Clamped, Threaded, Flanged
Applications
Vacuum Packaging Systems
Vacuum Drying Processes
Vacuum Distillation Systems
Food Processing Equipment
Pharmaceutical Manufacturing
Biotechnology Processing Systems
Hygienic Liquid and Gas Transfer Systems
