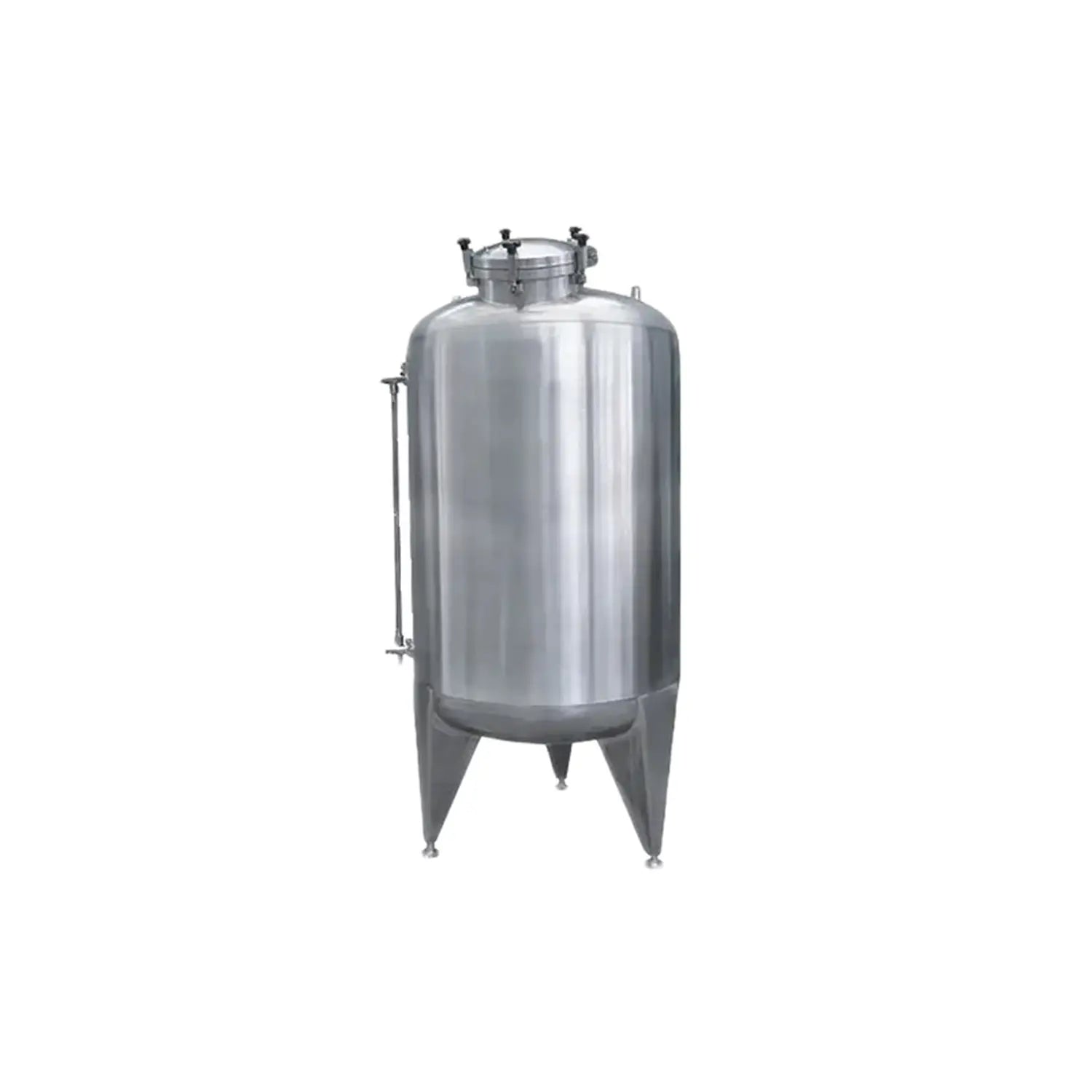

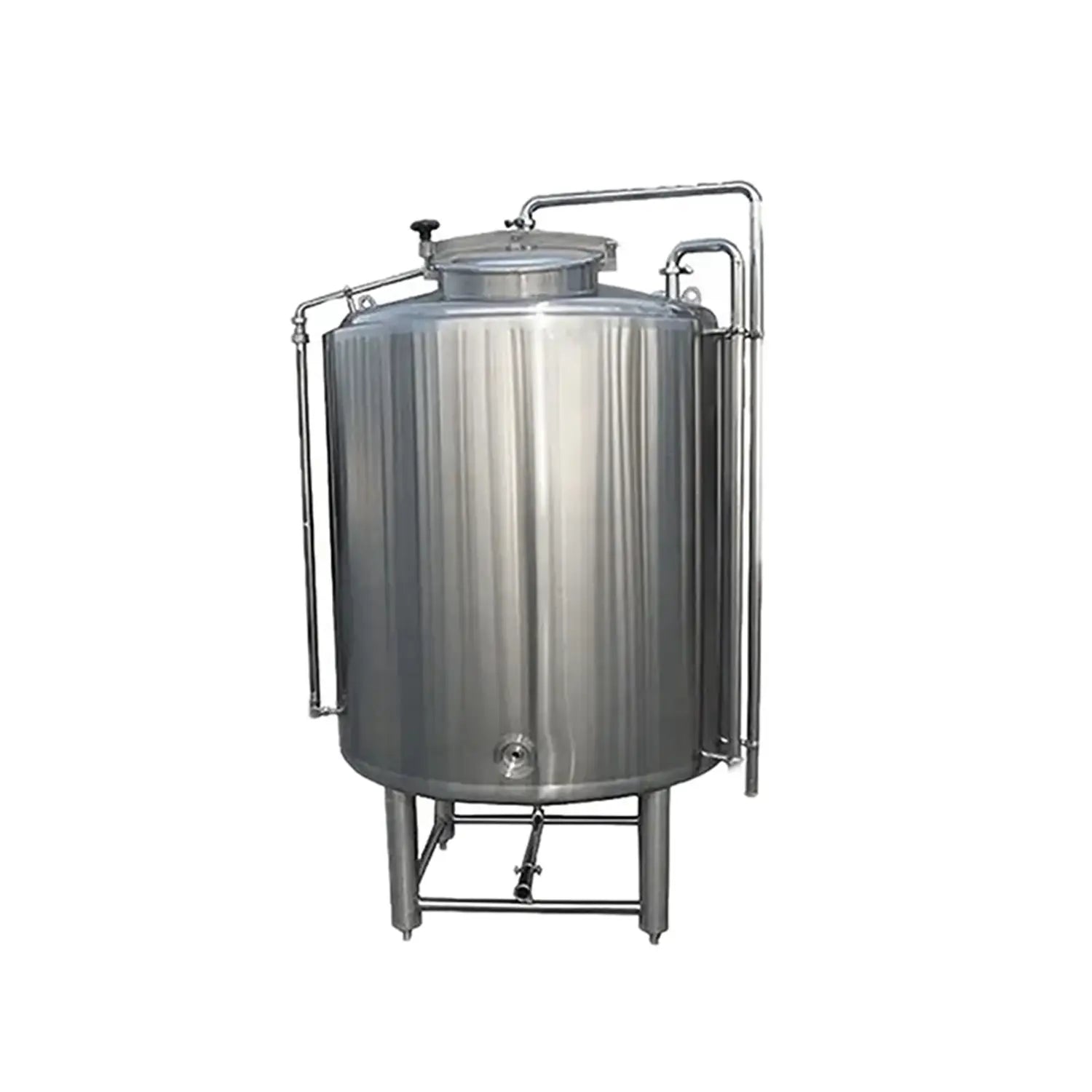

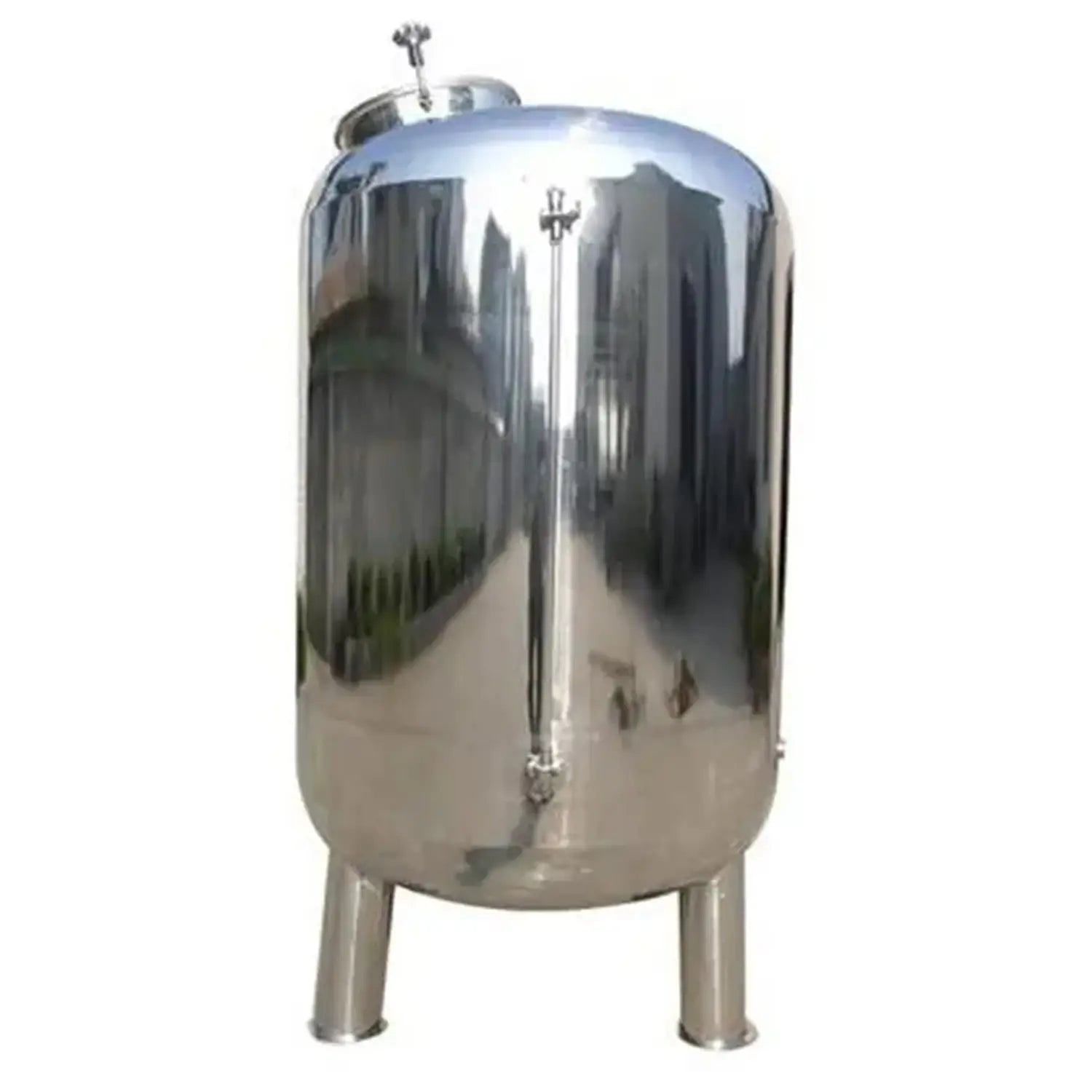

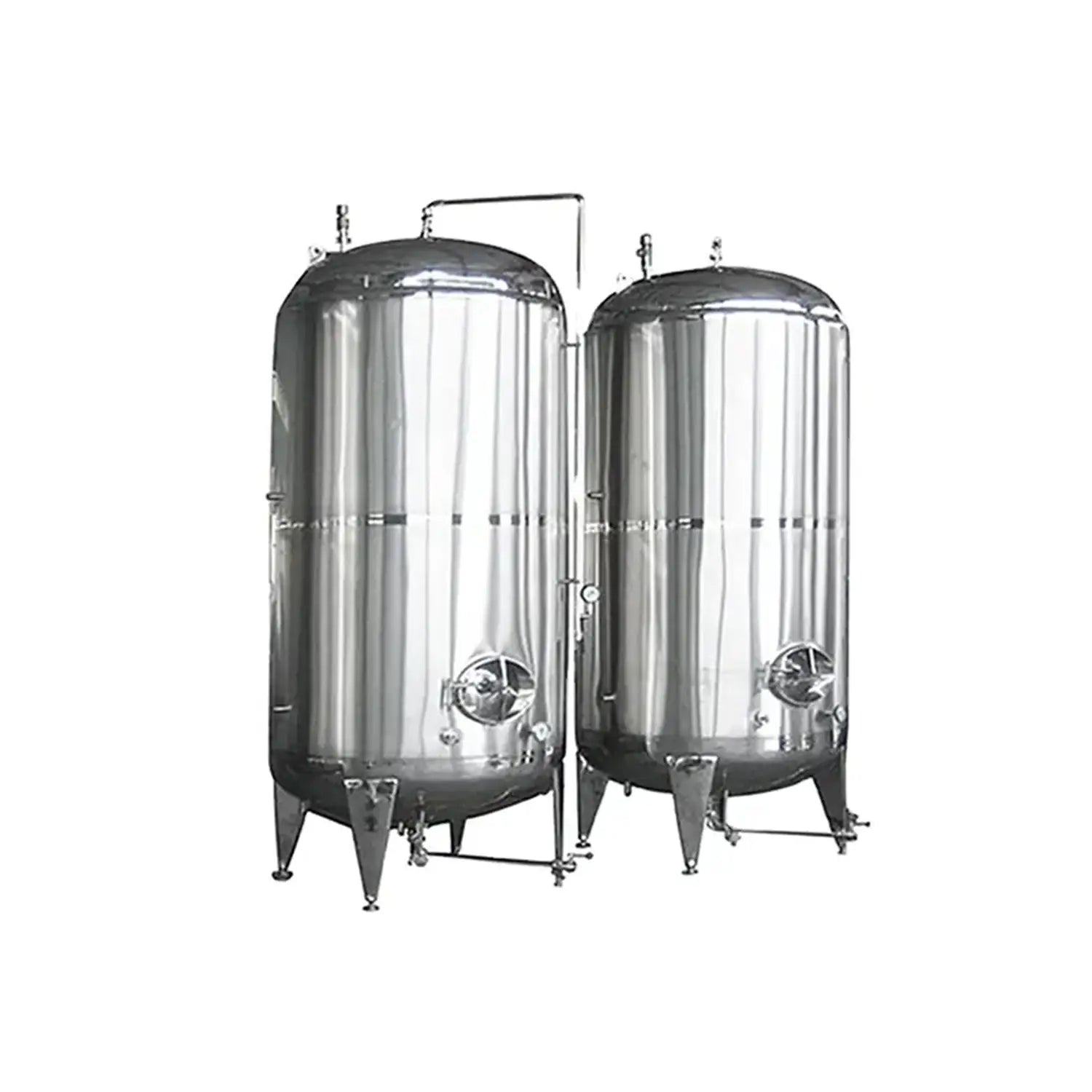

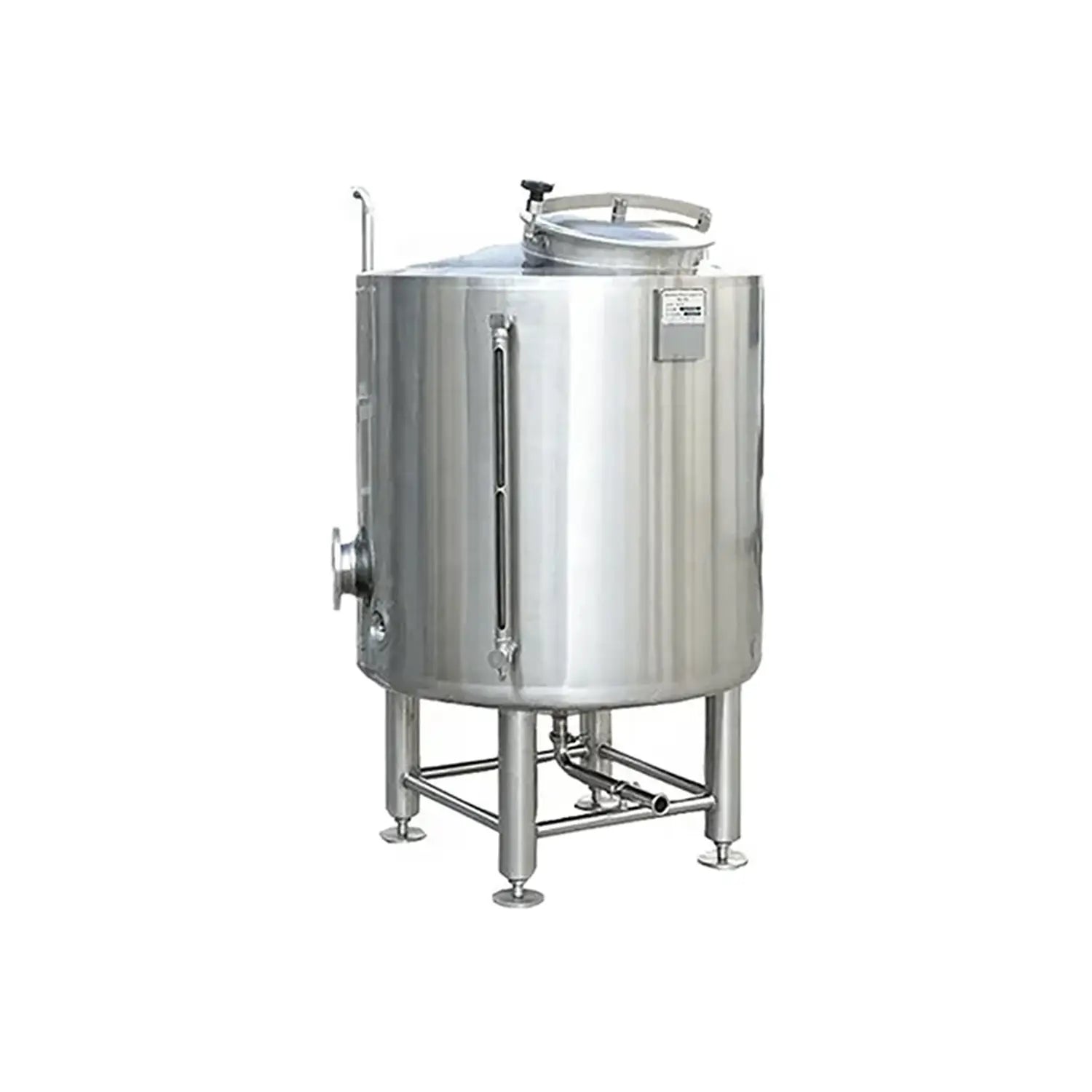

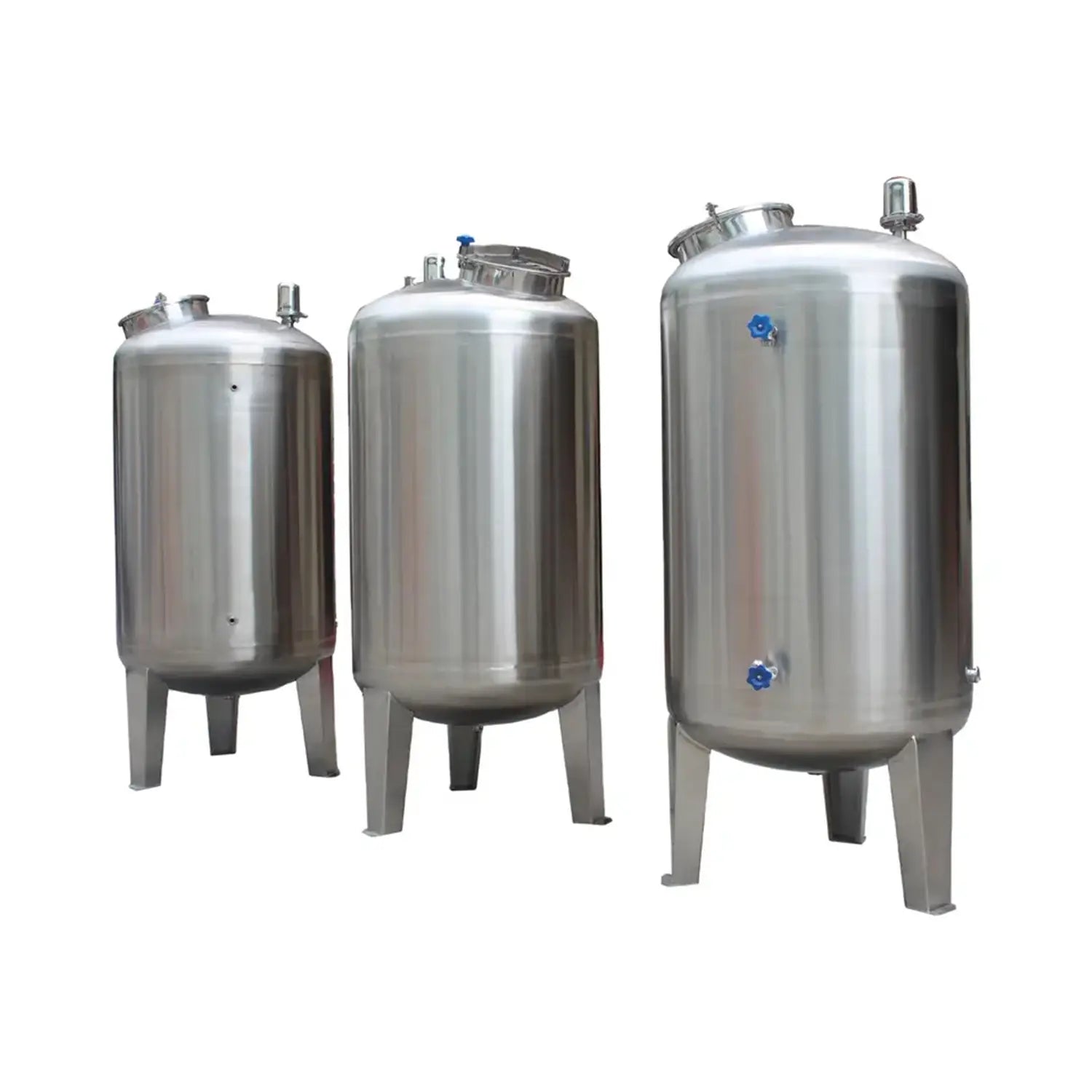

Stainless Steel Sanitary Single Layer Storage Tank SS304 SS316L

The stainless steel sanitary storage tank is designed for safe, hygienic, and reliable storage of liquids and semi-liquid products in industries that require strict sanitary standards. It is widely used in food and beverage, pharmaceutical, dairy, and cosmetic processing systems where maintaining product purity and preventing contamination are essential.

Manufactured from high-quality stainless steel such as SS304 or SS316L, these storage tanks provide excellent corrosion resistance, smooth internal surfaces, and durable structural strength. The hygienic construction allows for easy cleaning, sterilization, and long-term operation in demanding processing environments.

Sanitary storage tanks can be equipped with various accessories such as agitators, CIP cleaning systems, manholes, sight glasses, and insulation jackets, allowing them to meet the operational requirements of different production processes while ensuring stable storage conditions and efficient system integration.

Product Name
Sanitary Stainless Steel Storage Tank

Material
Stainless Steel, Austenitic Stainless Steel 304 / 316L
With or without insulating material

Tank Shell Thickness
Minimum 3mm (depending on design or customer requirements)

Design Working Pressure
-0.1 ~ 1.6 MPa
(According to China national standards, higher values possible for special applications)

Design Working Temperature
-4 ~ +150°C (24.8 ~ 302°F)

General Accessories (Optional)
Manhole
CIP Cleaning System
Breather / Respirator
Sight Glass
Mixing System (Top, Side, or Bottom)

Surface Finish
Mirror or Matte Polish
Ra < 0.4 µm

Capacity Range
50L – 20,000L

Type of Jacket (Optional)
Dimple Jacket
Coil Jacket
Barrel Jacket

Type of Insulation
Polyurethane Foam
Thermal Insulation Rock Wool
Pearl Particles

Internal Surface Finish
Mirror Polish Ra 0.28 µm – 0.45 µm

Agitator Speed Options
15 – 120 r/min
0 – 200 rpm
0 – 400 rpm

Applications

Food and Beverage Processing
Dairy Processing Systems
Pharmaceutical Manufacturing
Cosmetic Production
Chemical Processing
Biotechnology Processing Systems
Liquid Ingredient Storage Systems
