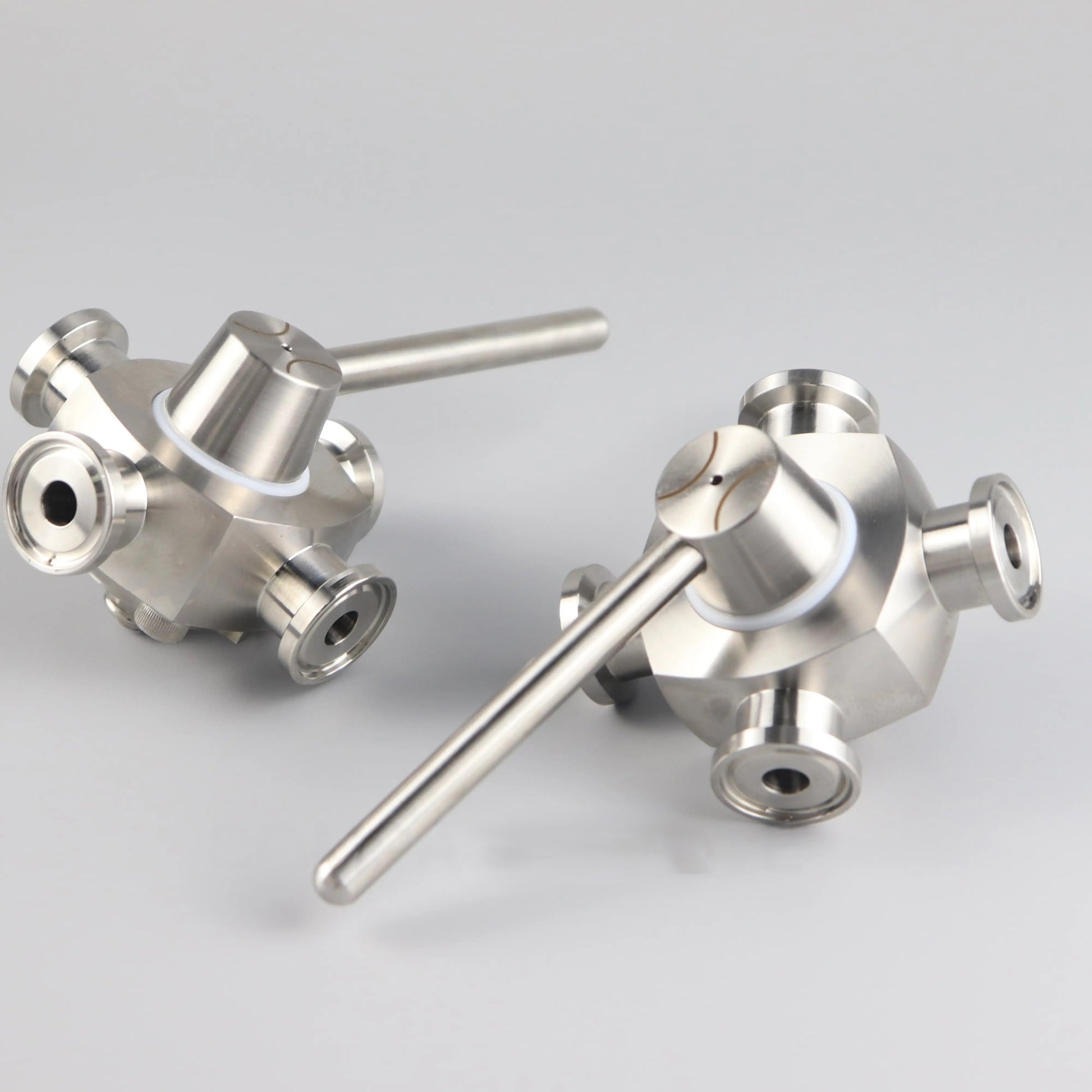

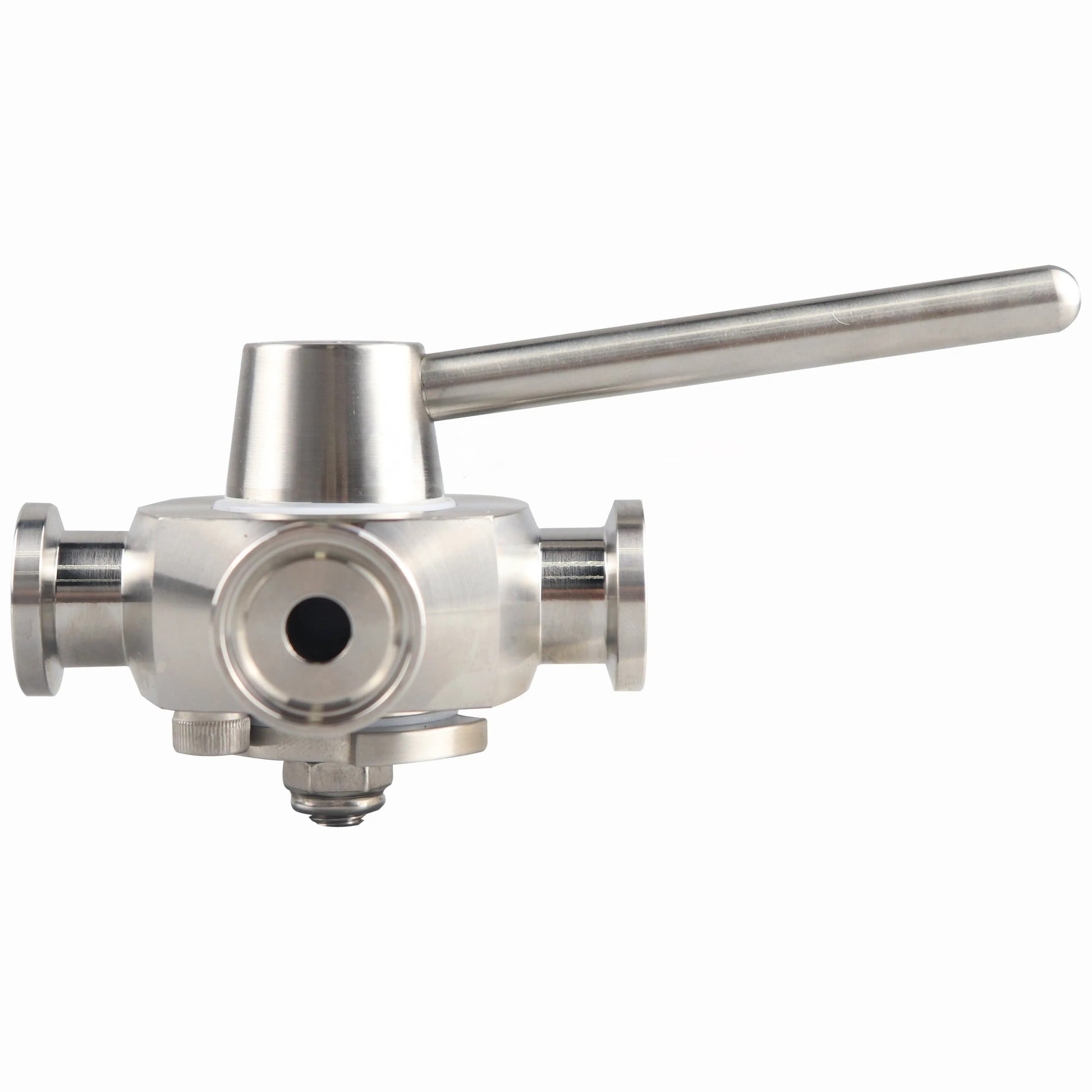

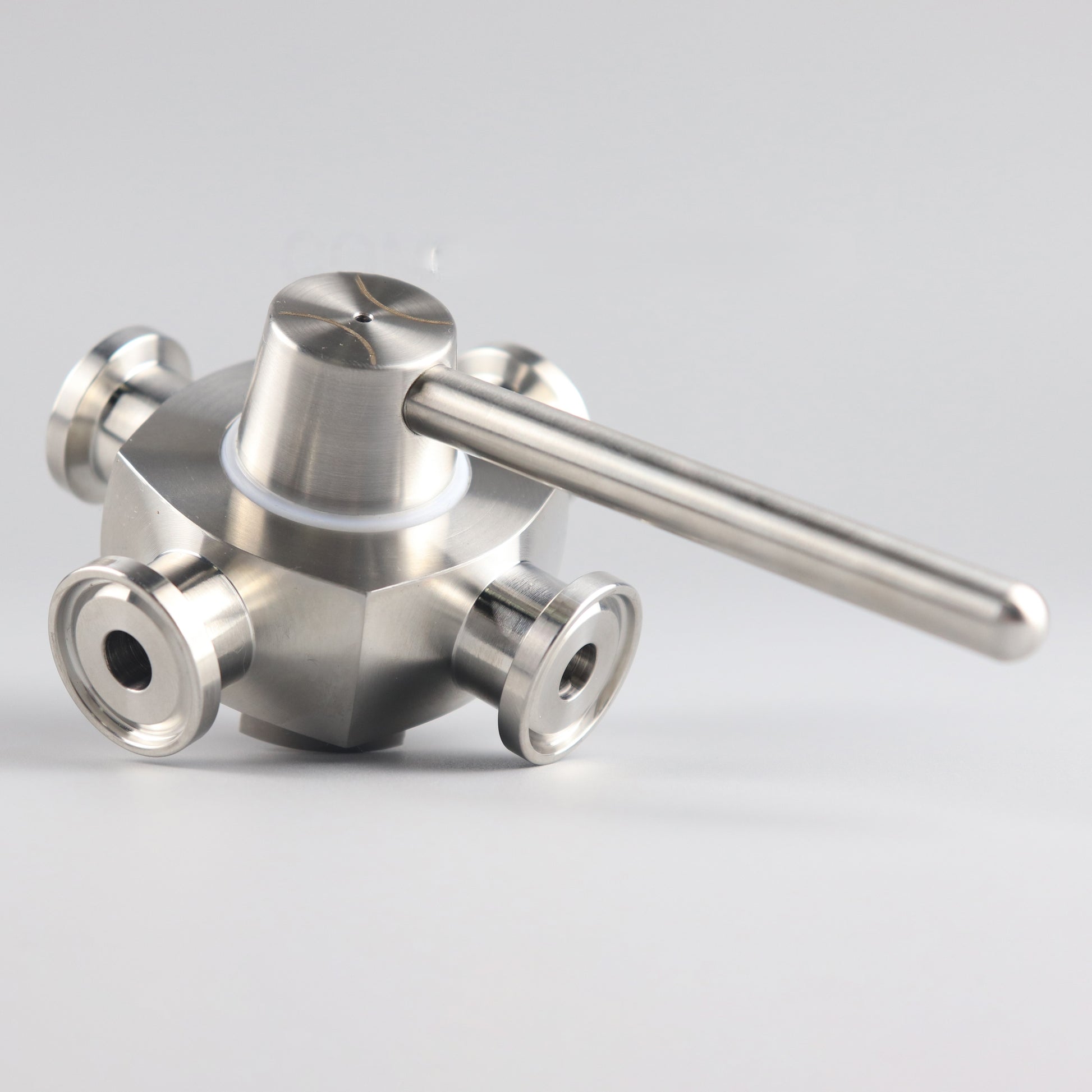

Stainless Steel Sanitary Forging Four Ways Plug Valve

Stainless steel sanitary forging four-way plug valves are designed to provide precise multi-directional flow control in hygienic processing systems. The four-way configuration allows operators to redirect or isolate fluid flow between multiple pipeline connections, improving system flexibility and operational efficiency.

Manufactured from high-quality stainless steel (SS304 or SS316L), the valve offers excellent corrosion resistance, hygienic construction, and reliable sealing performance. The forged body structure ensures high mechanical strength and durability in demanding sanitary processing environments.

Sanitary plug valves are widely used in food processing, beverage production, pharmaceutical manufacturing, biotechnology processing, and water treatment systems, where reliable flow switching and hygienic operation are essential for maintaining product quality and system safety.

Standard
SMS, 3A

Material Contact Parts
SS304 / SS316L (1.4301 / 1.4404) — Provided with material inspection report

Size
1/4”, 1/2”

Connection
Butt Weld, Tri Clamp, Male Threaded, Female Threaded, Union

Seal Material
PTFE — Seal material complies with FDA21CFR117.2600

Drive Option
Manual Stainless Steel Handle

Max. Working Pressure
≤10 bar (145 psi)

Min. Working Pressure
0.2 bar (2.9 psi)

Supply Pressure for Air Actuator
5 ~ 8 bar (72.52 psi ~ 116 psi)

External Surface Treatment
Ra32 ~ 64uin (0.8 ~ 1.6um)

Internal Surface Treatment
Ra16 ~ 32uin (0.4 ~ 0.8um)

Temperature Range
-10 ~ 150 ℃ (14°F ~ 302°F)

Status Display

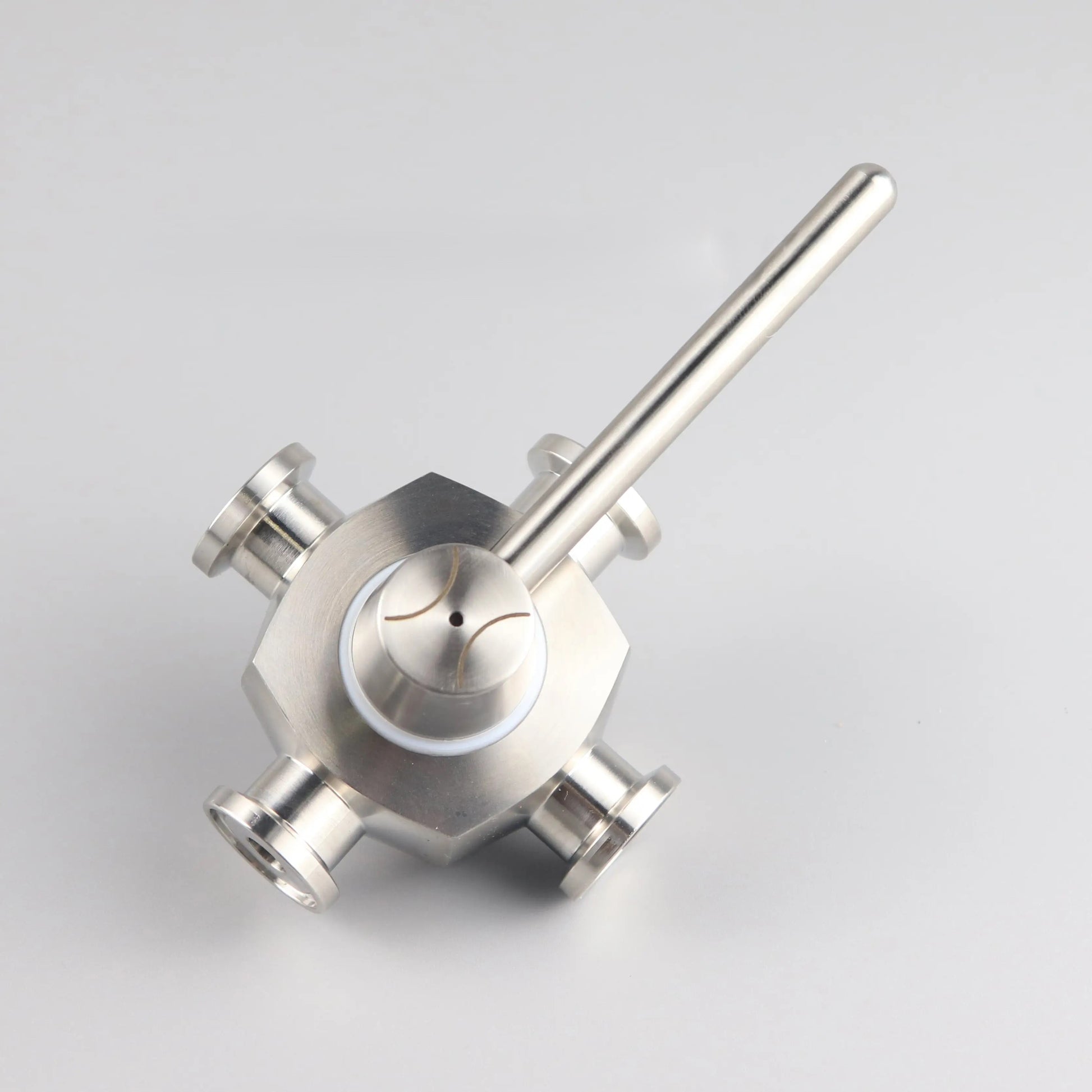

The position of the scale line on the valve indicates the connected flow position.

Certificate
ISO 9001, FDA, SGS, CE

Support
OEM & ODM Available

Applications
Food Processing Systems
Beverage Production Lines
Pharmaceutical Manufacturing
Biotechnology Processing
Water Treatment Systems
Alcohol Processing Equipment
