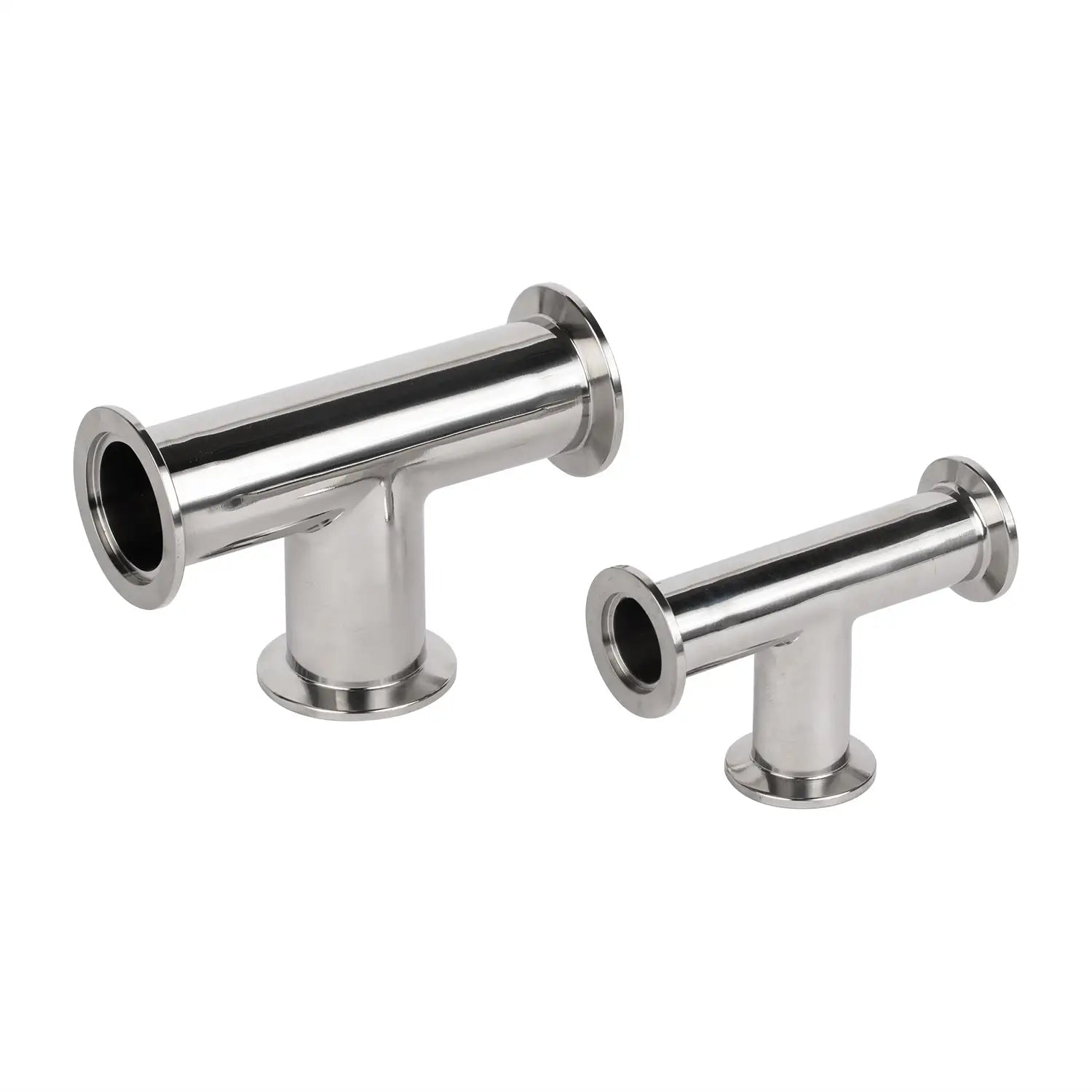

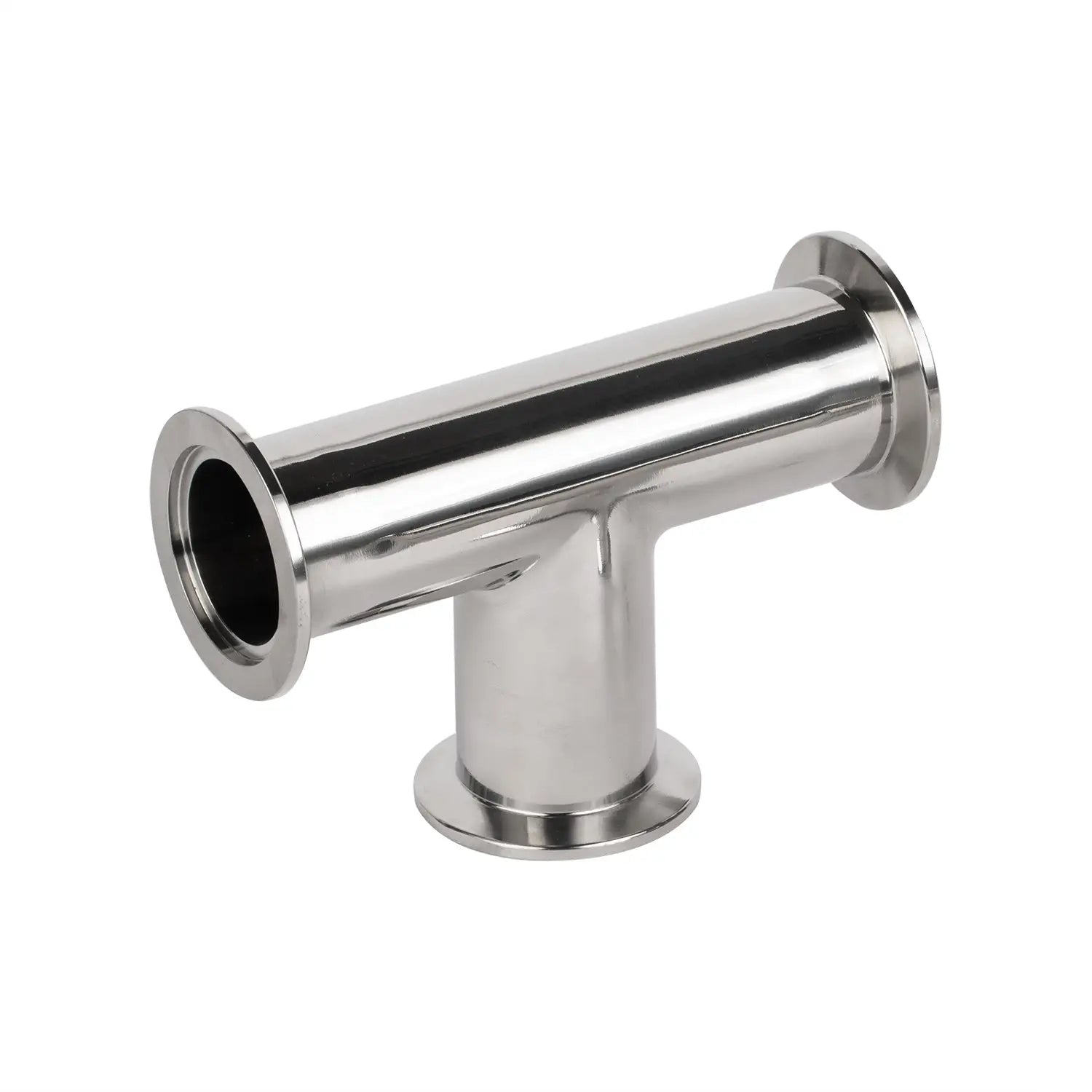

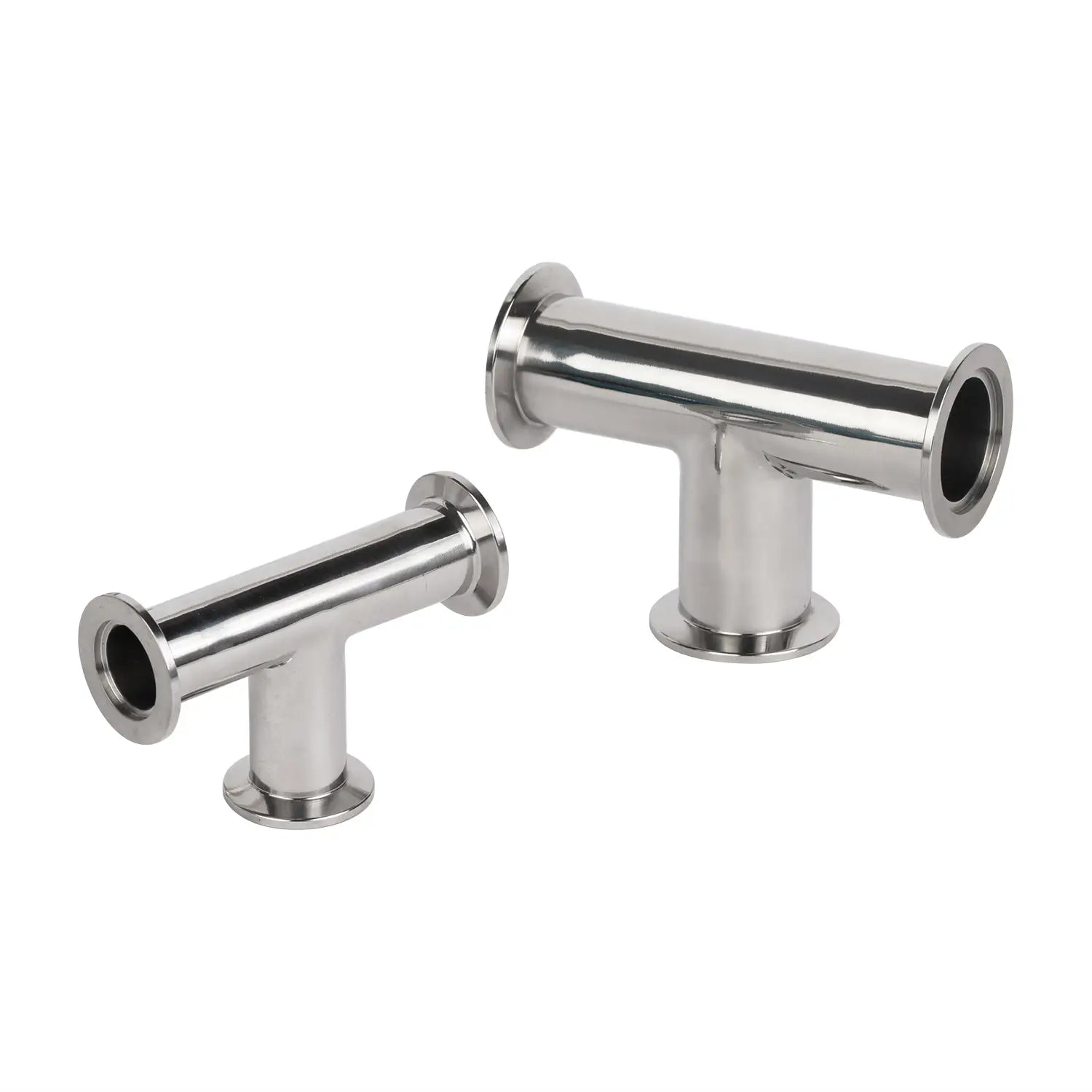

The stainless steel sanitary equal tee is designed to connect and branch pipelines in hygienic fluid processing systems, allowing the main pipeline to divide into two directions while maintaining smooth internal flow and sanitary standards. It plays an essential role in building efficient and flexible piping networks used in sanitary industries.
Manufactured from high-quality stainless steel such as SS304 or SS316L, this sanitary tee offers excellent corrosion resistance, strong structural integrity, and long service life. The precision-polished internal surface ensures clean fluid flow while minimizing the risk of contamination and residue buildup.
Available in a wide size range from 1/2” to 12” (DN10–DN300) and compliant with international sanitary standards, the fitting supports multiple connection types to suit various system configurations. Its hygienic design makes it suitable for environments that require strict cleanliness, durability, and reliable fluid distribution.
Standard
SMS
DIN
3A
ISO / IDF
AS
BS
BPE
Material (Contact Parts)
SS304 (1.4301)
SS316L (1.4404)
Material inspection report provided
Material (Non-contact Parts)
SS304 (1.4301)
Shape Option

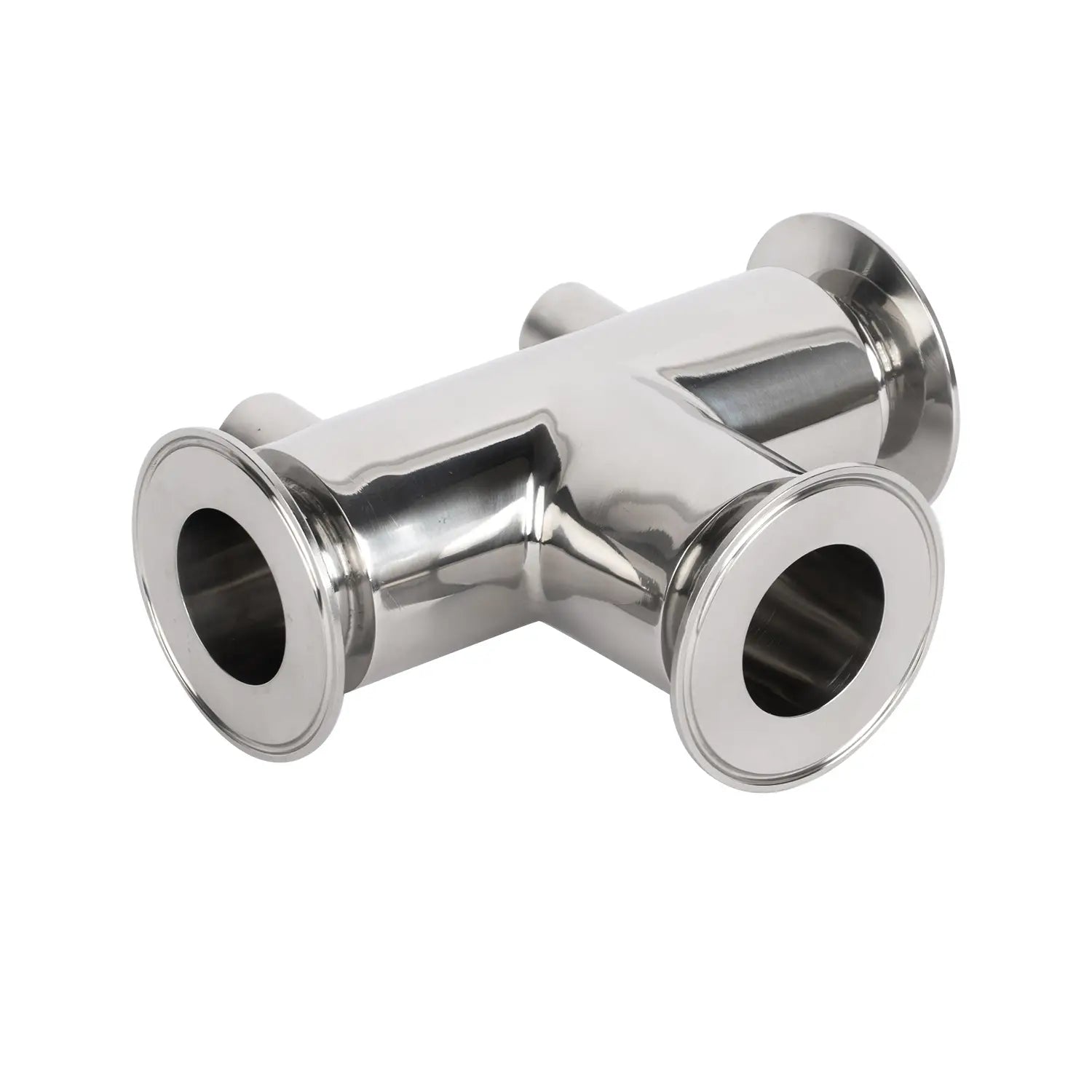

Equal Cross
Reducing Cross
Short Cross
Size
1/2" – 12"
DN10 – DN300
Wall Thickness
1.2 mm
1.5 mm
2 mm
2.5 mm
3 mm
4 mm
Connection
Vacuum
Butt Weld
Tri Clamp
Female
Male
Union
Flange
Polish Surface
Mirror
Matte / Brush
Electrolytic
Layer
Single Layer
Double Layers for Cooling & Heating
Design Pressure
≤ 10 bar (145 psi)
Working Pressure
5 – 8 bar (72.5 – 116 psi)
External Surface Treatment
Ra 0.8 – 1.6 µm (Ra32 – 64 µin)
Internal Surface Treatment
Ra 0.4 – 0.8 µm (Ra16 – 32 µin)
Support
OEM & ODM available
Certificate
ISO 9001
FDA
SGS
CE
Applications
Food processing systems
Beer and beverage production
Chemical processing pipelines
Biological and pharmaceutical processing
Dairy processing equipment
Cosmetic and sanitary fluid transfer systems
