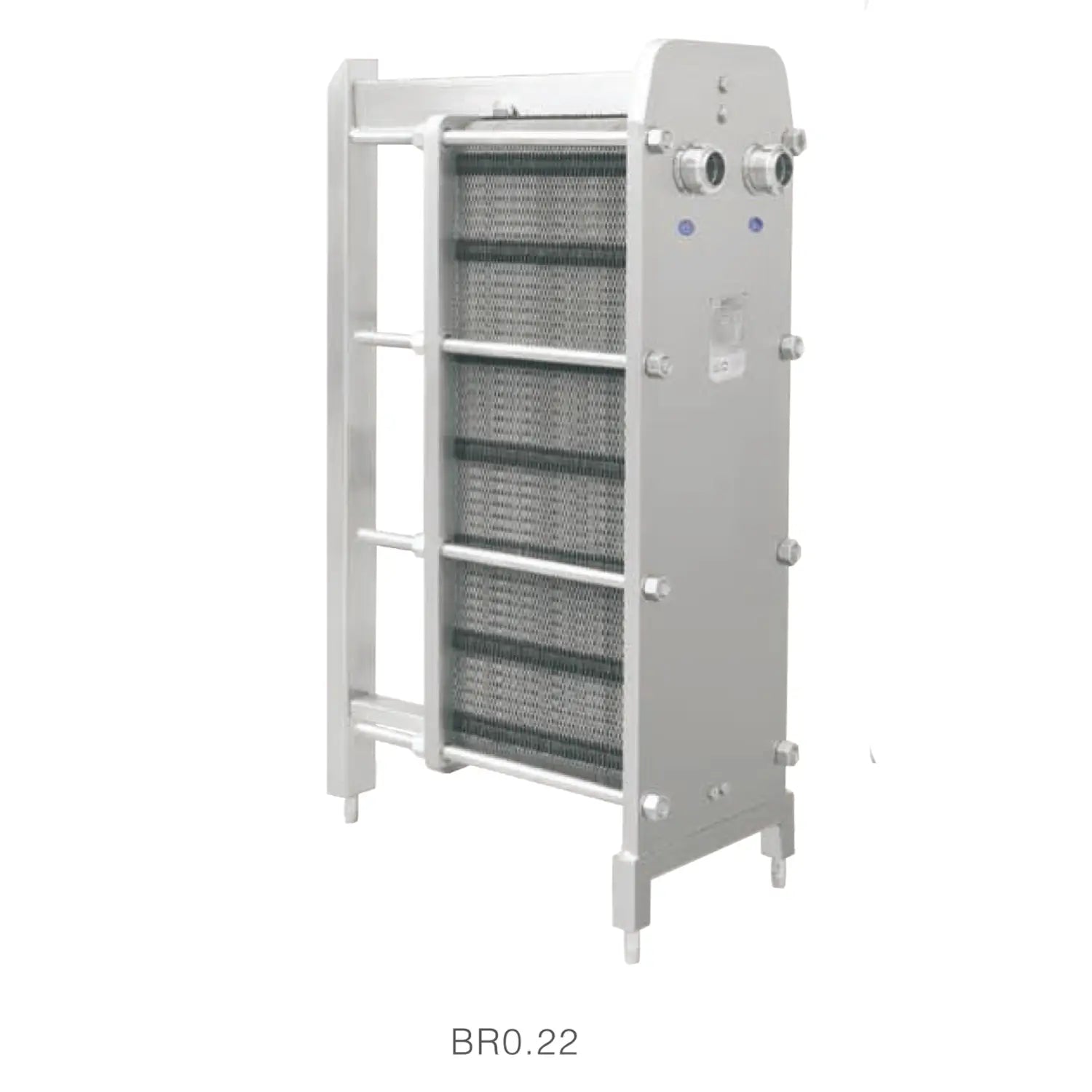

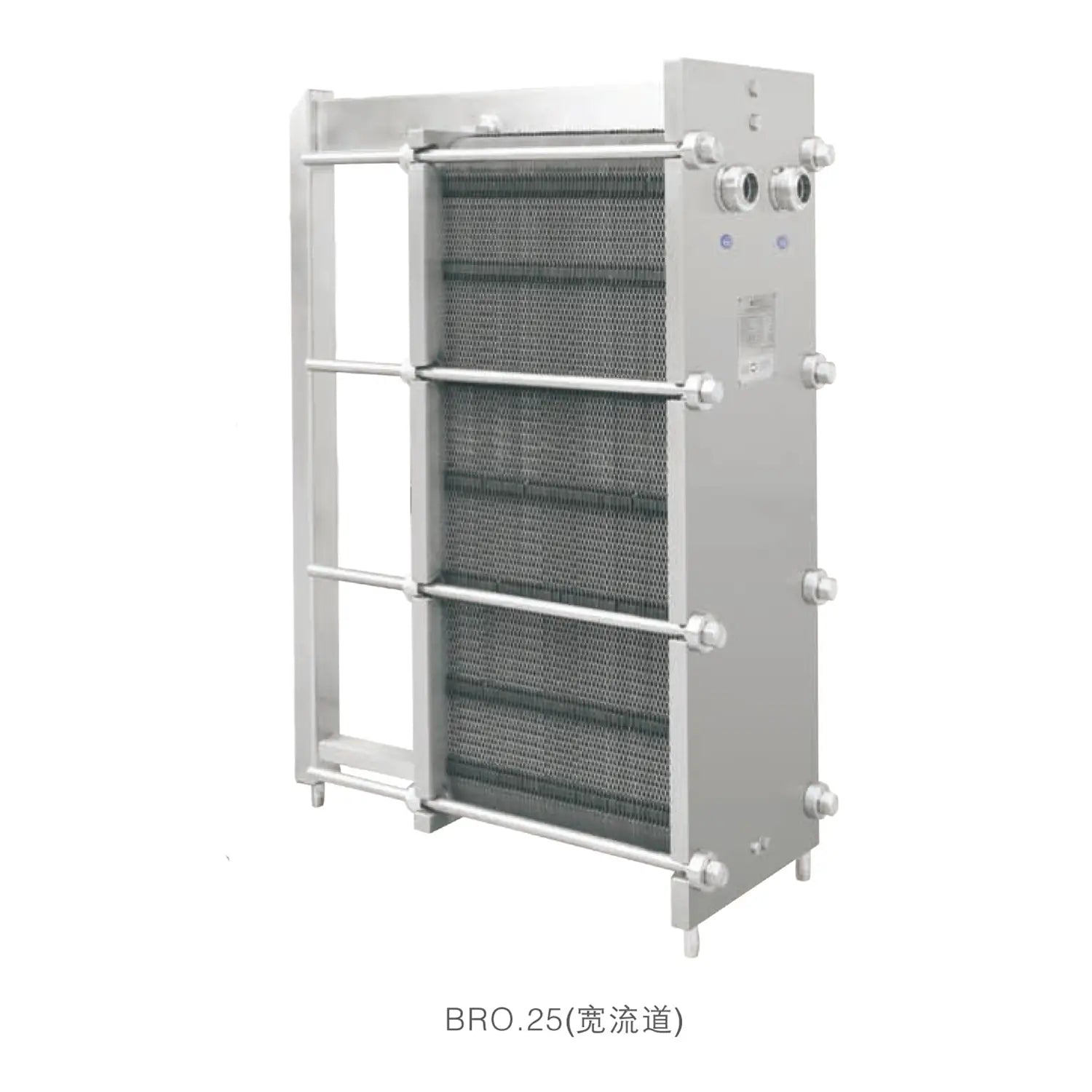

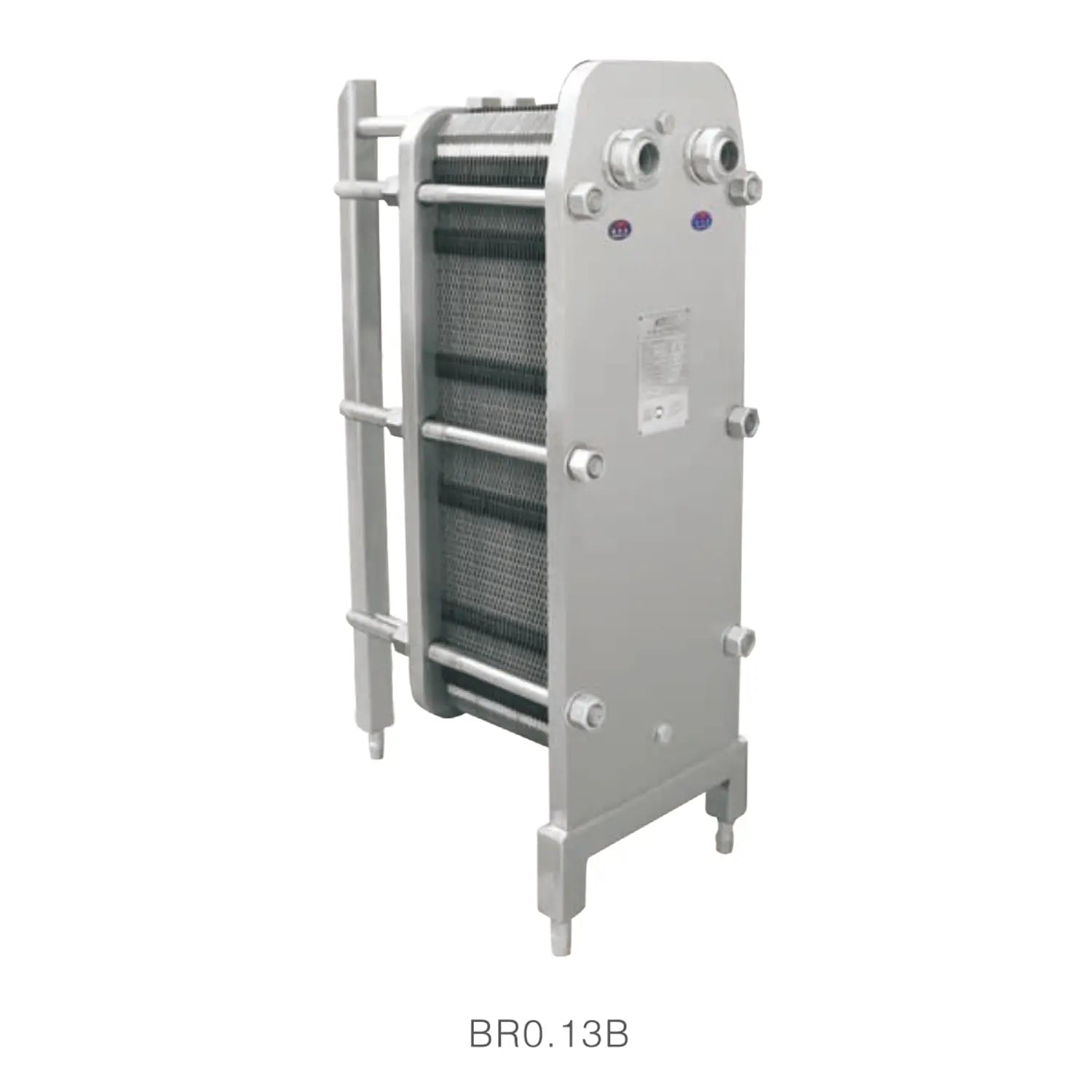

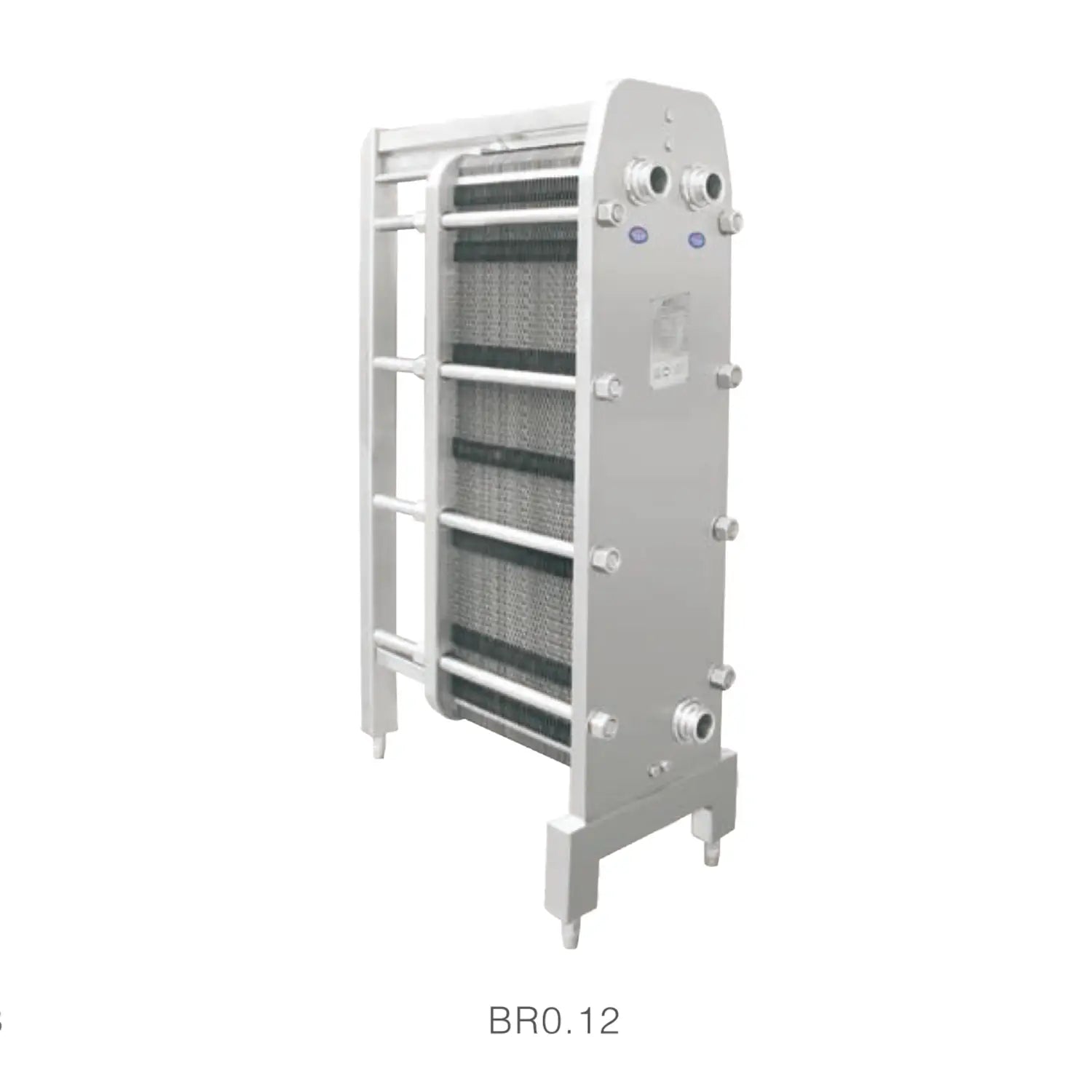

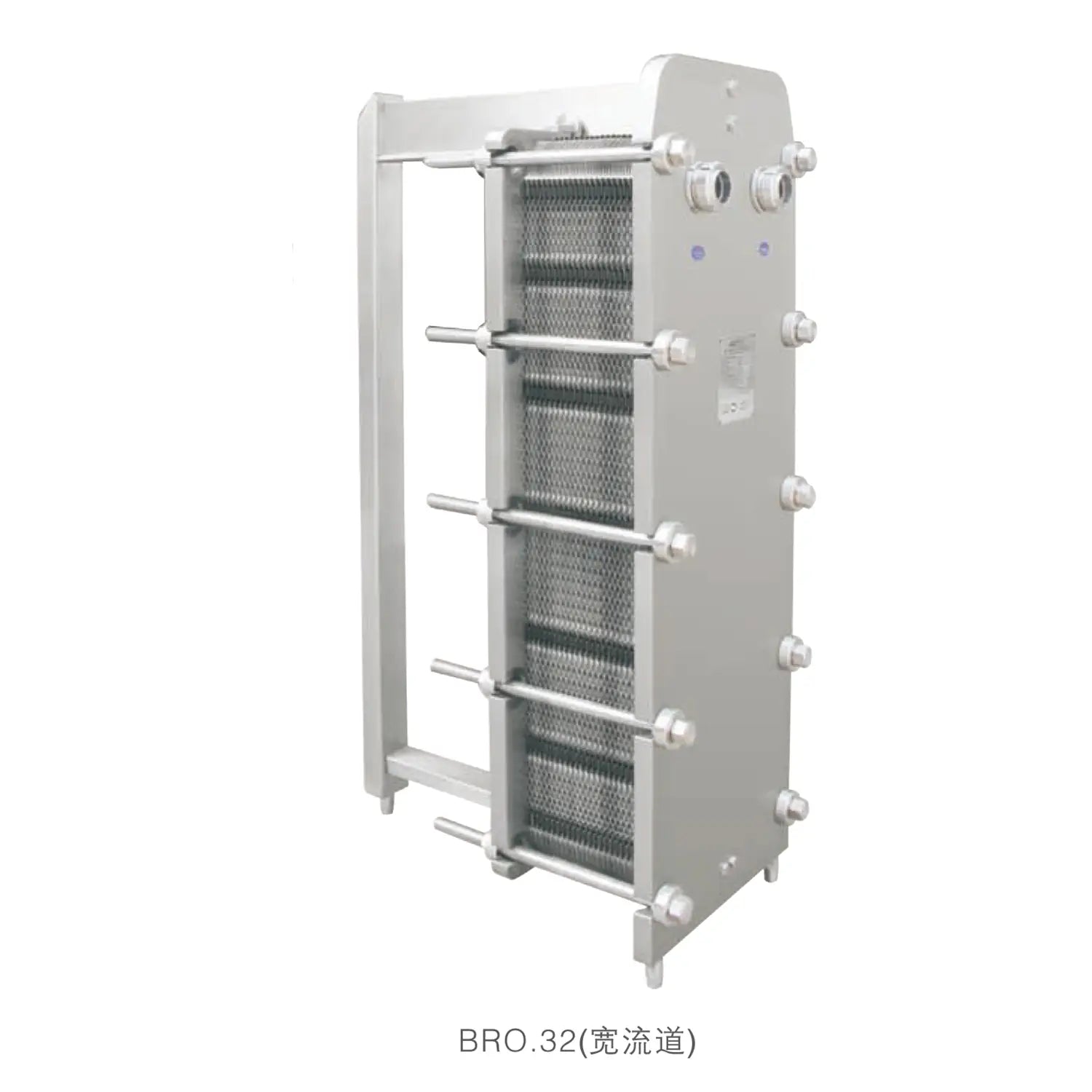

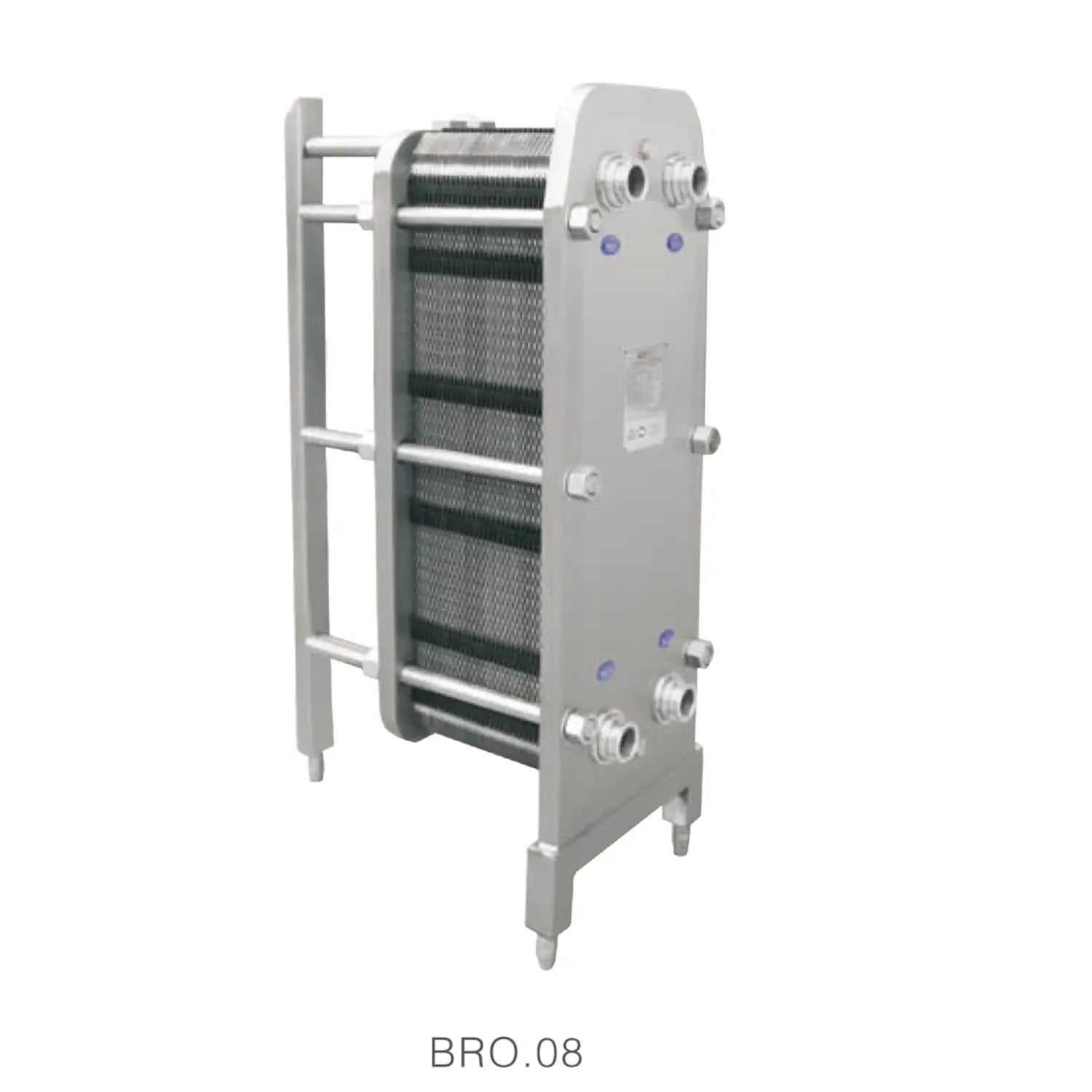

Stainless Steel One Section Plate Heat Exchanger

The stainless steel plate heat exchanger is designed to provide highly efficient heat transfer between two fluids while maintaining hygienic processing conditions. It is widely used in food processing, dairy production, pharmaceutical manufacturing, chemical processing, and HVAC systems, where precise temperature control and energy efficiency are essential.

Manufactured from premium-grade stainless steel such as SS304 or SS316L, this heat exchanger offers excellent corrosion resistance, high thermal conductivity, and durable construction, ensuring reliable performance in demanding industrial environments.

Its compact plate design provides a large heat transfer surface area, enabling rapid heating, cooling, evaporation, sterilization, and temperature regulation while occupying minimal installation space. The modular structure also allows for easy maintenance, cleaning, and integration with sanitary piping systems.

Commodity
Plate Type Heat Exchanger

Type of Plate Heat Exchanger

Detachable Plate Heat Exchanger
(Plate heat exchanger with sealing gasket)

Welded Plate Heat Exchanger

Spiral Plate Heat Exchanger

Plate Coil Heat Exchanger
(Also known as honeycomb heat exchanger)

Process Combination Form
Single Process
Multi Process
Mixed Process

Material Contact Parts
SS304 (1.4301) / SS316L (1.4404)
Provided with material inspection report

Material Non-contact Parts
SS304 (1.4301)

Sealing Material
NBR
EPDM
Silicone
FKM
(All materials comply with FDA21CFR117.2600)

Flow Rate
0.1 – 1000 m³/h

Heat Exchange Type
Heating
Cooling
Evaporation
Sterilization
Disinfection

Single Plate Heat Transfer Area

0.02m²
0.04m²
0.06m²
0.08m²
0.12m²
0.13m²
0.15m²
0.22m²
0.24m²
0.32m²
0.4m²
0.65m²
0.75m²
0.85m²
1.54m²
1.8m²

Plate Thickness
0.7 – 1.0 mm

Connection Type
Union
Tri-Clamp
Flange

Maximum Pressure
10 bar (145 psi)

Working Pressure
0 – 6 bar (0 – 87 psi)

Working Temperature
14 – 302°F (-10°C ~ +150°C)

Sterilization Temperature
302°F (150°C) ≤ 30 min

Applications

Food and Beverage Processing
Dairy Processing Systems
Pharmaceutical Manufacturing
Chemical Processing Equipment
HVAC Heat Transfer Systems
Biotechnology Processing
Liquid Heating and Cooling Systems
