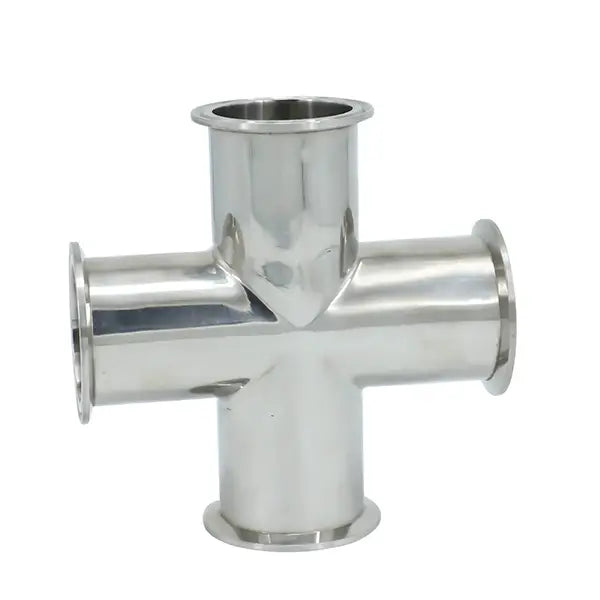

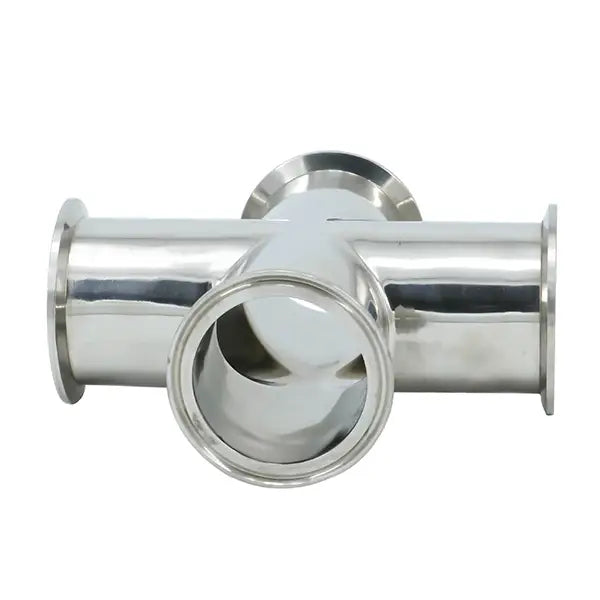

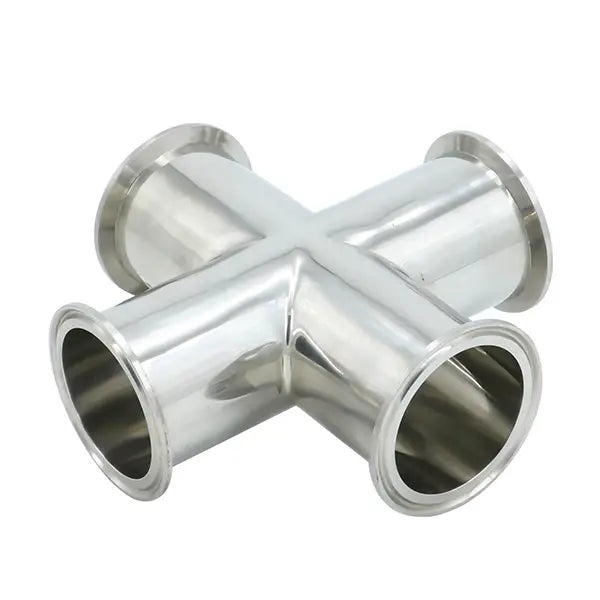

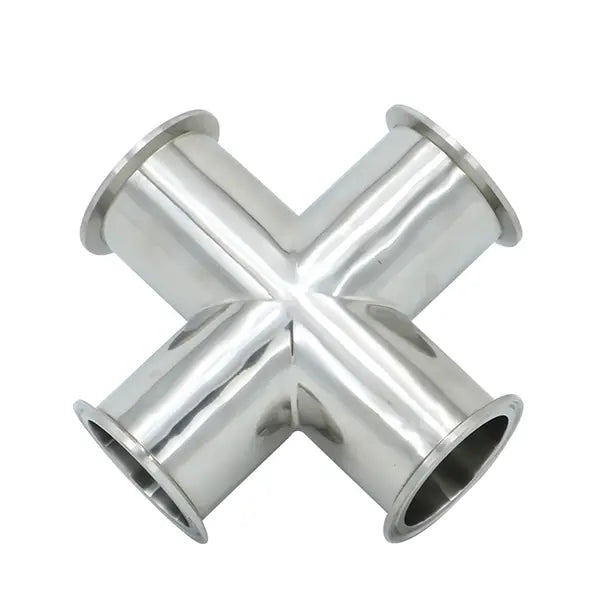

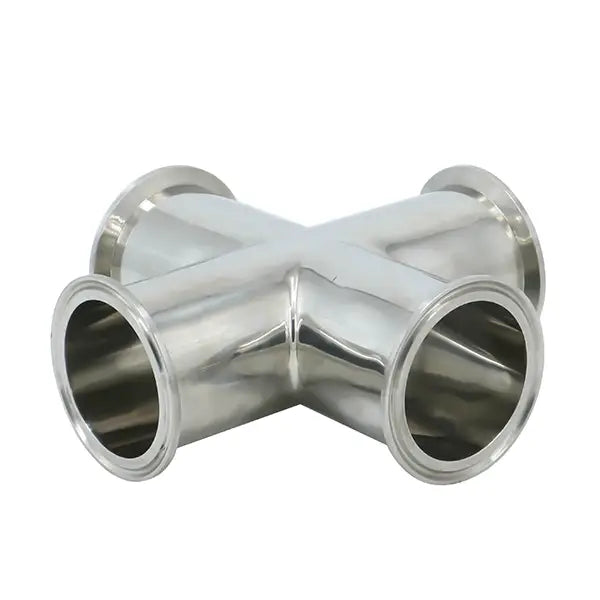

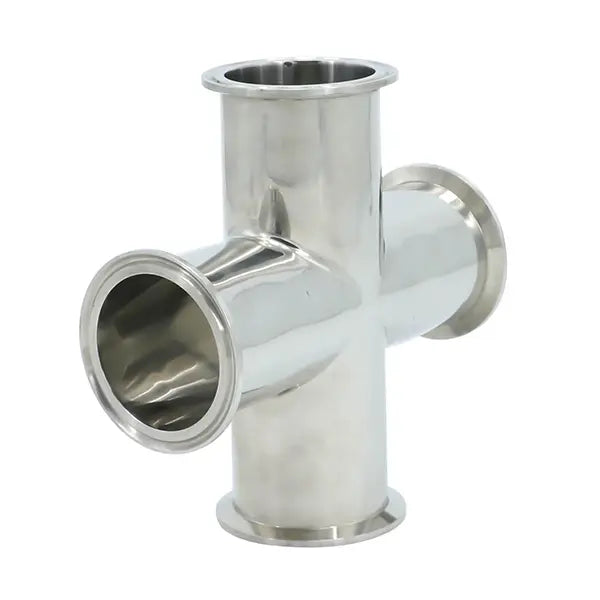

The stainless steel hygienic sanitary equal cross is designed to connect four pipelines in sanitary piping systems, allowing fluid to be distributed in multiple directions while maintaining smooth flow and hygienic processing conditions. It plays a critical role in complex piping layouts where efficient fluid distribution and flexible system design are required.
Manufactured from high-quality stainless steel such as SS304 or SS316L, this sanitary cross offers excellent corrosion resistance, strong structural integrity, and long service life. The precision-polished internal surface helps maintain sanitary flow conditions, minimizing contamination risks and ensuring reliable performance in hygienic processing environments.
Compliant with international sanitary standards and available in various connection types and configurations, the fitting supports diverse installation requirements. Its durable construction and hygienic design make it suitable for systems that require strict cleanliness, reliability, and efficient fluid distribution.
Standard
SMS
DIN
3A
ISO / IDF
AS
BS
BPE
Material (Contact Parts)
SS304 (1.4301)
SS316L (1.4404)
Material inspection report provided
Material (Non-contact Parts)
SS304 (1.4301)
Shape Option
Equal Cross
Reducing Cross
Short Cross
Size
1/2" – 12"
DN10 – DN300
Wall Thickness
1.2 mm
1.5 mm
2 mm
2.5 mm
3 mm
4 mm
Connection
Vacuum
Butt Weld
Tri Clamp
Female
Male
Union
Flange
Polish Surface
Mirror
Matte / Brush
Electrolytic
Layer
Single Layer
Double Layers for Cooling & Heating
Design Pressure
≤ 10 bar (145 psi)
Working Pressure
5 – 8 bar (72.5 – 116 psi)
External Surface Treatment
Ra 0.8 – 1.6 µm (Ra32 – 64 µin)
Internal Surface Treatment
Ra 0.4 – 0.8 µm (Ra16 – 32 µin)
Support
OEM & ODM available
Certificate
ISO 9001
FDA
SGS
CE
Applications
Food processing systems
Beer and beverage production
Chemical processing pipelines
Biological and pharmaceutical processing
Dairy processing equipment
Cosmetic and sanitary fluid transfer systems
