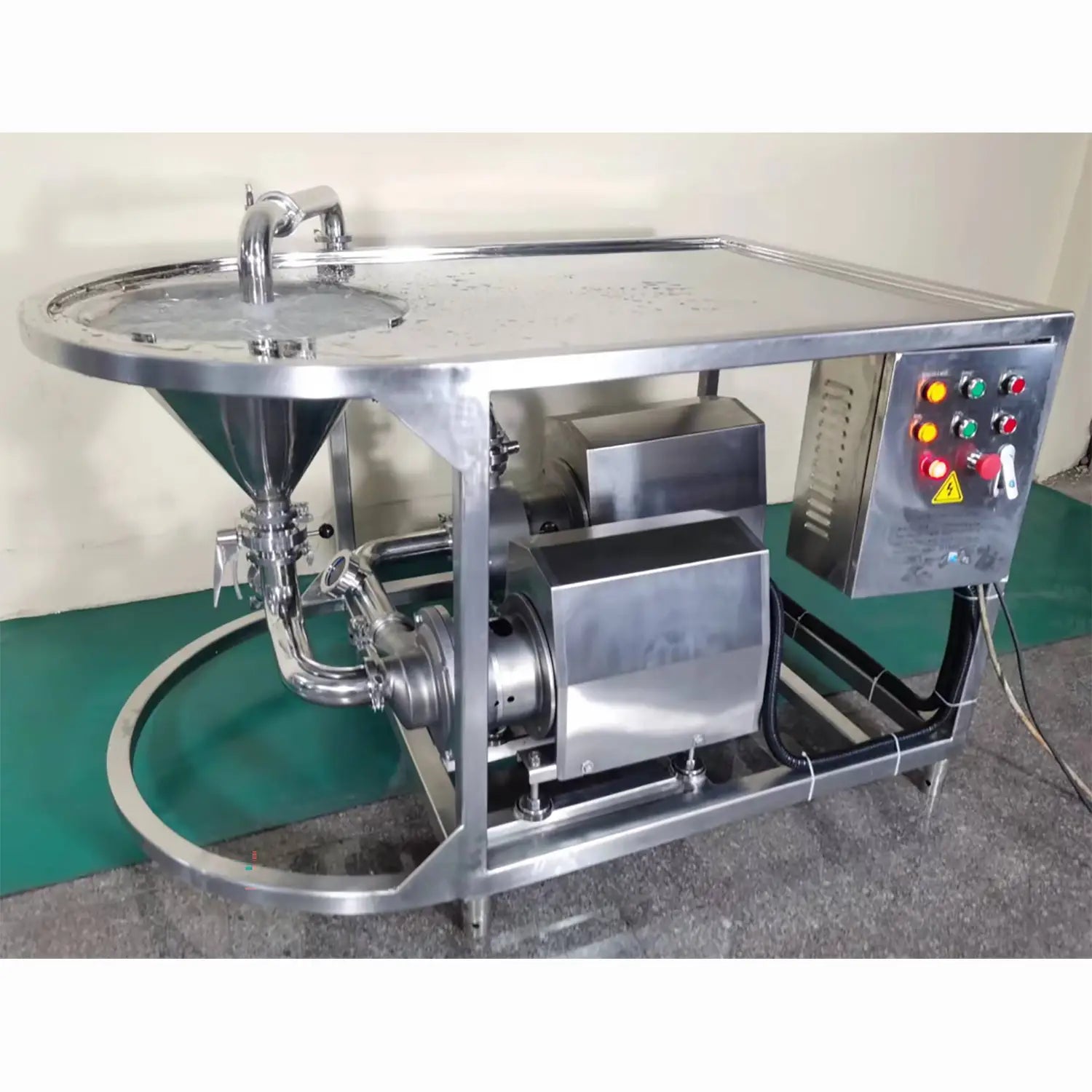

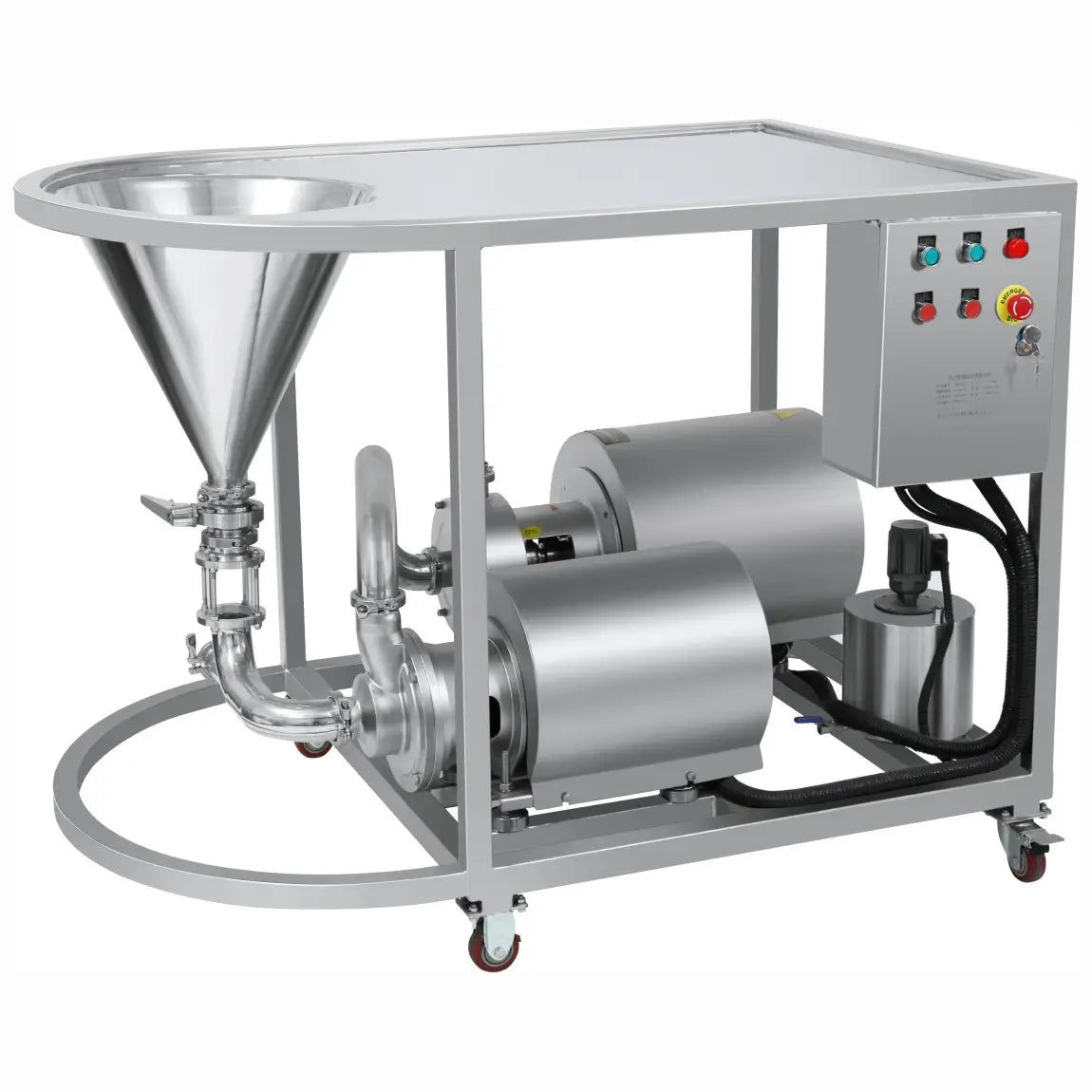

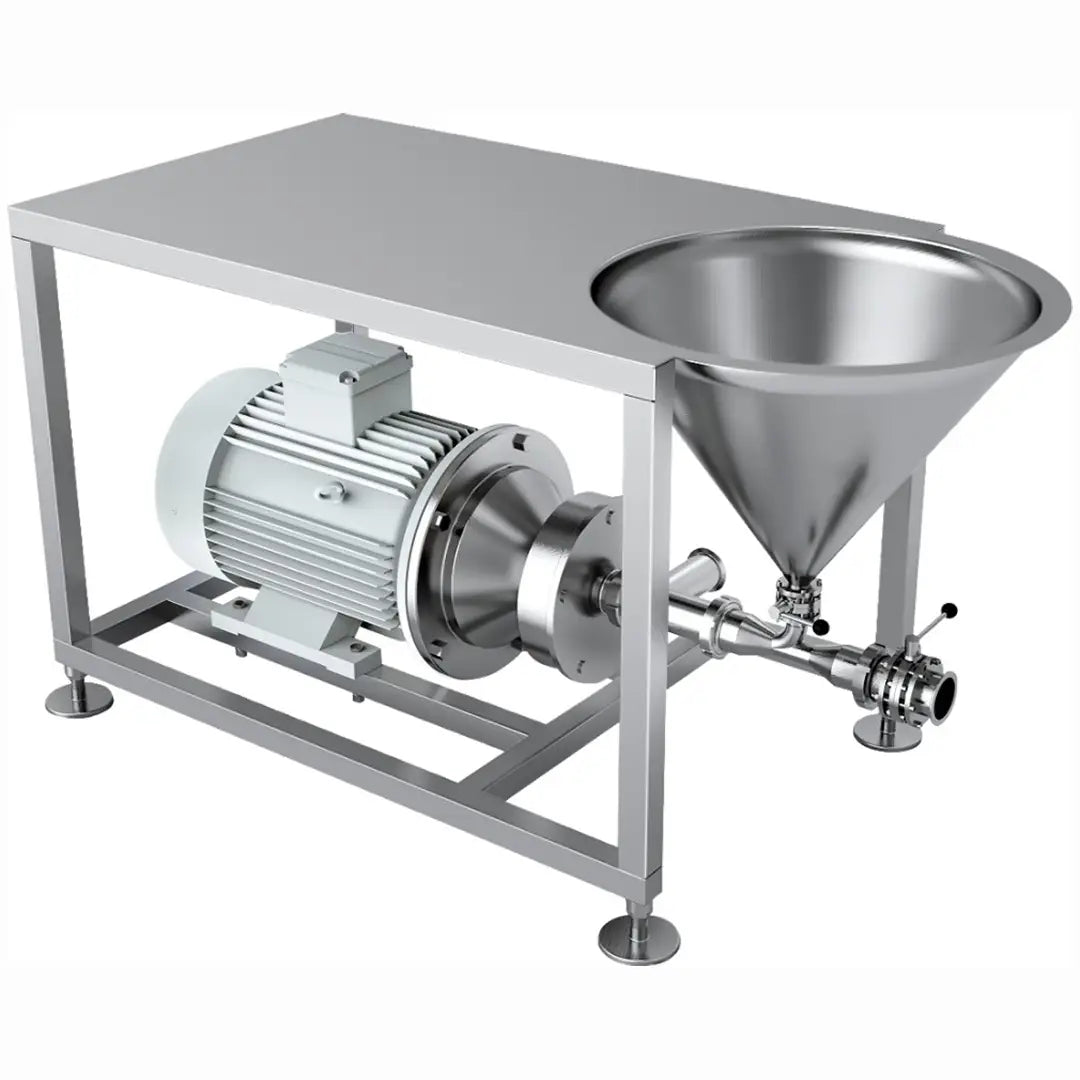

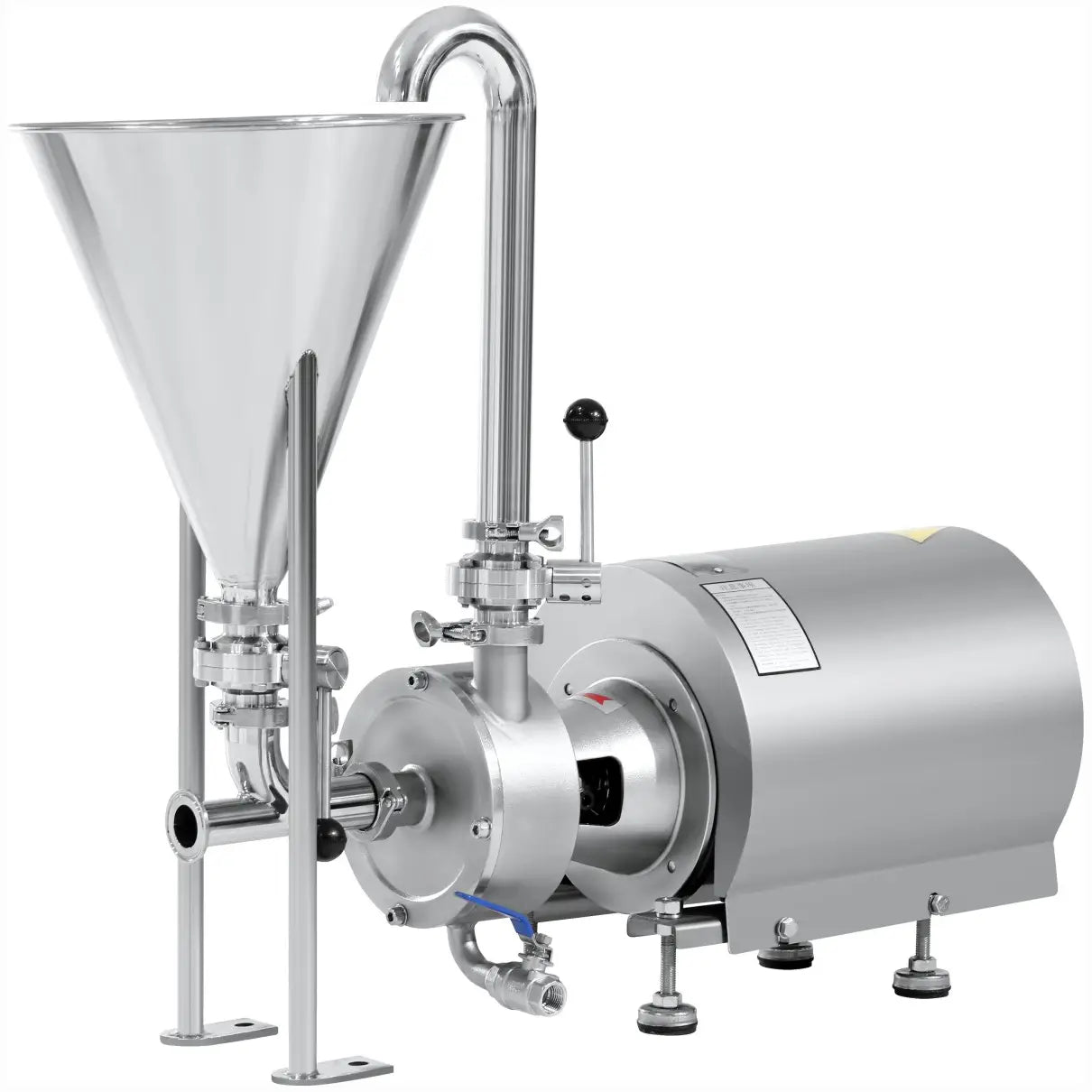

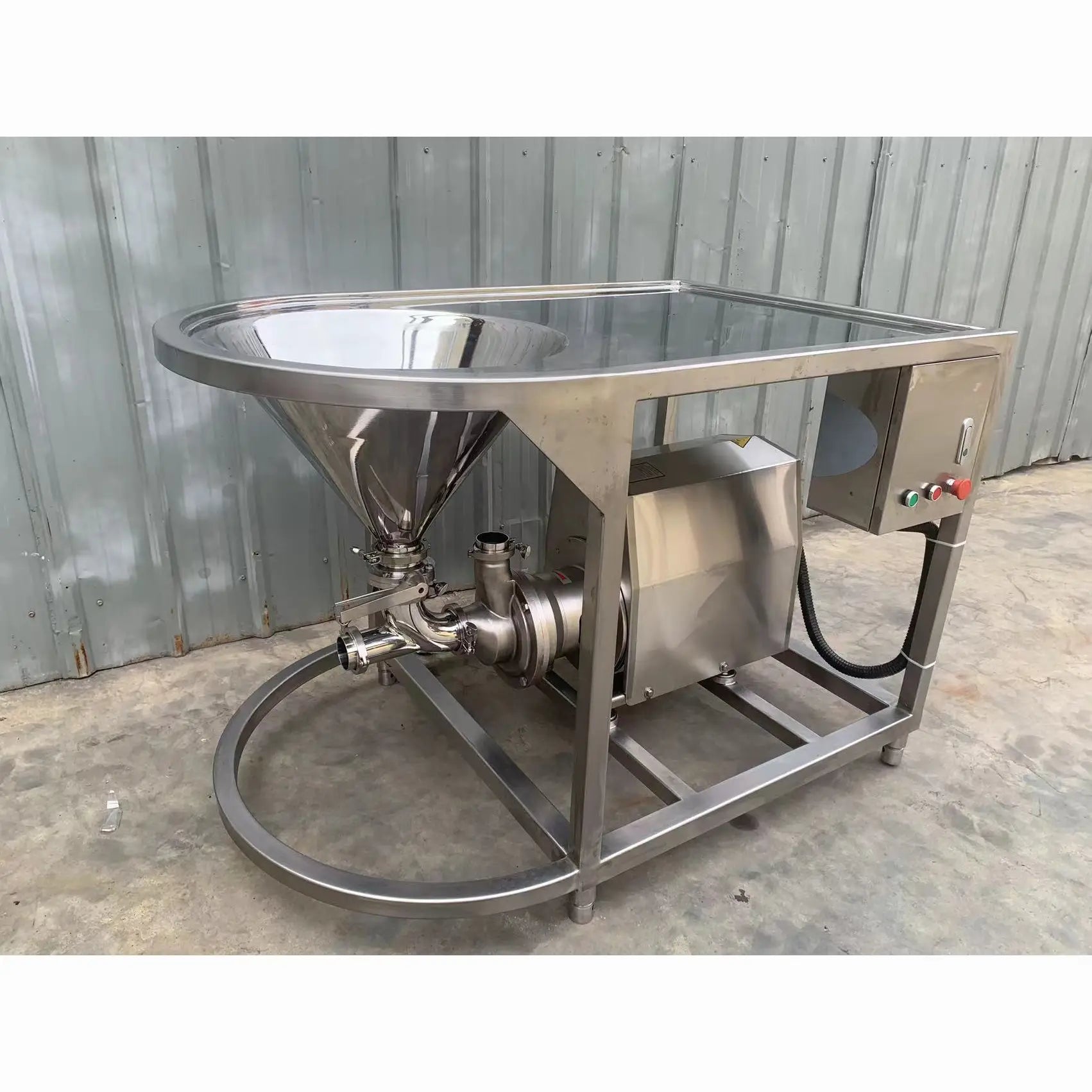

Stainless Steel High Efficient Emulsifier Homogenizer Mixer Pump

The stainless steel high efficient emulsifier homogenizer mixer pump is designed to perform high-shear mixing, dispersion, emulsification, and homogenization in hygienic processing systems, ensuring uniform product consistency and efficient production performance.

Equipped with advanced rotor-stator technology, this system enables high-speed mixing and fine particle dispersion, producing stable emulsions and homogeneous mixtures for demanding industrial applications.

Manufactured from high-quality stainless steel (SS304 or SS316L), the system offers excellent corrosion resistance, hygienic construction, and smooth internal surfaces, ensuring reliable operation while maintaining strict sanitary standards required in food, pharmaceutical, and cosmetic production environments.

Commodity
TRL-B High Efficient Online Mixer System

Material Contact Parts
SS304 (1.4301) / SS316L (1.4404) — Provided with material inspection report

Material Non-contact Parts
SS304 (1.4301)

Stator Rotor Material
SS304 (1.4301) / SS316L (1.4404)

Sealing Material
EPDM, Silicone, FKM, PTFE — All materials comply with FDA21CFR117.2600

Flow Rate
0.5 – 40 m³/h

Maximum Flow Rate
40 m³/h

Powder Suction Flow Rate
0 – 5 m³/h

Layer of Stator Rotor
5 – 10 Layers

Power of In-line Mixer
4 – 37 kW

Rotation Speed of Inline Mixer
2900 / 3500 / 1450 rpm (Homogeneous Pump)

Rotation Speed of Self-priming Pump
2900 / 3500 / 1450 rpm (Self-priming Pump or Rotary Lobe Pump)

Voltage
220 V, 380 V, 415 V, etc.

Hertz
50 Hz, 60 Hz

Motor Brand
China Motor, ABB, Siemens

Max. Pressure
10 bar (145 psi)

Maximum Temperature
130°C / 266°F (30 min CIP/SIP)

Connection
Butt-weld, Tri-clamp, Union, Thread, Flange

Max. Viscosity
90,000 mPas

Customized Support
OEM, ODM

Applications
Food Industry Processing Systems
Dairy Production Equipment
Homogenized Milk Processing
Biological Pharmaceutical Manufacturing
Cosmetics and Personal Care Production
Chemical Processing Systems
PVC Plasticizer Homogenization
Petrochemical Processing Systems
