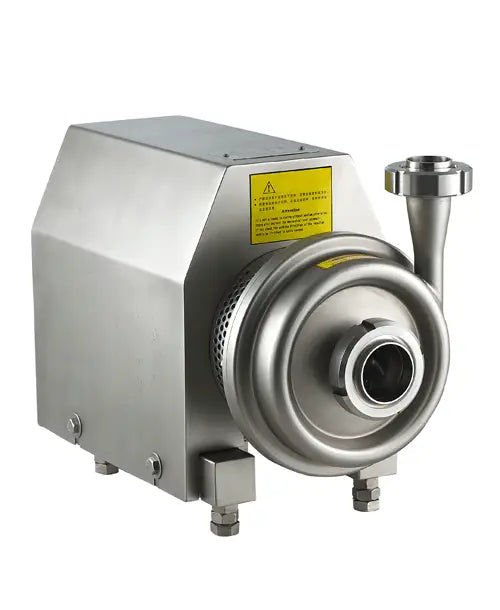

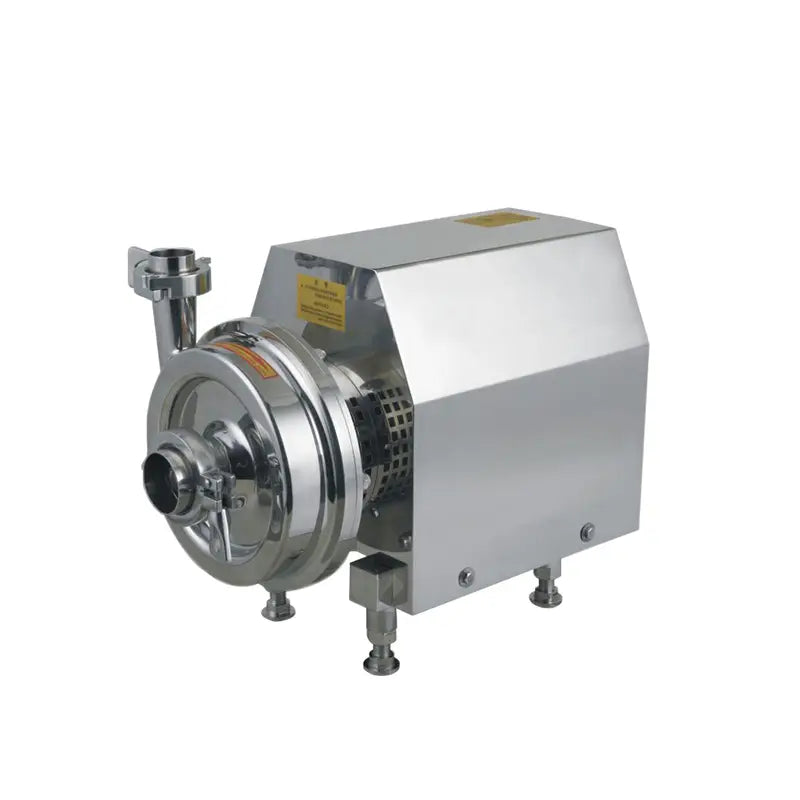

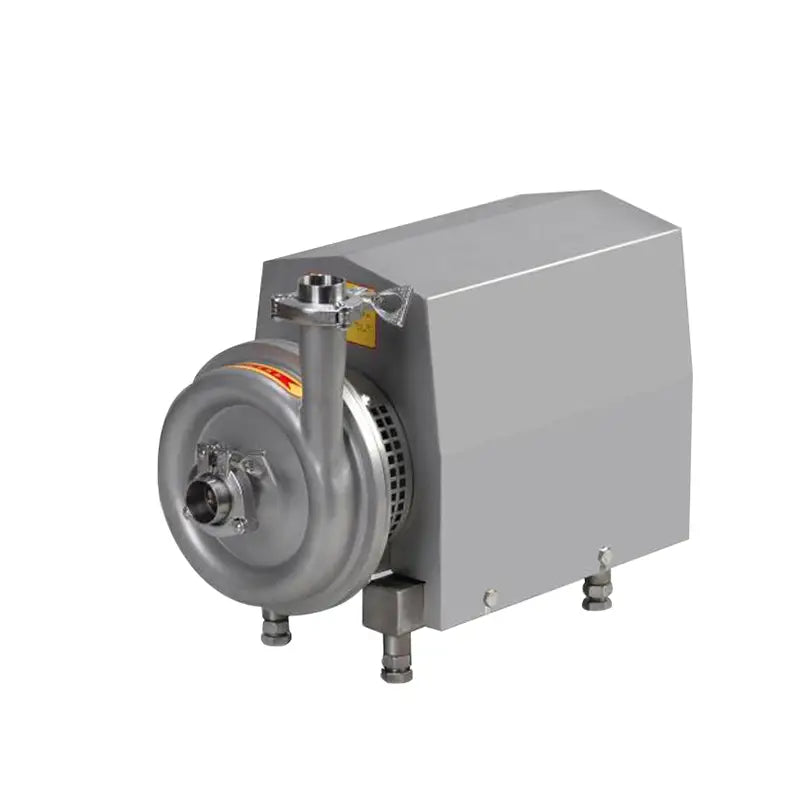

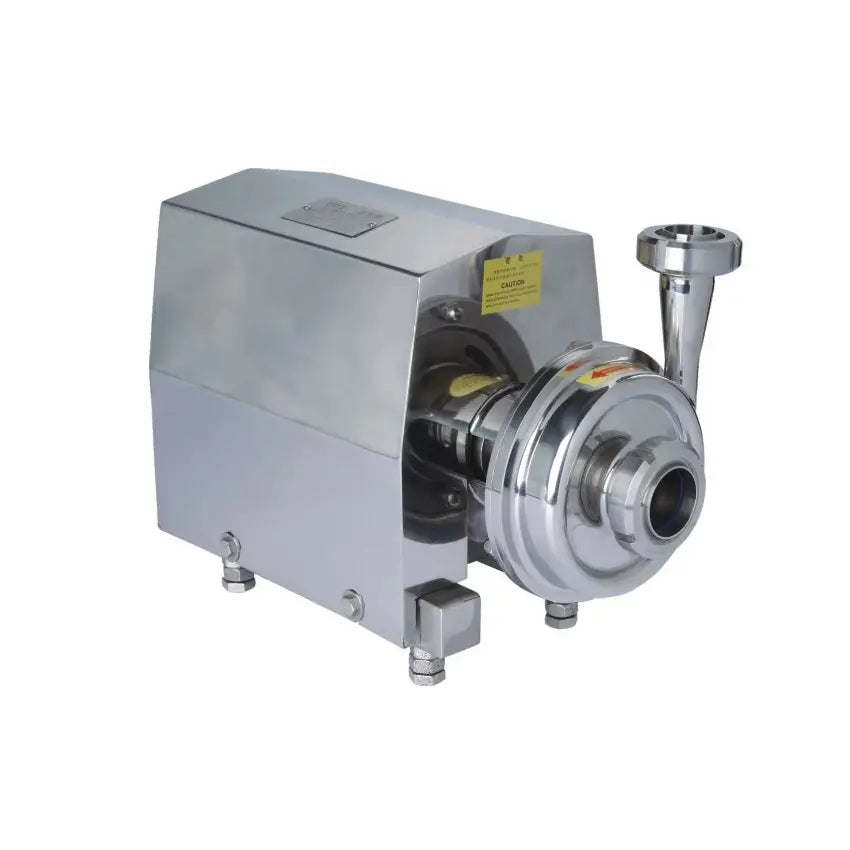

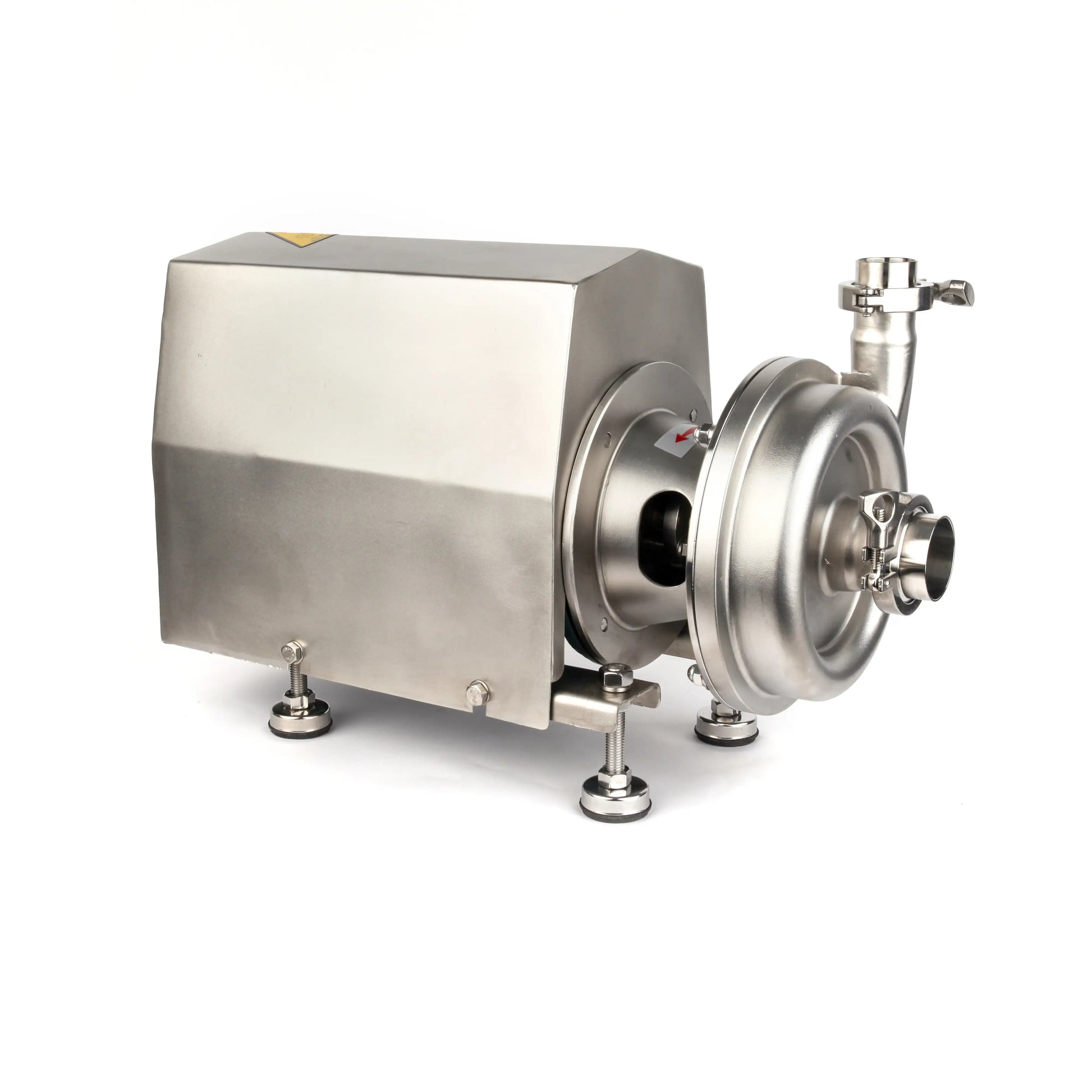

Stainless steel food grade square cover sanitary centrifugal pumps are designed to efficiently transfer low-viscosity liquids in hygienic processing systems, ensuring stable performance while maintaining strict sanitary standards.
Manufactured from high-quality stainless steel (SS304 or SS316L), the pump provides excellent corrosion resistance, hygienic construction, and smooth internal surfaces that help prevent contamination and ensure easy cleaning in sanitary environments.
Sanitary centrifugal pumps are widely used in food processing, beverage production, dairy systems, pharmaceutical manufacturing, and biotechnology processing, where reliable fluid transfer and product integrity are essential for maintaining process efficiency and hygiene.
Material
SS304 / SS316L / 1.4301 / 1.4404
Seal Gasket
EPDM, FPM (Viton), NBR
Max. Flow
140 m³/h
Max. Speed
3600 min⁻¹, 2900 min⁻¹
Max. Head
70 m (7 bar)
Temperature Range
-20 ~ 140 °C (-4 ~ 284°F)
Motor Power
1.5 kW ~ 30 kW
Mechanical Seal
SIC/C/EPDM (Standard), C/SIC, TC/TC
Voltage
110 V, 220 V, 380 V
Motor
ABB / SIEMENS
Motor Frequency
50 Hz, 60 Hz
Available Connection
Clamped, Threaded, Flanged
Applications
Food Processing Systems
Beverage Production Lines
Dairy Processing Equipment
Pharmaceutical Manufacturing
Biotechnology Processing Systems
Liquid Transfer in Hygienic Pipelines
