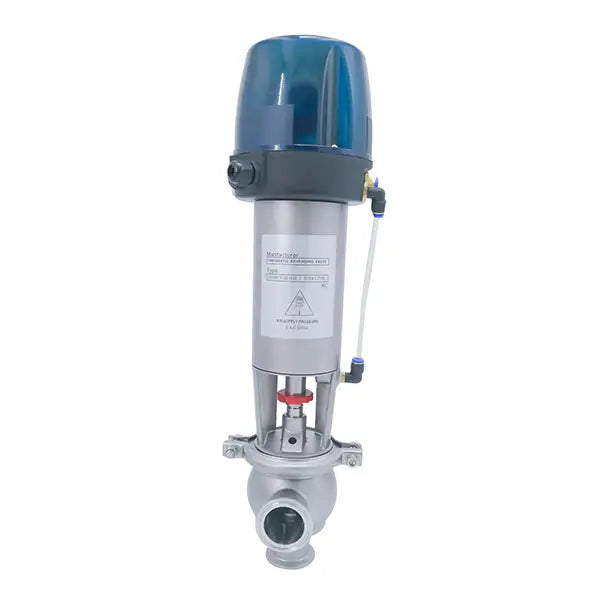

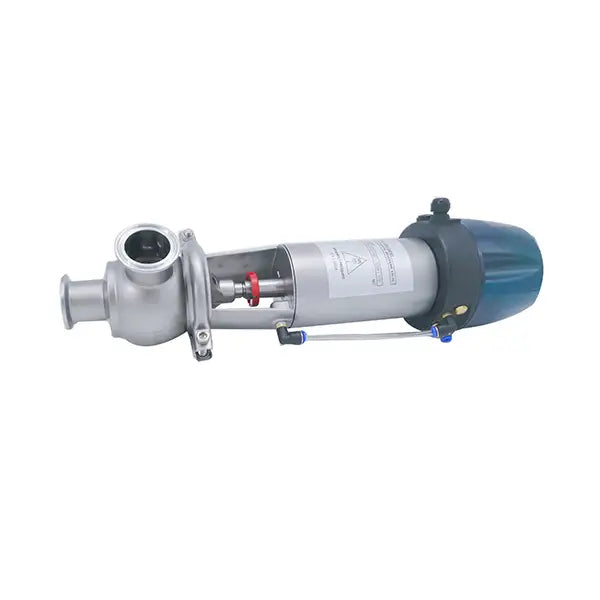

Stainless Steel 20 Model L Type 2-way Sanitary Stop Cut-off with 24V Control Head

Sanitary L-type pneumatic 2-way shut-off valves are designed for hygienic flow control and reliable media isolation in sanitary processing systems. These valves are widely used to stop or regulate product flow in pipelines while maintaining strict sanitary standards required in food, beverage, dairy, pharmaceutical, and biotechnology industries.

Manufactured from high-quality stainless steel (SS304 or SS316L), the valve provides excellent corrosion resistance, durability, and dependable sealing performance. The precision-engineered internal structure ensures smooth operation and reliable shut-off under demanding processing conditions.

The pneumatic actuator enables automated valve operation, while the 24V control head allows integration with automated process control systems, improving monitoring and operational efficiency. Optional position sensors and C-Top controllers can also be installed depending on system requirements.

Sanitary pneumatic shut-off valves are widely used in beer brewing, beverage processing, dairy production, fruit juice systems, pharmaceutical manufacturing, and biotechnology processing, where hygienic flow control and dependable valve performance are essential.

Standard
SMS, DIN, 3A

Material – Contact Parts
SS304 / SS316L (1.4301 / 1.4404)
Material inspection report available

Material – Non-contact Parts
SS304 (1.4301)

Size Range
1/2" – 4" (DN10 – DN100)

Connection Options
Butt Weld
Tri Clamp
Male Thread
Female-Male Thread
Union
Weld-Thread
Flange

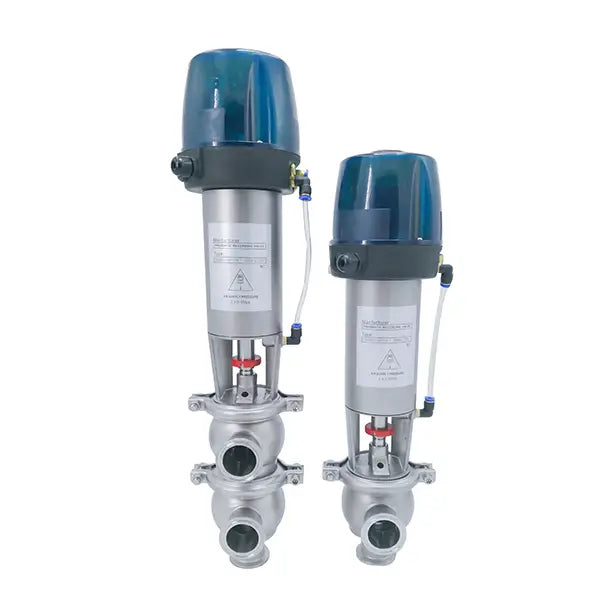

Body Combination Models
20 Model, 30 Model
11 Model, 12 Model
21A Model, 22A Model
21 Model, 22 Model
31 Model, 32 Model
111 Model, 112 Model
121 Model, 122 Model
211 Model, 212 Model
221 Model, 222 Model

Power Options
Manual Operation
Stainless Steel Pneumatic Actuator
Position Sensor
C-Top Controller
C-Top Controller (AS-I)

Seal Materials
Silicone
EPDM
FKM
Buna

(All seal materials comply with FDA 21 CFR 177.2600)

Working Pressure
≤ 10 bar (145 psi)

Air Supply Pressure
5 – 8 bar (72.5 – 116 psi)

External Surface Finish
Ra 0.8 – 1.6 μm

Internal Surface Finish
Ra 0.4 – 0.8 μm

Applications

Food Processing
Beverage Production
Dairy Processing
Pharmaceutical Manufacturing
Biotechnology Processing
