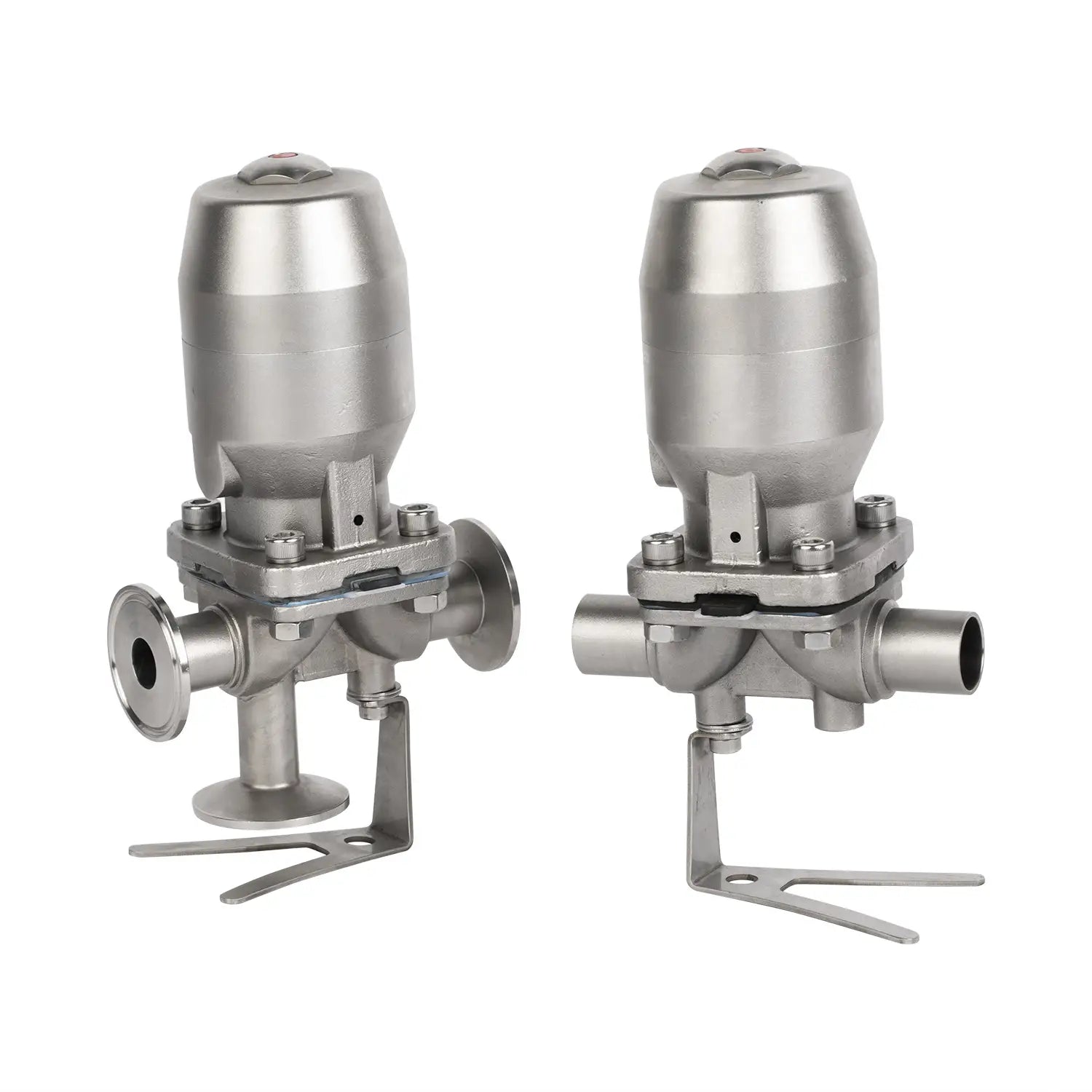

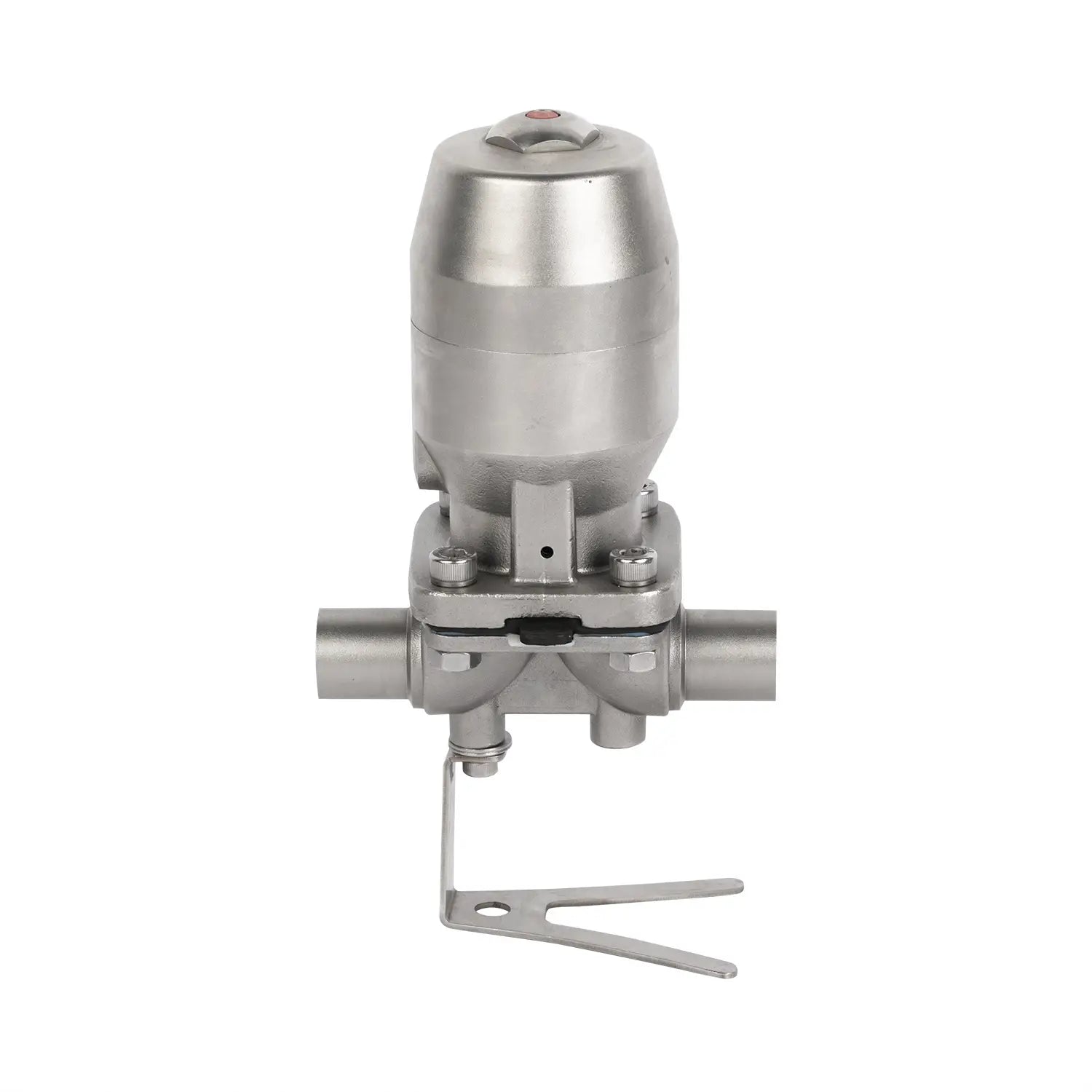

SS316L Sanitary TC Pneumatic Actuated Diaphragm Valve-

Sanitary pneumatic diaphragm valves are designed for precise and hygienic control of fluid flow in sanitary processing systems. These valves are widely used in pharmaceutical, biotechnology, food, beverage, and dairy industries where strict sanitary standards and contamination control are essential.

Manufactured from high-quality SS316L stainless steel, the valve provides excellent corrosion resistance, durability, and long service life. The diaphragm sealing structure ensures smooth internal surfaces and minimizes dead space, making the valve highly suitable for clean-in-place (CIP) and sterilize-in-place (SIP) systems.

The pneumatic actuator enables automated valve operation, allowing integration with automated process control systems for improved efficiency and monitoring. Sanitary diaphragm valves are commonly used in biopharmaceutical production, sterile processing systems, fermentation equipment, and hygienic fluid handling applications where product purity and reliable valve performance are critical.

Standard
SMS, DIN, 3A, BPE

Material – Contact Parts
SS316L (1.4404)
Material inspection report available

Size Range
1/4" – 4" (DN6 – DN100)

Body Type Options
Straight Model

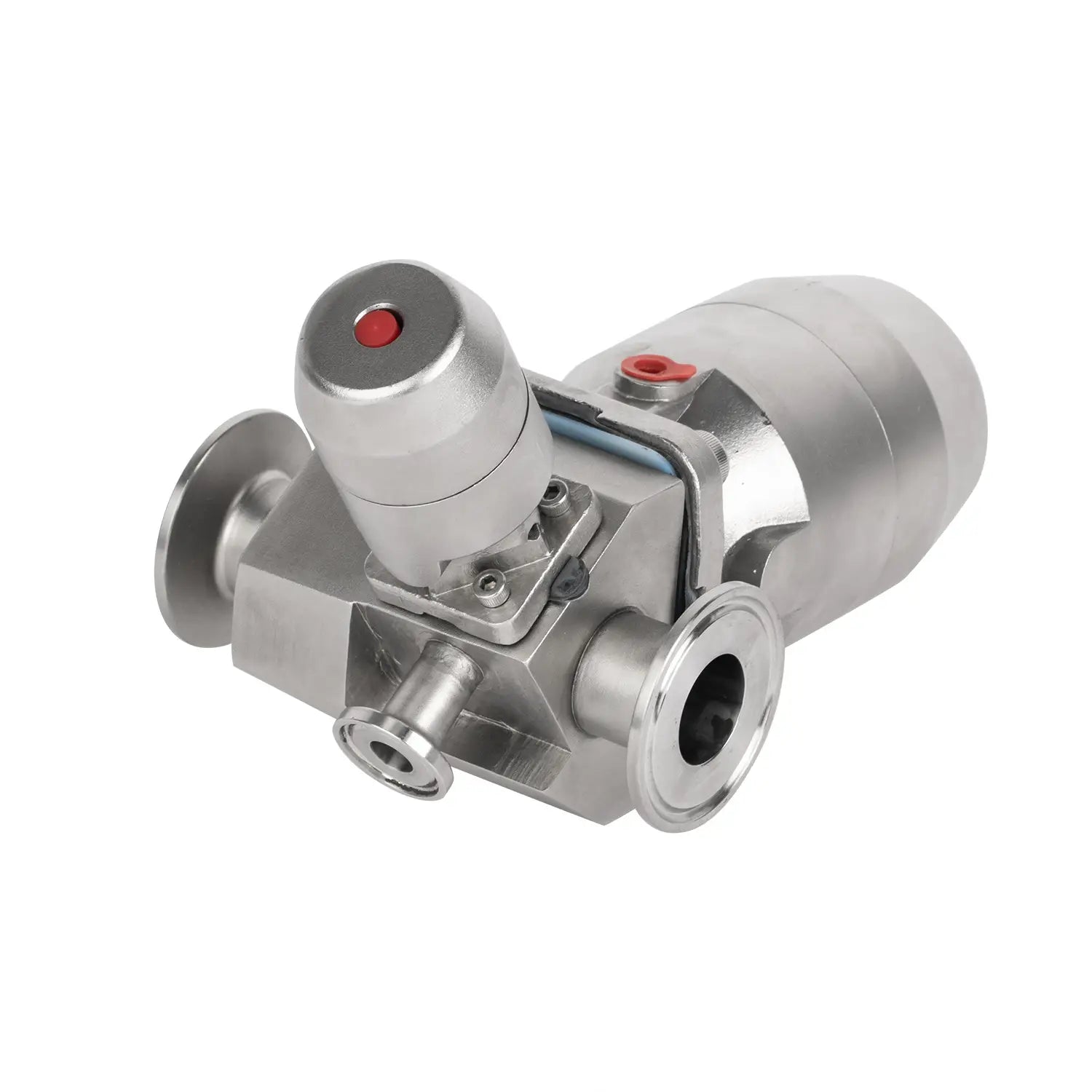

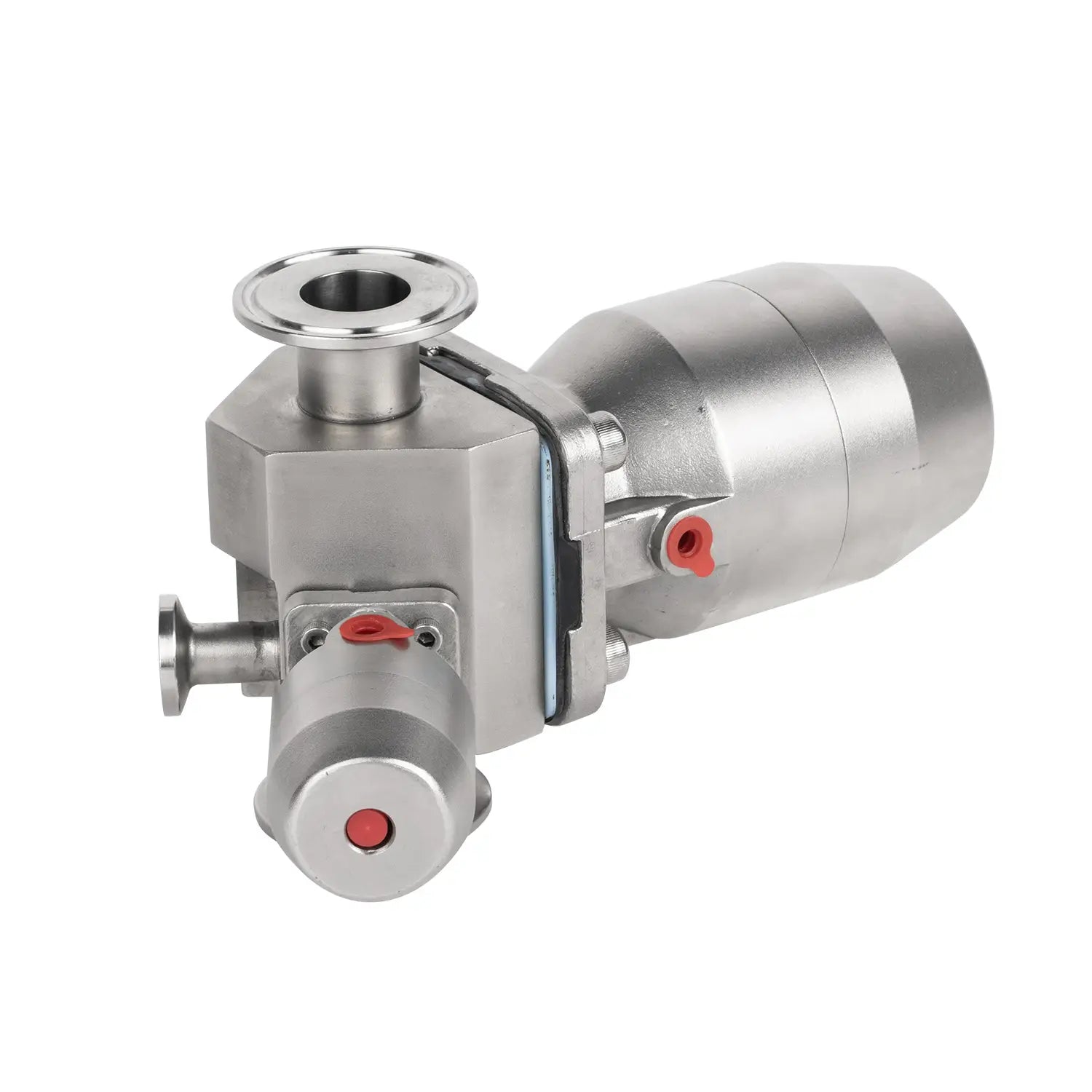

T-Type Three-Way
U-Type
Tank Bottom

Connection Options
Butt Weld
Tri Clamp
Male Thread
Female-Male Thread
Union
Weld-Thread
Flange

Seal Materials
EPDM
EPDM with PTFE Split Diaphragm
EPDM with PTFE Composite Diaphragm

(All seal materials comply with FDA 21 CFR 177.2600)

Power Options

Manual Operation
Stainless Steel Pneumatic Actuator
Plastic Pneumatic Actuator

C-Top Controller
C-Top Controller (AS-I)

Working Pressure

≤ 10 bar (145 psi)

Air Supply Pressure (Pneumatic Actuator)

5 – 8 bar (72.5 – 116 psi)

External Surface Finish

Ra 0.4 – 0.8 μm

Internal Surface Finish

Ra 0.4 – 0.8 μm

Applications

Food Processing
Beverage Production
Dairy Processing
Pharmaceutical Manufacturing
Biotechnology Processing
