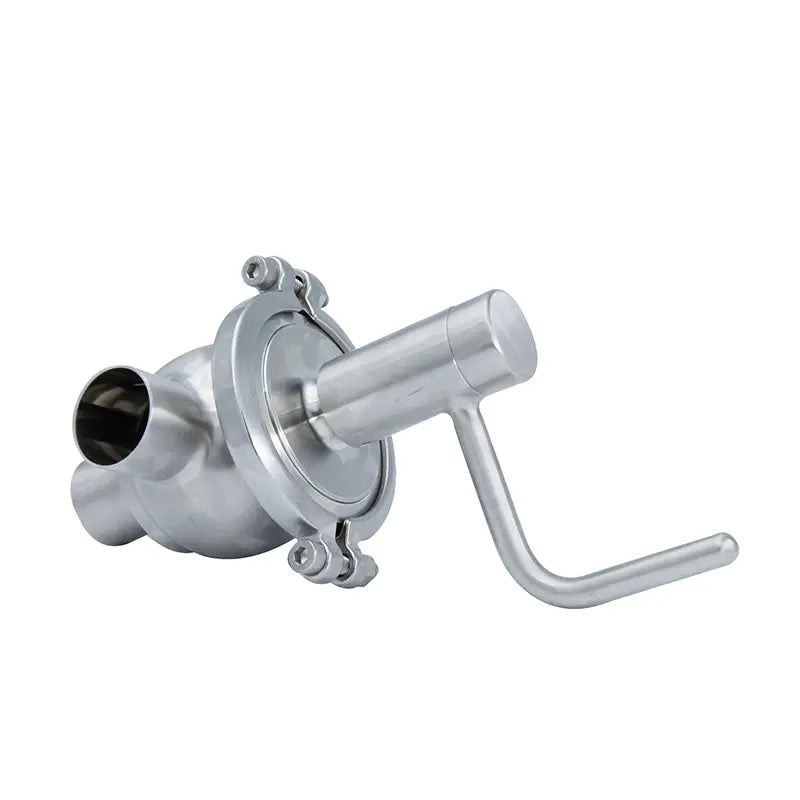

SS304 SS316L Manual Operating 30 Model T Type Reversing Cut Shut Off Valve

Sanitary T-type manual reversing shut-off valves are designed for hygienic flow control and reliable media switching in sanitary processing systems. These valves allow operators to redirect or stop product flow while maintaining strict sanitary standards required in food, beverage, dairy, pharmaceutical, and biotechnology industries.

Manufactured from high-quality stainless steel (SS304 or SS316L), the valve provides excellent corrosion resistance, durability, and dependable sealing performance. The precision-engineered structure ensures smooth switching between pipeline routes while maintaining reliable shut-off performance.

The manual operating mechanism allows simple and reliable control without the need for pneumatic or electrical systems. Optional pneumatic actuators, proximity sensors, and C-Top controllers are also available for automated applications.

Sanitary reversing shut-off valves are widely used in beer production, beverage processing, dairy systems, fruit juice processing, pharmaceutical manufacturing, and biotechnology applications, where hygienic flow diversion and reliable shut-off are required.

Standard
SMS, DIN, 3A

Material – Contact Parts
SS304 / SS316L (1.4301 / 1.4404)

Material – Non-contact Parts
SS304 (1.4301)

Size Range
1/2" – 4" (DN10 – DN100)

Connection Options
Butt Weld
Tri Clamp
Male Thread
Female-Male Thread
Union
Weld-Thread
Flange

Body Combination Models
20 Model, 30 Model
11 Model, 12 Model
21A Model, 22A Model
21 Model, 22 Model
31 Model, 32 Model
111 Model, 112 Model
121 Model, 122 Model
211 Model, 212 Model
221 Model, 222 Model

Power Options
Manual Operation
Pneumatic Actuator
Position Sensor
C-Top Controller
C-Top Controller (AS-I)

Seal Materials
Silicone
EPDM
FKM
Buna

(All seal materials comply with FDA 21 CFR 177.2600)

Working Pressure
≤ 10 bar (145 psi)

Air Supply Pressure
5 – 8 bar (72.5 – 116 psi)

External Surface Finish
Ra 0.8 – 1.6 μm

Internal Surface Finish
Ra 0.4 – 0.8 μm

Applications

Food Processing
Beverage Production
Dairy Processing
Pharmaceutical Manufacturing
Biotechnology Processing
