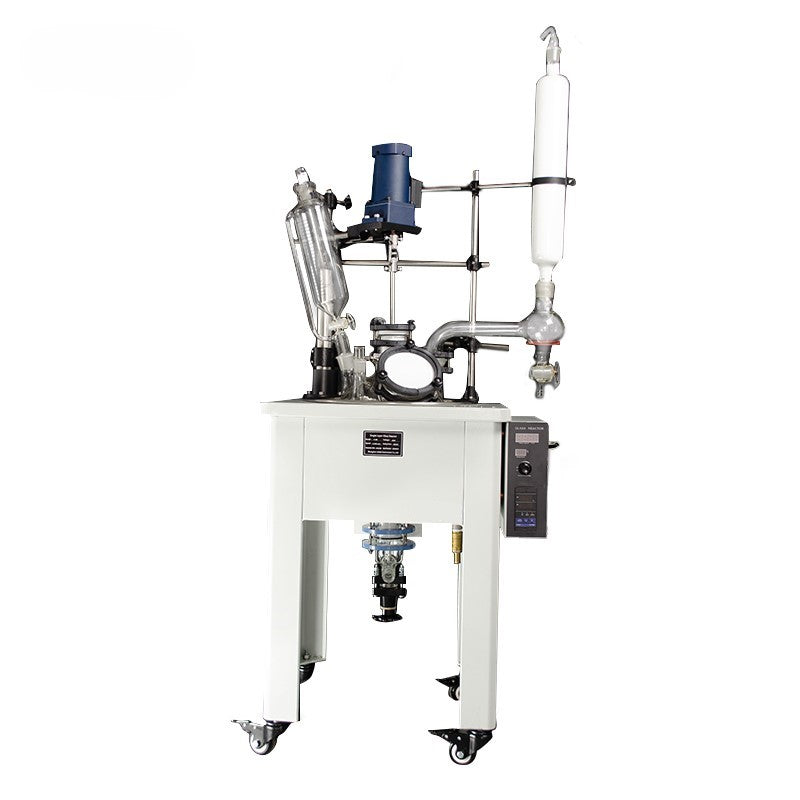

Single layer glass reactor

Name: Single layer glass reactor
Brand: Atlas Equipment Solutions
Availability: OutOfStock

$0.00 USD

Sale Sold out

The Single Layer Glass Reactor is a versatile laboratory reactor designed for chemical synthesis, mixing, reflux, and distillation experiments. Unlike jacketed reactors, this system uses a single-layer glass vessel, allowing direct heating through an external heating bath or heating mantle while maintaining excellent visibility of the reaction process.

The reactor can operate under vacuum or atmospheric pressure conditions, enabling reactions that require negative pressure environments. It supports continuous feeding of liquids and gases under vacuum conditions and allows various chemical reactions to occur at controlled temperatures.

The system is equipped with digital speed control for the stirring motor, ensuring stable mixing and efficient reaction performance. The vertical double serpentine condenser improves condensation efficiency during reflux or distillation processes.

Constructed from high borosilicate glass, the reactor provides strong chemical resistance and thermal stability. The stainless steel support frame ensures structural stability during operation.

This reactor system is widely used in chemical laboratories, pharmaceutical research, material synthesis, academic laboratories, and pilot-scale experimental processes.

Available Models

Model	F-10L	F-20L	F-30L
Stirring Speed	0 – 600 rpm
Bath Power	3 kW	6 kW	6 / 9 kW
Temperature Range	0 – 200 °C ± 0.2 °C

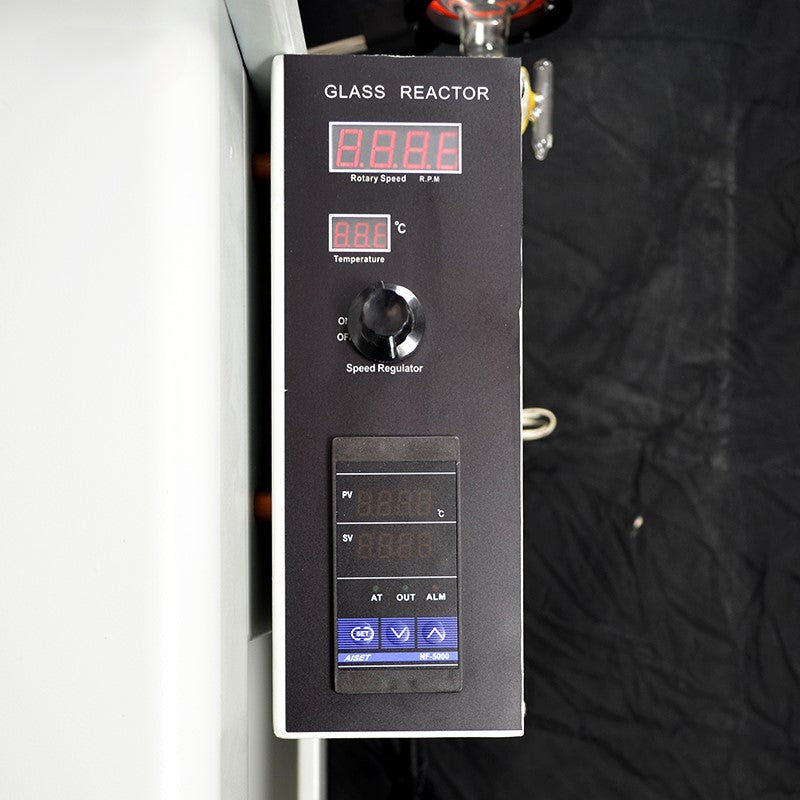

Controller	Digital speed display / temperature display

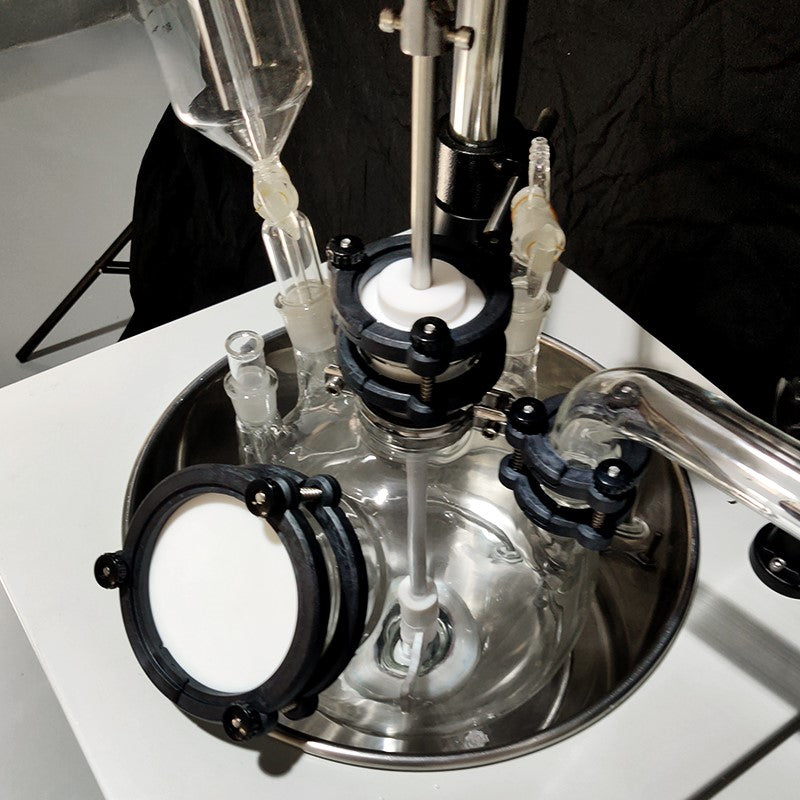

Solid Inlet Port	Ø125 mm	Ø80 mm
Liquid Inlet Port	34# standard joint

Reactor Components

Component	Specification
Temperature Tube	24# (200 mm / 230 mm / 300 mm / 350 mm), 29# (480 mm / 800 mm)
Distillation Device	500 mL / 1000 mL
Collection Flask	Optional 5 – 50 L
Condenser	Vertical double serpentine condenser

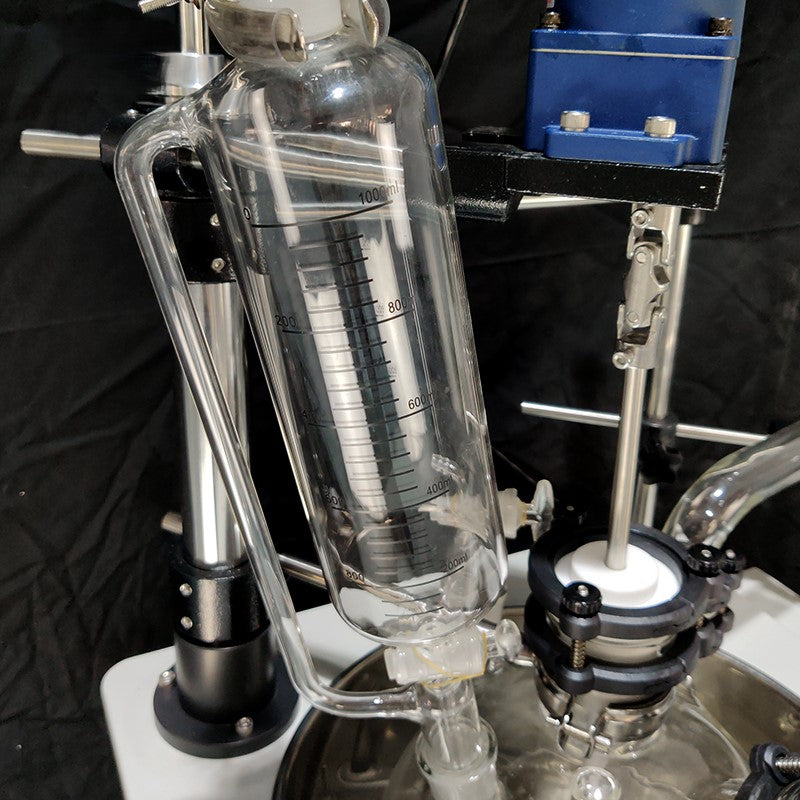

Constant Pressure Dropping Funnel	34# 1000 mL / 2000 mL
Discharge Valve Height	370 / 480 / 600 / 650 mm (depending on model)

Structural Features

Parameter	Specification

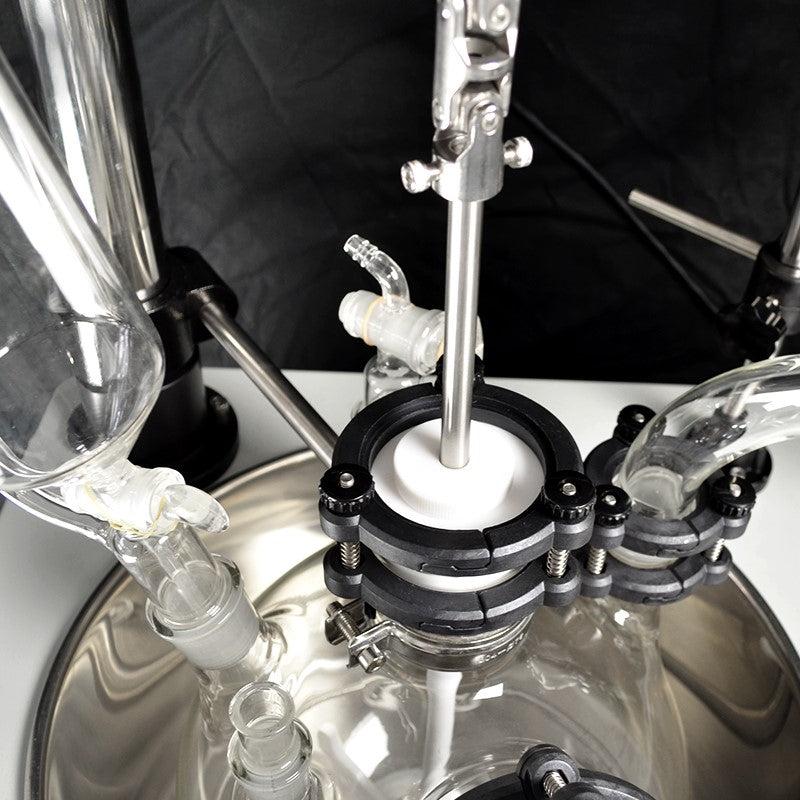

Seal Type	PTFE combined sealing
Frame	SUS stainless steel frame
Cooling Coil	Optional copper cooling coil
Heating Bath Drain	Optional
Explosion-Proof Motor	Optional
Explosion-Proof Controller	Optional
