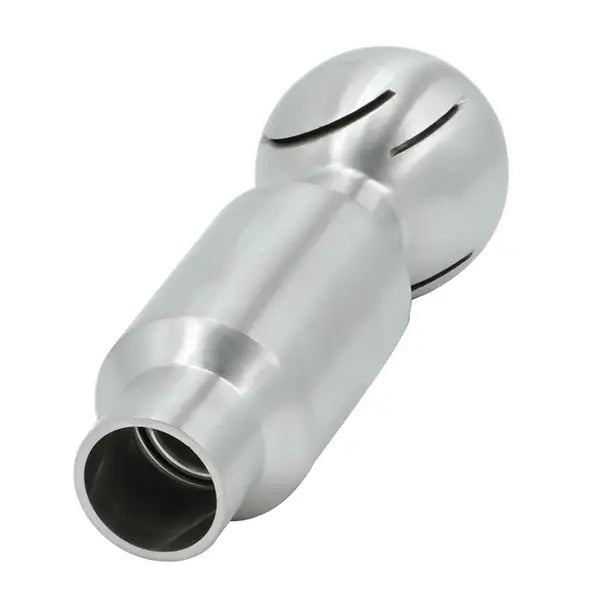

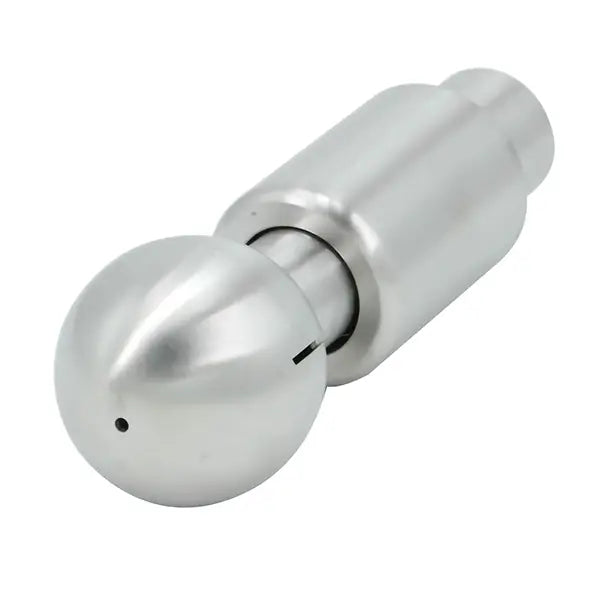

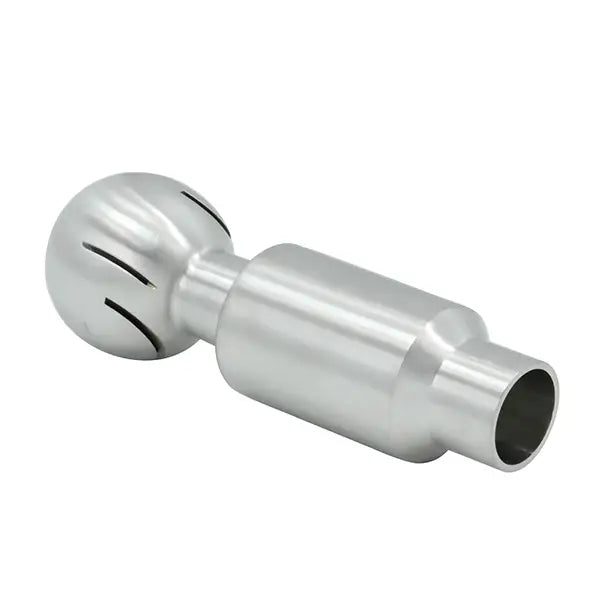

Sanitary Weld Rotating Spray Ball

Sanitary Weld Rotating Spray Ball

Pricing: Available upon request

Lead time: 7–21 days

Customization: Supported

Request a Quote

Response within 24 hours

The sanitary weld rotating spray ball is designed to provide powerful and efficient 360° spray coverage for cleaning tanks and vessels used in hygienic processing systems. The rotating mechanism allows the spray head to spin during operation, ensuring enhanced cleaning impact and full internal coverage during cleaning-in-place (CIP) processes.

Manufactured from high-quality stainless steel (SS304 or SS316L), this spray ball offers excellent corrosion resistance, durable construction, and smooth hygienic surfaces, ensuring reliable performance while maintaining strict sanitary standards.

Sanitary rotating spray balls are widely used for tank cleaning, vessel rinsing, and CIP cleaning systems, delivering efficient cleaning performance, reliable operation, and easy installation in food, beverage, dairy, pharmaceutical, and biotechnology processing environments.

Product Name
Sanitary Stainless Steel Welding Rotary Spray Ball (SS304)

Available Standard
DIN, SMS, RJT, ISO/IDF

Material Quality
AISI304 (1.4301) / AISI316L (1.4404)

Specification
1" – 2.5"
Ball Size: 19 – 63 mm

Available Connection
Butt-weld, Female Threaded, Male Threaded, Tri-clamp, Bolt Connection

Construction
Rotary, Fixed, Double Rotary

Surface Treatment
Mirror Polished
Dull Polished
Electropolished
Ground Finish

Pressure
1.5 – 3 bar (14.5 – 44 psi)

Cleaning Radius
1.25 m – 3 m

Flow Rate
12 – 38 m³/h

Spray Angle / Pattern
360° Spray Pattern

Temperature Range
-20 °C ~ 135 °C

Applications

Food Processing Tanks
Beverage Production Vessels
Dairy Processing Systems
Pharmaceutical Manufacturing Tanks
Biotechnology Processing Equipment
CIP Cleaning Systems
Fermentation and Storage Tanks
