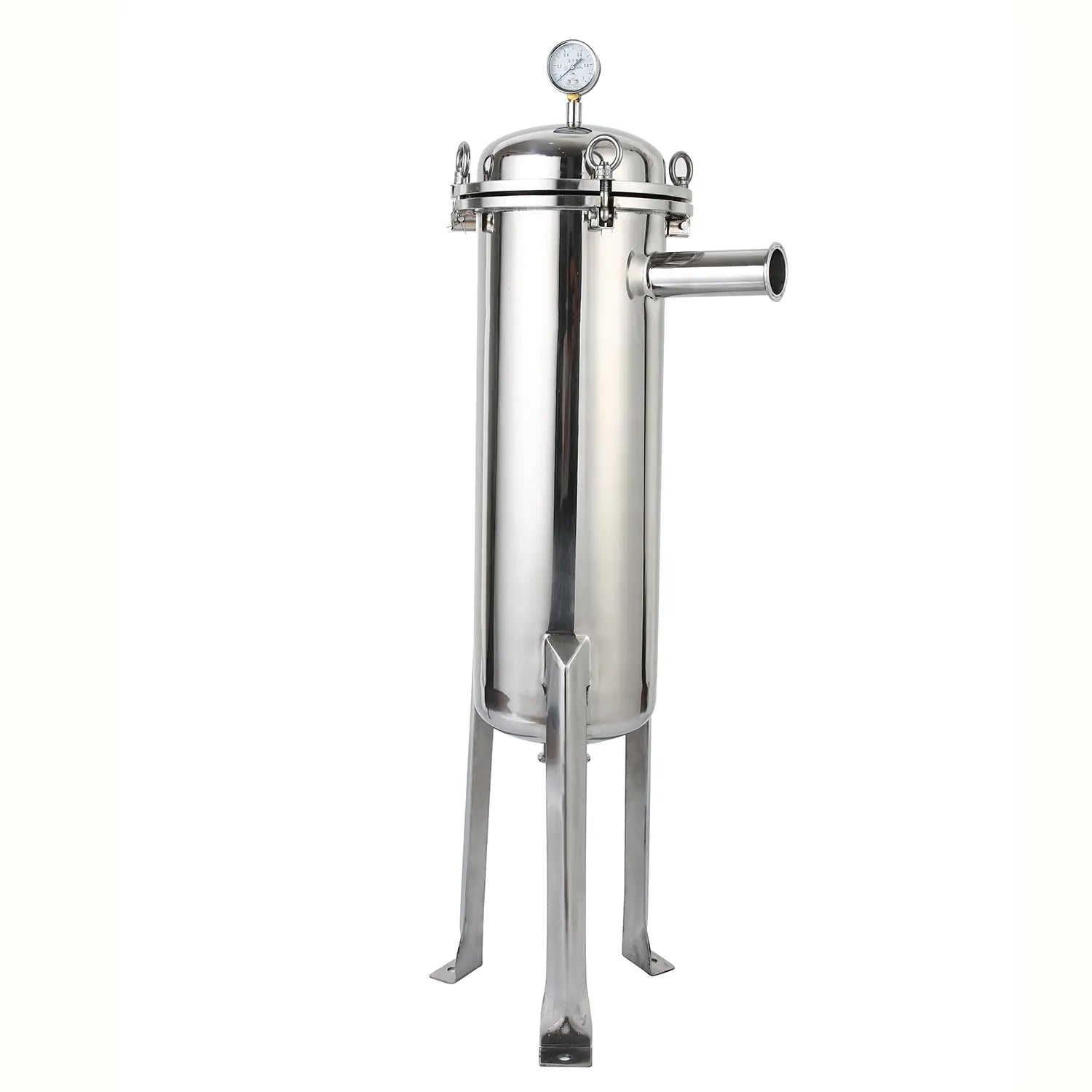

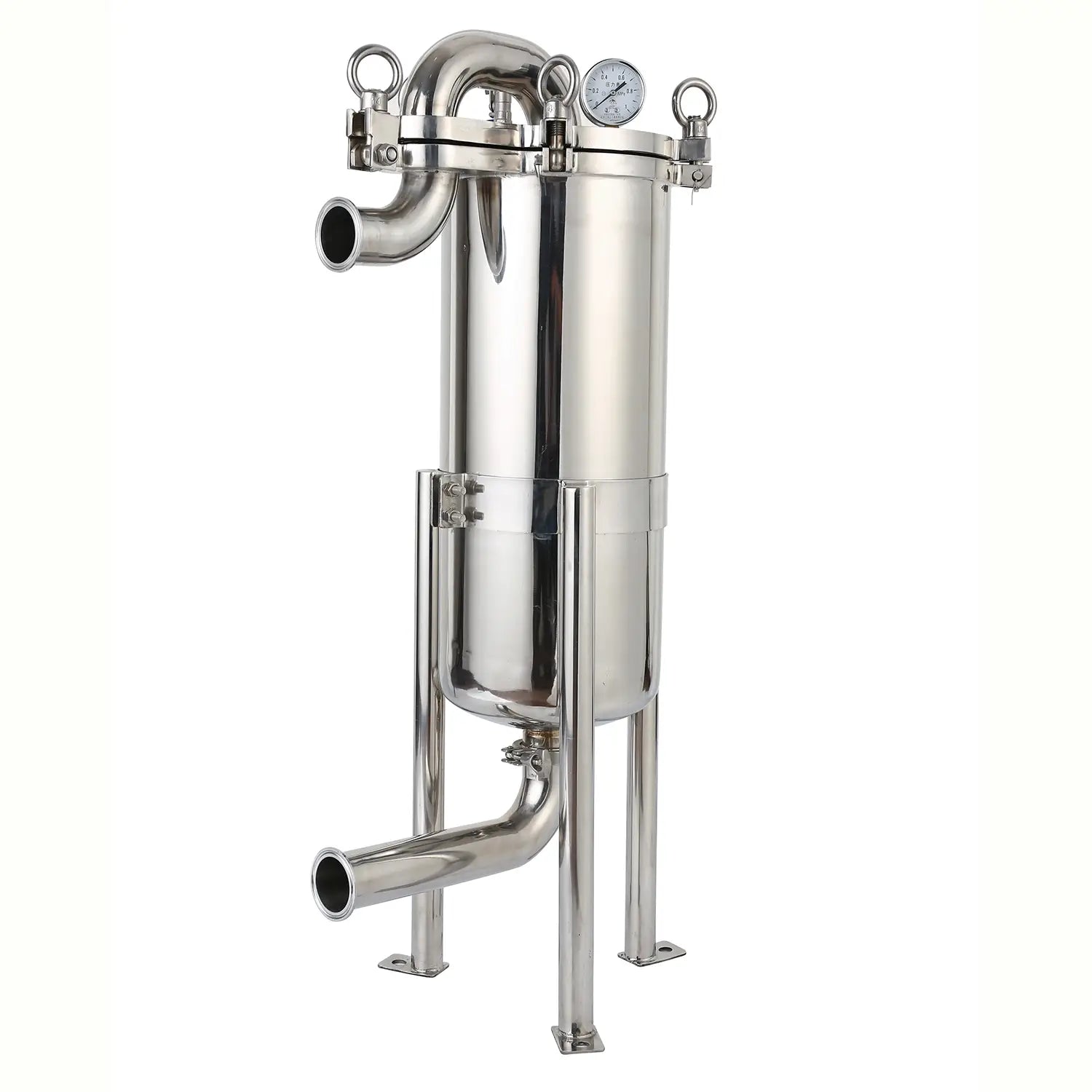

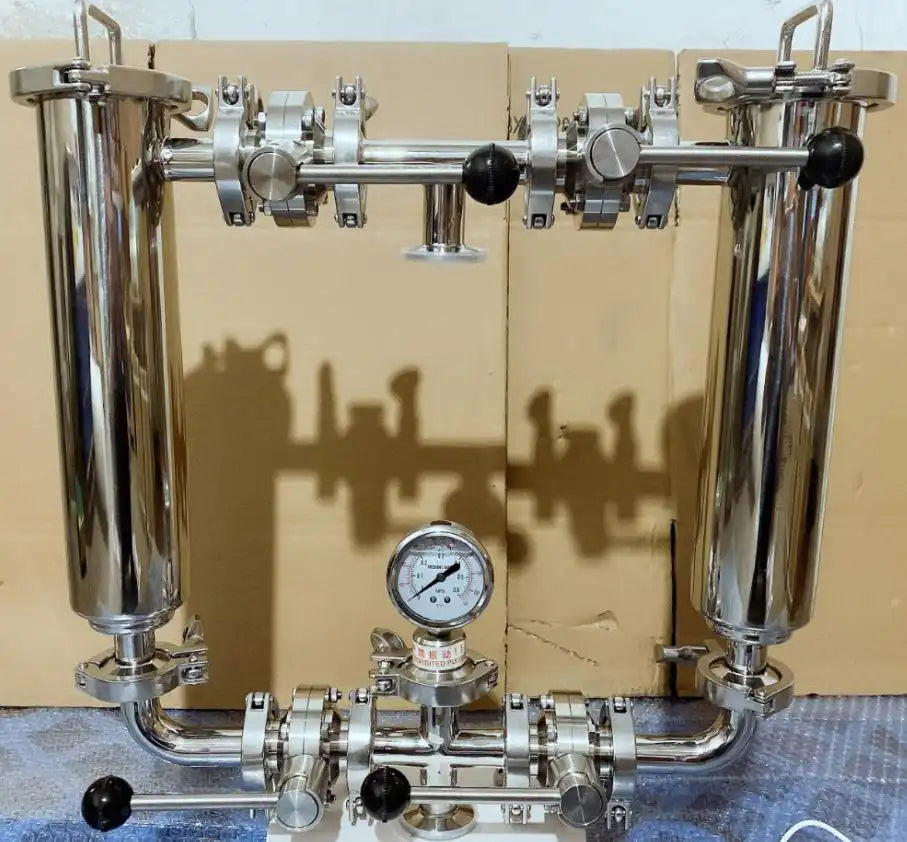

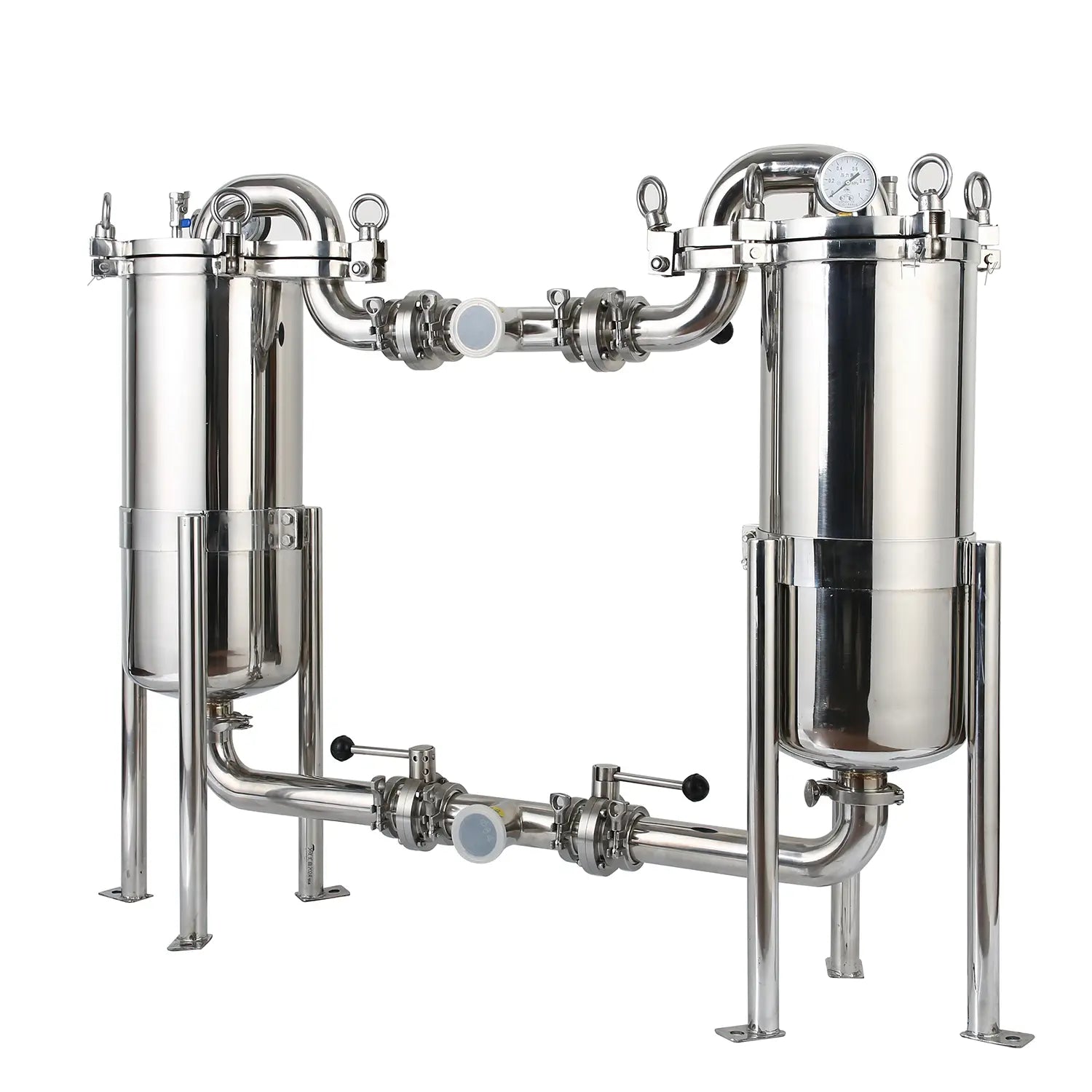

Sanitary Top Entry Bag Filter Housing

The sanitary top entry bag filter housing is designed to provide efficient liquid filtration in hygienic processing systems, allowing easy installation and replacement of filter bags for removing particles and impurities from liquids.

Constructed from high-quality stainless steel (SS304 or SS316L), this filter housing offers excellent corrosion resistance, strong structural durability, and smooth hygienic surfaces, helping prevent bacterial buildup and ensuring easy cleaning and sterilization.

Sanitary bag filter housings are widely used in food processing, beverage production, dairy systems, pharmaceutical manufacturing, and biotechnology industries, where reliable filtration, hygienic design, and stable operation are essential for maintaining product quality and process efficiency.

Product Name
SS304 / SS316L Sanitary Stainless Steel 20" Micro Membrane Filter Housing

Available Standard
DIN, ISO, SMS

Inlet / Outlet Dimension
1", 1.5", 2", 2.5", 3", 3.5", 4"

Filtering Accuracy
0.1 – 20 μm

Design Vessel Pressure
6 – 10 bar (87 – 150 PSI)

Filter Bag Type
#1 Bag, #2 Bag, #3 Bag, #4 Bag

Flow Type
Side Entry
Top Entry
S-Multi Bag Filter
B-Multi Bag Filter

Certification
ISO9001, SGS, TUV, EAC

Available Material
SS304, SS304L, SS316, SS316L

Operating Temperature
-4°F ~ 302°F (-20°C ~ 150°C)

Gasket Material
EPDM, Viton, Silicone, Buna

Connection
Tri-clamp, Flanged, Threaded, Union, Welded

Surface Finish
Mirror Polish
Electropolished
Acid Washing
Matte Polish
Mechanical Polishing

Applications

Food Processing Systems
Beverage Production Lines
Dairy Processing Equipment
Pharmaceutical Manufacturing
Biotechnology Processing Systems
Cosmetic Processing Equipment
Liquid Filtration in Hygienic Pipelines
