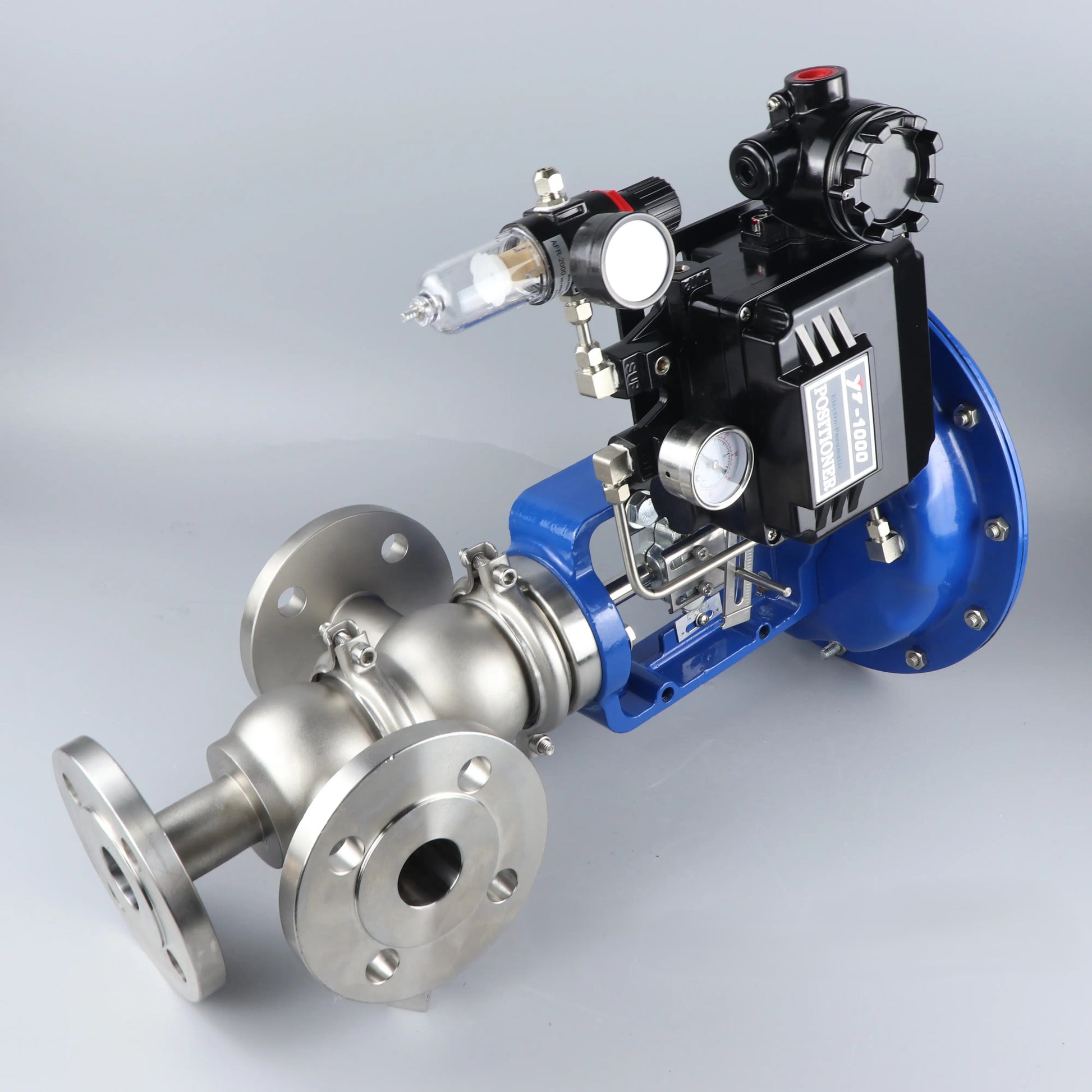

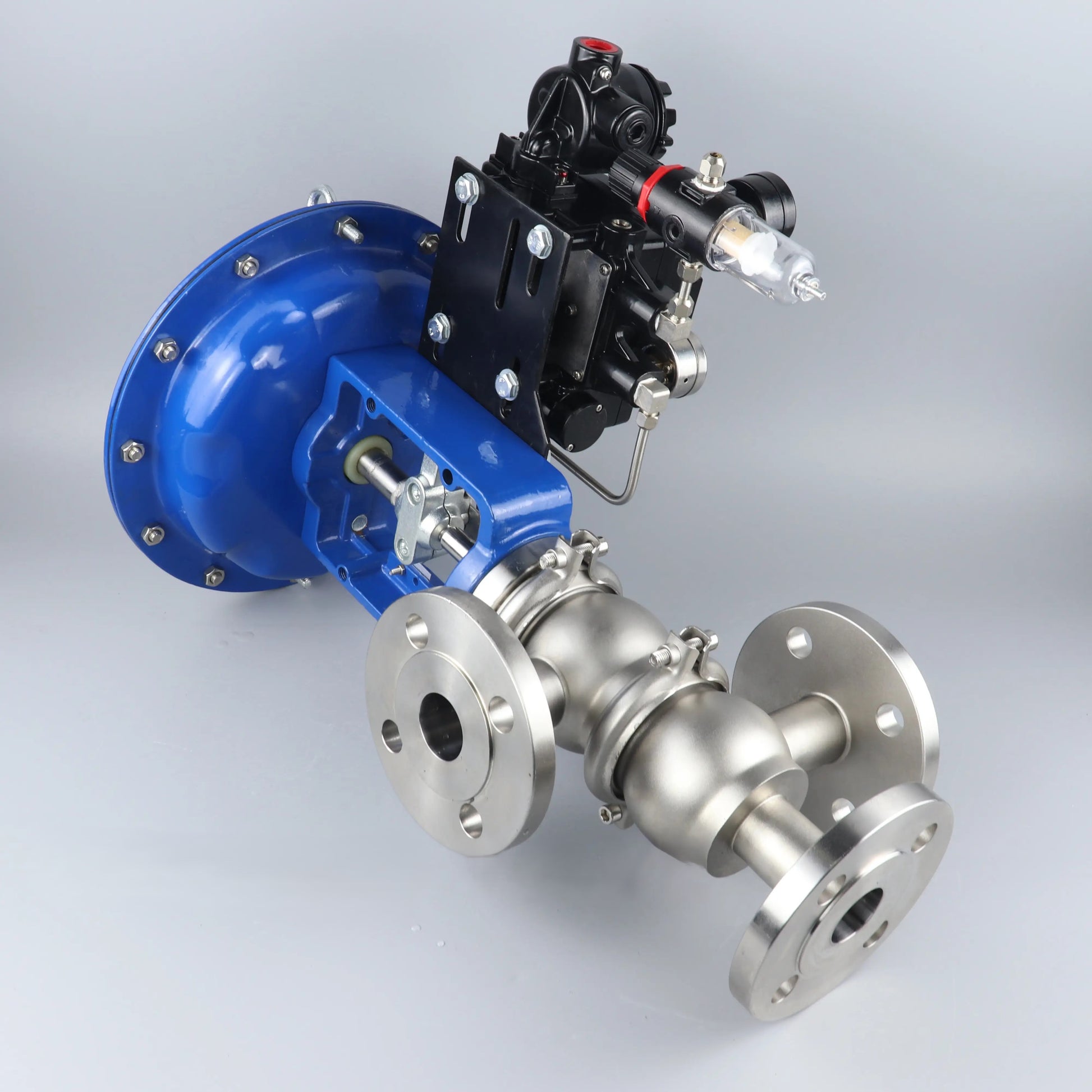

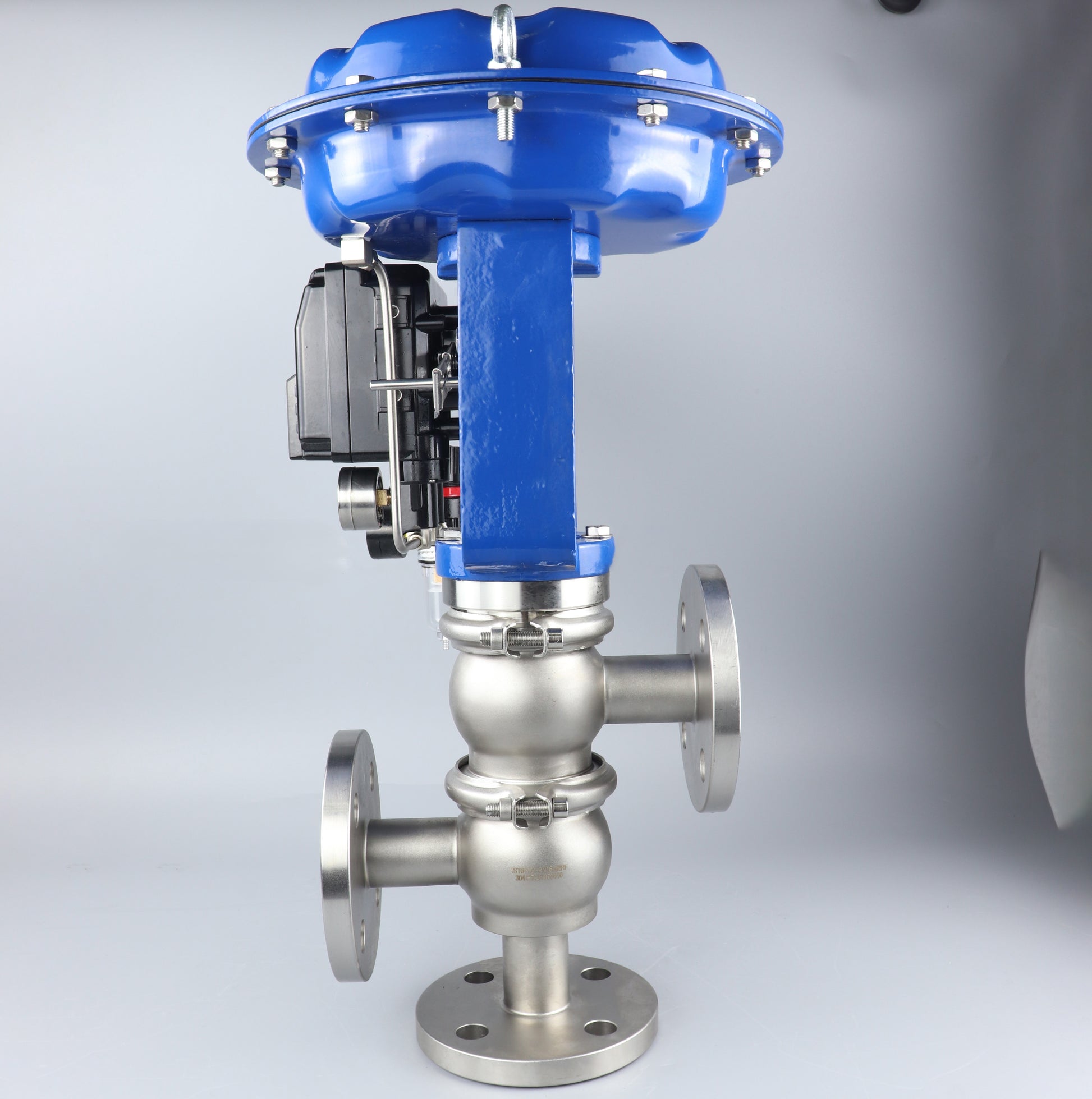

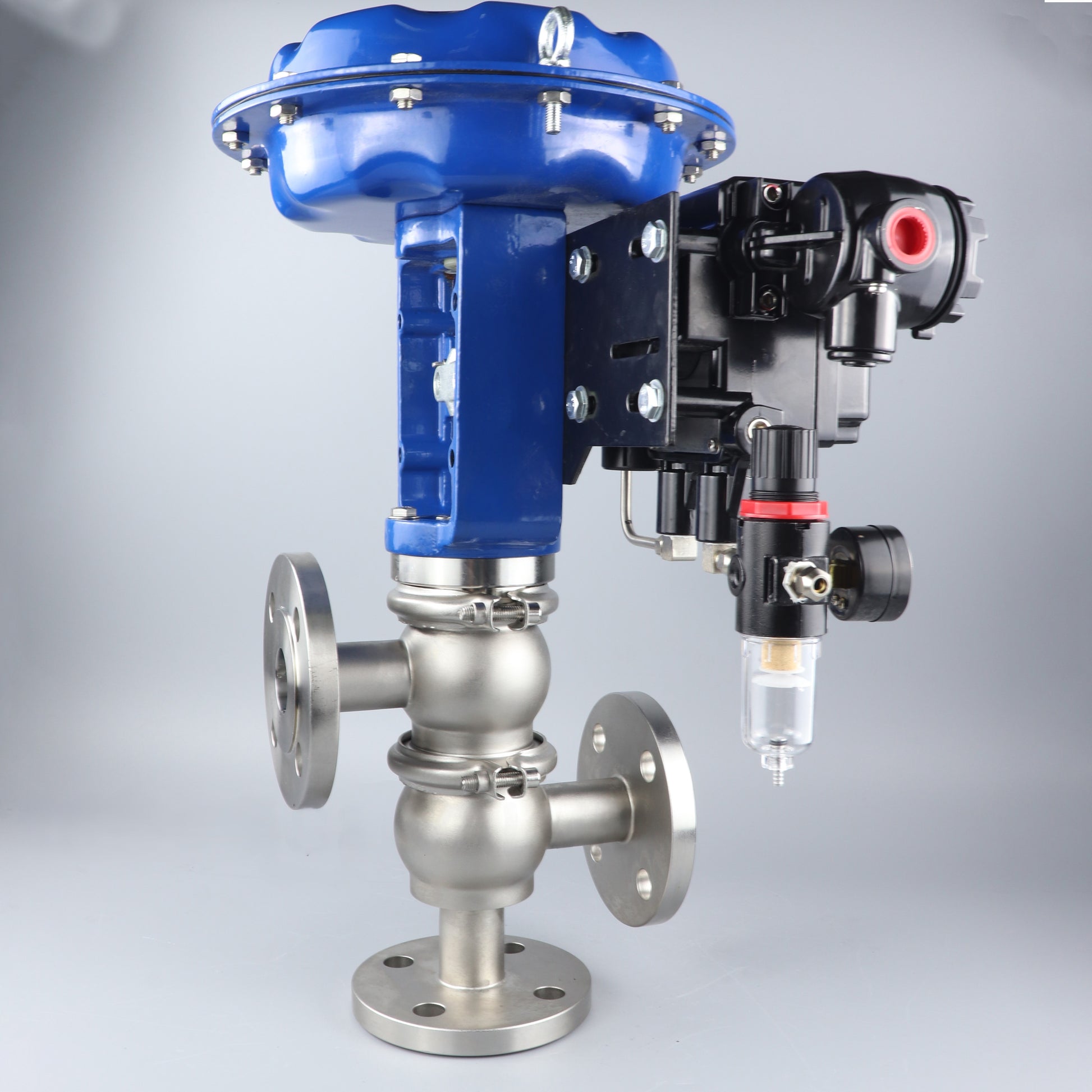

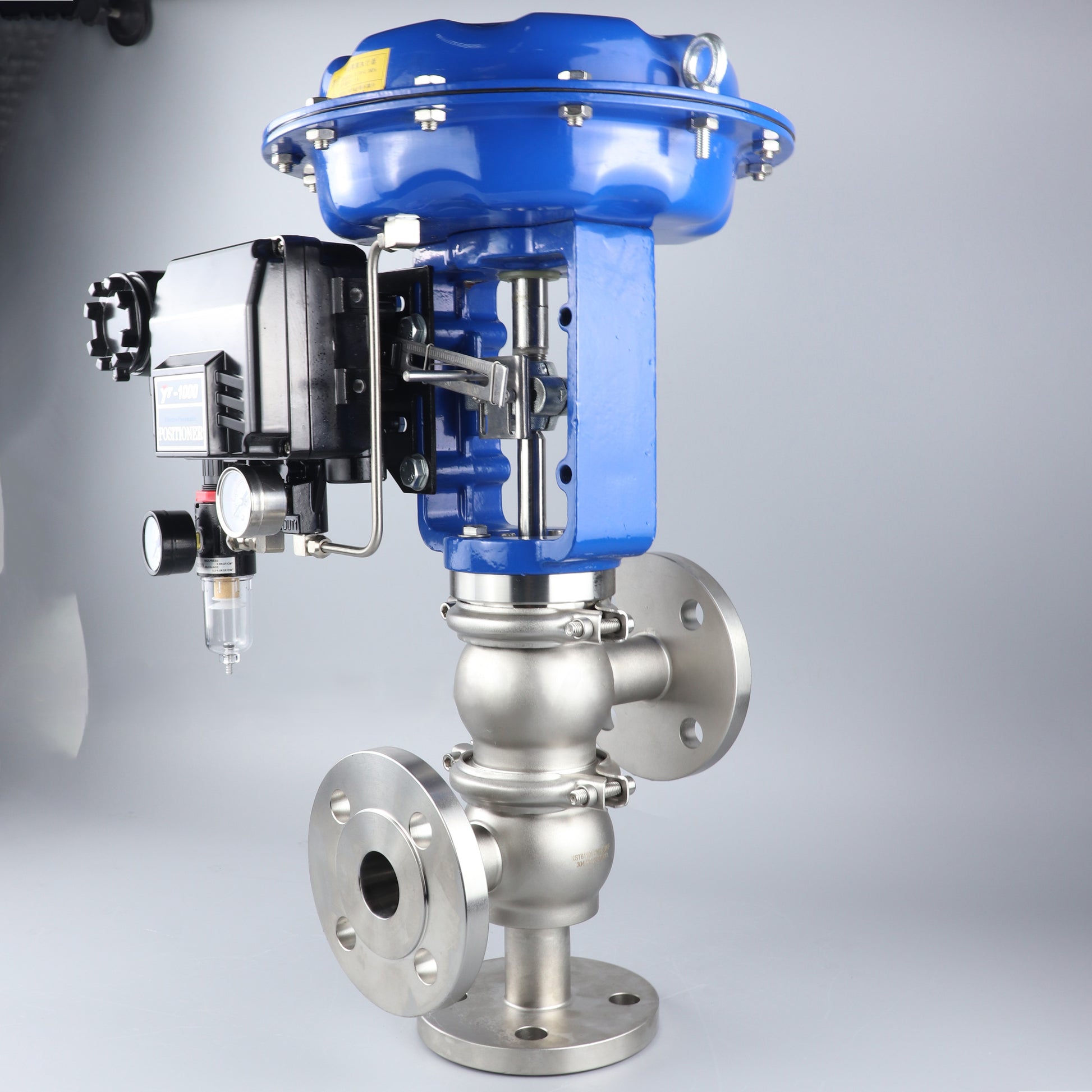

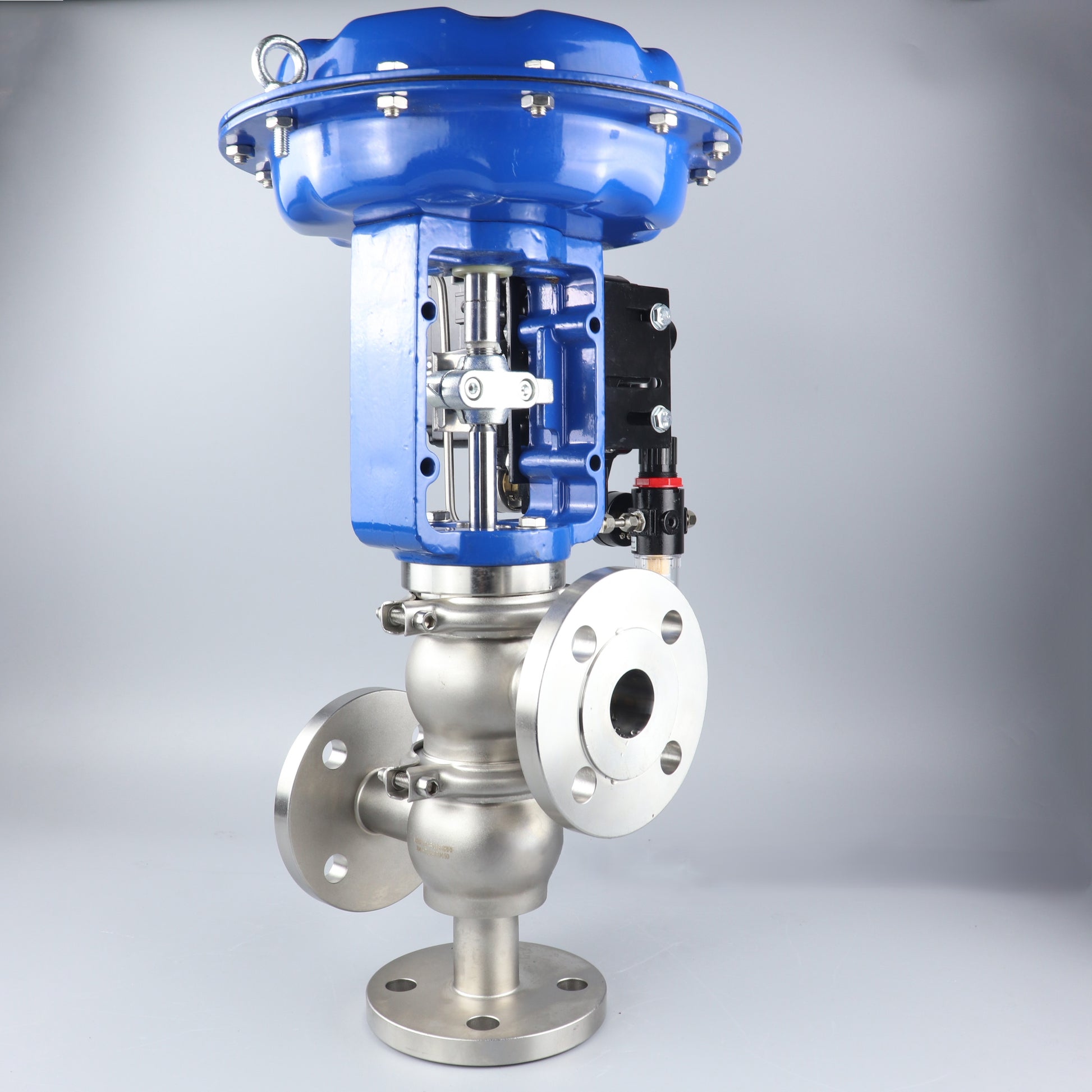

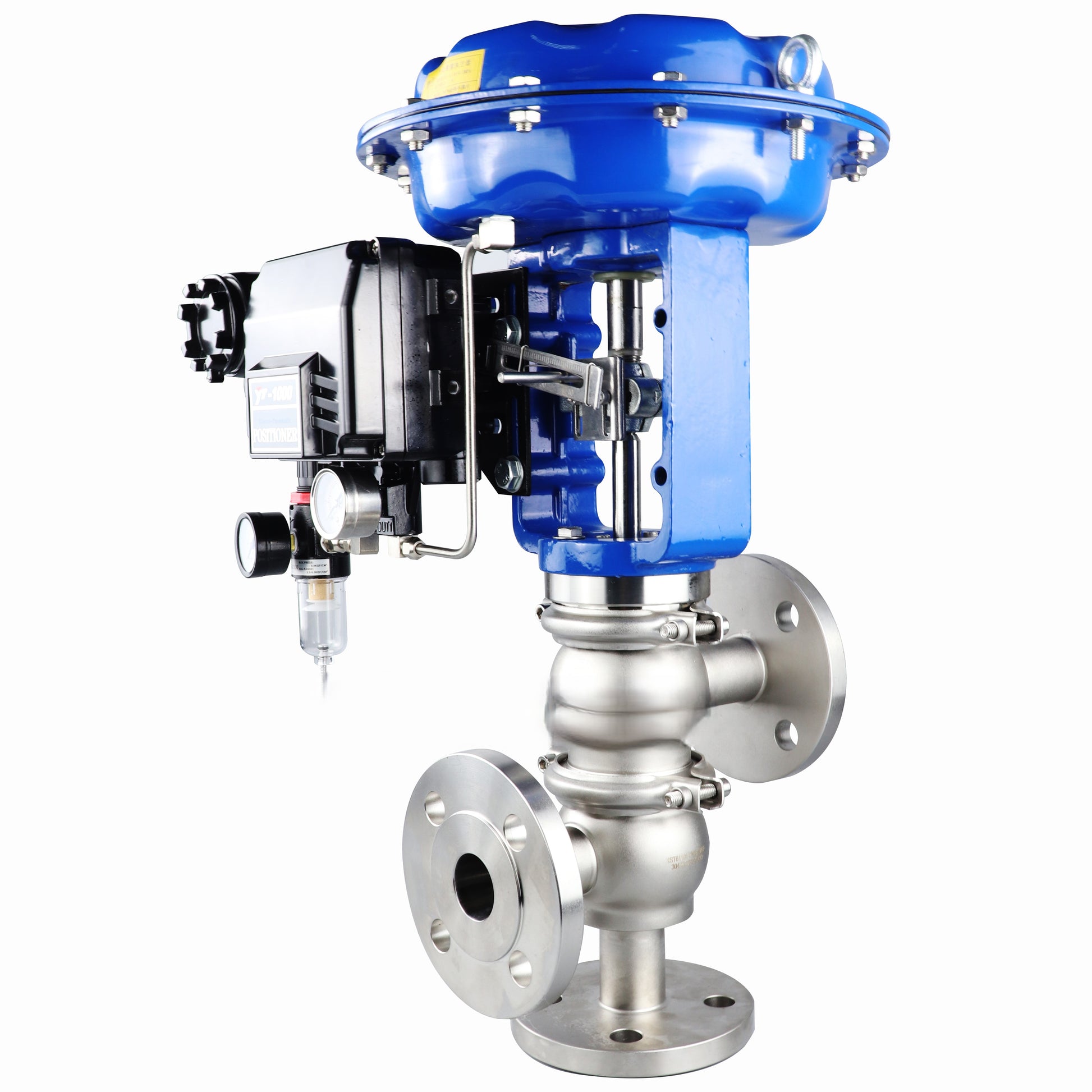

Sanitary three-way LL flow regulating control valves are designed to provide precise flow regulation in hygienic processing systems, allowing operators to accurately control the flow rate of liquids or gases in sanitary pipelines.
Manufactured from high-quality stainless steel (SS304 or SS316L), the valve offers excellent corrosion resistance, hygienic construction, and reliable sealing performance. Its advanced pneumatic and electric control system supports 4–20 mA signal integration, enabling precise automation and stable process control.
These valves are widely used in food processing, beverage production, pharmaceutical manufacturing, biotechnology processing, and water treatment systems, where accurate flow control and hygienic operation are essential for maintaining product quality and system efficiency.
Standard
SMS, DIN
Material Contact Parts
SS304 / SS316L (1.4301 / 1.4404) — Provided with material inspection report
Material Non-contact Parts
SS304 (1.4301)
Size
1” – 5” (DN25 – DN125)
Connection
Butt Weld, Tri Clamp, Male Threaded, Female Threaded, Union, Flange
Seal Material
EPDM, FKM, FPM, Buna, SI — All seal materials comply with FDA21CFR117.2600
Drive Option
Manual Stainless Steel Handle
SS Pneumatic Actuator (air/spring, air/air)
Aluminum Pneumatic Actuator (air/spring, air/air)
Electric Actuator (on-off, adjustable)
24V Remote Control Head
4–20 mA Electrical and Pneumatic Integration
Max. Working Pressure
≤10 bar (145 psi)
Min. Working Pressure
0.2 bar (2.9 psi)
Supply Pressure for Air Actuator
5 ~ 8 bar (72.52 psi ~ 116 psi)
External Surface Treatment
Ra32 ~ 64uin (0.8 ~ 1.6um)
Internal Surface Treatment
Ra16 ~ 32uin (0.4 ~ 0.8um)
Temperature Range
-20 ~ 130 ℃ (depending on seat seal)
Certificate
ISO 9001, FDA, SGS, CE
Support
OEM & ODM Available
Applications
Food Processing Systems
Beverage Production Lines
Pharmaceutical Manufacturing
Biotechnology Processing
Water Treatment Systems
Alcohol Processing Equipment
