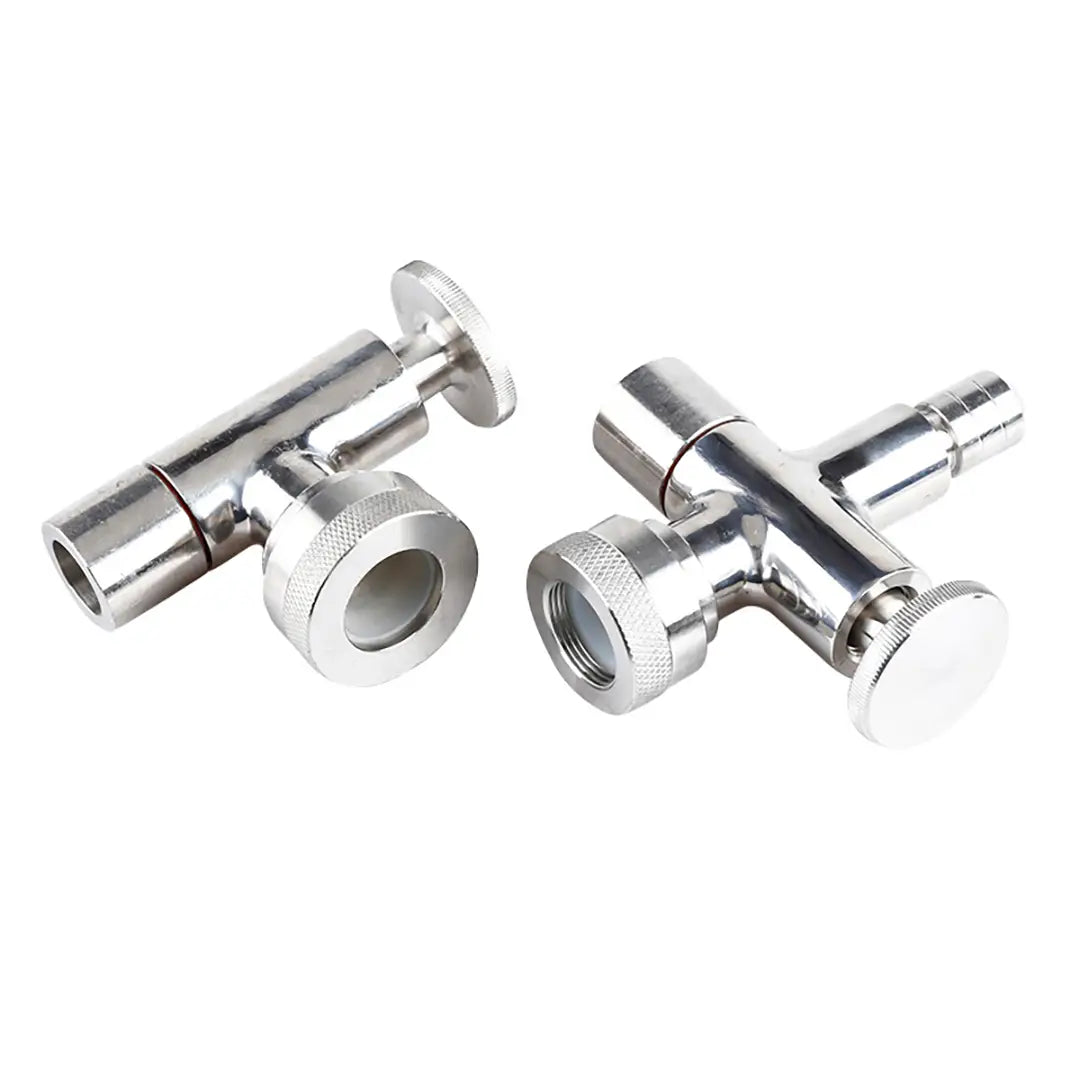

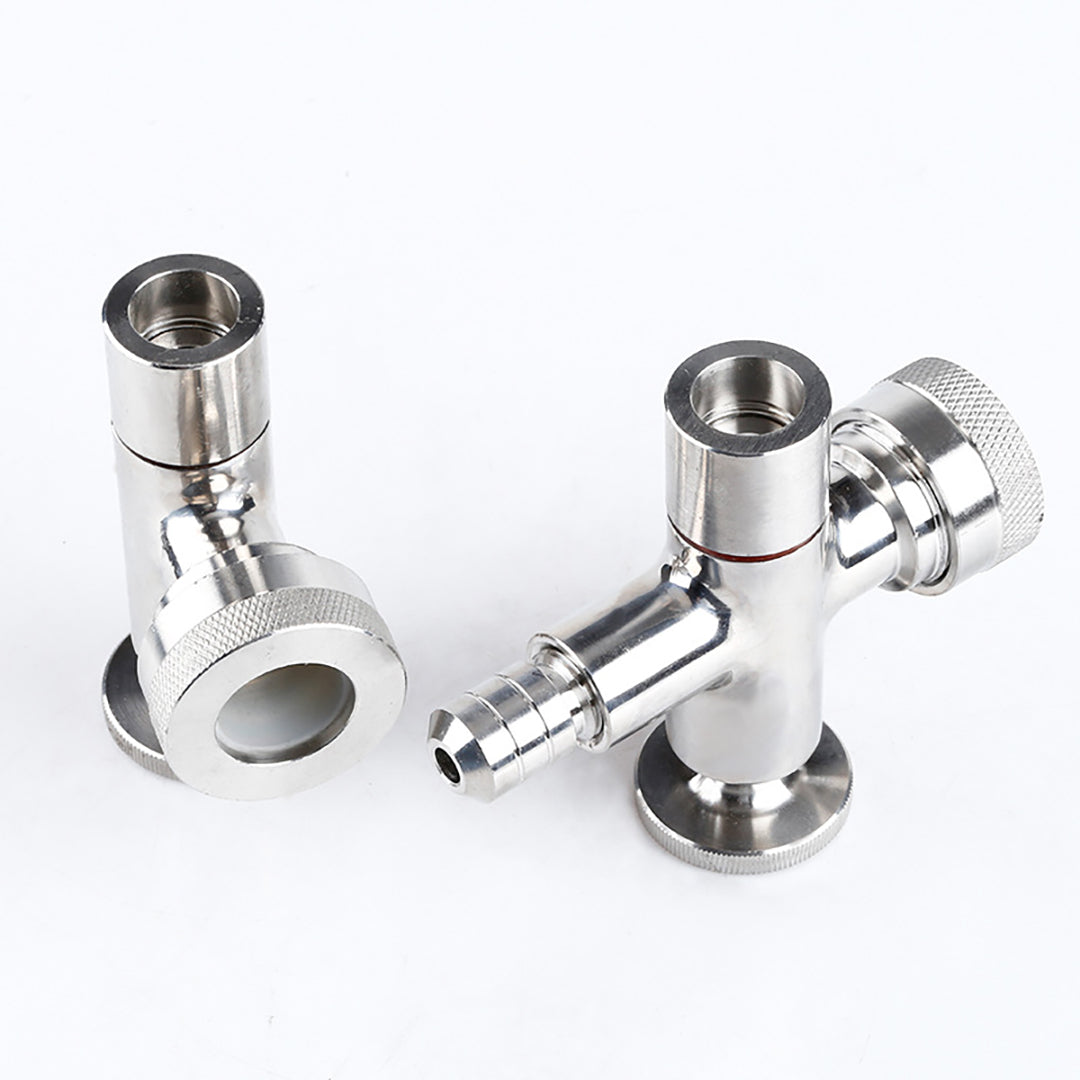

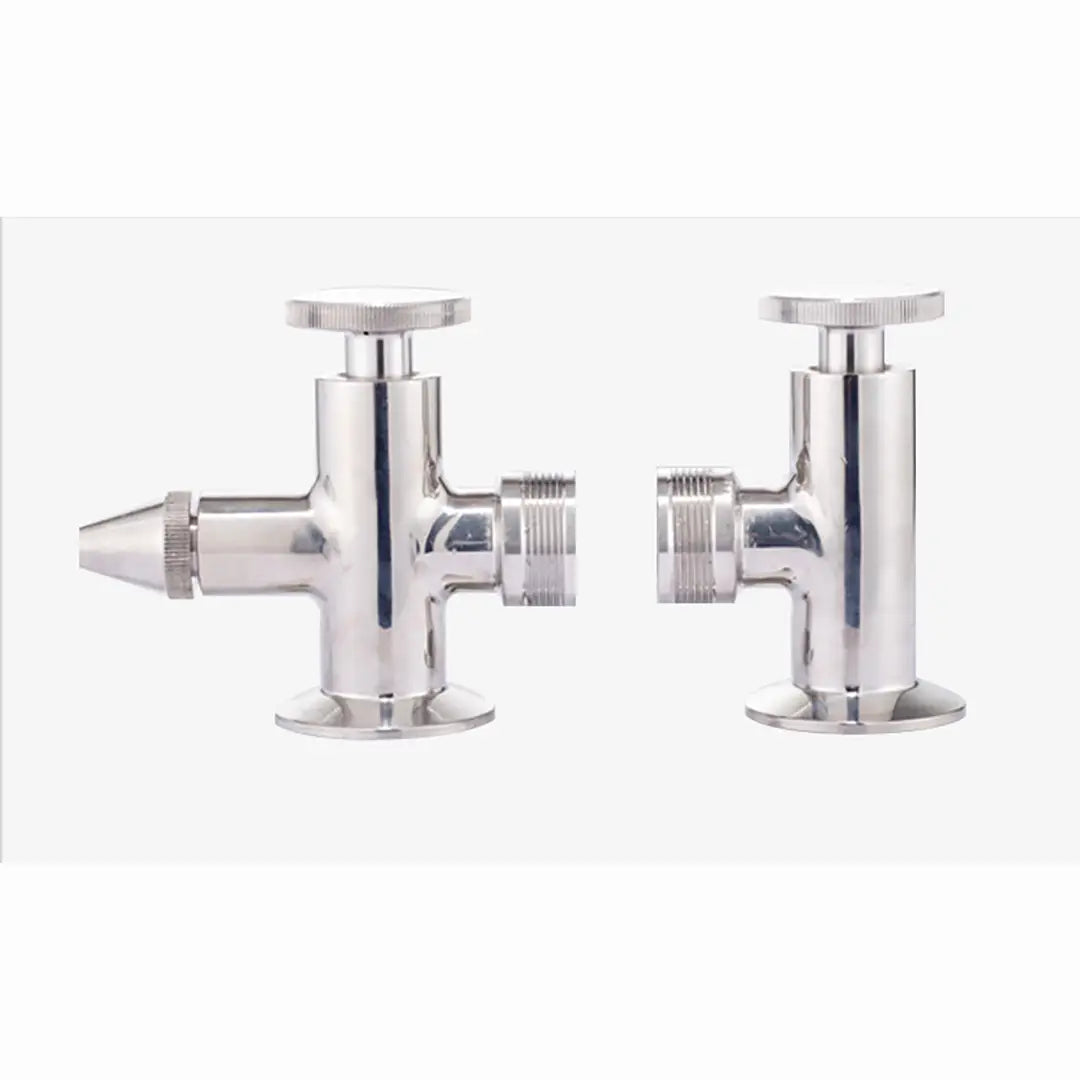

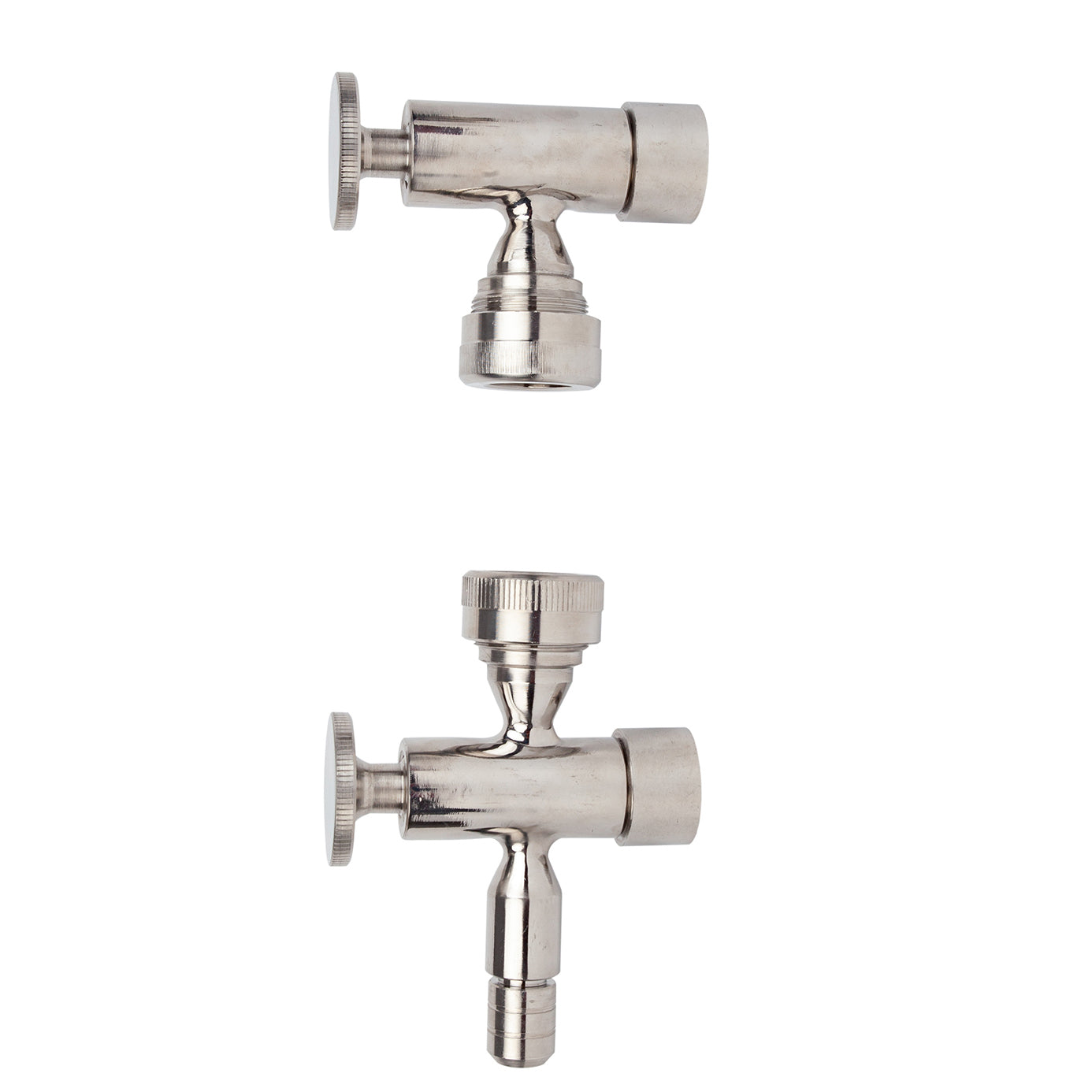

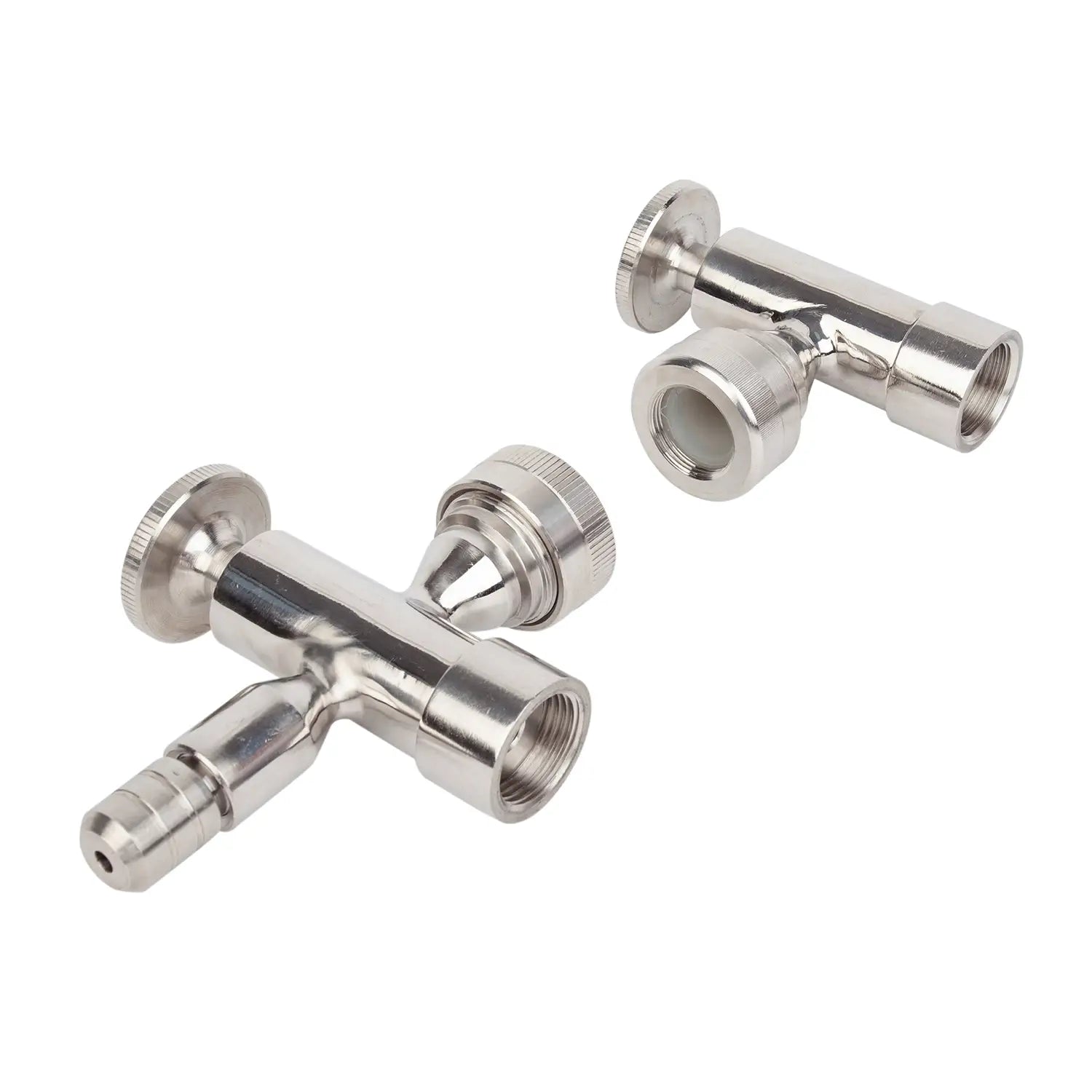

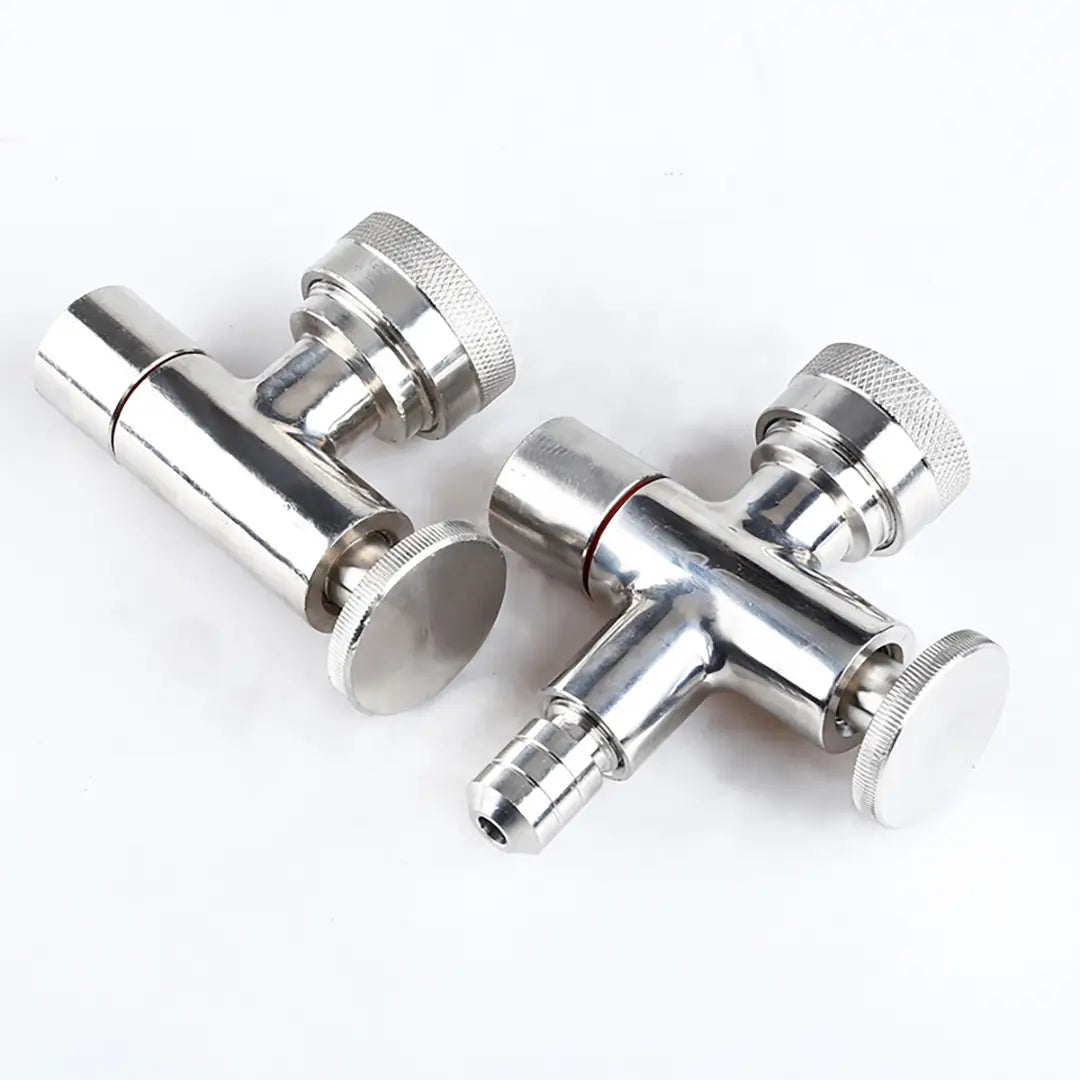

Sanitary threaded level gauge valves are designed to control and isolate liquid level indicators in hygienic tanks and vessels. These valves allow operators to safely monitor fluid levels while protecting the level gauge system during maintenance, cleaning, or replacement.
Manufactured from high-quality stainless steel (SS304 or SS316L), the valve offers excellent corrosion resistance, hygienic construction, and reliable sealing performance. The threaded connection design allows easy installation and integration with level gauge systems used in sanitary processing equipment.
Sanitary level gauge valves are widely used in food and beverage production, dairy processing, pharmaceutical manufacturing, biotechnology systems, and chemical processing, where accurate tank level monitoring and hygienic operation are essential for maintaining product quality and process control.
Standard
SMS, 3A
Material – Contact Parts
SS304 / SS316L (1.4301 / 1.4404)
Material inspection report available
Material – Non-contact Parts
SS304 (1.4301)
Size Options
1/4"
3/8"
1/2"
3/4"
Glass Size Compatibility
Suitable for OD 19 mm glass
Connection Options
Butt Weld
Tri Clamp
Male Thread
Union
Flange
Seal Materials
Silicone
EPDM
FKM
Buna
PTFE
(All seal materials comply with FDA 21 CFR 177.2600)
Working Pressure
6 bar (87 psi)
Maximum Pressure
10 bar (145 psi)
Temperature Range
-10 °C to +120 °C
(14 °F to 248 °F)
External Surface Finish
Ra 0.8 – 1.6 μm
Internal Surface Finish
Ra 0.4 – 0.6 μm
Operation Type
Manual
Function
Installed on tanks to control and observe liquid levels through level gauge systems.
Applications
Beer
Beverage
Dairy
Food Processing
Fruit Juice Production
Pharmaceutical
Biotechnology
Cosmetics
Chemical Processing
Customization Support
OEM
ODM
OBM
