Sanitary threaded float valves are designed to automatically control liquid levels in hygienic tanks and processing vessels. The float mechanism regulates the inlet flow of liquid, allowing the valve to maintain a stable fluid level and prevent tank overflow during operation.
Manufactured from high-quality stainless steel (SS304 or SS316), the valve provides excellent corrosion resistance and hygienic performance suitable for sanitary processing environments. The threaded connection allows easy installation and integration into various tank systems used in hygienic industries.
Sanitary float valves are widely used in food processing, beverage production, dairy systems, pharmaceutical manufacturing, biotechnology processing, and chemical applications, where reliable automatic level control is required to maintain consistent process conditions.
Product Type
Float Ball Valve
Main Components
Valve Body
Valve Cap
Seal
Plug
Rod
Float Ball
Nut
Float Valve Types
Stainless Steel Float Ball Valve
Small Hole Float Ball Valve
Plastic Float Ball Valve
Design Type
Lever Type
Straight Through
Material – Contact Parts
SS304 (1.4301)
SS316 (1.4401)
Brass
SS201
Material inspection report available
Material – Non-contact Parts
SS304 (1.4301)
SS201
Seal Materials
NBR
EPDM
Silicone
FKM
All seal materials comply with FDA 21 CFR 177.2600
Connection Size
DN15
DN20
DN25
DN32
DN40
DN50
DN65
DN80
DN100

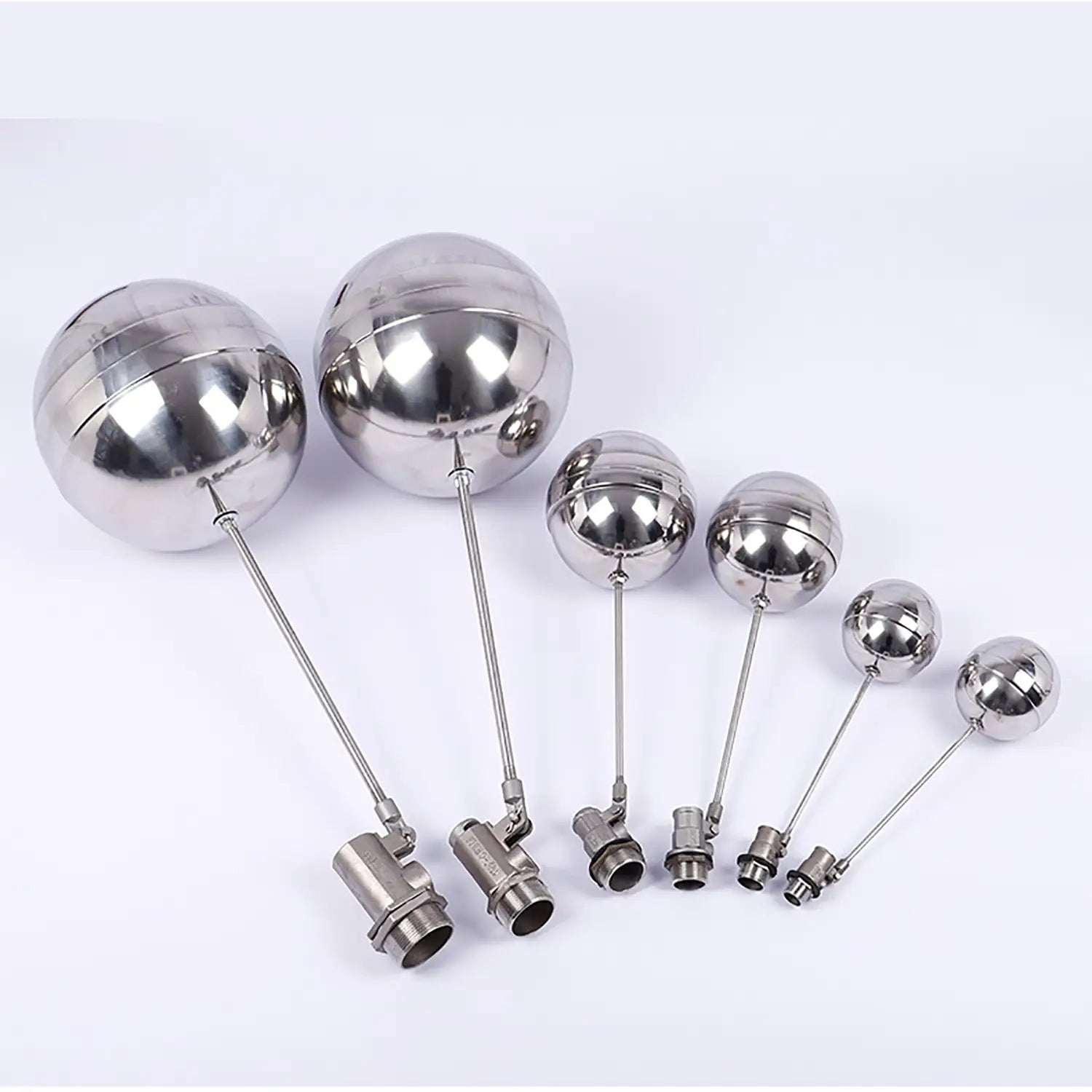

Float Ball Size
95 mm
135 mm
150 mm
225 mm
250 mm
280 mm
300 mm
Connection Options
Screw Thread
Tri Clamp
Flange
Maximum Pressure
16 bar (232 psi)
Working Pressure
6 bar (87 psi)
Temperature Range
-20 °C to +200 °C
(-4 °F to +392 °F)
Rotation Angle
360°
Drive Mode
Hydraulic Control
Flow Direction
Single Direction
Applicable Media
Water
Customization Support
OEM
ODM
Applications
• Food Processing Tanks
• Beverage Storage Tanks
• Dairy Processing Systems
• Water Storage Tanks
• Chemical Processing Systems
• Automatic Liquid Level Control Systems
