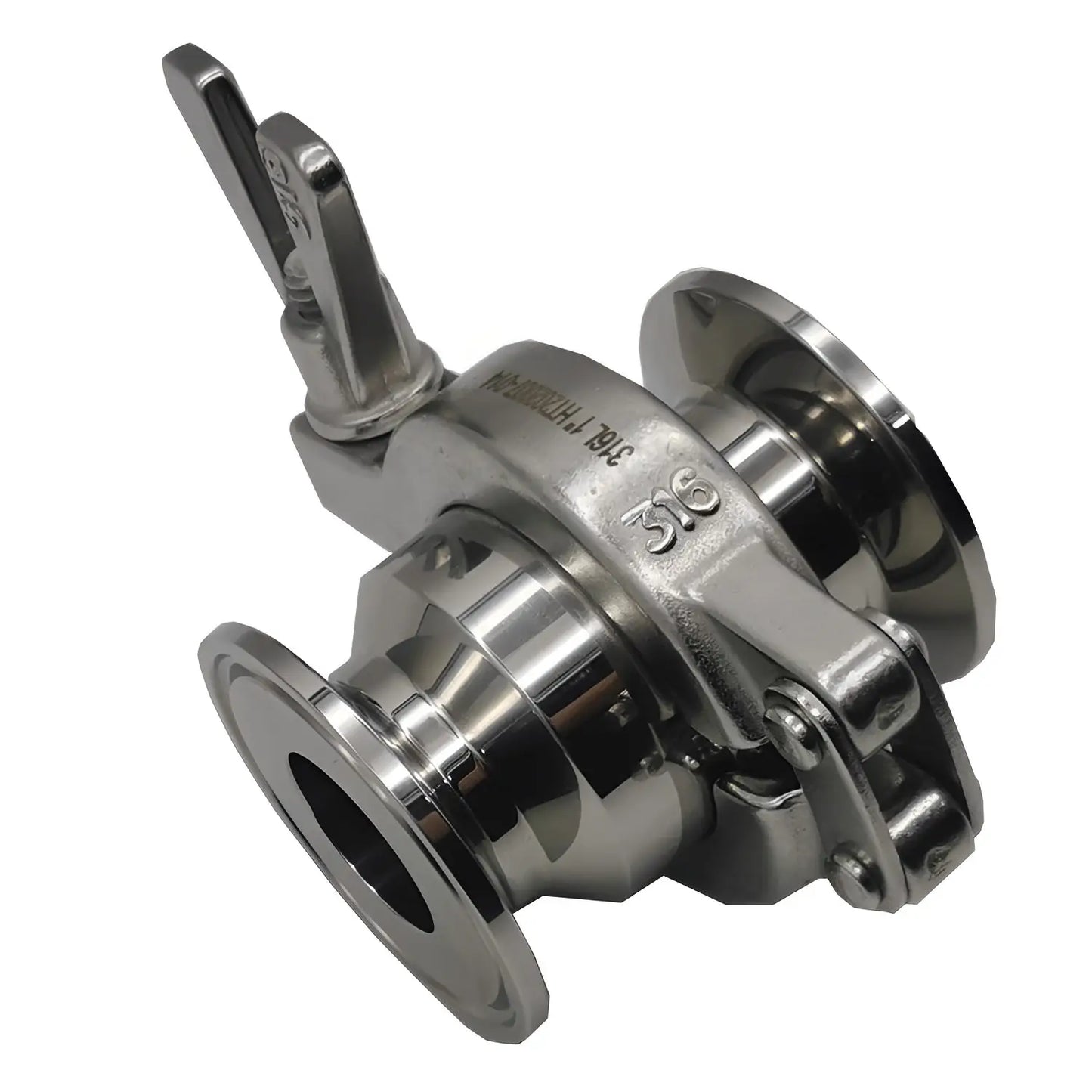

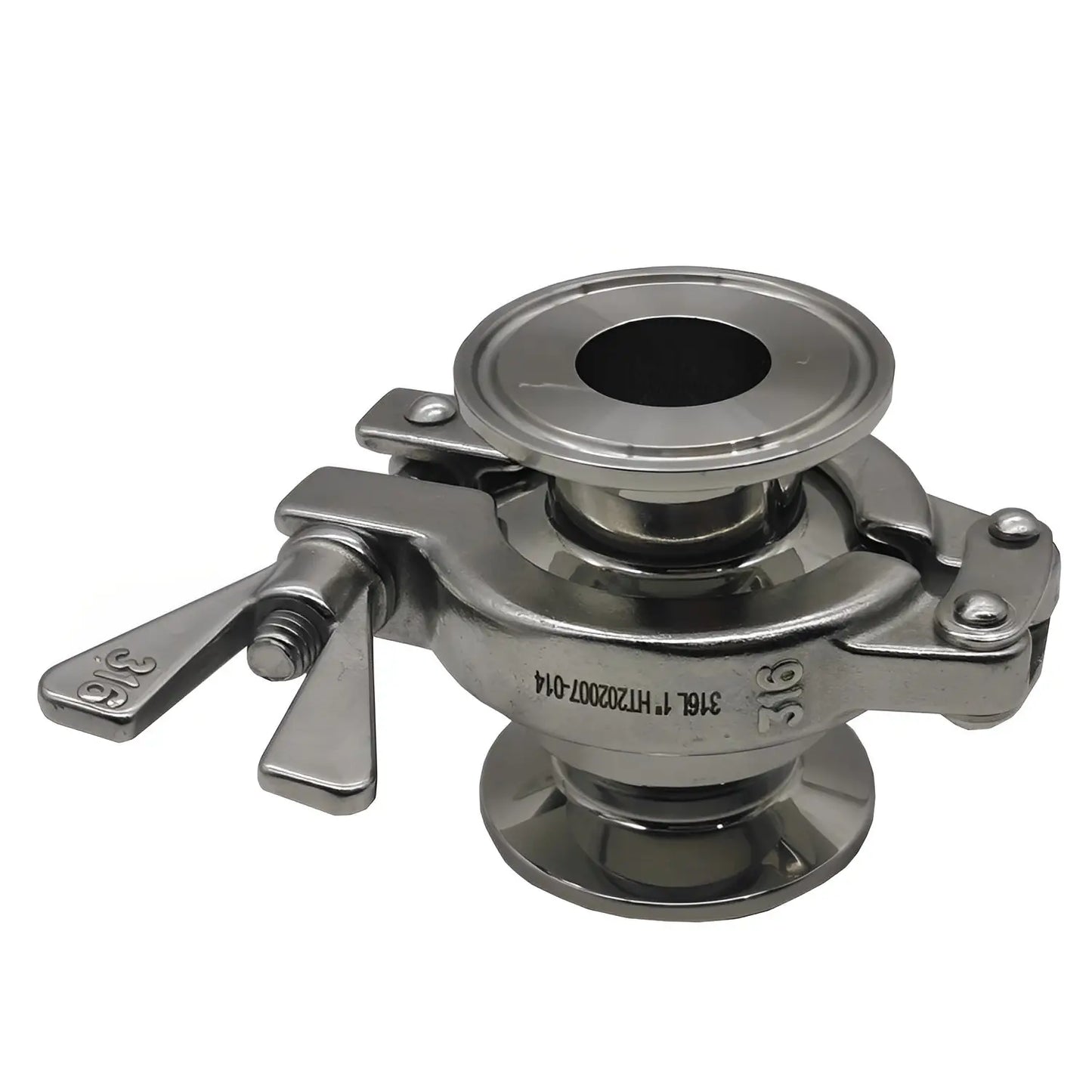

Sanitary TC steam trap valves are designed to automatically discharge condensate from steam systems while preventing the loss of live steam. They play an essential role in maintaining efficient heat transfer and stable operation in hygienic processing environments.
Manufactured from high-quality stainless steel (SS316L), the valve provides excellent corrosion resistance, hygienic construction, and reliable sealing performance. The tri-clamp (TC) connection ensures easy installation and compatibility with sanitary pipeline systems commonly used in food, beverage, and pharmaceutical facilities.
Sanitary steam trap valves are widely used in CIP systems, steam heating pipelines, sterilization equipment, and other hygienic steam applications, where efficient condensate removal and reliable steam system performance are required.
Standard
SMS, 3A
Material – Contact Parts
SS316L (1.4404)
Material inspection report available
Size Options
1/2"
3/4"
1"
Connection Type
Tri Clamp (TC Ends)
Seal Material
PTFE
(All seal materials comply with FDA 21 CFR 177.2600)
Maximum Pressure
≤ 10 bar (145 psi) at 40°C
Working Pressure
6 bar (87 psi)
Temperature Range
-25 °C to 165 °C
(-13 °F to 329 °F)
External Surface Finish
Ra 0.8 – 1.6 μm
or Electropolished
Internal Surface Finish
Ra 0.4 – 0.6 μm
or Electropolished
Applications
• CIP Systems
• Steam Heating Pipelines
• Food Processing Equipment
• Beverage Production Lines
• Dairy Processing Systems
• Pharmaceutical Manufacturing
• Biotechnology Processing
