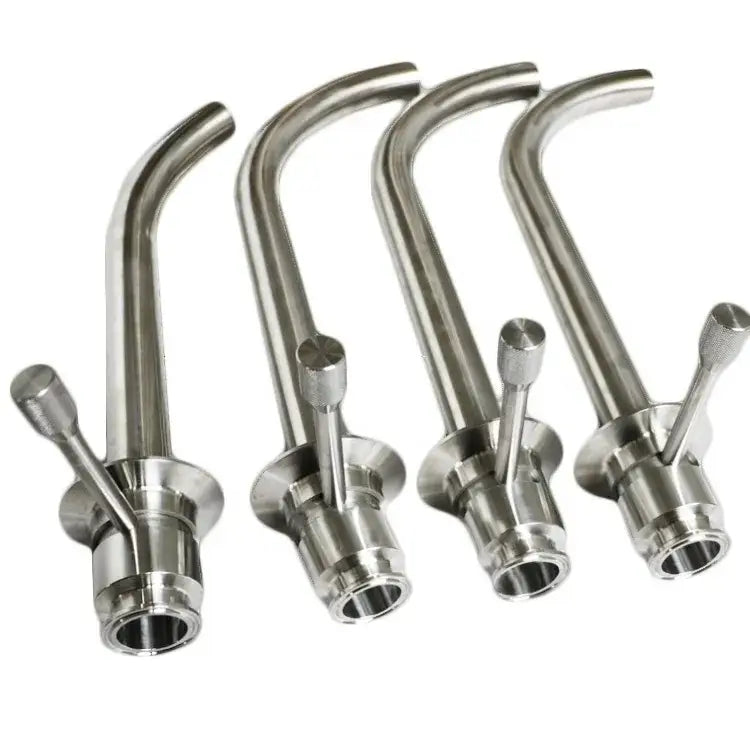

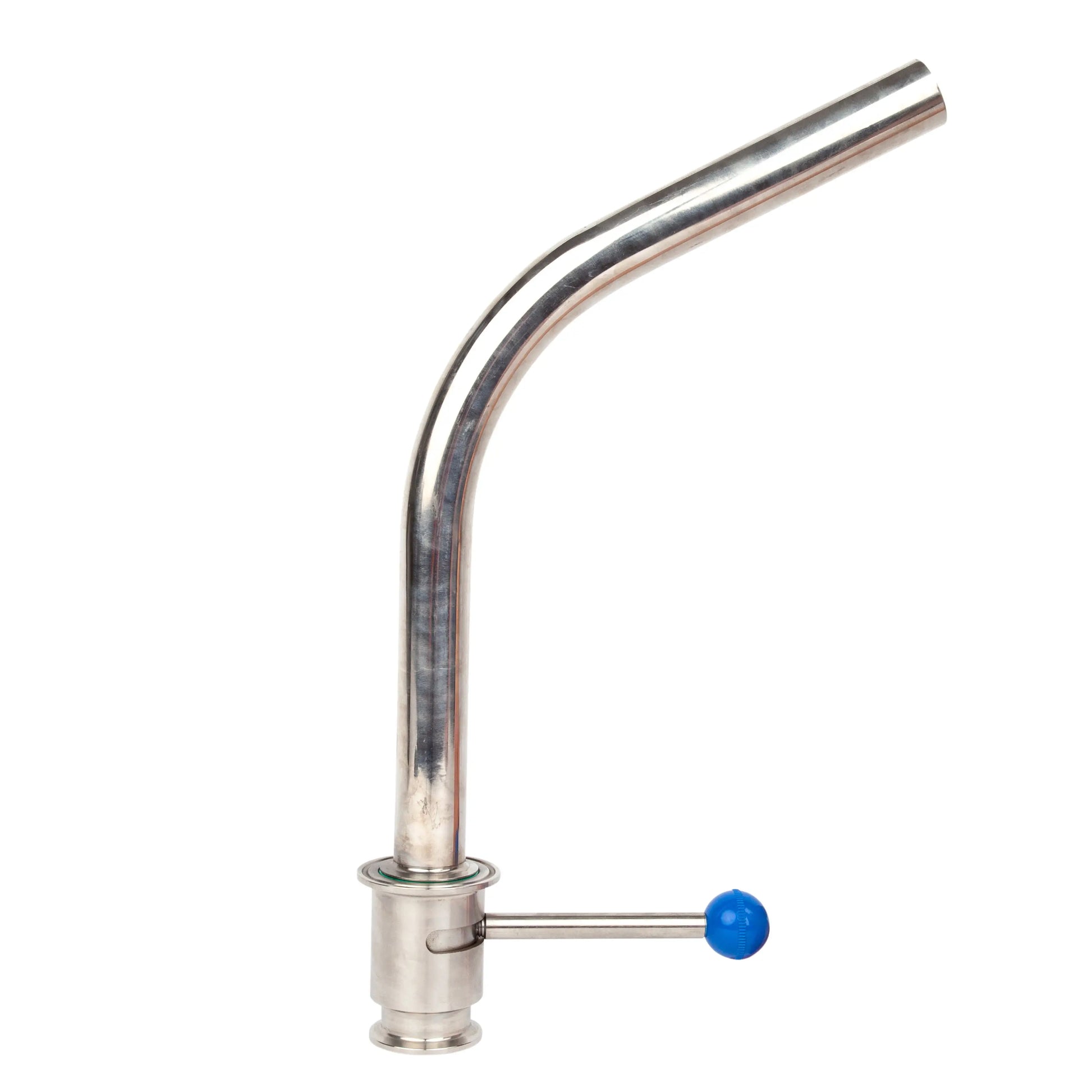

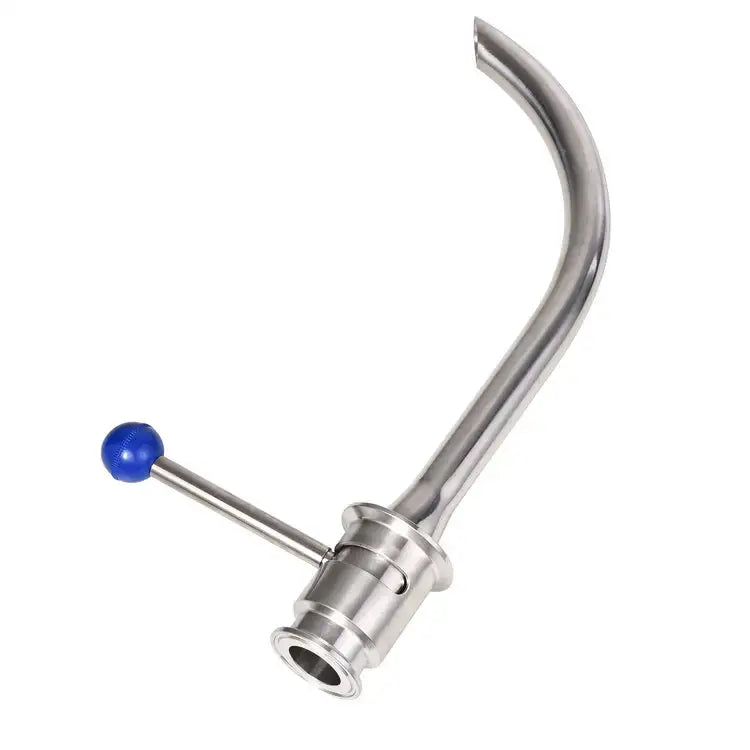

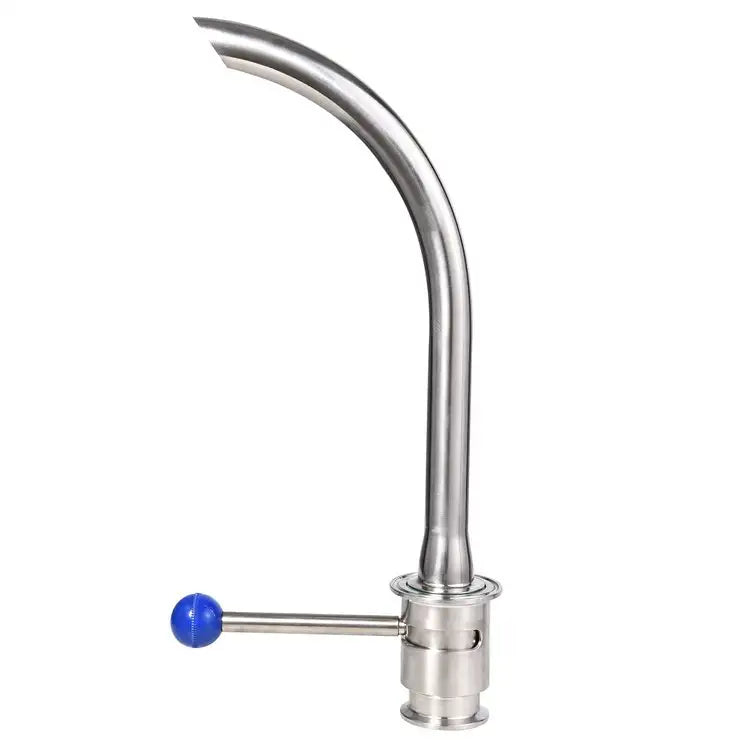

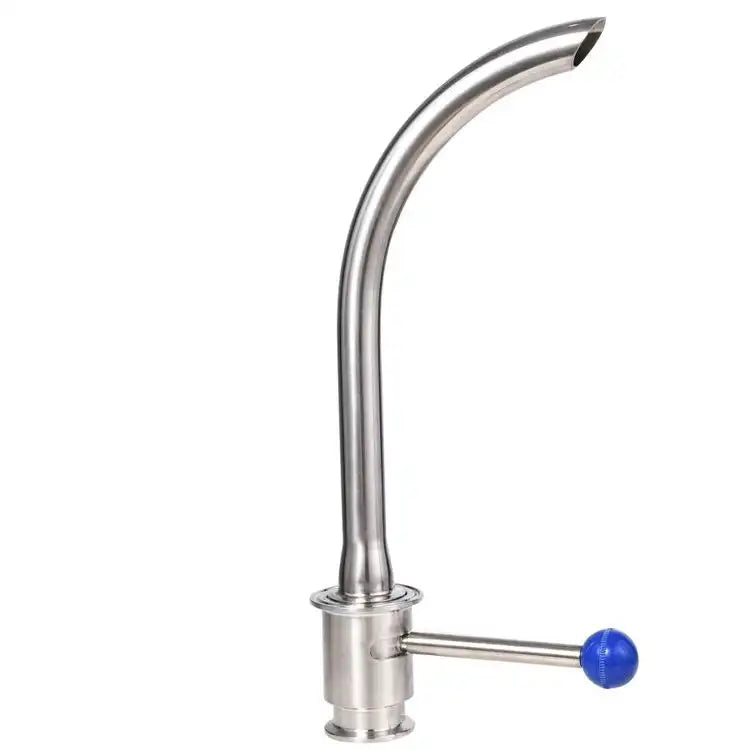

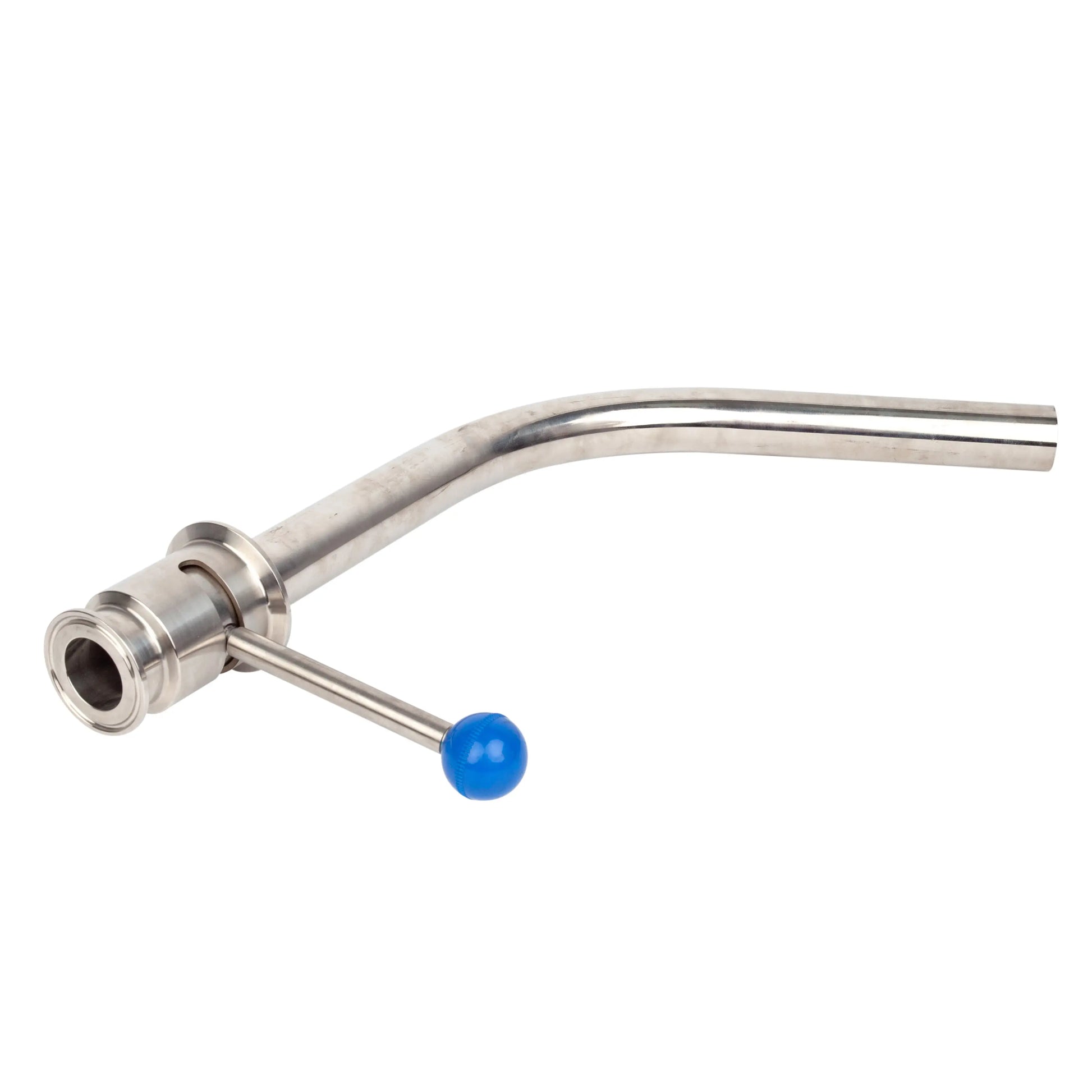

Sanitary TC racking arm valves are designed for controlled discharge and transfer of liquids from storage tanks or fermentation vessels. The adjustable racking arm allows operators to rotate the internal pipe to draw liquid from different levels inside the tank, helping separate clear product from sediment during the racking process.
Manufactured from high-quality stainless steel (SS304 or SS316L), the valve provides excellent corrosion resistance, hygienic construction, and reliable sealing performance. The tri-clamp connection ensures quick installation and compatibility with sanitary piping systems.
Sanitary racking arm valves are widely used in brewing, beverage production, dairy processing, pharmaceutical manufacturing, and biotechnology systems, where hygienic tank emptying and precise liquid transfer are essential for maintaining product quality and process efficiency.
Standard
SMS, DIN, 3A
Material – Contact Parts
SS304 / SS316L (1.4301 / 1.4404)
Material inspection report available
Material – Non-contact Parts
SS304 (1.4301)
Size Range
1" – 4" (DN25 – DN100)
Racking Arm Bend Radius
R = 200 mm
R = 300 mm
R = 500 mm
(or customized)
Bend Angle Options
45°
60°
90°
120°
130°
(or customized)
Connection Options
Tri Clamp
Female Thread
Union
Square Flange
Round Flange
Seal Materials
Silicone
EPDM
FKM
Buna
(All seal materials comply with FDA 21 CFR 177.2600)
Drive Option
Manual Stainless Steel Handle
Applicable Media
Water
Gas
Oil
Working Pressure
6 – 16 bar (87 – 232 psi)
Air Supply Pressure (if pneumatic)
6 – 8 bar (87 – 116 psi)
External Surface Finish
Ra 0.8 – 1.6 μm
Internal Surface Finish
Ra 0.4 – 0.8 μm
Applications
• Brewery Fermentation Tanks
• Beverage Production Tanks
• Wine Fermentation Systems
• Dairy Processing Tanks
• Storage Tank Discharge Systems
