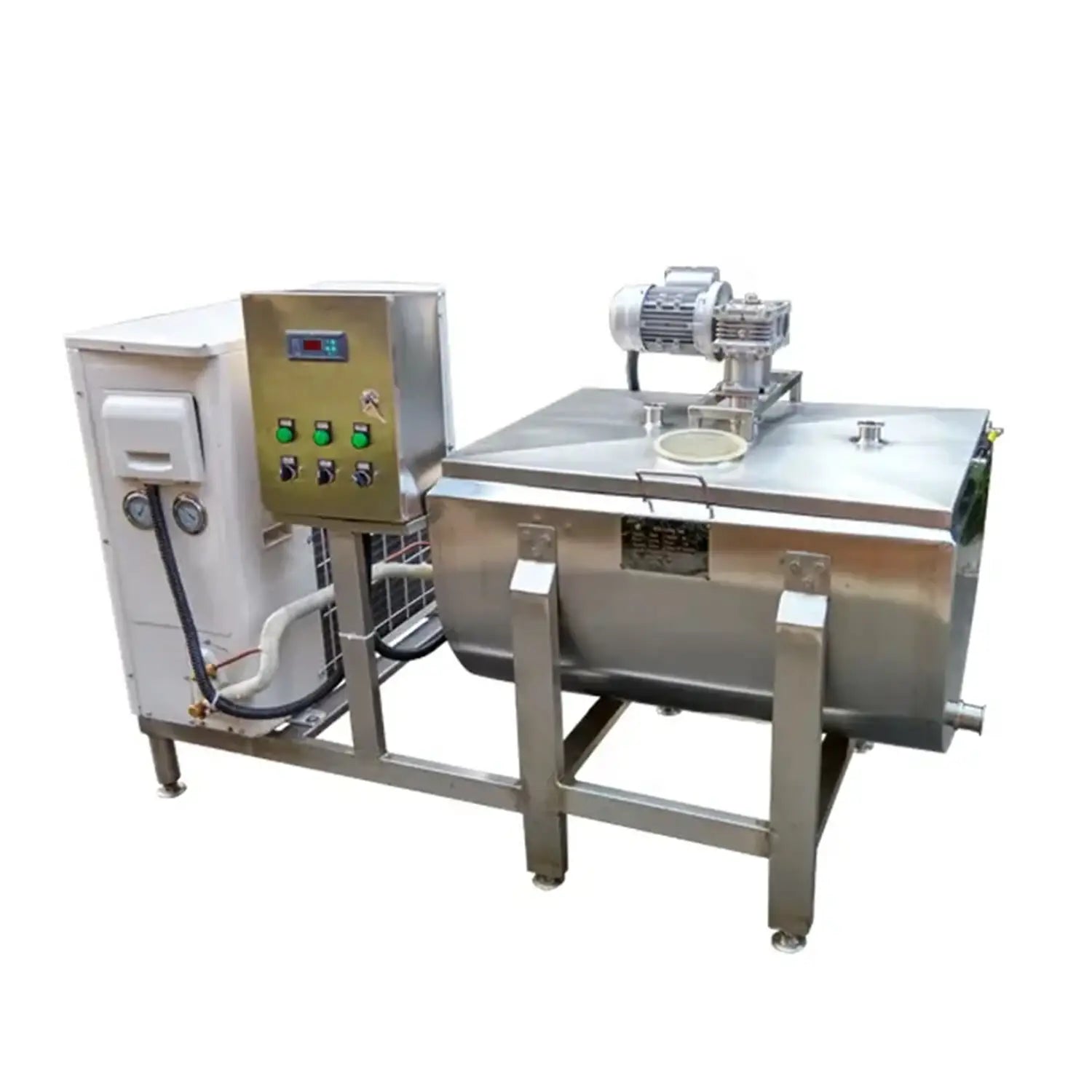

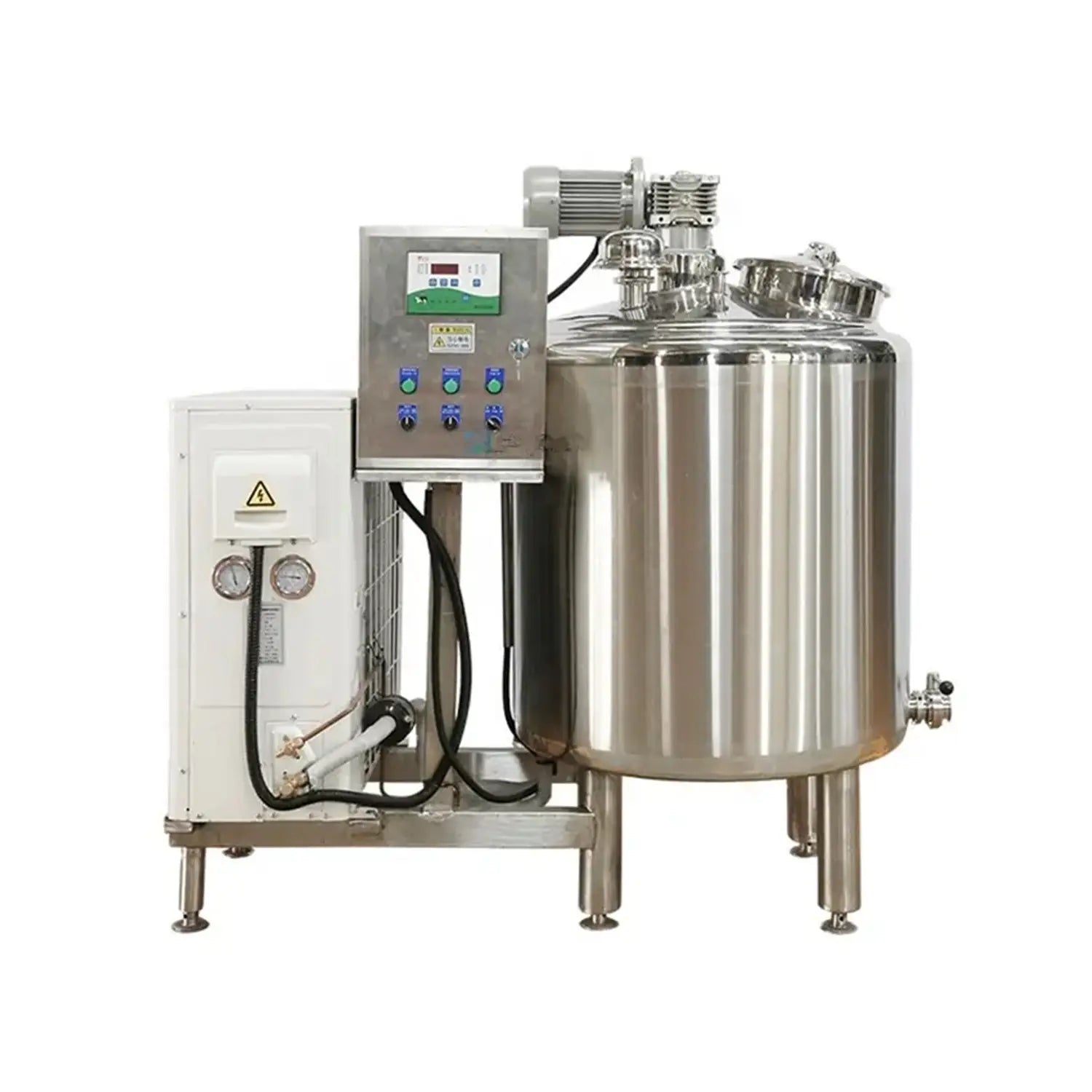

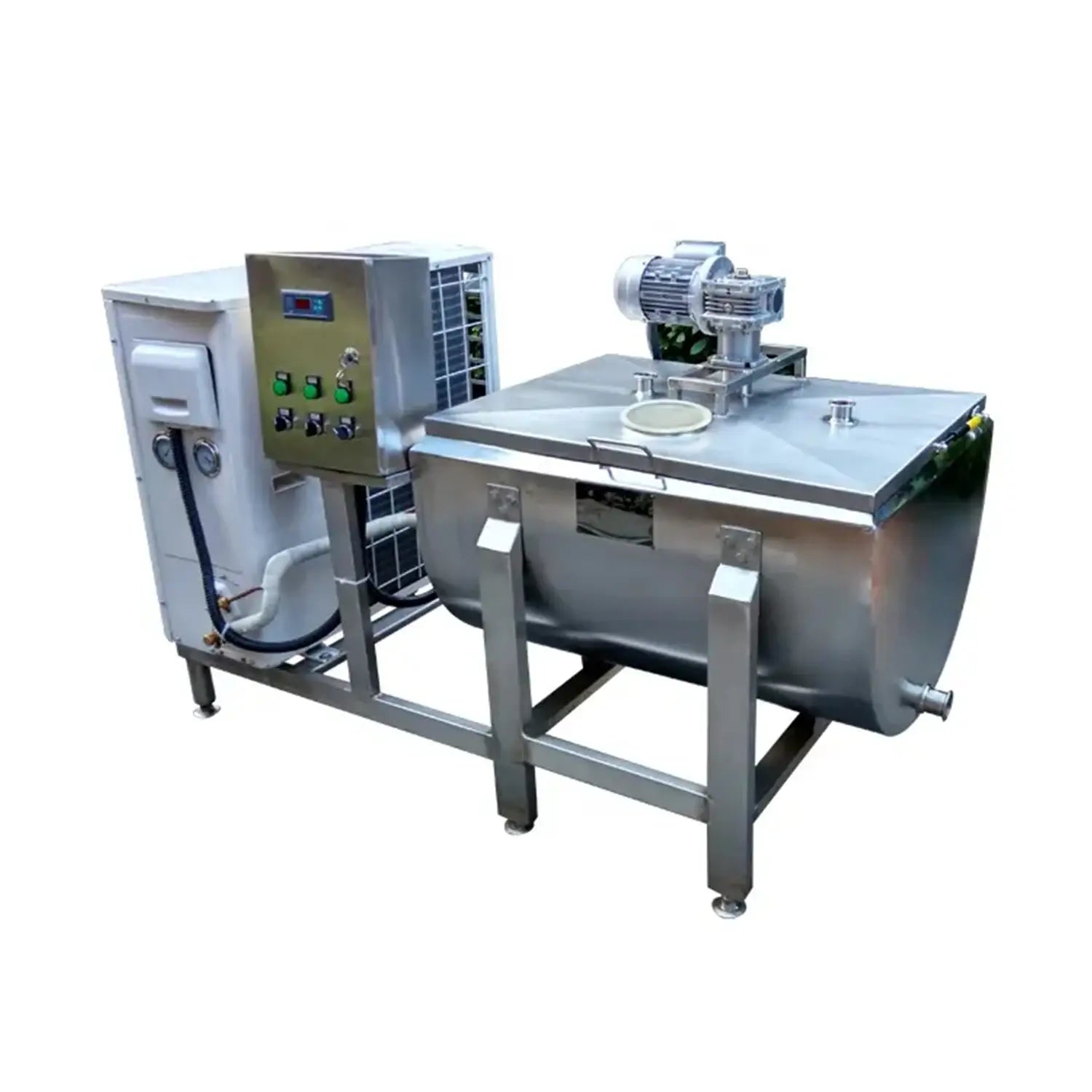

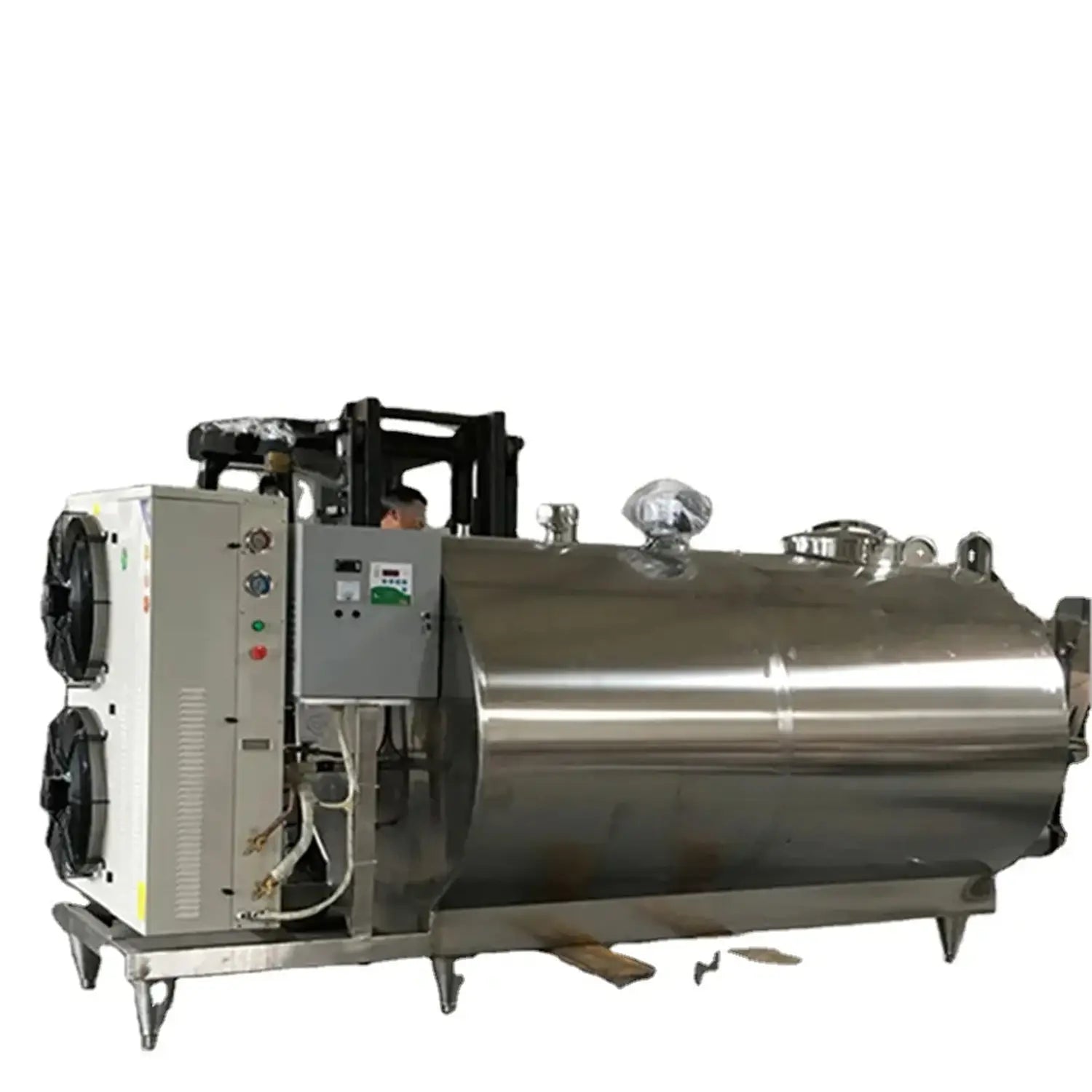

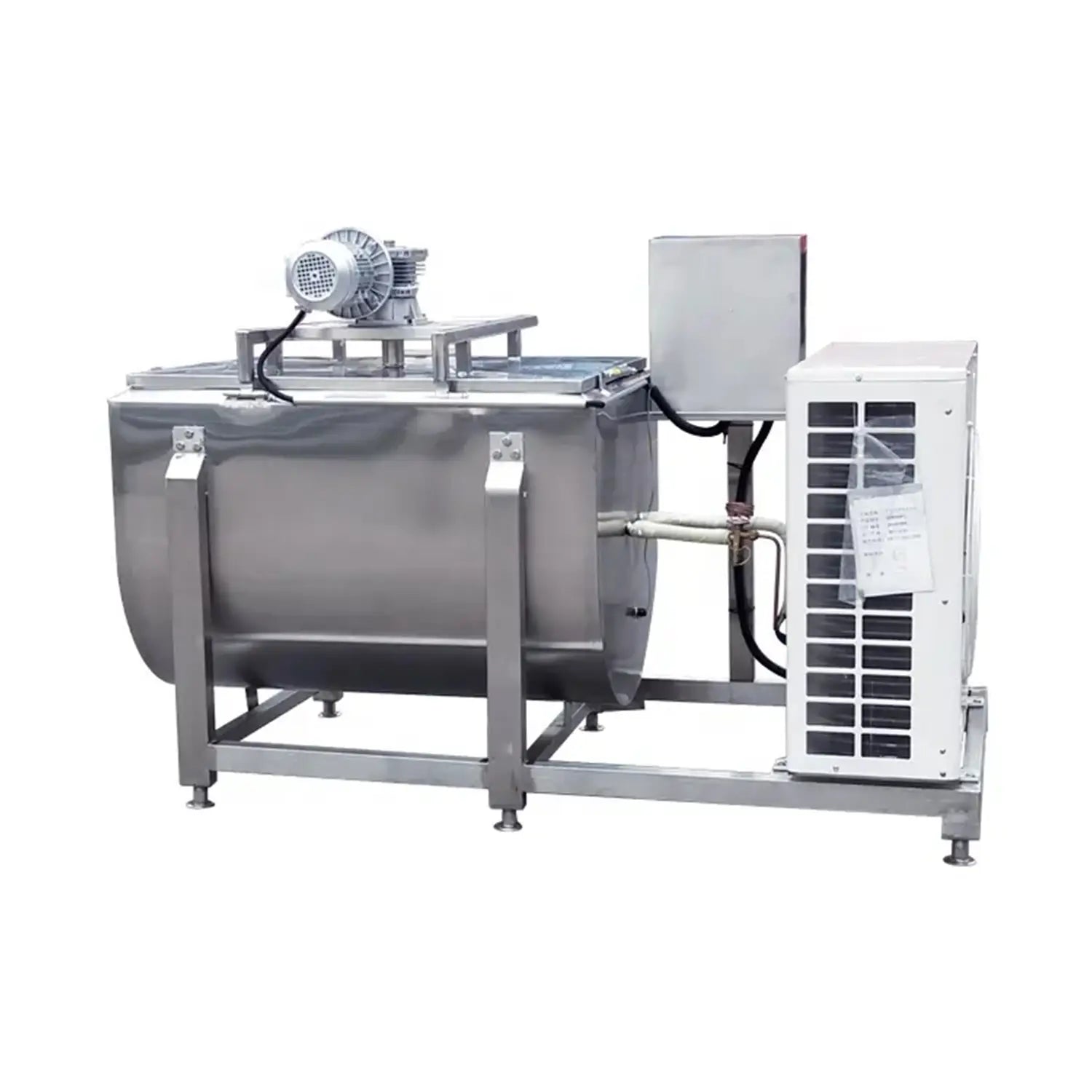

Sanitary Stainless Steel Milk Cooling Tank SS304 SS316L

The stainless steel sanitary milk cooling tank is designed for rapid cooling and hygienic storage of fresh milk and dairy products in dairy processing systems. By quickly reducing the temperature of freshly collected milk, the tank helps slow bacterial growth and preserve the freshness, taste, and nutritional value of milk during storage and processing.

Manufactured from high-quality stainless steel such as SS304 or SS316L, the tank provides excellent corrosion resistance, hygienic construction, and smooth polished internal surfaces, ensuring safe operation and easy cleaning in demanding dairy production environments.

Equipped with efficient cooling systems and optional mixing components, the milk cooling tank allows operators to maintain stable storage temperatures, improve milk quality preservation, and ensure compliance with hygienic dairy processing standards.

Product Name
Sanitary Stainless Steel Milk Cooling Tank

Material
Stainless steel, austenitic stainless steel 304 / 316L
With or without insulating material

Tank Shell Thickness
Minimum 3mm (depending on design or customer requirements)

Design Working Pressure
-0.1 ~ 1.6 MPa
(According to China national standards, higher values possible for special applications)

Design Working Temperature
-4 ~ +150°C (24.8 ~ 302°F)

General Accessories (Optional)
Manhole
CIP Cleaning System
Breather / Respirator
Sight Glass
Mixing System (Top, Side, or Bottom)

Surface Finish
Mirror or Matte Polish
Ra < 0.4 µm

Capacity Range
50L – 20,000L

Type of Jacket (Optional)
Dimple Jacket
Coil Jacket
Barrel Jacket

Type of Insulation
Polyurethane Foam
Thermal Insulation Rock Wool
Pearl Particles

Internal Surface Finish
Mirror Polish Ra 0.28 µm – 0.45 µm

Agitator Speed Options
15 – 120 r/min
0 – 200 rpm
0 – 400 rpm

Applications

Dairy Farms and Milk Collection Centers
Milk Storage and Cooling Systems
Dairy Processing Plants
Food and Beverage Processing Facilities
Cheese and Yogurt Production Systems
Hygienic Liquid Storage Applications
