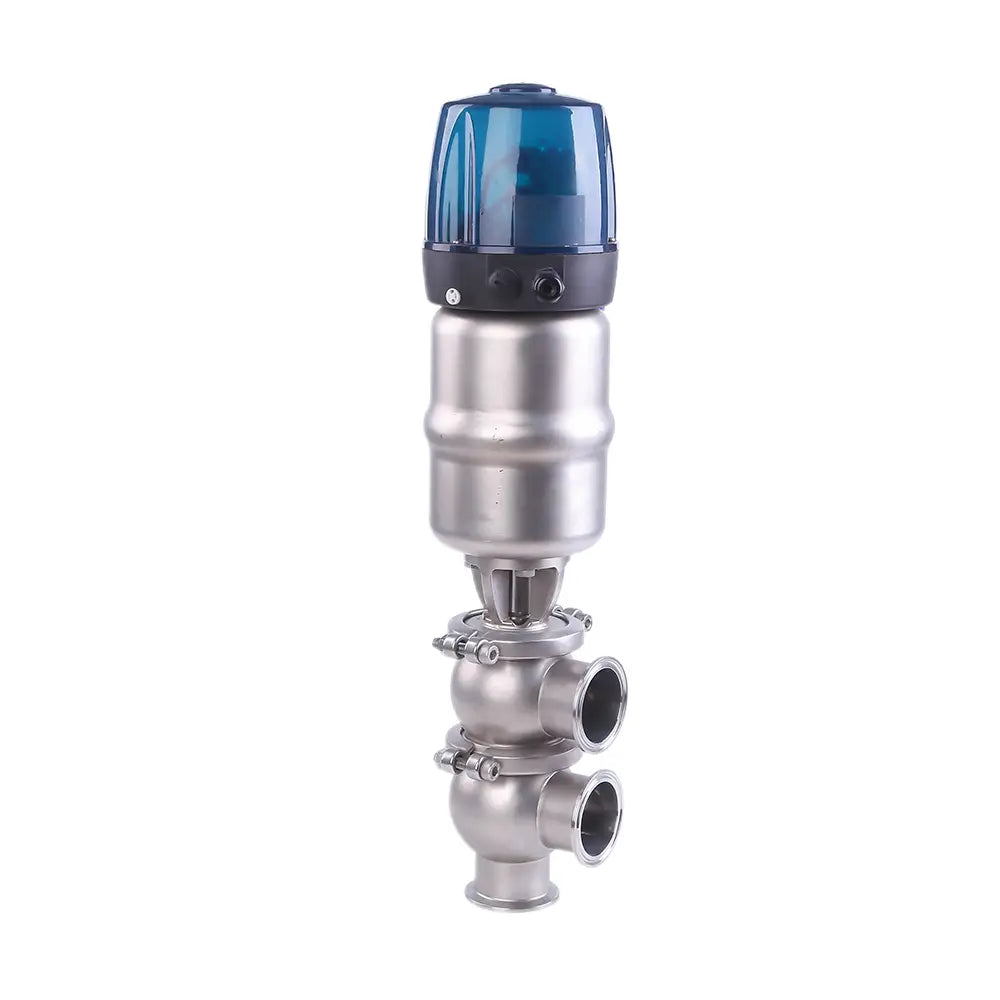

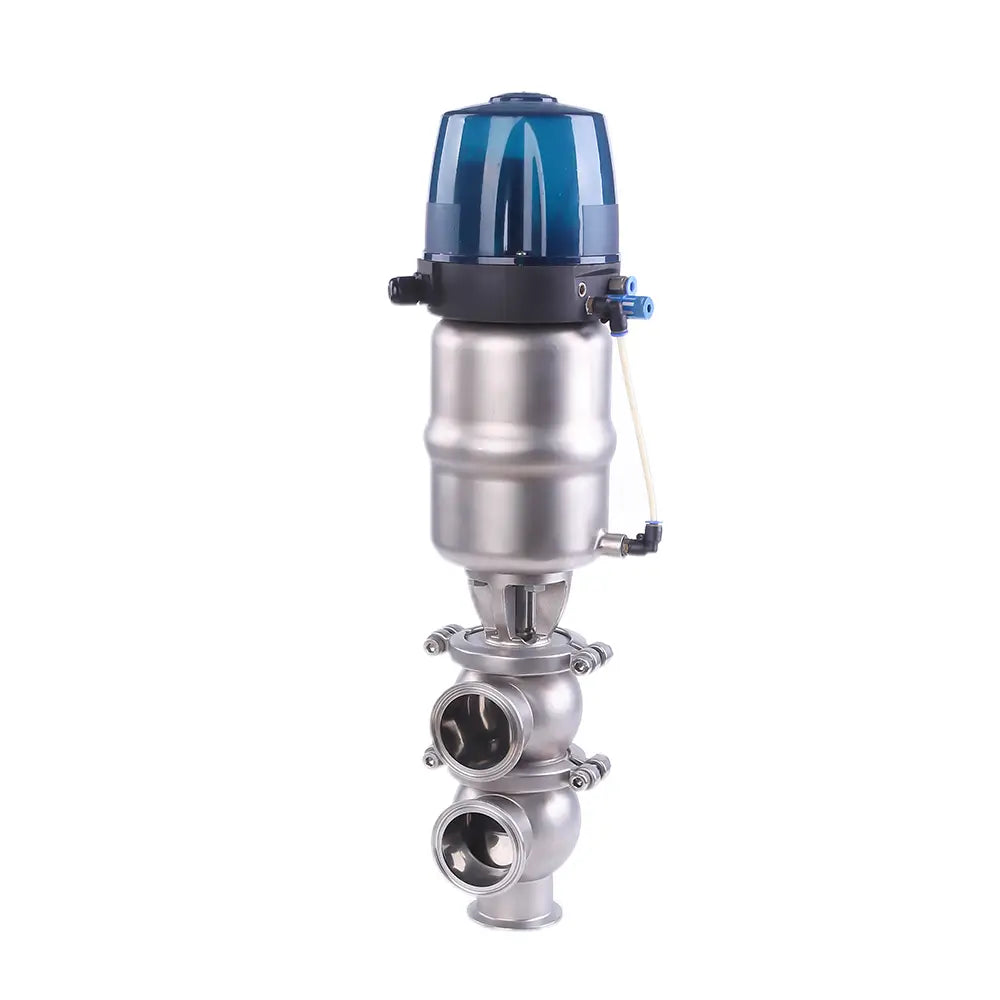

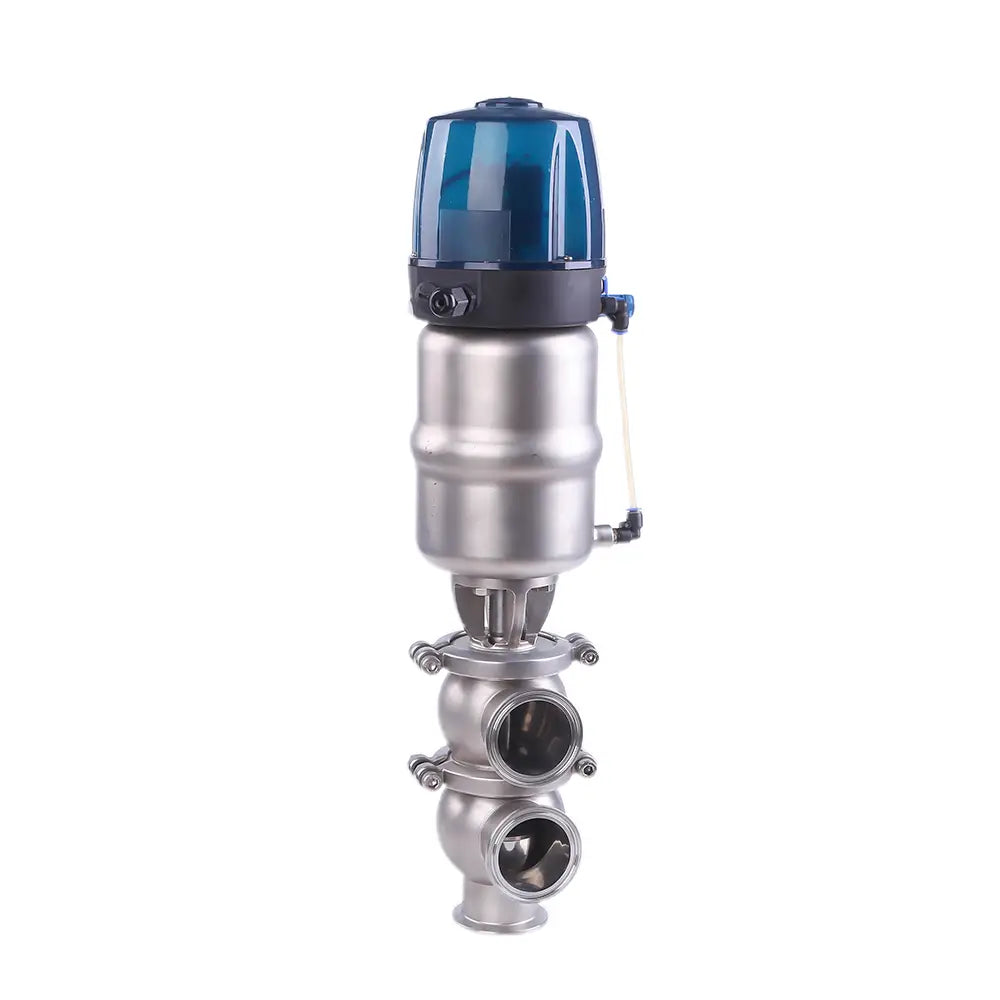

Sanitary Pneumatic TC LL Diverter Valve with C-Top

Sanitary pneumatic tri-clamp LL-type diverter valves with C-Top controllers are designed for hygienic flow diversion and reliable media control in sanitary processing systems. These valves enable precise switching between pipeline routes while maintaining strict sanitary standards required in food, beverage, dairy, pharmaceutical, and biotechnology industries.

Manufactured from high-quality stainless steel (SS304 or SS316L), the valve offers excellent corrosion resistance, durability, and reliable sealing performance. The precision-engineered structure ensures smooth flow diversion while minimizing pressure loss during operation.

The pneumatic actuator provides automated valve operation, while the C-Top controller enables accurate valve position monitoring and integration with automated process control systems. This improves operational efficiency and ensures consistent system performance.

Sanitary pneumatic diverter valves are widely used in beer brewing, beverage production, dairy processing, fruit juice manufacturing, pharmaceutical production, and biotechnology processing, where hygienic flow control and reliable valve performance are essential.

Standard
SMS, DIN, 3A

Material – Contact Parts
SS304 / SS316L (1.4301 / 1.4404)
Material inspection report available

Material – Non-contact Parts
SS304 (1.4301)

Size Range
1/2" – 4" (DN10 – DN100)

Connection Options
Butt Weld
Tri Clamp
Male Thread
Female-Male Thread
Union
Weld-Thread
Flange

Body Combination Models

20 Model, 30 Model
11 Model, 12 Model
21A Model, 22A Model
21 Model, 22 Model
31 Model, 32 Model
111 Model, 112 Model
121 Model, 122 Model
211 Model, 212 Model
221 Model, 222 Model

Power Options

Manual Operation
Stainless Steel Pneumatic Actuator
Position Sensor
C-Top Controller
C-Top Controller (AS-I)

Seal Materials

Silicone
EPDM
FKM
Buna

(All seal materials comply with FDA 21 CFR 177.2600)

Working Pressure

≤ 10 bar (145 psi)

Air Supply Pressure

5 – 8 bar (72.5 – 116 psi)

External Surface Finish

Ra 0.8 – 1.6 μm

Internal Surface Finish

Ra 0.4 – 0.8 μm

Applications

Food Processing
Beverage Production
Dairy Processing
Pharmaceutical Manufacturing
Biotechnology Processing
