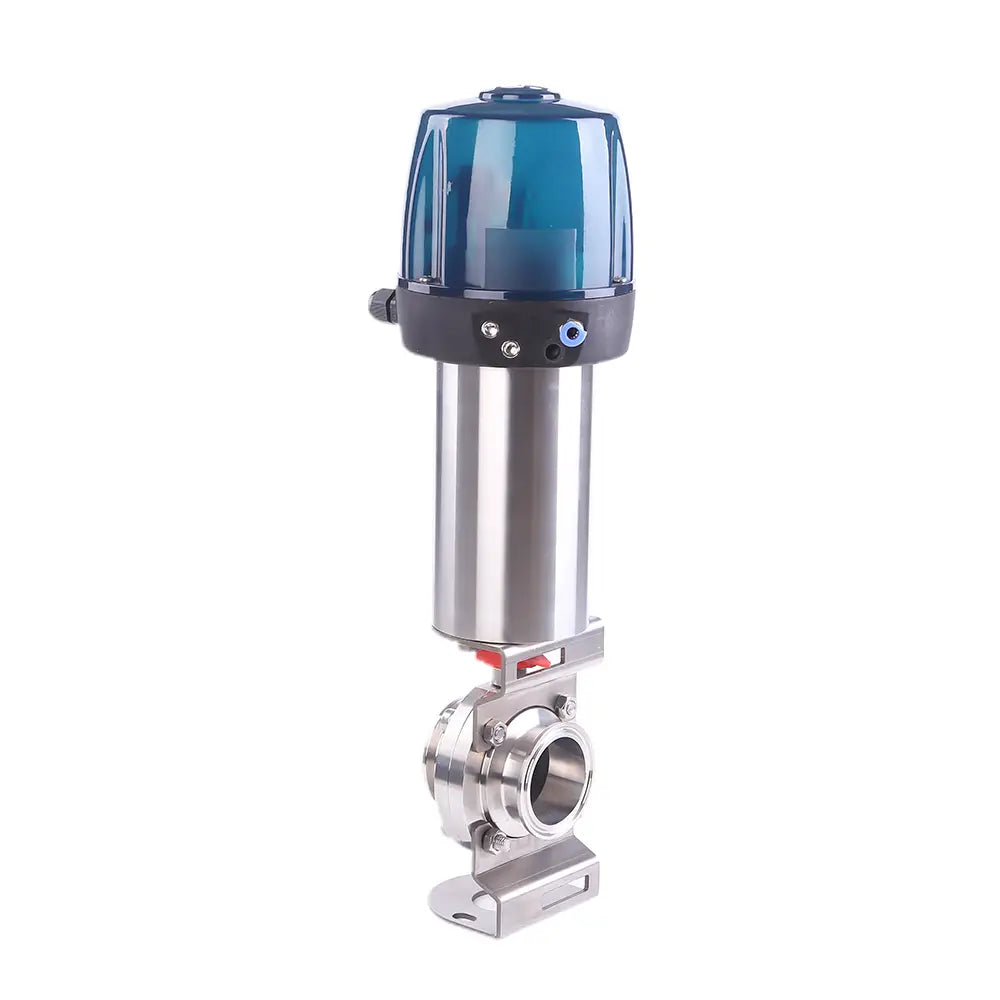

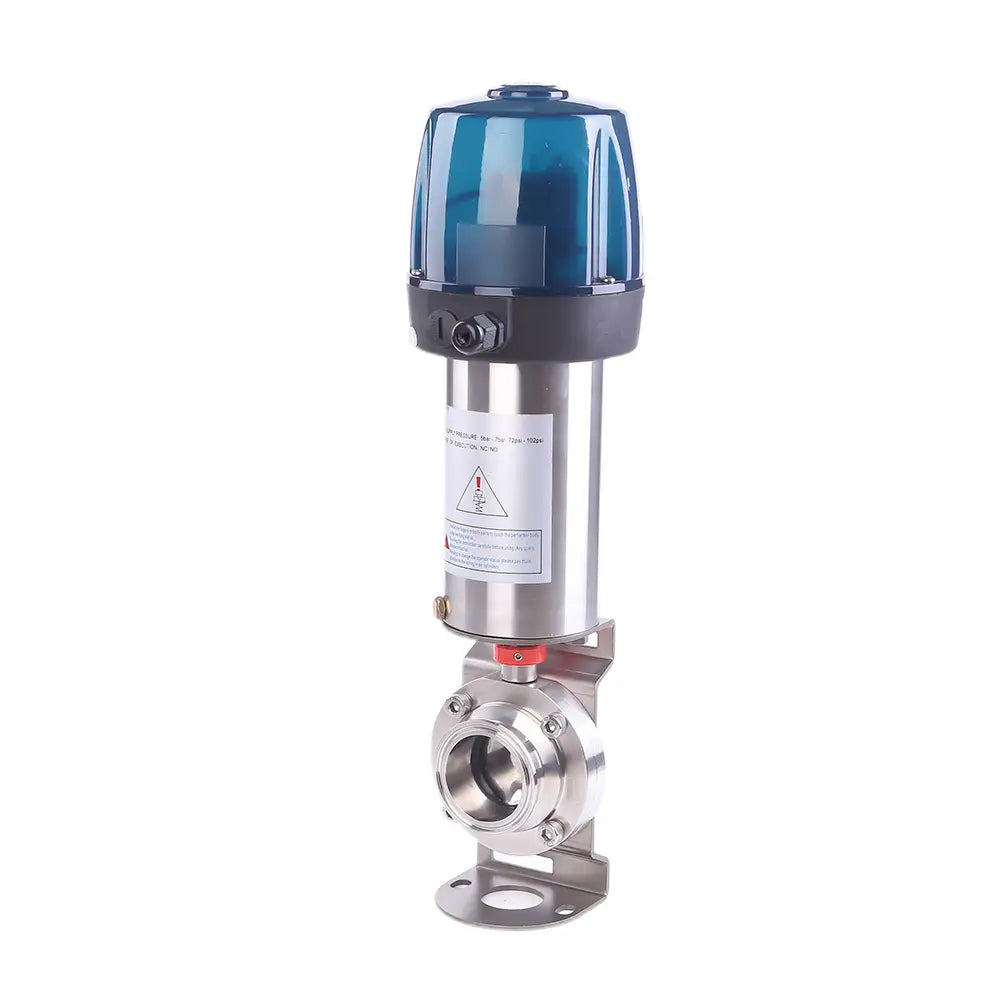

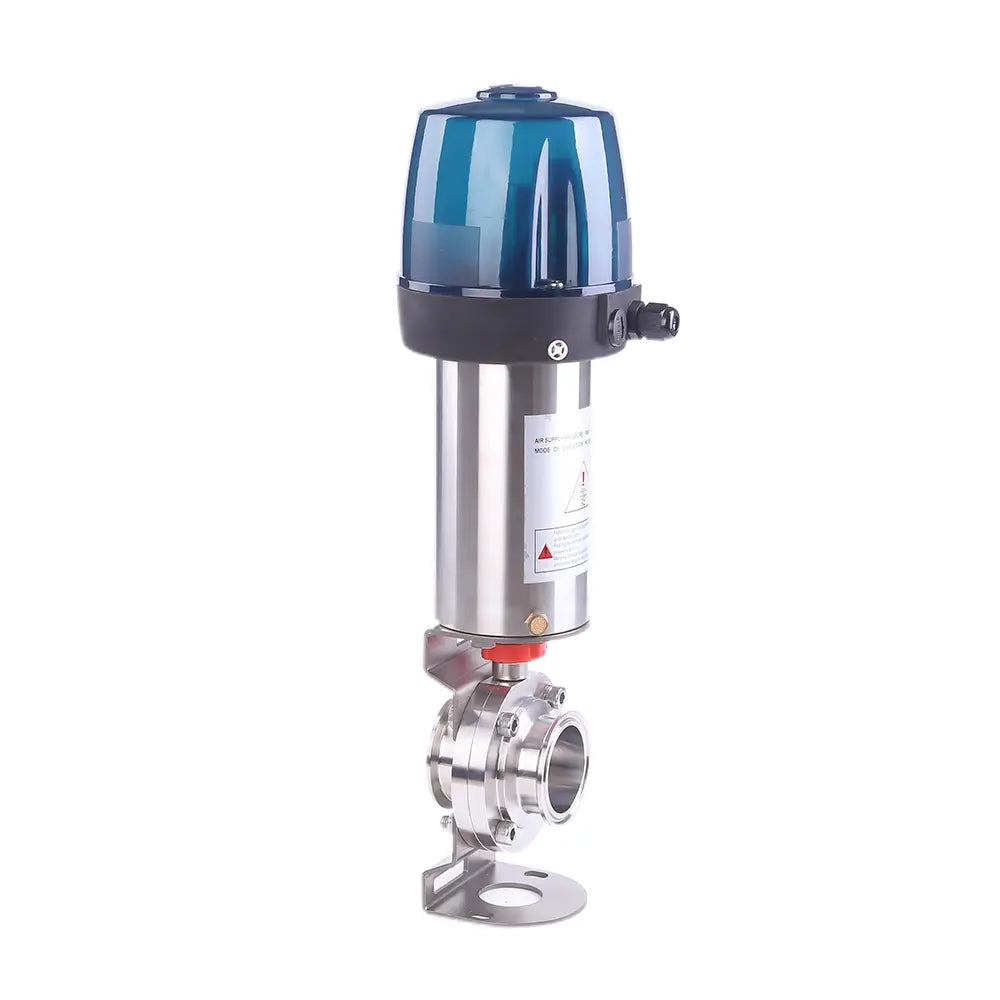

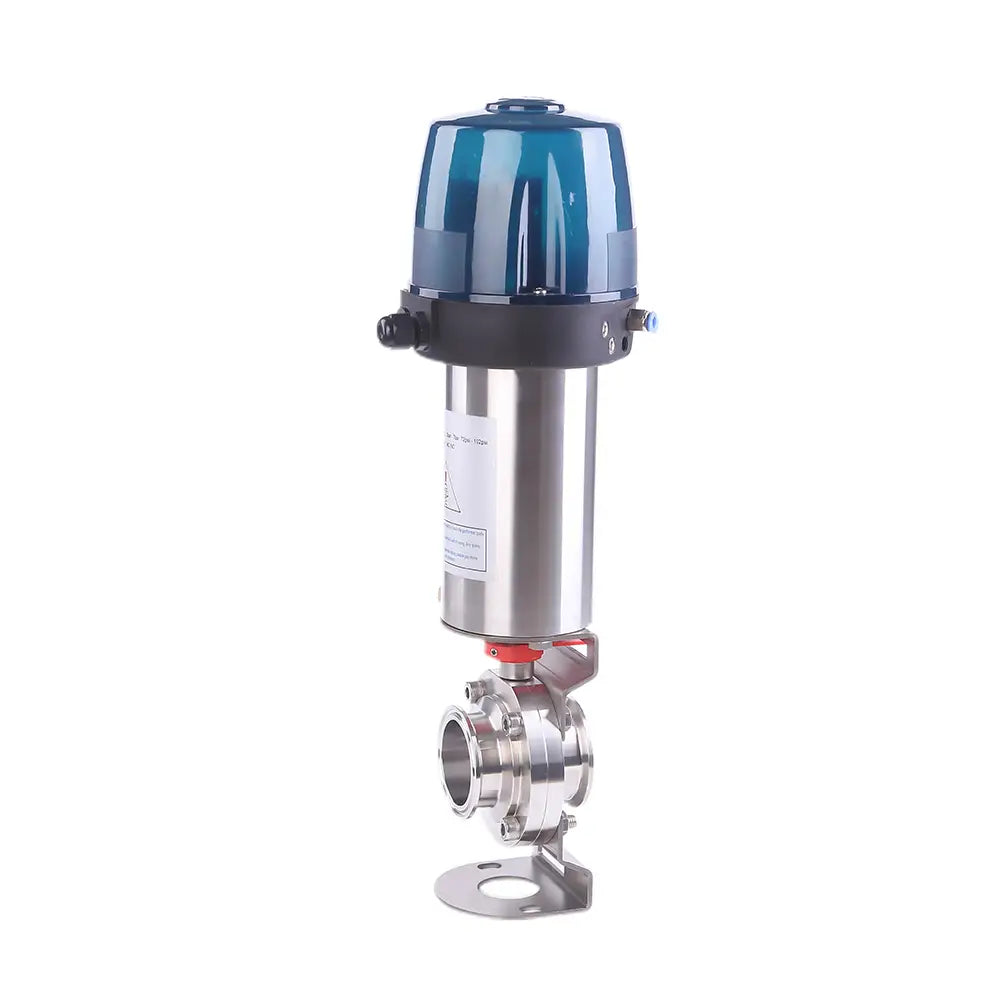

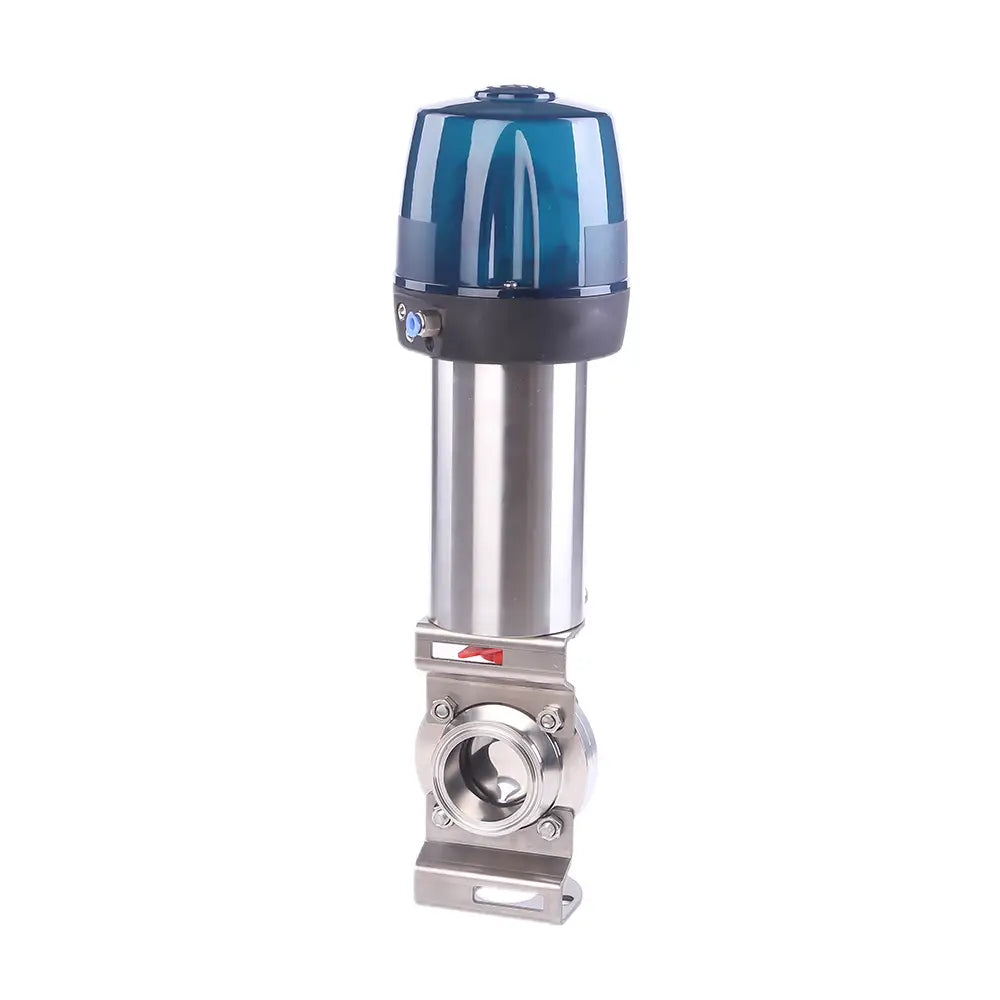

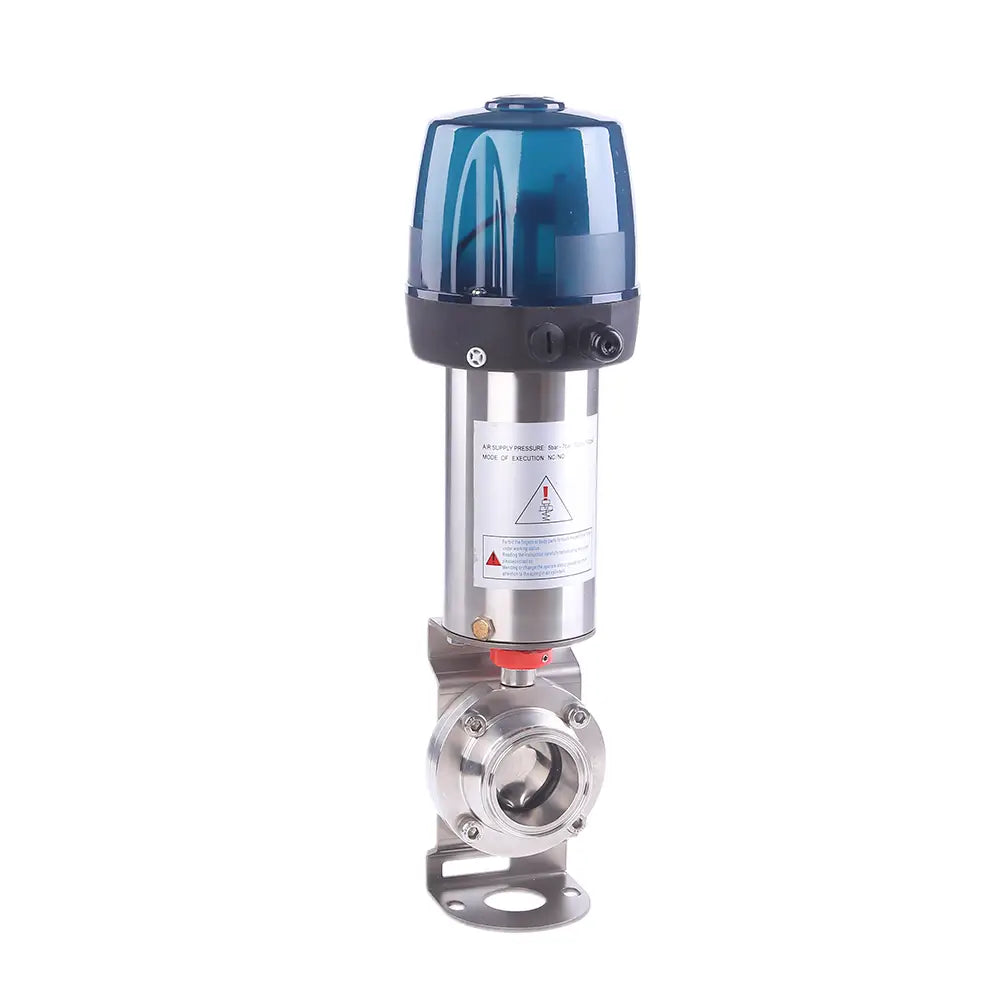

Sanitary Pneumatic TC Butterfly Valve with C-Top

Sanitary pneumatic tri-clamp butterfly valves with C-Top controllers are designed for hygienic flow control in sanitary processing systems. These valves provide reliable automated operation for pipelines used in food, beverage, dairy, pharmaceutical, and chemical industries.

The pneumatic actuator enables fast and stable valve operation, while the C-Top control unit allows precise monitoring of valve position and integration with automated process control systems. This design improves operational efficiency, process accuracy, and system reliability in modern hygienic production environments.

Manufactured from high-quality stainless steel (SS304 or SS316L), the valve offers excellent corrosion resistance, durability, and long service life under demanding operating conditions. The tri-clamp connection allows quick installation, easy disassembly, and convenient maintenance, making it ideal for sanitary piping systems requiring frequent cleaning and inspection.

Sanitary pneumatic butterfly valves are widely used in food processing, beverage production, dairy systems, pharmaceutical manufacturing, and biotechnology industries, where strict hygiene and reliable flow control are required.



Standard
SMS, DIN, 3A

Material – Contact Parts
SS304 / SS316L (1.4301 / 1.4404)
Material inspection report available

Material – Non-contact Parts
SS304 (1.4301)

Size Range
1/2" – 12" (DN10 – DN300)

Connection Options
Butt Weld
Tri Clamp
Male Thread
Female-Male Thread
Union
Weld-Thread
Flange

Seal Materials
Silicone
EPDM
FKM
Buna
PTFE

All seal materials comply with FDA 21 CFR 177.2600

Drive Options
2-Position Stainless Steel Pull Handle
3-Position Stainless Steel Pull Handle
4-Position Stainless Steel Pull Handle
Multi-position Plastic Gripper Handle
Multi-position Stainless Steel Gripper Handle

Stainless Steel Pneumatic Actuator
Aluminum Pneumatic Actuator
Electric Actuator

Control Options
Position Sensor
C-Top Controller
C-Top Controller (AS-I)

Working Pressure
≤ 10 bar (145 psi)

Air Supply Pressure (Pneumatic Actuator)
5 – 8 bar (72.5 – 116 psi)

External Surface Finish
Ra 0.8 – 1.6 μm

Internal Surface Finish
Ra 0.4 – 0.8 μm

Applications

Food Processing
Beverage Production
Dairy Processing
Pharmaceutical Manufacturing
Biotechnology Processing
