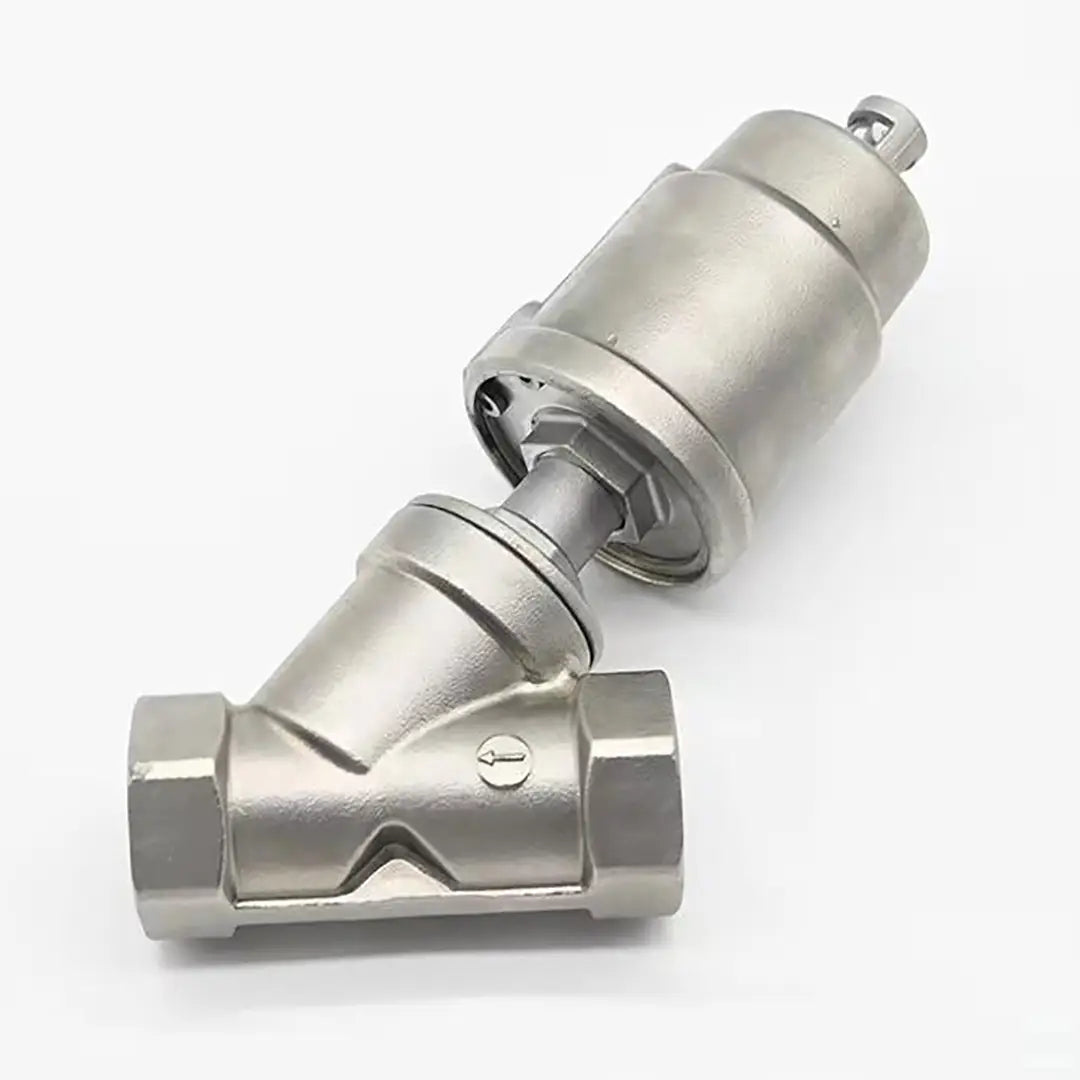

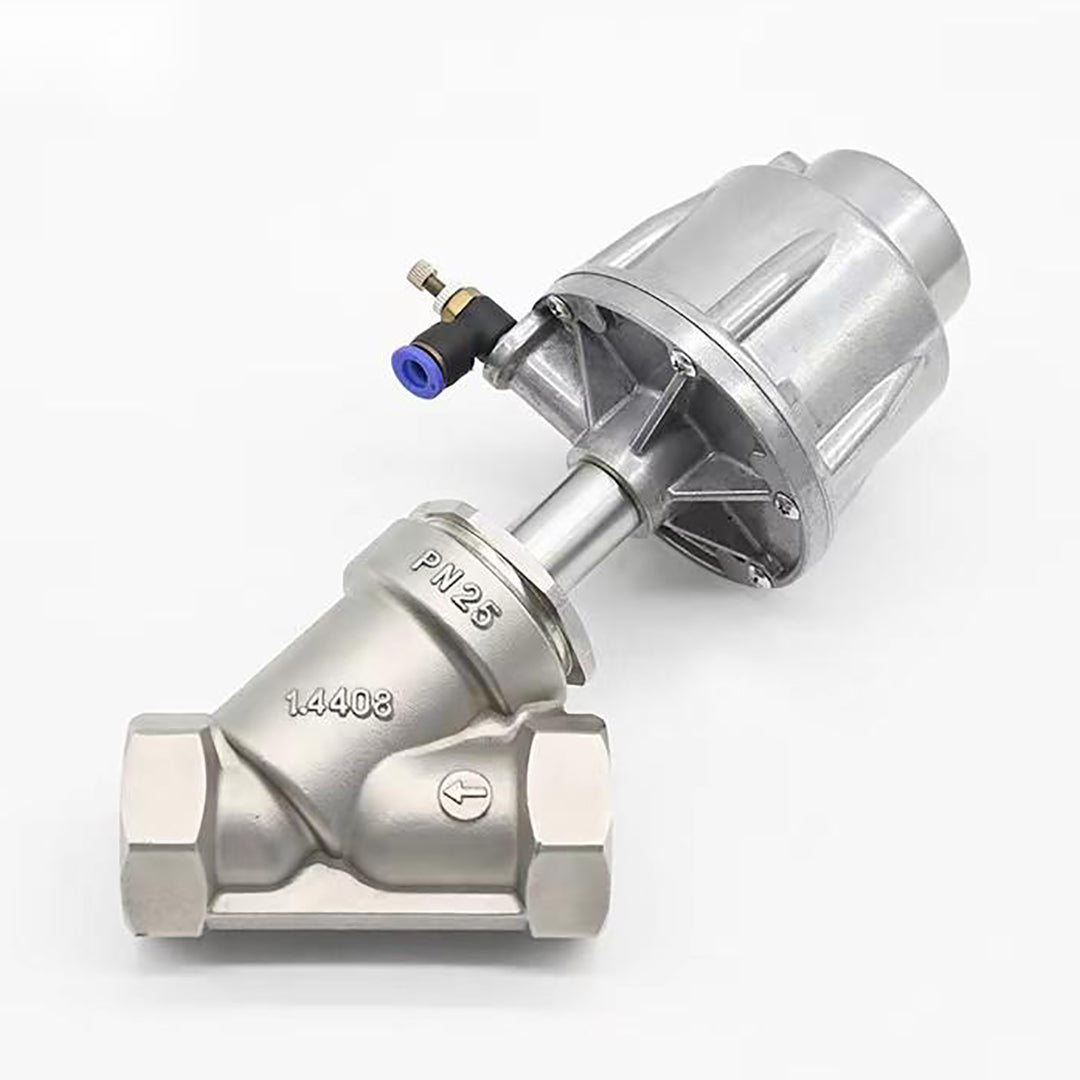

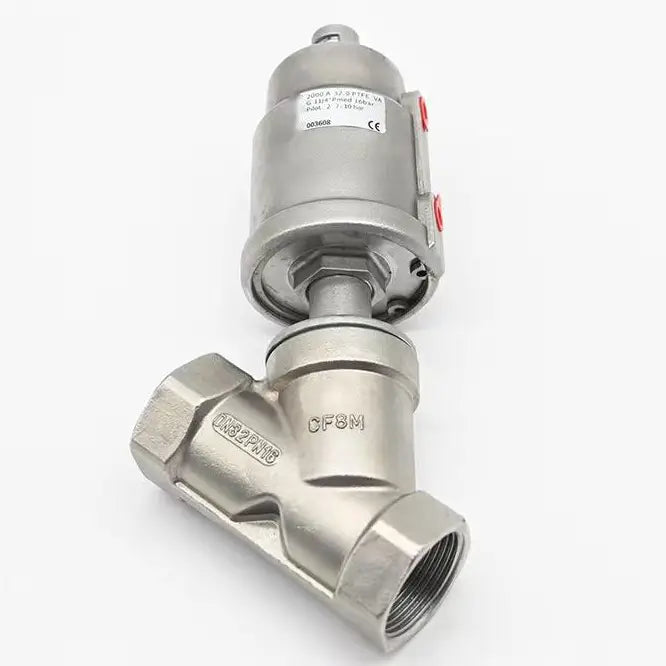

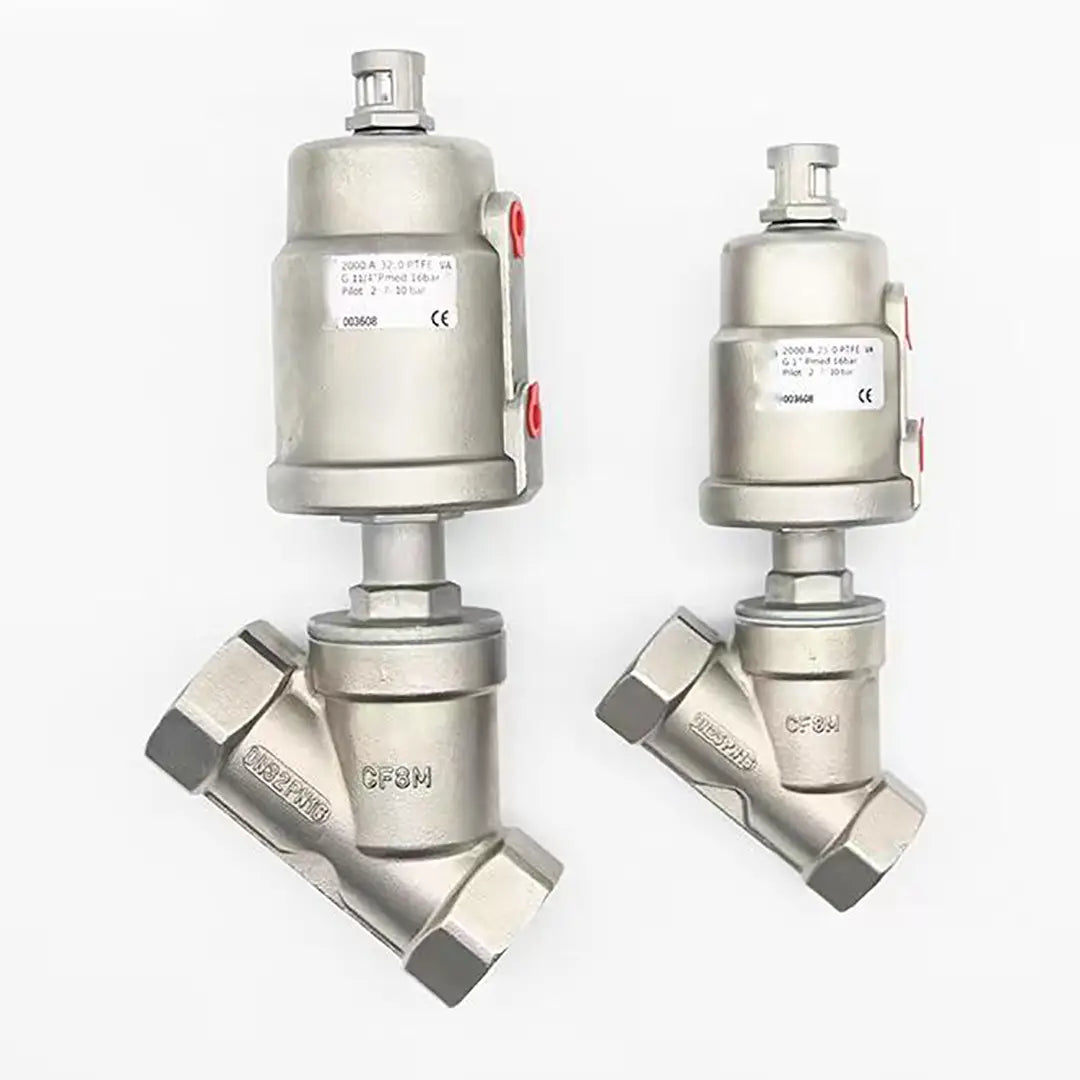

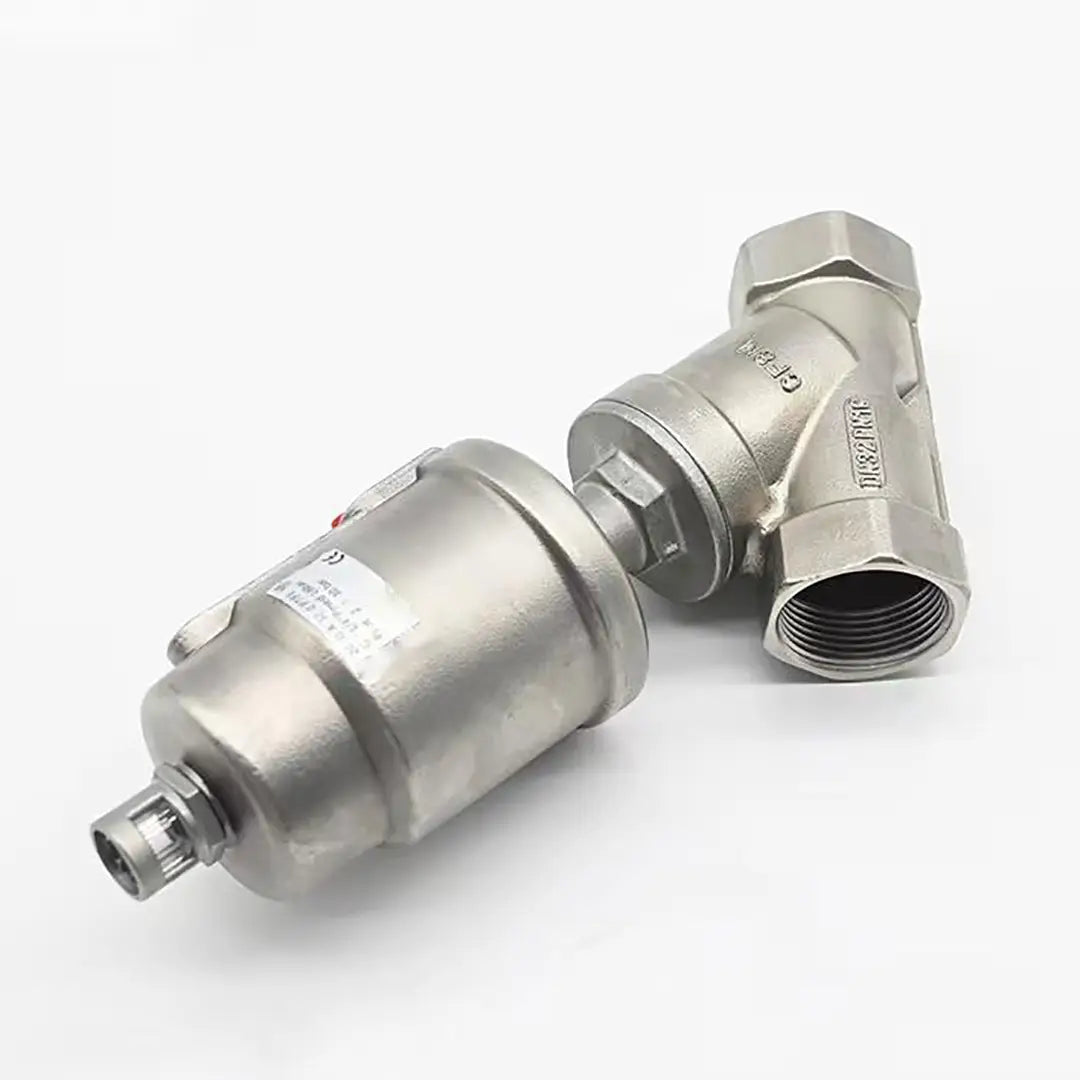

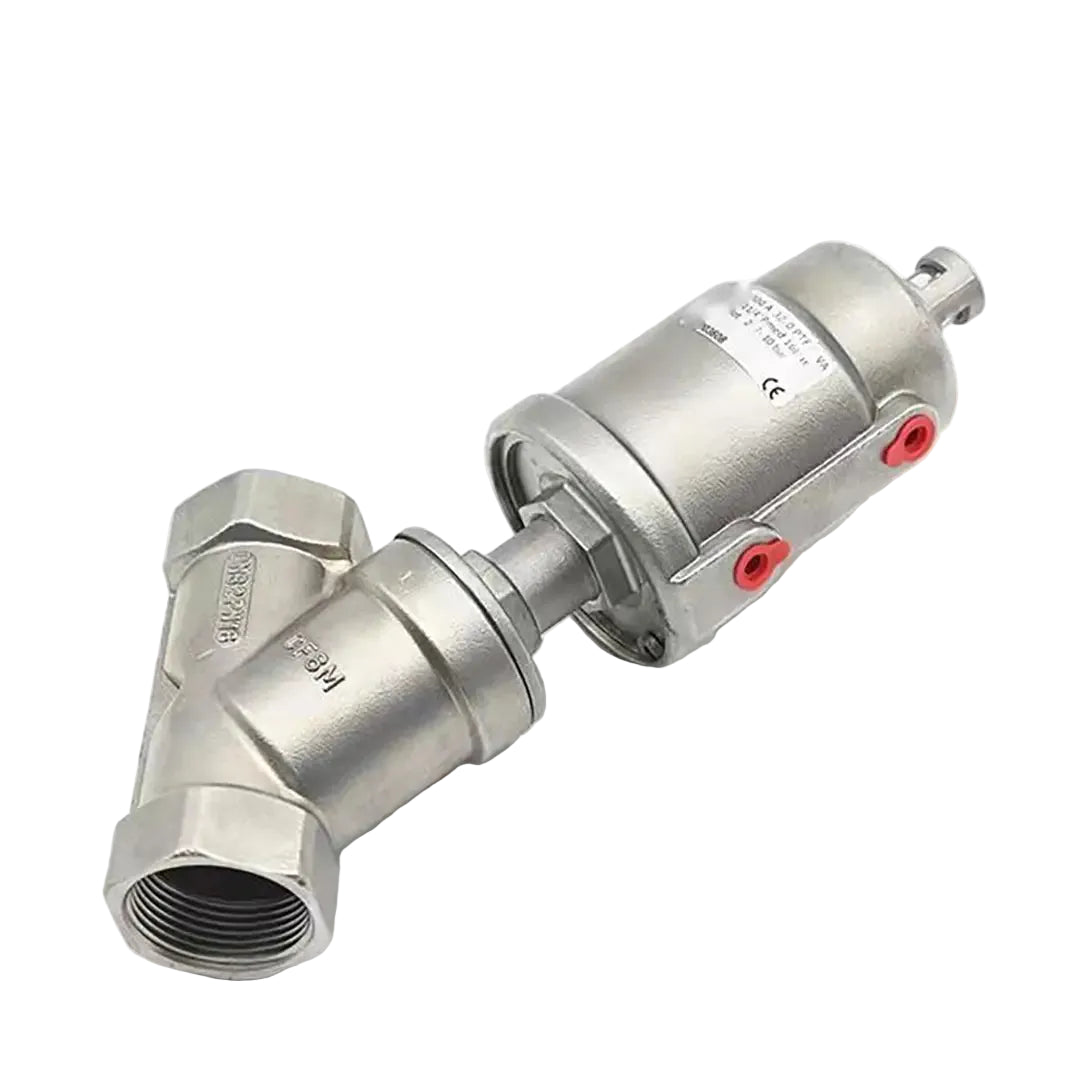

Sanitary Pneumatic Angle Seat Valve with SS Head

Name: Sanitary Pneumatic Angle Seat Valve with SS Head
Brand: Atlas Equipment Solutions
Availability: InStock

Pricing: Available upon request

Lead time: 7–21 days

Customization: Supported

Request a Quote

Response within 24 hours

Sanitary pneumatic angle seat valves are designed for reliable flow control in hygienic processing systems used in food, beverage, dairy, pharmaceutical, and biotechnology industries. These valves provide fast response and high flow capacity while maintaining strict sanitary standards required in modern processing environments.

Manufactured from high-quality stainless steel (SS304 or SS316), the valve offers excellent corrosion resistance, durability, and dependable sealing performance. The angled seat design enables efficient flow with minimal pressure loss, making it suitable for high-demand process conditions.

The pneumatic actuator with stainless steel head ensures stable and automated valve operation, allowing integration with automated control systems for improved process efficiency and monitoring. Sanitary pneumatic angle seat valves are widely used in steam systems, CIP systems, water pipelines, and hygienic process lines, where reliable valve performance and sanitary construction are required.

Standard
SMS, DIN

Material – Contact Parts
SS304 (1.4301) – CF8
SS316 (1.4401) – CF8M
Material inspection report available

Material – Non-contact Parts
SS304 (1.4301) – CF8

Size Range
DN10 – DN80

Valve Type
2/2-Way Angle Seat Valve
3/3-Way Angle Seat Valve

Actuator Sizes
27 mm
32 mm
40 mm
50 mm
63 mm
80 mm
90 mm
100 mm
125 mm

Connection Options
Butt Weld
Tri Clamp
Female Thread (BSP / BSPT / NPT)
Flange

Seal Material
PTFE
(All seal materials comply with FDA 21 CFR 177.2600)

Cylinder Type
Single Acting
Double Acting

Drive Options
Manual
Pneumatic Control
Position Sensor
C-Top Controller
C-Top Controller (AS-I)

Control Type
Normally Closed
Normally Open

Maximum Fluid Pressure
16 bar (232 psi)
