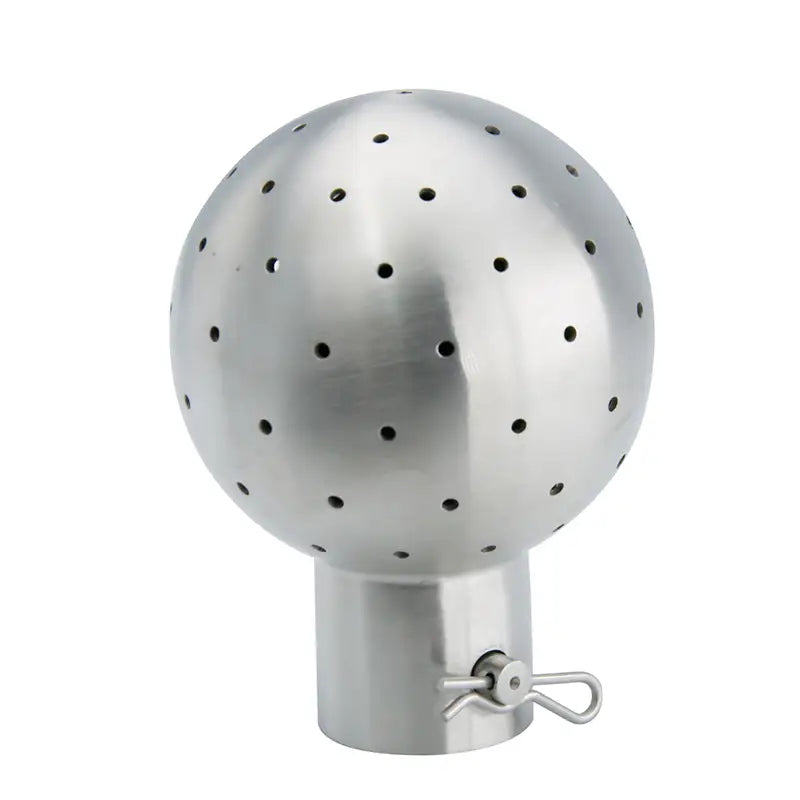

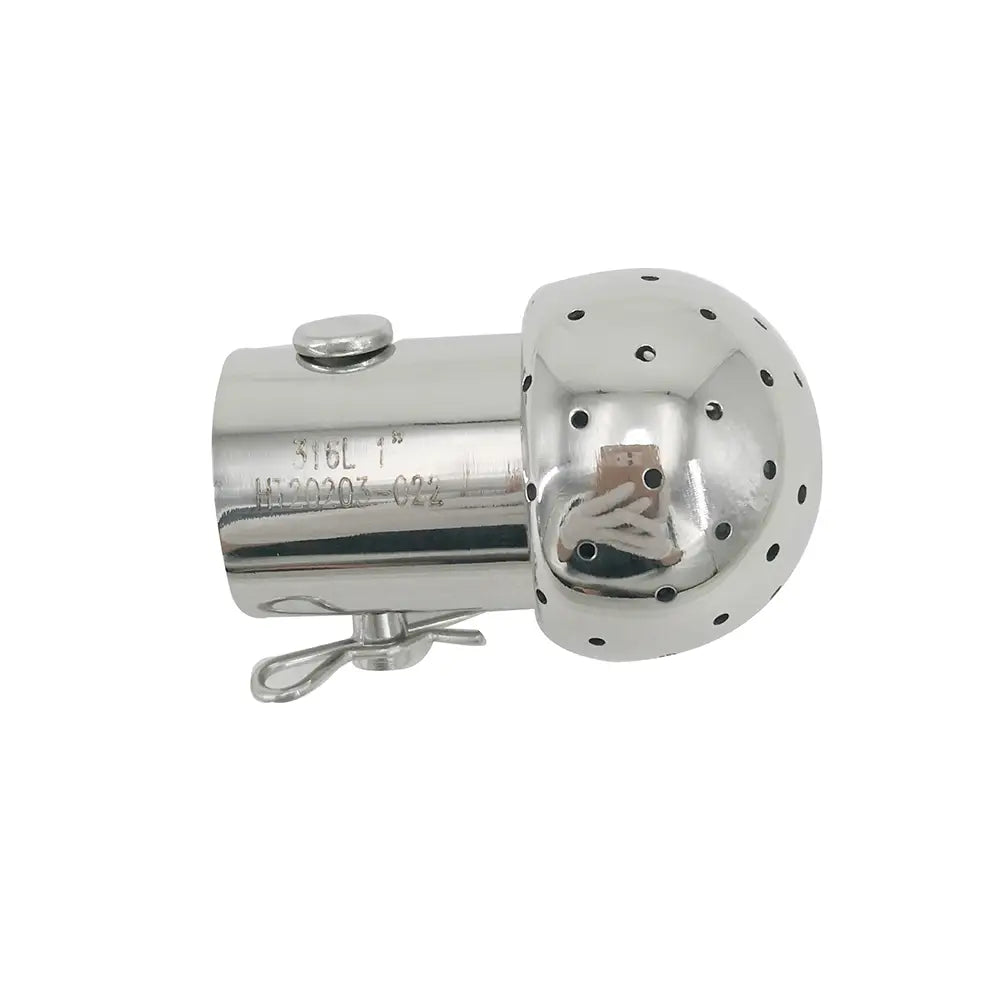

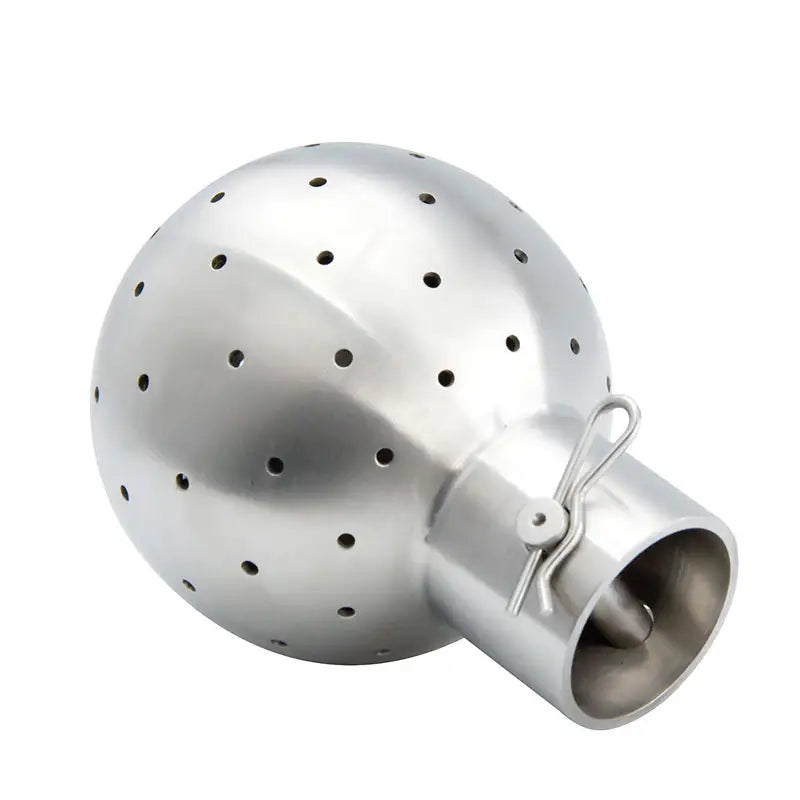

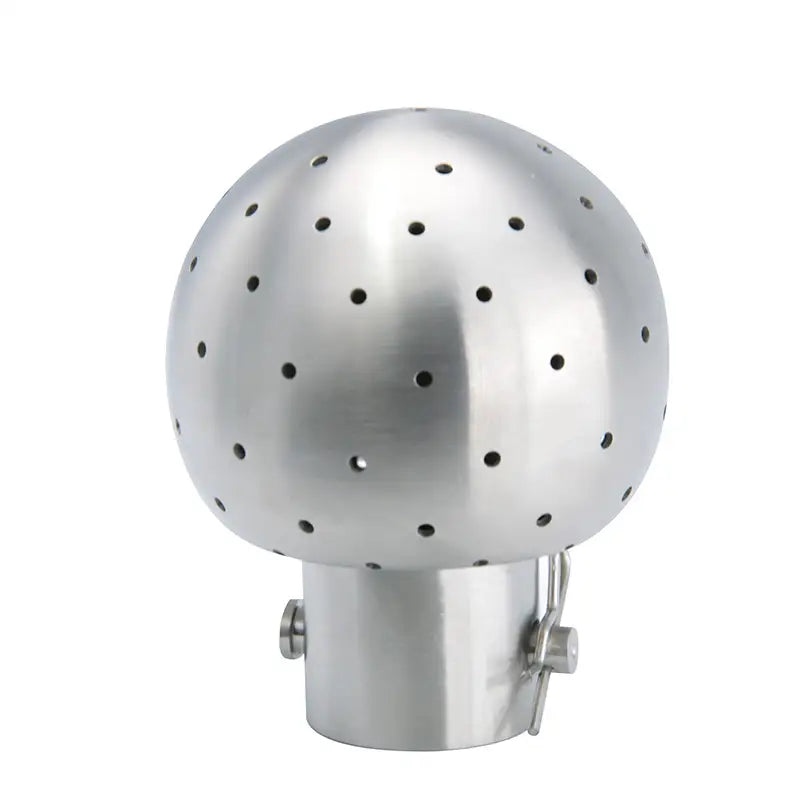

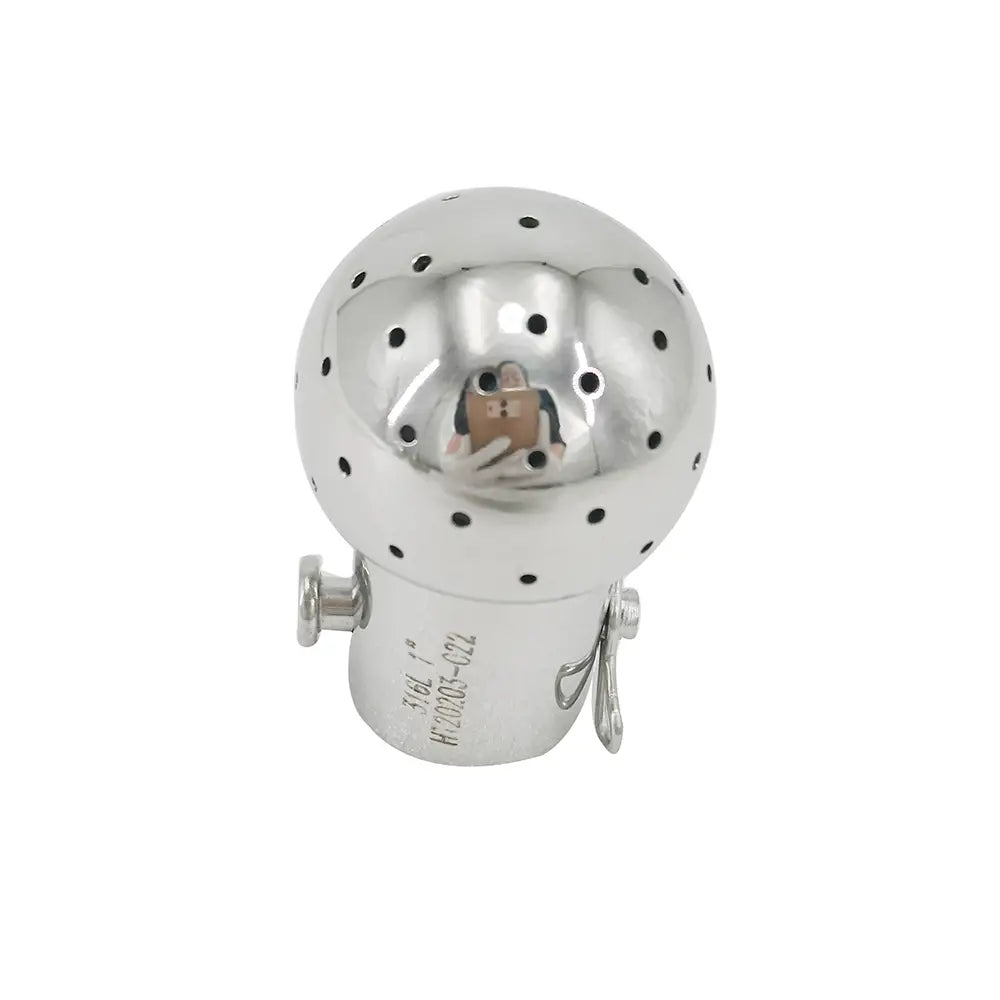

The sanitary pin static spray ball is designed to provide efficient and uniform cleaning for tanks and vessels used in hygienic processing systems. Its precision-drilled spray holes ensure consistent spray distribution, allowing cleaning solutions to reach all internal tank surfaces during cleaning-in-place (CIP) operations.
Manufactured from high-quality stainless steel (SS304 or SS316L), this spray ball offers excellent corrosion resistance, durable construction, and smooth hygienic surfaces, ensuring reliable performance while maintaining strict sanitary standards required in hygienic industries.
Sanitary static spray balls are widely used for tank cleaning, vessel rinsing, and CIP systems, providing uniform spray coverage, efficient cleaning performance, and low maintenance operation in food, beverage, dairy, pharmaceutical, and biotechnology processing environments.
Product Name
Sanitary Stainless Steel Fixed Spray Ball (SS304)
Available Standard
DIN, SMS, RJT, ISO/IDF
Material Quality
AISI304 (1.4301) / AISI316L (1.4404)
Specification
1" – 2.5"
Ball Size: 19 – 63 mm
Available Connection
Butt-weld, Female Threaded, Male Threaded, Tri-clamp, Bolt Connection
Construction
Rotary, Fixed, Double Rotary
Surface Treatment
Mirror Polished
Dull Polished
Electropolished
Ground Finish
Pressure
1.5 – 3 bar, up to 10 bar
Cleaning Radius
1.25 m – 2 m
Flow Rate
12 – 38 m³/h
Spray Angle / Pattern
360° Spray Pattern
180° Spray Pattern
Pipe Connection
Lip fastening according to working flow rate
Temperature Range
-10 °C to 120 °C
Applications
Food Processing Tanks
Beverage Production Vessels
Dairy Processing Systems
Pharmaceutical Manufacturing Tanks
Biotechnology Processing Equipment
CIP Cleaning Systems
Hygienic Storage and Fermentation Tanks
