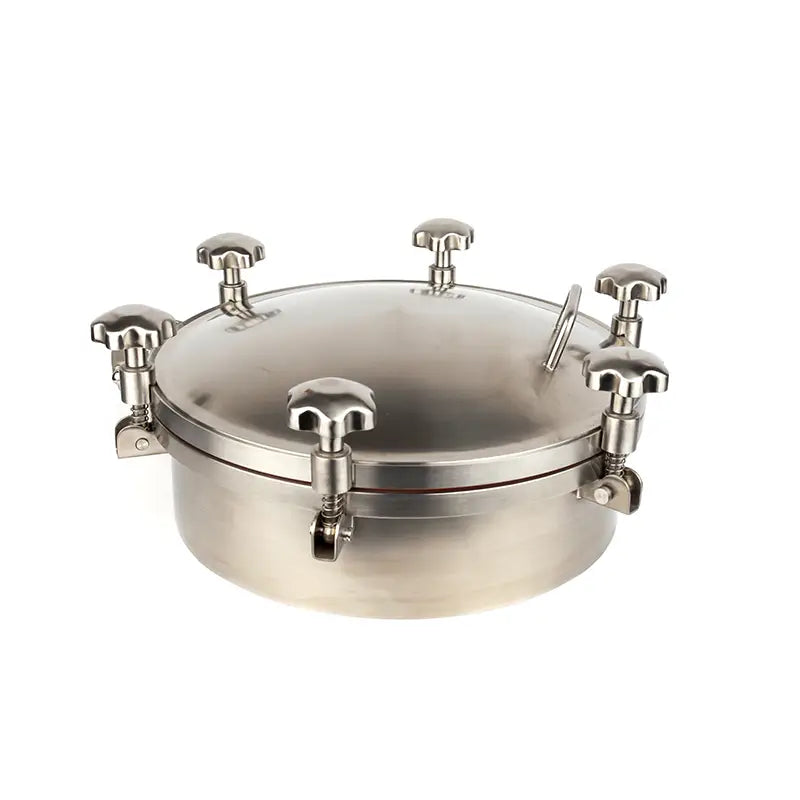

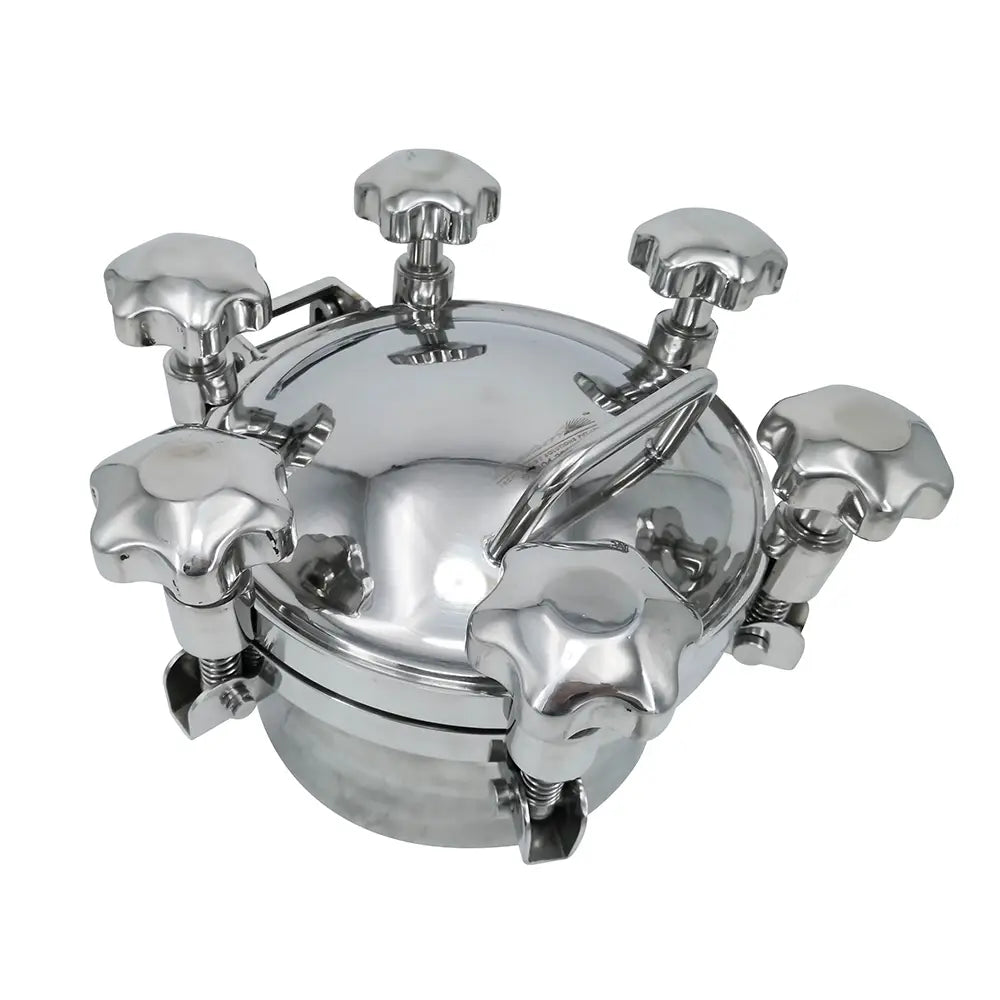

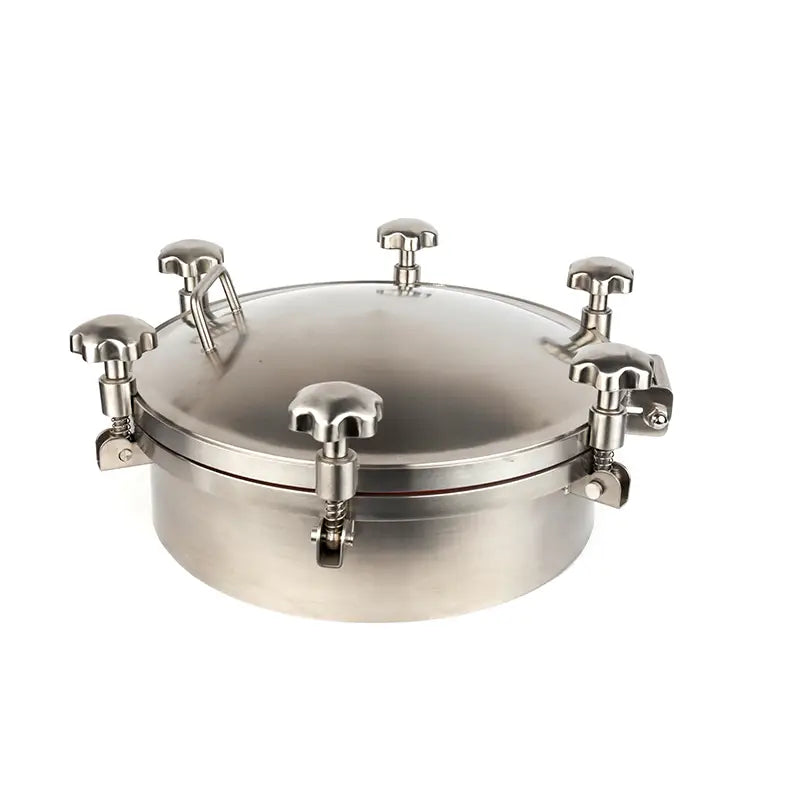

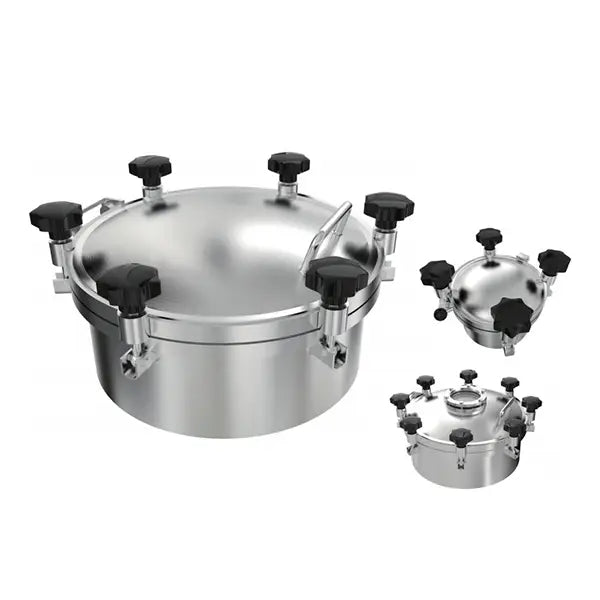

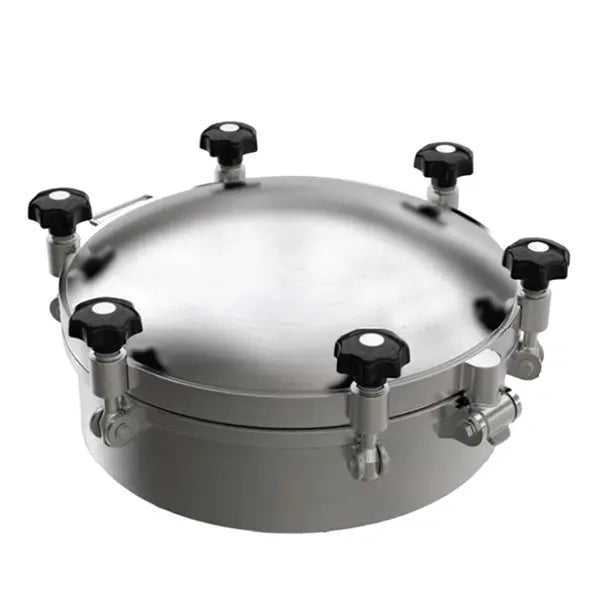

Sanitary Outward Round Stainless Steel Pressure Manhole

Product Name
DN400 SS304 Sanitary Outward Round Stainless Steel Pressure Manhole

Material
Contact parts: AISI304 / AISI316L
Other parts: AISI304

Pressure
Standard pressure: 1–3 bar

Welding Size
Dia 200–600 mm
(Custom sizes can be manufactured according to customer requirements)

Height
Standard 100 mm (customizable)

Wall Thickness of Neck
Standard 3–4 mm (customizable)

Wall Thickness of Cover
Standard 3 mm / 4 mm (customizable)

Gasket Material
Silicone, EPDM, NBR, PTFE, FKM

Internal Surface Finish
Ra 0.8 μm – 0.4 μm

External Surface Finish
Mirror Polished / Matte / Sandblasted

Handle Type
Plastic Handle or Stainless Steel Handle

Applications

• Food Processing Tanks
• Beverage Production Vessels
• Dairy Processing Systems
• Pharmaceutical Manufacturing Tanks
• Biotechnology Processing Equipment
• Hygienic Storage Tanks
• Fermentation and Brewing Tanks
