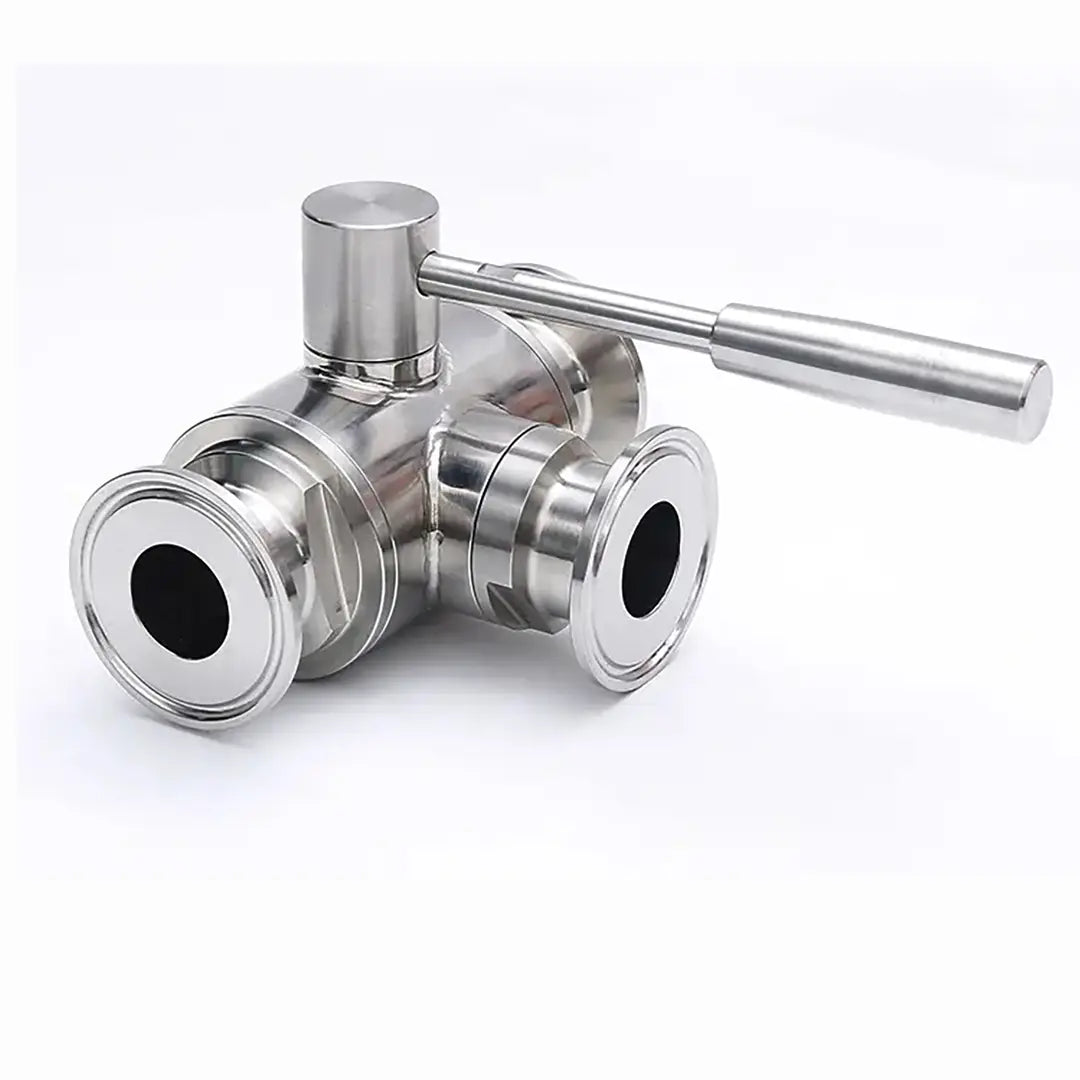

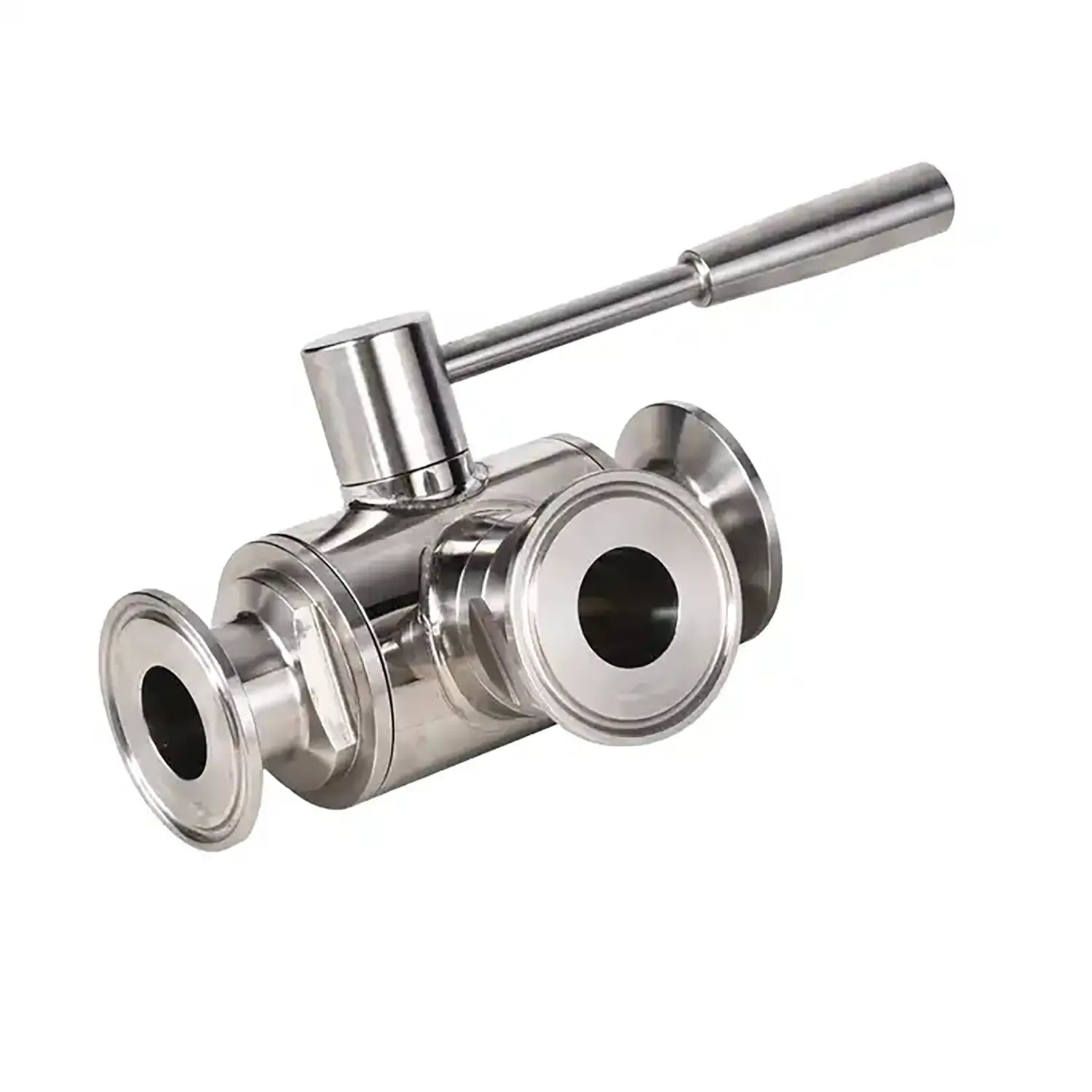

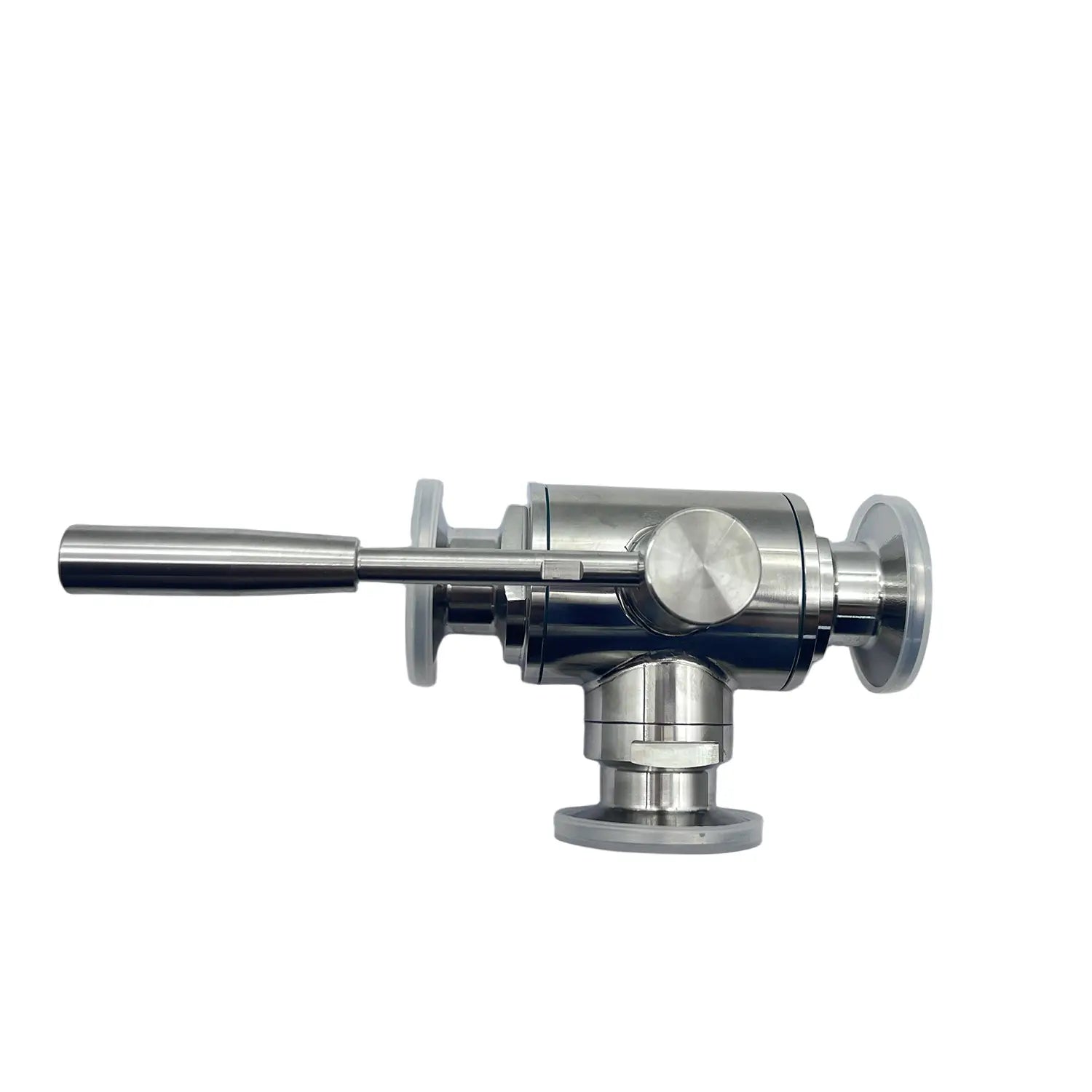

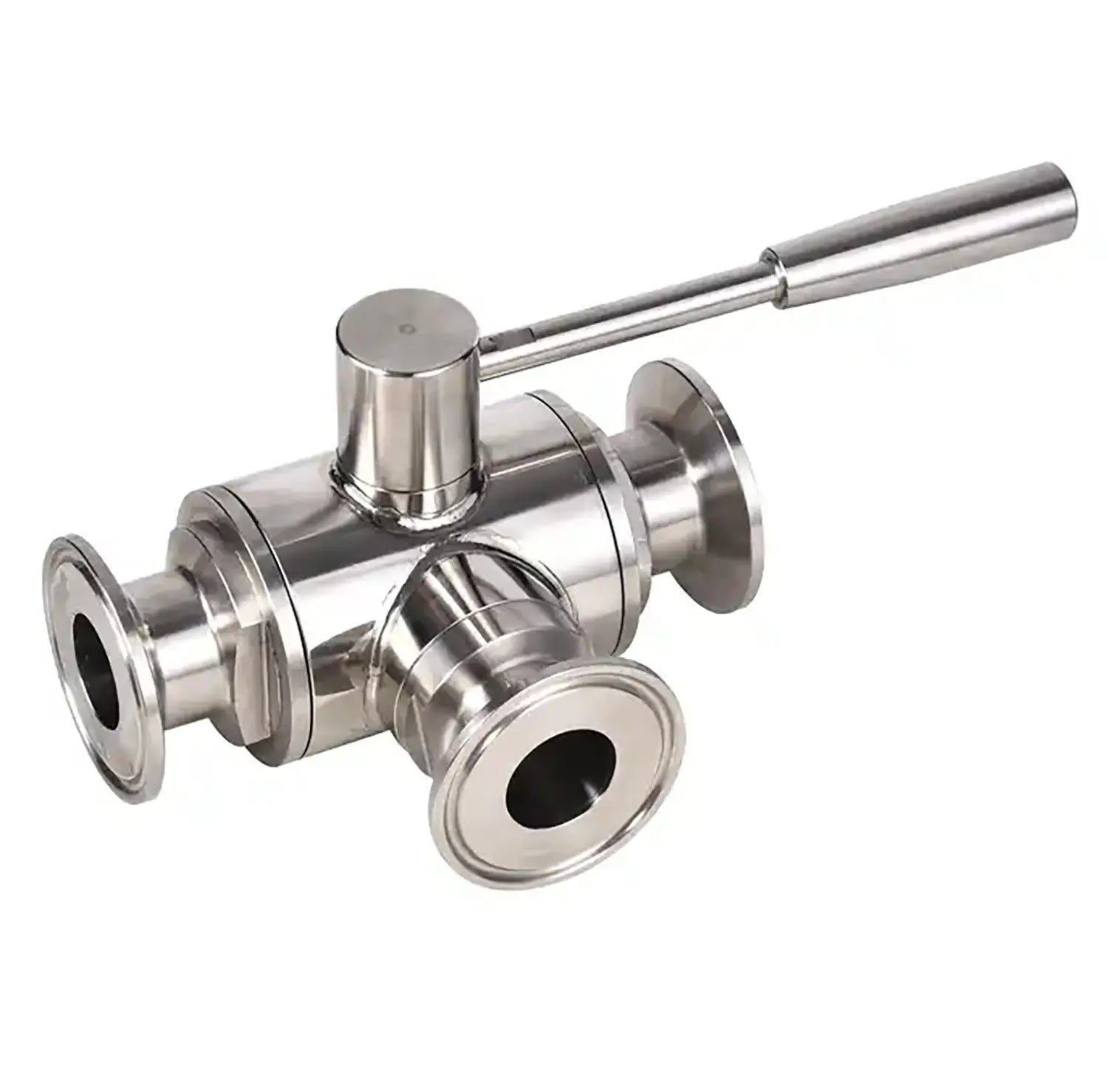

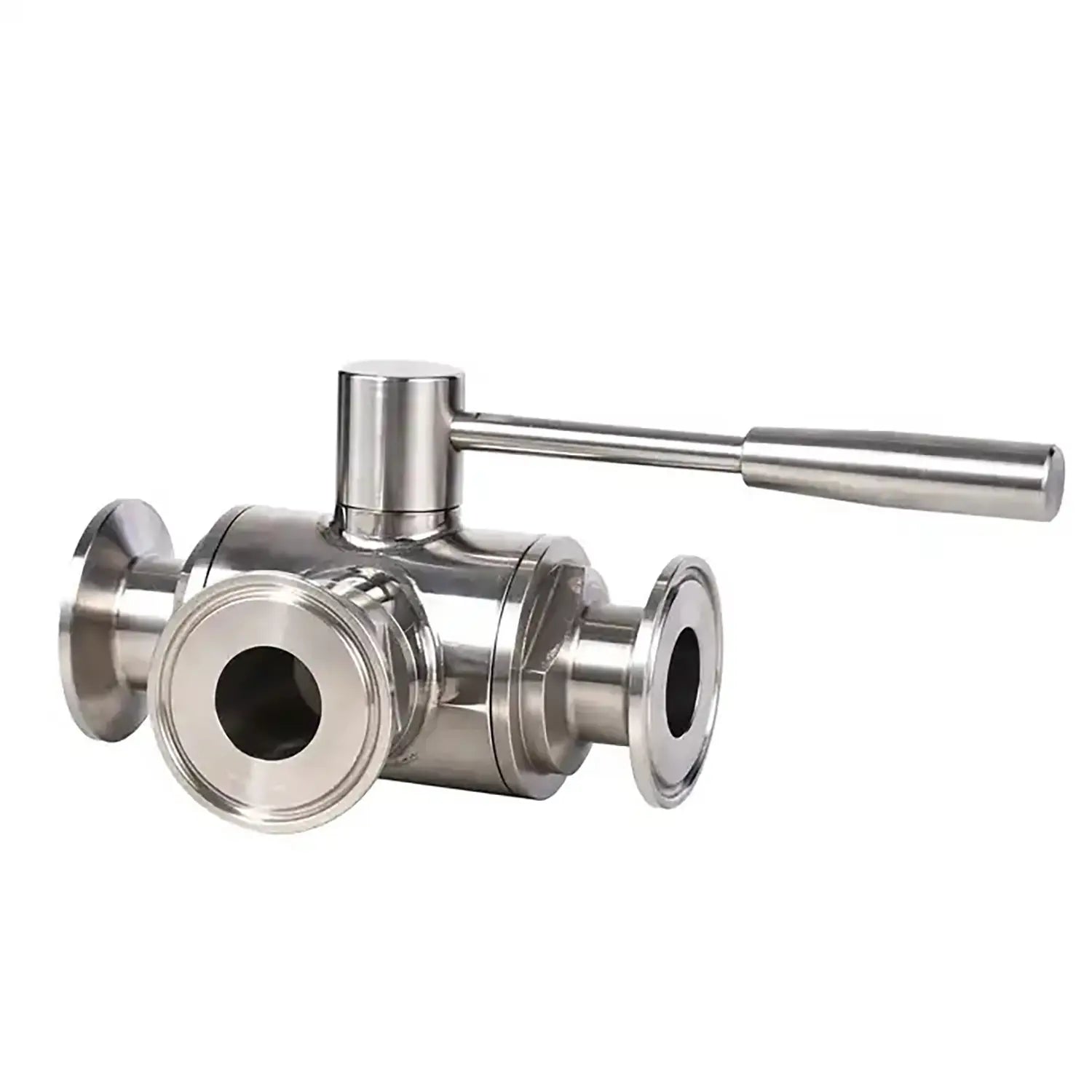

Sanitary Manual TC Three Ways Ball Valve

Sanitary manual tri-clamp 3-way ball valves are designed for hygienic flow control and media diversion in sanitary processing systems. These valves allow operators to direct fluid flow between multiple pipeline paths while maintaining strict sanitary standards required in food, beverage, dairy, pharmaceutical, and biotechnology industries.

Manufactured from high-quality stainless steel (SS304 or SS316L), the valve provides excellent corrosion resistance, durability, and reliable sealing performance. The precision-machined ball ensures smooth switching between flow paths with minimal pressure loss during operation.

The tri-clamp connection design enables quick installation and easy disassembly for cleaning and maintenance, making it ideal for sanitary pipelines requiring frequent inspection and cleaning cycles.

Sanitary 3-way ball valves are widely used in brewing systems, beverage production lines, dairy processing plants, pharmaceutical manufacturing facilities, and biotechnology processing systems where hygienic fluid control and reliable operation are essential.

Standard
SMS, DIN

Material – Contact Parts
SS304 (1.4301) / SS316L (1.4404)
Material inspection report available

Material – Non-contact Parts
SS304 (1.4301)

Size Range
1/2" – 4" (DN10 – DN100)

Body Type Options
Straight Port
T Port
L Port

Connection Options
Butt Weld
Tri Clamp
Male Thread
Union
Flange

Seal Material
PTFE
(All seal materials comply with FDA 21 CFR 177.2600)

Power Options
Manual Operation
Stainless Steel Pneumatic Actuator
Aluminum Pneumatic Actuator

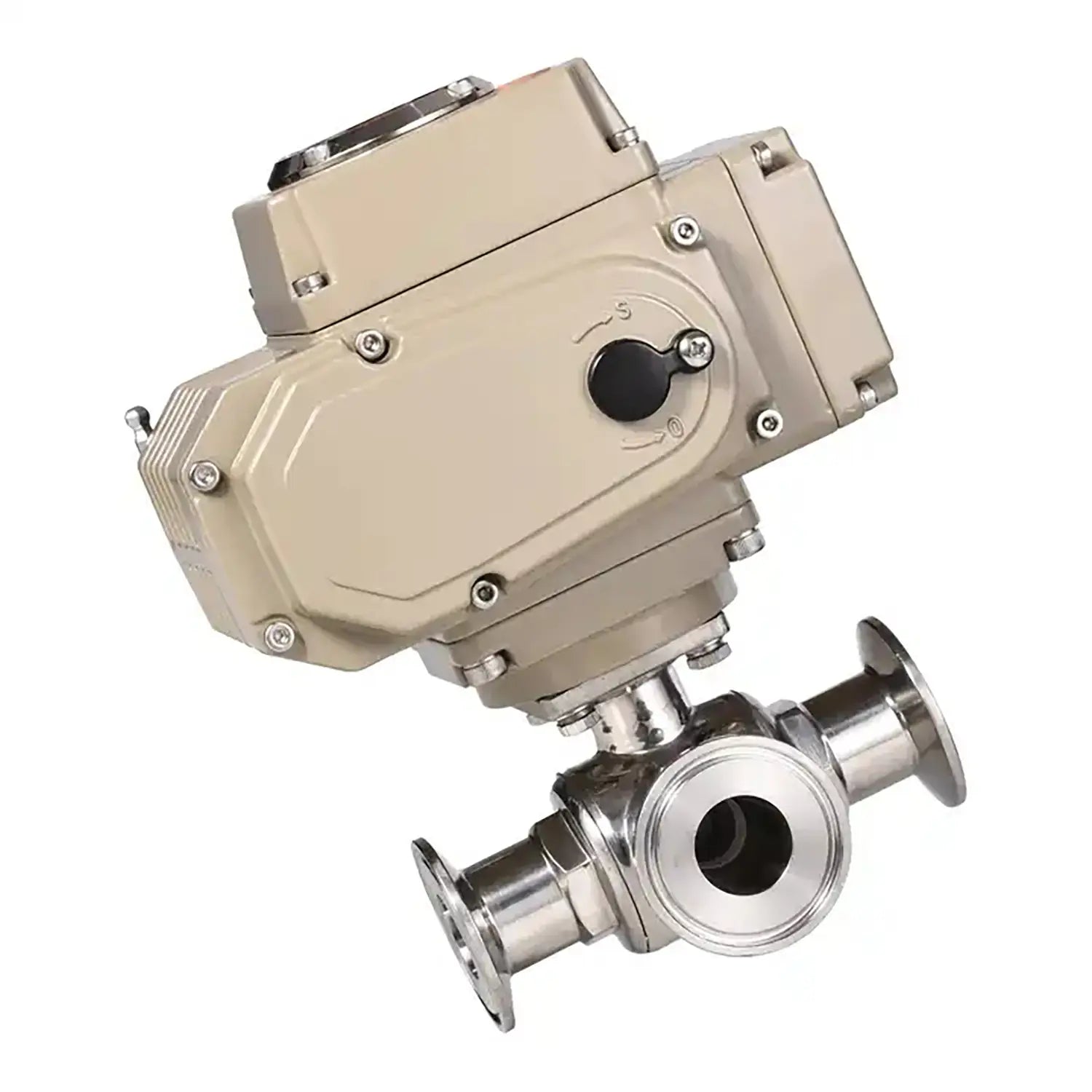

Electric Actuator

Working Pressure
≤ 10 bar (145 psi)

Air Supply Pressure (Pneumatic Actuator)
5 – 8 bar (72.5 – 116 psi)

External Surface Finish
Ra 0.8 – 1.6 μm

Internal Surface Finish
Ra 0.4 – 0.8 μm

Applications

Food Processing
Beverage Production
Dairy Processing
Pharmaceutical Manufacturing
Biotechnology Processing
