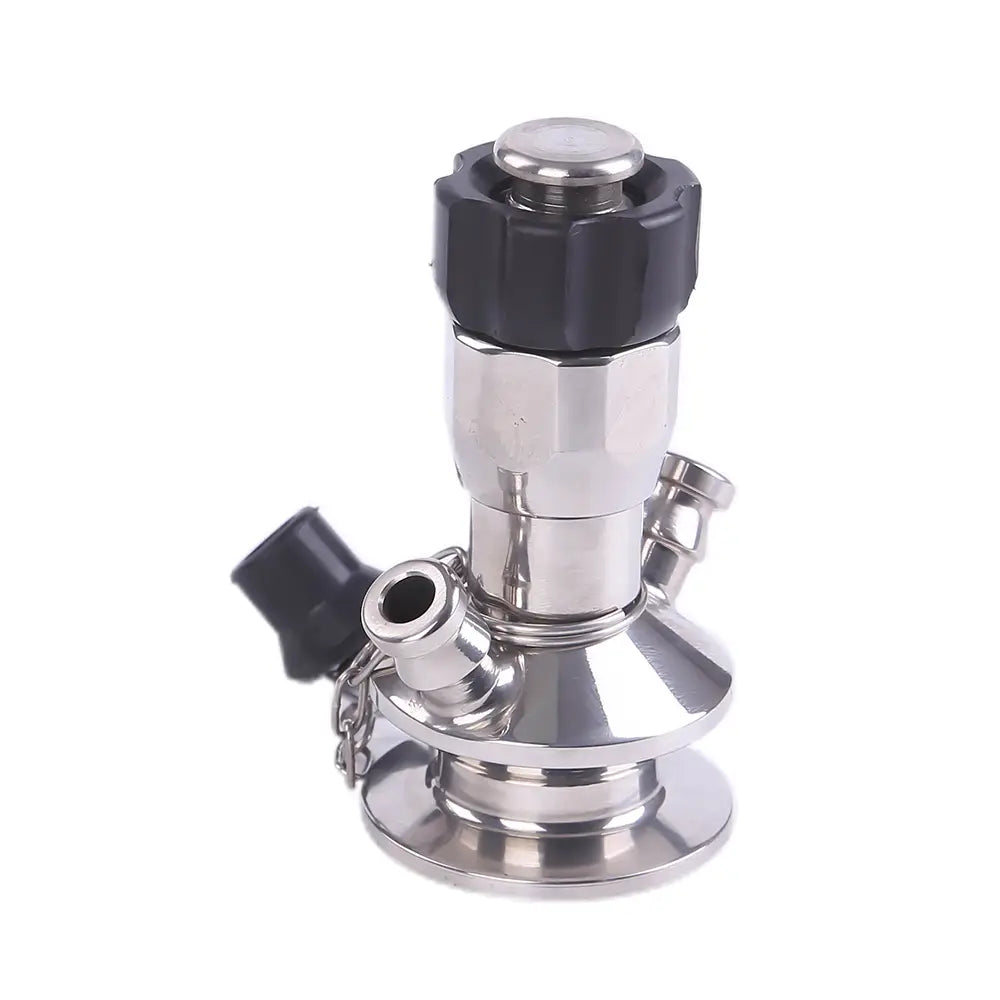

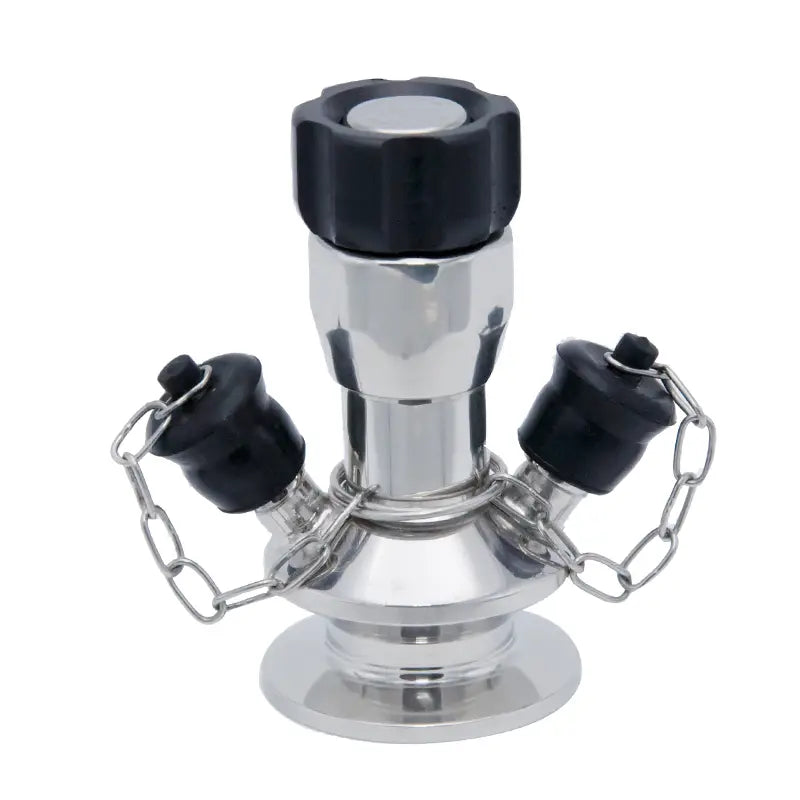

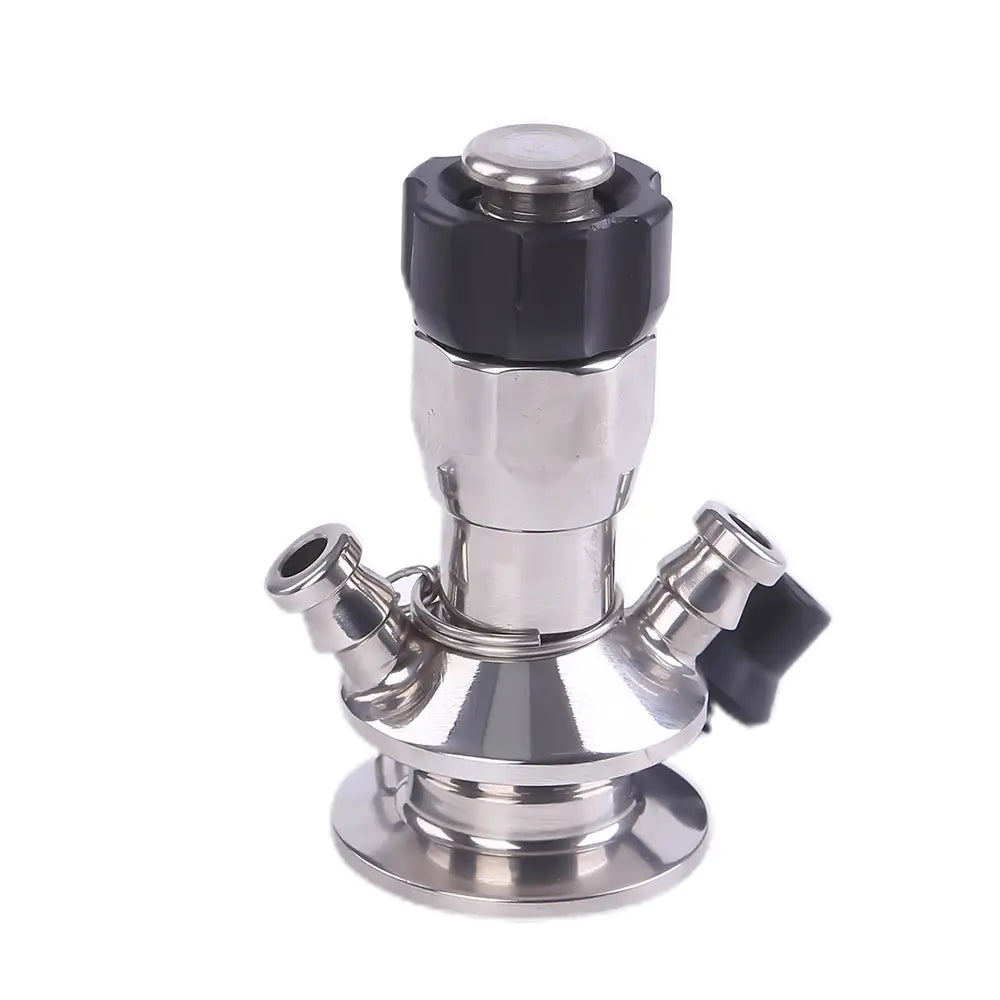

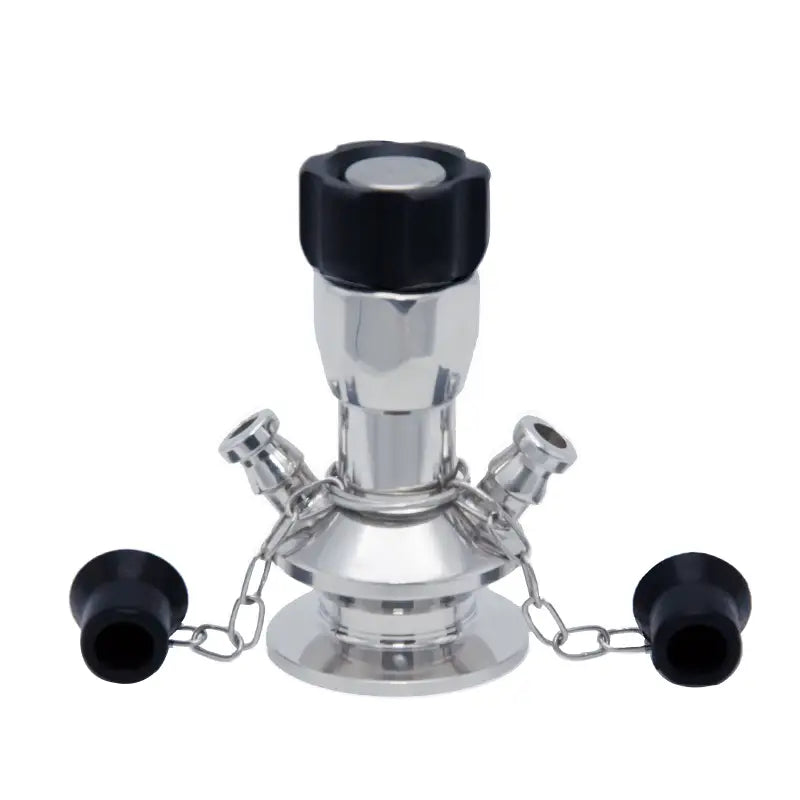

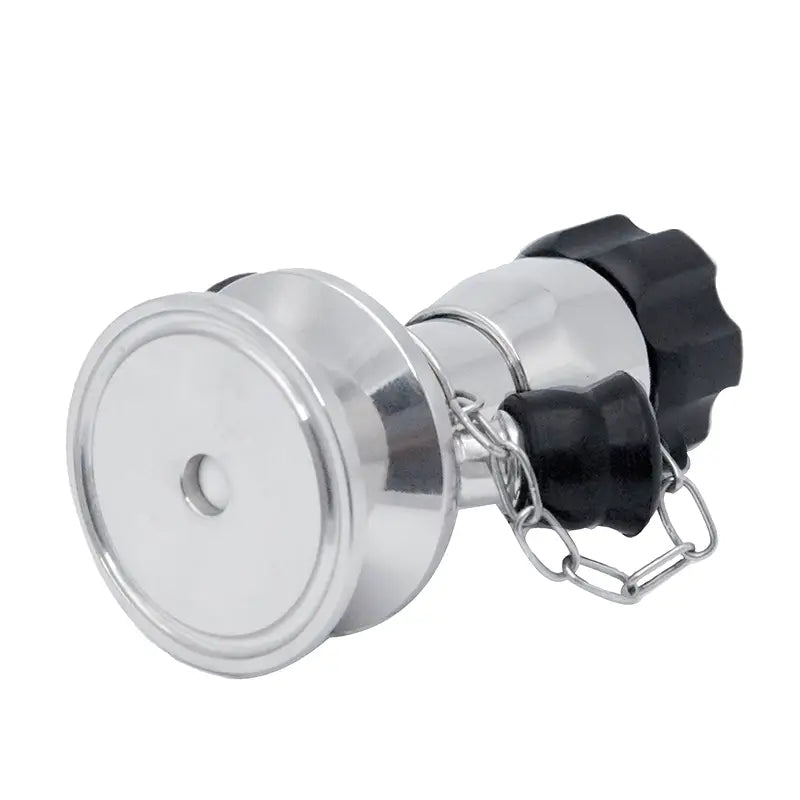

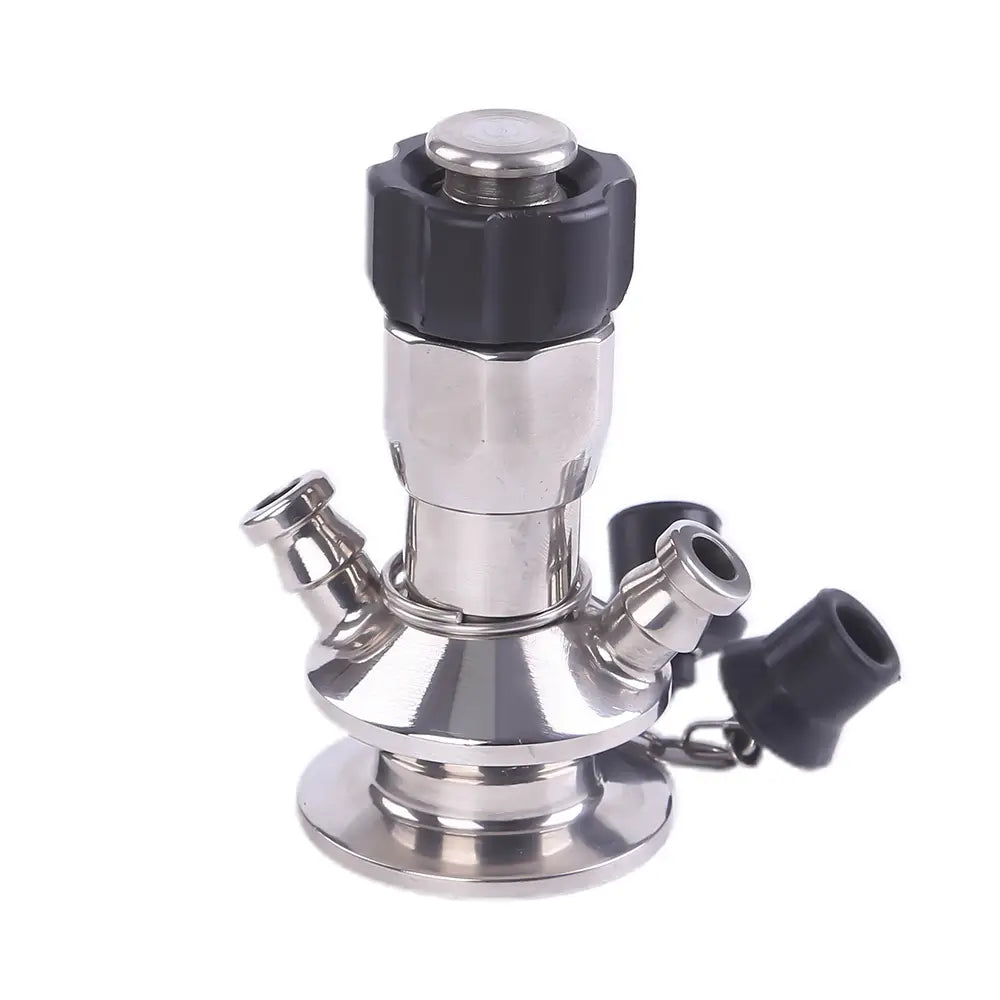

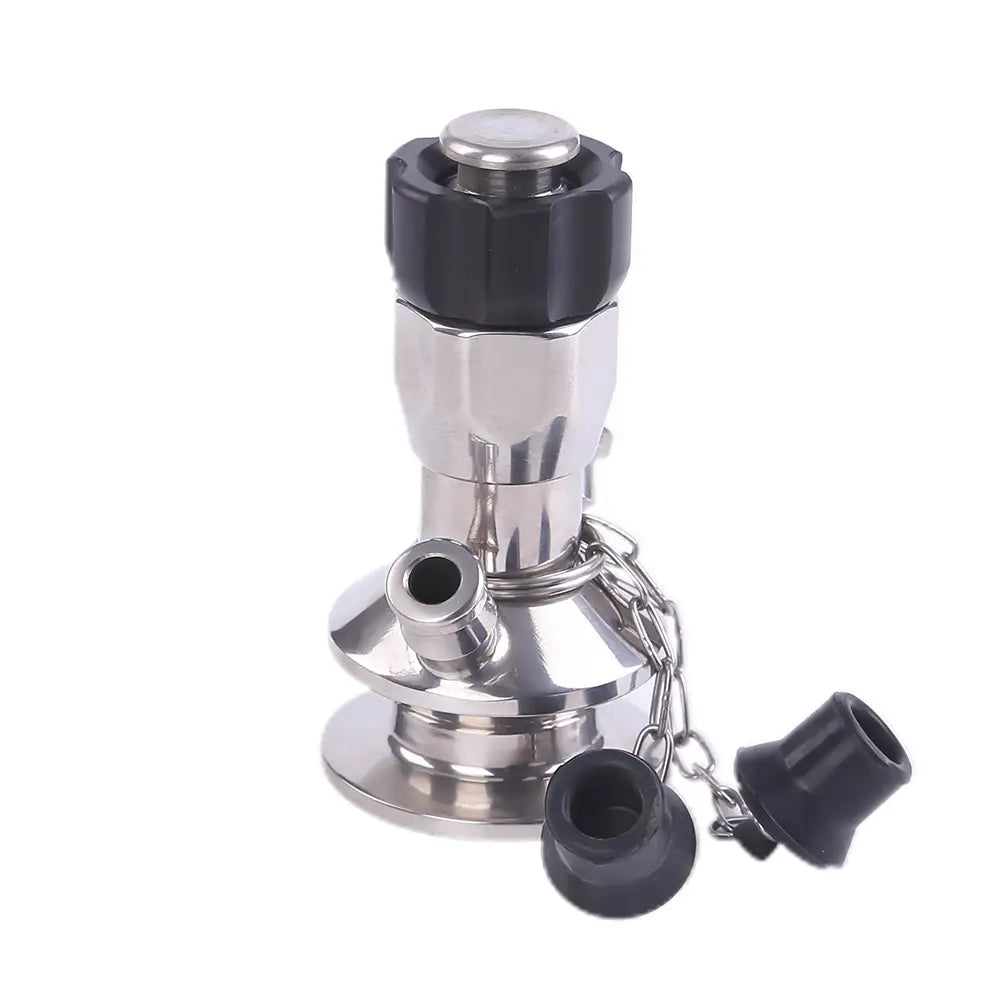

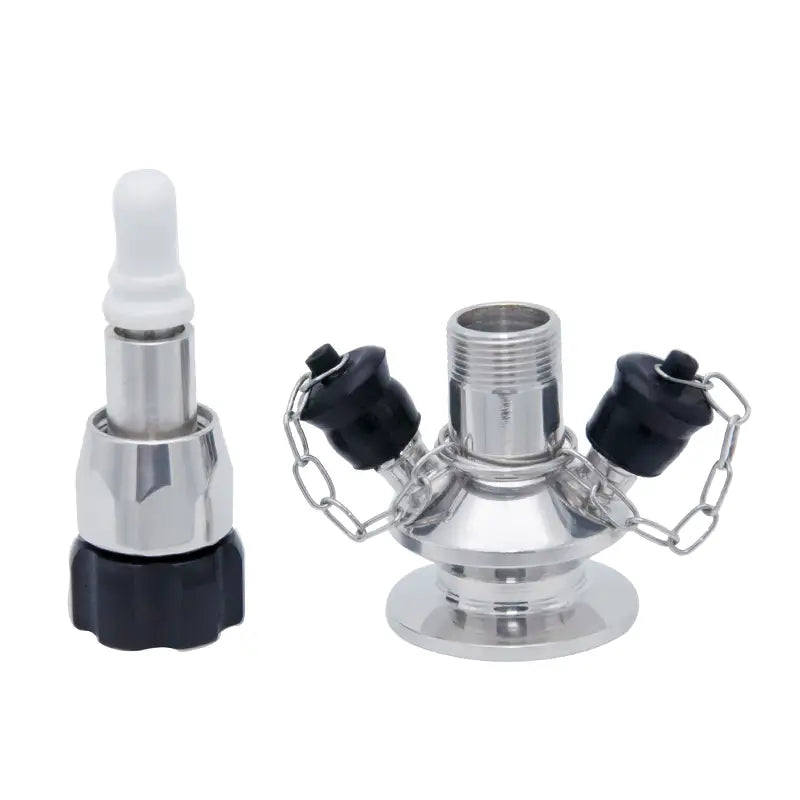

Sanitary aseptic tri-clamp sampling valves are designed for hygienic and accurate fluid sampling in sanitary processing systems. These valves allow operators to collect representative samples from pipelines or tanks while maintaining strict sanitary conditions required in food, beverage, dairy, pharmaceutical, and biotechnology industries.
Manufactured from high-quality SS316L stainless steel, the valve offers excellent corrosion resistance, durability, and compatibility with hygienic processing environments. The aseptic design minimizes contamination risk and ensures reliable sampling performance during production or quality control procedures.
The tri-clamp connection enables quick installation and easy disassembly, making the valve suitable for systems requiring frequent cleaning and maintenance. Sanitary sampling valves are widely used in quality control testing, laboratory analysis, and process monitoring, helping maintain product safety and process reliability.
Standard
SMS, DIN, 3A
Material – Contact Parts
SS316L (1.4404)
Material inspection report available
Size Options
DN6
DN10
DN15
Body Combination Models
A Model
B Model
C Model
D Model
E Model
F Model
A1 Model
B1 Model
C1 Model
D1 Model
E1 Model
F1 Model
Connection Options
Butt Weld
Tri Clamp
Seal Material
Silicone
(All seal materials comply with FDA 21 CFR 177.2600)
Power Options
Manual Operation
Working Pressure
≤ 10 bar (145 psi)
Air Supply Pressure (if pneumatic option available)
5 – 8 bar (72.5 – 116 psi)
External Surface Finish
Ra 0.4 – 0.8 μm
Internal Surface Finish
Ra 0.4 – 0.8 μm
Applications
Food Processing
Beverage Production
Dairy Processing
Pharmaceutical Manufacturing
Biotechnology Processing
