Rock Wool Insulated Metal Partition Panels
Rock Wool Insulated Metal Partition Panels
Pricing: Available upon request
Lead time: Confirmed at time of quote
Customization: Supported
Request a QuoteResponse within 24 hours
High-Density Insulated Panels for Interior Partition Systems
Atlas Equipment Solutions supplies custom rock wool insulated metal partition panels for industrial facilities, warehouses, food-processing plants, manufacturing areas and other commercial interior environments.

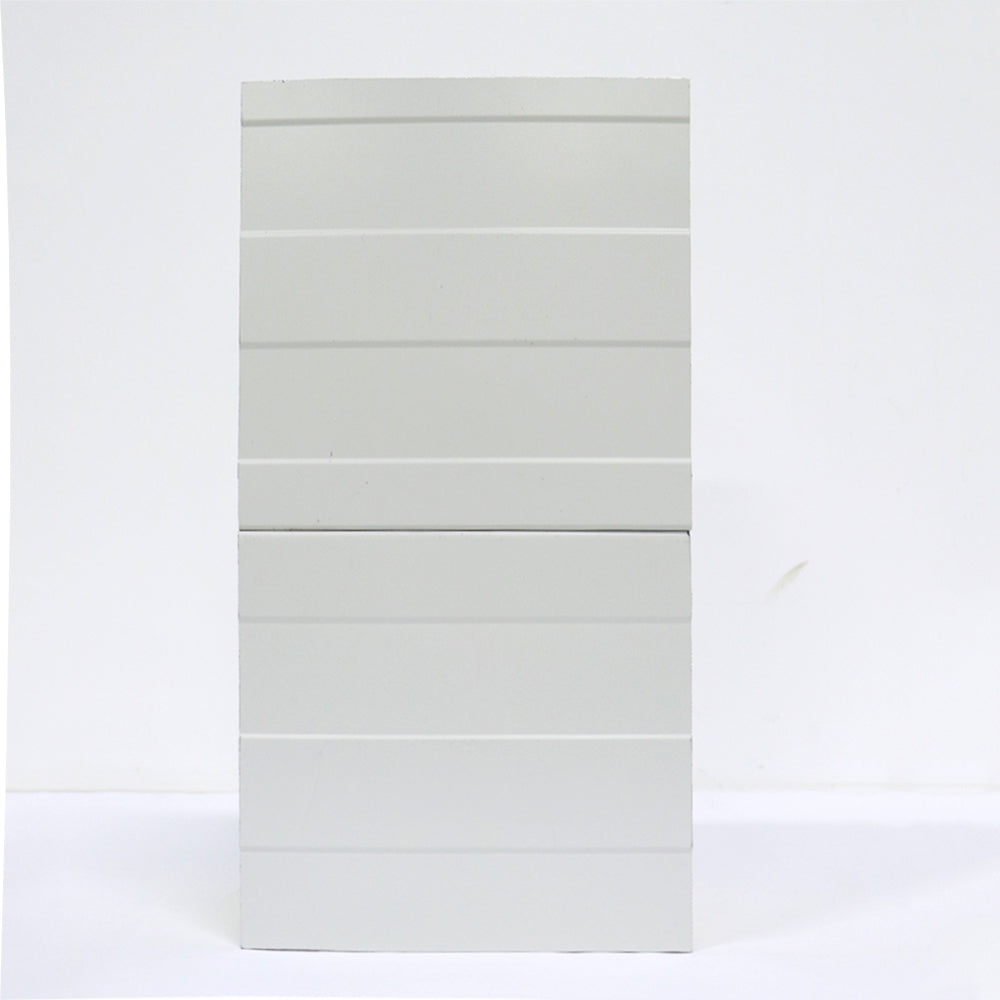

Each panel consists of metal facings bonded to a high-density rock wool insulation core. The integrated panel construction creates a finished interior partition with thermal and acoustic insulation in one modular component.
Panels are manufactured with a standard panel-edge configuration and can be customized according to the required thickness, surface profile, color, length and installation conditions.
Key Features
- High-density rock wool insulation core
- Metal facings on both sides
- Designed for interior partition applications
- Standard interlocking edge configuration
- Modular interlocking panel construction
- Multiple panel thicknesses available
- Smooth, corrugated and wide-rib surface profiles
- Standard and custom colors
- Custom panel lengths
- Acoustic insulation characteristics
- Stable mineral-fiber core construction
- Compatible with trim, channels, flashing, fasteners and sealants
- Custom project configuration available
Specifications
| Specification | Available Configuration |
|---|---|
| Insulation core | Rock wool |
| Typical panel thickness | 50, 75, 80, 100, 120, 150, 180, 200 or 250 mm |
| Metal-facing thickness | 0.4–0.8 mm |
| Core density | 120–150 kg/m³ |
| Thermal conductivity | ≤0.042 W/(m·K) |
| Sound insulation | Average sound insulation ≥37 dB at 50 mm |
| Edge configuration | Standard interlocking edges |
| Surface profiles | Smooth, corrugated or wide rib |
| Available colors | White, gray, silver, blue, red, orange and custom colors |
| Panel length | Customized according to project requirements |
| Accessories | Trim, channels, flashing, fasteners and sealants |
Typical Applications
- Interior industrial partitions
- Manufacturing-area separation
- Warehouse partition walls
- Food and beverage processing areas
- Temperature-controlled production rooms
- Equipment and utility rooms
- Mechanical and service areas
- Laboratory support areas
- Packaging and inspection rooms
- Commercial interior wall systems
- Agricultural and processing facilities
- Projects requiring improved acoustic control
Custom Project Configuration
Rock wool insulated partition panels should be selected according to the room dimensions, partition height, insulation requirements, surface finish, joint configuration and installation method.
Atlas Equipment Solutions can assist with panel selection, edge configuration, accessory requirements, manufacturing coordination and delivery planning.
Partition height, support framing, fastening requirements, structural loads, fire-performance requirements and local building-code compliance must be independently confirmed for each project before ordering.
Request a Quote
Please provide:
- Project location
- Facility application
- Partition dimensions
- Required partition height
- Required panel thickness
- Interior surface finish
- Required panel lengths
- Door, window and opening requirements
- Total estimated partition area
- Acoustic or thermal requirements
- Support-framing information
- Required delivery date
Contact Atlas Equipment Solutions for a customized quotation.
