Rock Wool Insulated Metal Wall Panels with PUR-Sealed Edges
Rock Wool Insulated Metal Wall Panels with PUR-Sealed Edges
Pricing: Available upon request
Lead time: Confirmed at time of quote
Customization: Supported
Request a QuoteResponse within 24 hours
Insulated Wall Panels with PUR-Sealed Edges
Atlas Equipment Solutions supplies custom rock wool insulated metal wall panels with PUR-sealed edges for commercial buildings, industrial facilities, warehouses, manufacturing plants and processing environments.

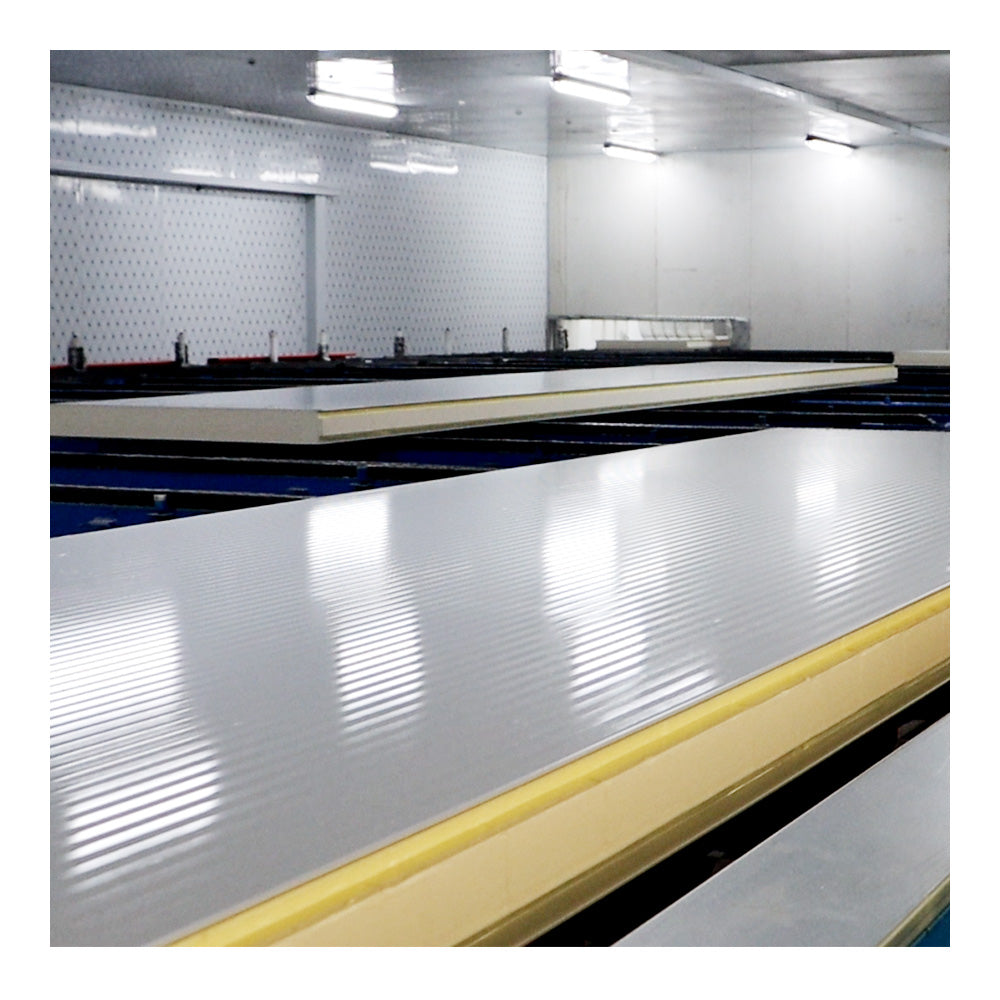

Each panel consists of interior and exterior metal facings bonded to a high-density rock wool core, with PUR insulation incorporated along the edges to form the sealed joint configuration.
Panels are available in seamed or seamless configurations and can be customized according to the required thickness, surface profile, color, panel length and installation conditions.
Key Features
- High-density rock wool insulation core
- PUR-sealed panel edges
- Interior and exterior metal facings
- Suitable for interior and exterior wall applications
- Seamed and seamless configurations
- Modular panel construction
- Multiple panel thicknesses available
- Smooth, corrugated and wide-rib surface profiles
- Standard and custom colors
- Custom panel lengths
- Acoustic insulation characteristics
- Stable mineral-fiber core construction
- Compatible with trim, flashing, fasteners and sealants
- Custom project configuration available
Specifications
| Specification | Available Configuration |
|---|---|
| Insulation core | Rock wool |
| Edge-sealing material | Polyurethane |
| Typical panel thickness | 50, 75, 80, 100, 120 or 150 mm |
| Metal-facing thickness | 0.4–0.8 mm |
| Core density | 120–150 kg/m³ |
| Thermal conductivity | ≤0.042 W/(m·K) |
| Sound insulation | Average sound insulation ≥37 dB at 50 mm |
| Panel configuration | Seamed or seamless |
| Edge configuration | PUR-sealed panel edges |
| Surface profiles | Smooth, corrugated or wide rib |
| Available colors | White, gray, silver, blue, red, orange and custom colors |
| Panel length | Customized according to project requirements |
| Accessories | Trim, flashing, fasteners, channels and sealants |
Typical Applications
- Commercial and industrial buildings
- Warehouse exterior walls
- Manufacturing facilities
- Food and beverage processing plants
- Distribution and logistics facilities
- Equipment and utility enclosures
- Interior insulated walls
- Exterior building-envelope systems
- Mechanical and service areas
- Agricultural and processing buildings
- Temperature-controlled facilities
- Applications requiring PUR-sealed panel edges
Custom Project Configuration
Rock wool insulated metal wall panels with PUR-sealed edges should be selected according to the building dimensions, panel span, insulation requirements, environmental exposure, surface finish, joint design and installation method.
Atlas Equipment Solutions can assist with panel selection, panel configuration, accessory requirements, manufacturing coordination and delivery planning.
Structural loads, fastening requirements, fire-performance requirements and local building-code compliance must be independently confirmed for each project before ordering.
Request a Quote
Please provide:
- Project location
- Building or facility application
- Wall dimensions
- Interior or exterior wall application
- Required panel thickness
- Preferred seamed or seamless configuration
- Interior and exterior surface finish
- Required panel lengths
- Door, window and opening requirements
- Total estimated wall area
- Acoustic or thermal requirements
- Required delivery date
Contact Atlas Equipment Solutions for a customized quotation.
