Rock Wool Insulated Metal Wall Panels
Rock Wool Insulated Metal Wall Panels
Pricing: Available upon request
Lead time: Confirmed at time of quote
Customization: Supported
Request a QuoteResponse within 24 hours
High-Density Insulated Wall Panels for Commercial and Industrial Facilities
Atlas Equipment Solutions supplies custom rock wool insulated metal wall panels for commercial buildings, industrial facilities, warehouses, manufacturing plants and projects requiring mineral-fiber insulation, acoustic control and thermal performance.

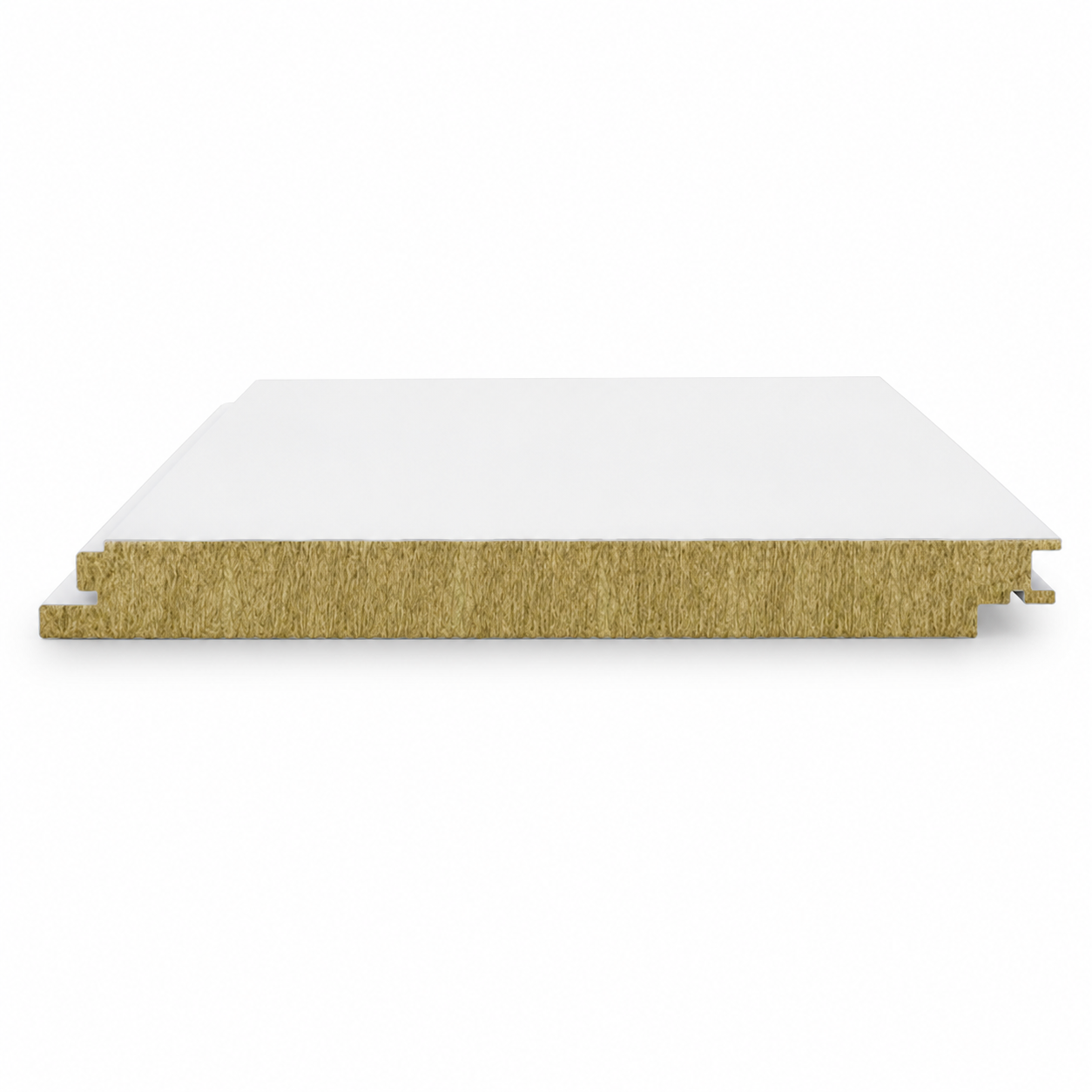

Each panel consists of interior and exterior metal facings bonded to a high-density rock wool insulation core. The integrated panel construction combines insulation, finished wall surfaces and modular installation within one building component.
Panels are available in seamed or seamless configurations and can be customized according to the required thickness, surface profile, color, length and installation conditions.
Key Features
- High-density rock wool insulation core
- Interior and exterior metal facings
- Suitable for exterior and interior wall applications
- Seamed and seamless panel configurations
- Standard panel-edge configuration
- Modular panel construction
- Multiple panel thicknesses available
- Smooth, corrugated and wide-rib surface profiles
- Standard and custom colors
- Custom panel lengths
- Acoustic insulation characteristics
- Stable mineral-fiber core construction
- Compatible with trim, flashing, fasteners and sealants
- Custom project configuration available

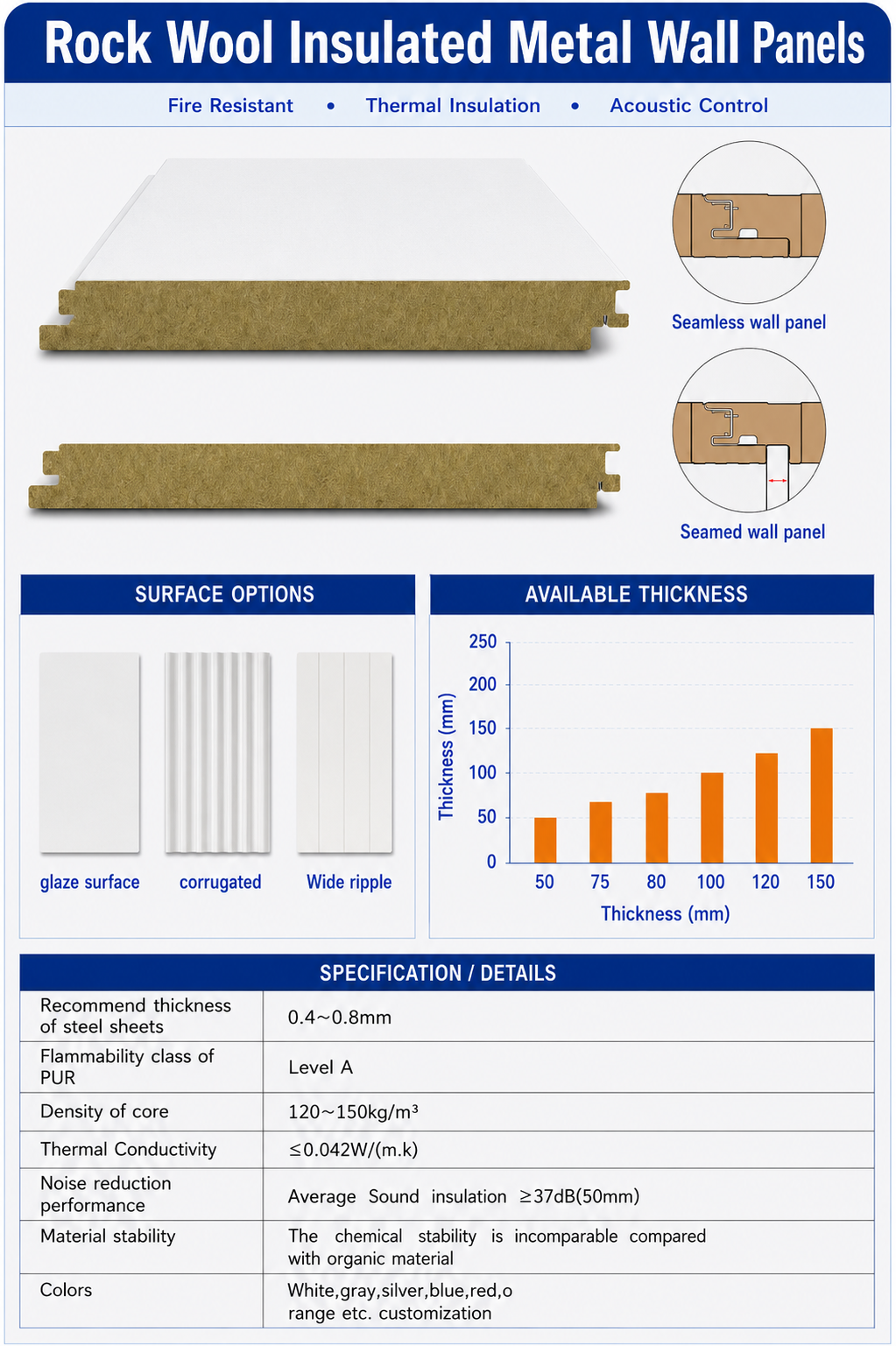

Specifications
| Specification | Available Configuration |
|---|---|
| Insulation core | Rock wool |
| Typical panel thickness | 50, 75, 80, 100, 120 or 150 mm |
| Metal-facing thickness | 0.4–0.8 mm |
| Core density | 120–150 kg/m³ |
| Thermal conductivity | ≤0.042 W/(m·K) |
| Sound insulation | Average sound insulation ≥37 dB at 50 mm |
| Panel configuration | Seamed or seamless |
| Edge configuration | Standard panel-edge configuration |
| Surface profiles | Smooth, corrugated or wide rib |
| Available colors | White, gray, silver, blue, red, orange and custom colors |
| Panel length | Customized according to project requirements |
| Accessories | Trim, flashing, fasteners, channels and sealants |
Typical Applications
- Commercial and industrial buildings
- Warehouse exterior walls
- Manufacturing facilities
- Food and beverage processing plants
- Distribution and logistics facilities
- Equipment and utility enclosures
- Interior insulated walls
- Exterior building-envelope systems
- Mechanical and service areas
- Agricultural and processing buildings
- Temperature-controlled facilities
- Projects requiring improved acoustic control
Custom Project Configuration
Rock wool insulated metal wall panels should be selected according to the building dimensions, panel span, insulation requirements, environmental exposure, surface finish, joint design and installation method.
Atlas Equipment Solutions can assist with panel selection, panel configuration, accessory requirements, manufacturing coordination and delivery planning.
Structural loads, fastening requirements, fire-performance requirements and local building-code compliance must be independently confirmed for each project before ordering.
Request a Quote
Please provide:
- Project location
- Building or facility application
- Wall dimensions
- Interior or exterior wall application
- Required panel thickness
- Preferred seamed or seamless configuration
- Interior and exterior surface finish
- Required panel lengths
- Door, window and opening requirements
- Total estimated wall area
- Acoustic or thermal requirements
- Required delivery date
Contact Atlas Equipment Solutions for a customized quotation.
