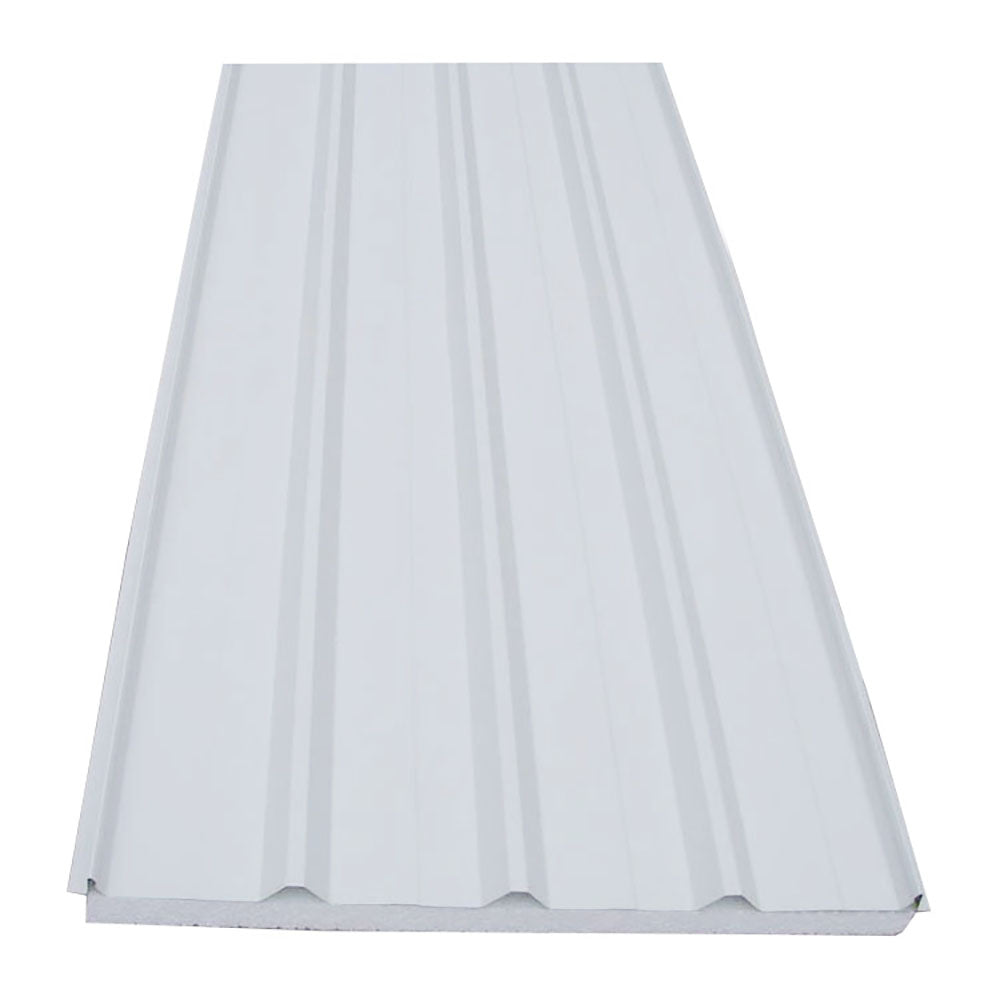

Rock Wool Insulated Metal Roof Panels
Rock Wool Insulated Metal Roof Panels
Pricing: Available upon request
Lead time: Confirmed at time of quote
Customization: Supported
Request a QuoteResponse within 24 hours
High-Density Insulated Roof Panels for Commercial and Industrial Buildings
Atlas Equipment Solutions supplies custom rock wool insulated metal roof panels for warehouses, manufacturing plants, processing facilities, utility buildings and other commercial or industrial roofing applications.
Each panel combines a profiled exterior metal facing, high-density rock wool insulation core and interior facing into one factory-manufactured roofing component. The integrated construction provides thermal insulation, weather protection and a finished interior surface.
Panels use a standard roof-panel edge configuration and can be customized according to the required thickness, facing material, color, panel length and project conditions.
Key Features
- High-density rock wool insulation core
- Corrugated exterior roofing profile
- Standard roof-panel edge configuration
- Metal or aluminum-foil interior-facing options, where applicable
- Factory-manufactured insulated construction
- Multiple panel thicknesses available
- Custom panel lengths
- Standard and custom colors
- Stable mineral-fiber core construction
- Compatible with ridge caps, flashing, fasteners and sealants
- Suitable for commercial and industrial roofing applications
- Custom project configuration available
Specifications
| Specification | Available Configuration |
|---|---|
| Insulation core | Rock wool |
| Typical panel thickness | 50, 60, 75, 80 or 100 mm |
| Metal-facing thickness | 0.4–0.8 mm |
| Aluminum-foil facing thickness | 0.5–0.8 mm, where applicable |
| Core density | 120–150 kg/m³ |
| Thermal conductivity | ≤0.042 W/(m·K) |
| Edge configuration | Standard roof-panel edges |
| Exterior profile | Corrugated |
| Interior-facing options | Metal facing or aluminum foil, where applicable |
| Available colors | White, gray, silver, blue, red, orange and custom colors |
| Panel length | Customized according to project requirements |
| Accessories | Ridge caps, flashing, fasteners, trim and sealants |
Typical Applications
- Commercial and industrial buildings
- Warehouses and distribution facilities
- Manufacturing plants
- Food and beverage processing facilities
- Equipment and utility buildings
- Agricultural and processing buildings
- Mechanical and service structures
- Production and packaging facilities
- Temperature-controlled buildings
- Building expansions
- Modular industrial structures
- Projects requiring mineral-fiber roof insulation
Custom Project Configuration
Rock wool insulated metal roof panels should be selected according to the building dimensions, roof slope, insulation requirements, environmental exposure, support spacing, edge configuration, surface finish and installation method.
Atlas Equipment Solutions can assist with panel selection, edge configuration, accessory requirements, manufacturing coordination and delivery planning.
Roof loads, panel spans, fastening requirements, drainage, wind-uplift resistance, fire-performance requirements and local building-code compliance must be independently confirmed for each project before ordering.
Request a Quote
Please provide:
- Project location
- Building or facility application
- Roof dimensions
- Roof slope
- Required panel thickness
- Preferred interior-facing material
- Exterior color and finish
- Required panel lengths
- Support-framing or purlin spacing
- Ridge, flashing and drainage requirements
- Total estimated roof area
- Required delivery date
Contact Atlas Equipment Solutions for a customized quotation.
