PUR/PIR Insulated Metal Wall Panels
PUR/PIR Insulated Metal Wall Panels
Pricing: Available upon request
Lead time: Confirmed at time of quote
Customization: Supported
Request a QuoteResponse within 24 hours
Custom Insulated Wall Panels for Commercial and Industrial Buildings
Atlas Equipment Solutions supplies custom PUR and PIR insulated metal wall panels for commercial buildings, industrial facilities, warehouses, food-processing plants and temperature-controlled environments.

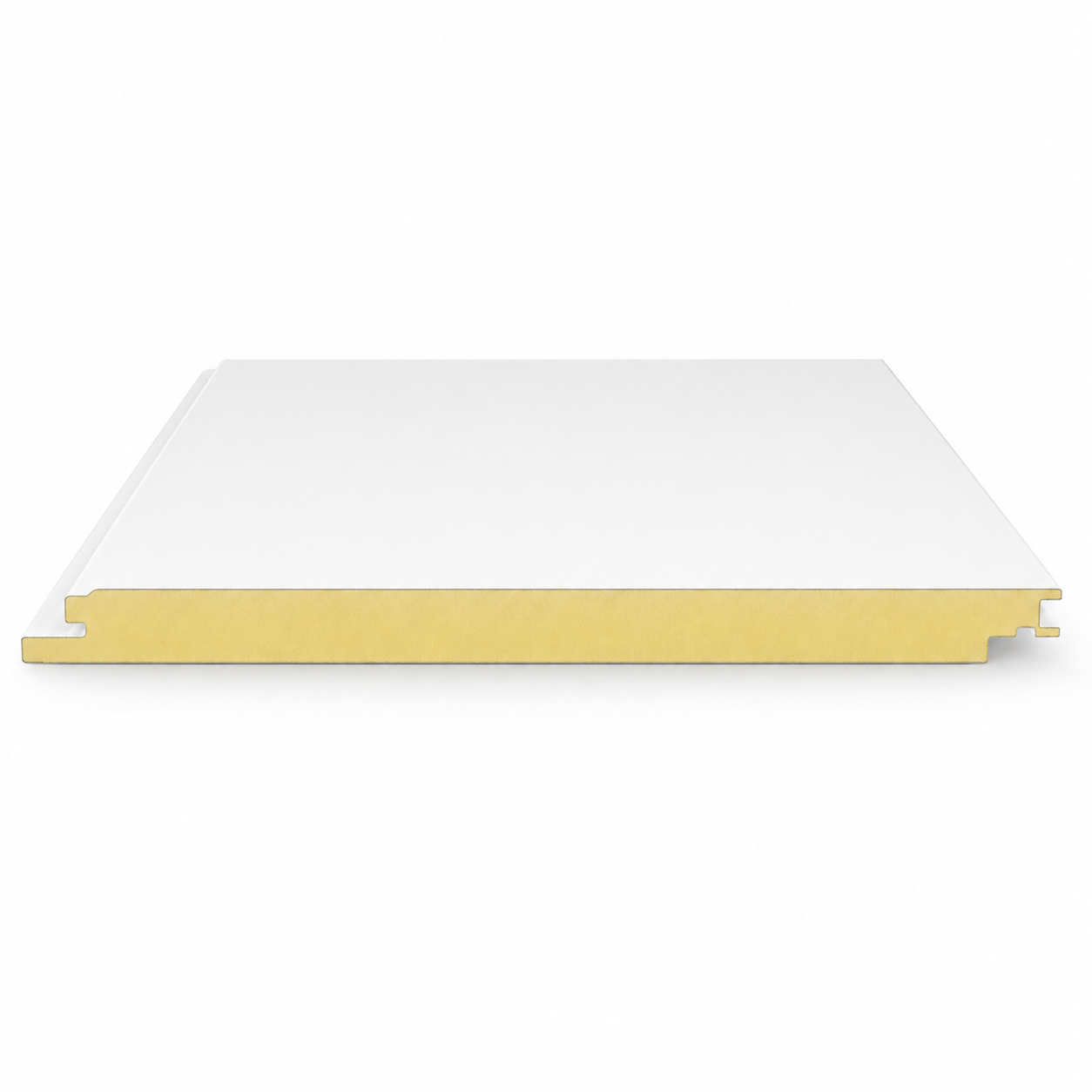

Each panel consists of interior and exterior metal facings bonded to a rigid PUR or PIR insulation core. The integrated panel construction combines insulation, finished wall surfaces and modular installation within one building component.
Panels are available in seamed or seamless configurations and can be customized according to the required thickness, surface profile, color, length and project conditions.
Key Features
- PUR or PIR rigid insulation core
- Interior and exterior metal facings
- Seamed and seamless panel configurations
- Suitable for interior and exterior wall applications
- Modular interlocking panel construction
- Multiple panel thicknesses available
- Smooth, lightly ribbed and wide-rib surface options
- Standard and custom colors
- Custom panel lengths
- Compatible with trim, flashing, fasteners and sealants
- Lightweight modular construction
- Custom project configuration available

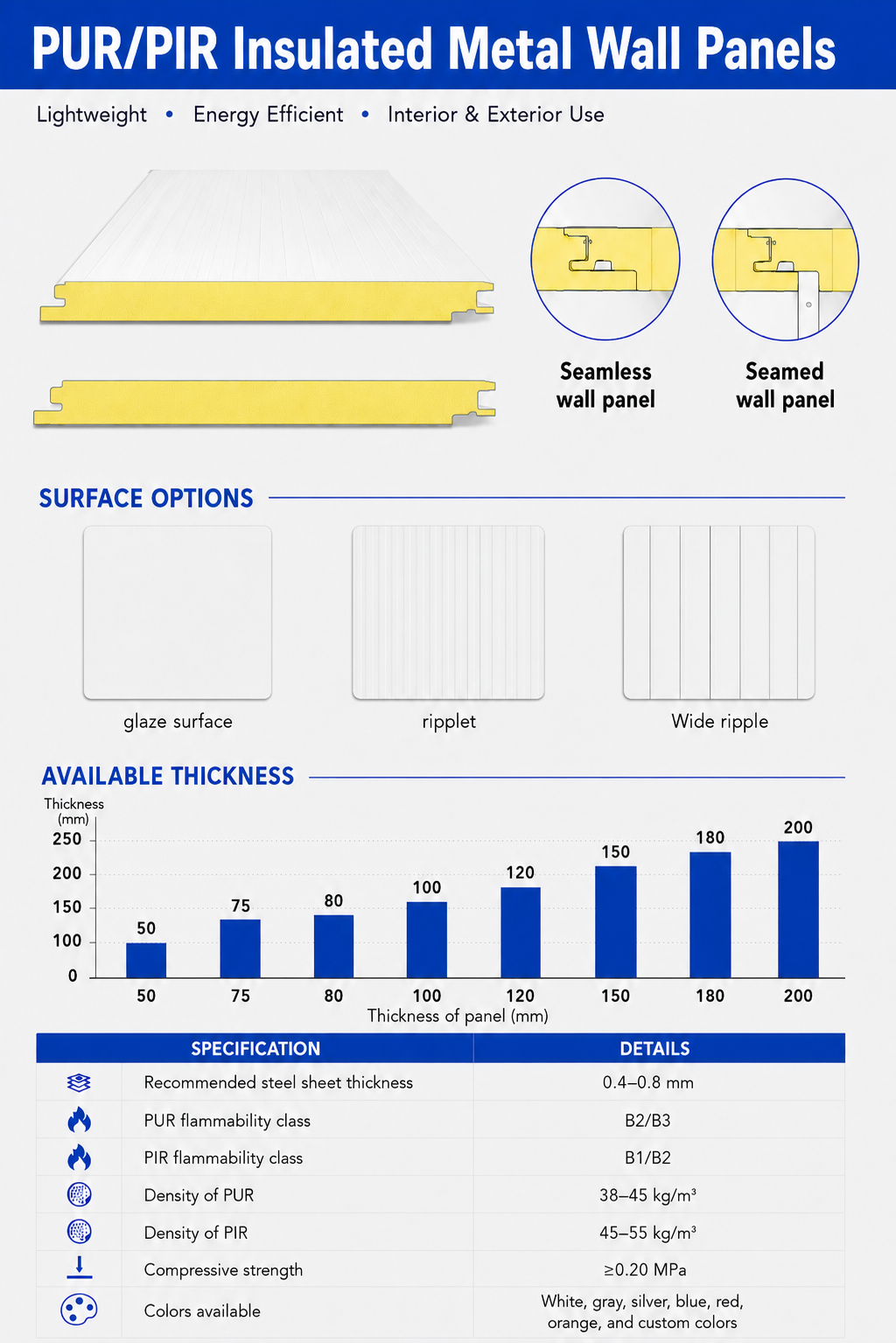

Specifications
| Specification | Available Configuration |
|---|---|
| Insulation core | PUR or PIR |
| Typical panel thickness | 50, 75, 80, 100, 120, 150, 180 or 200 mm |
| Metal-facing thickness | 0.4–0.8 mm |
| PUR core density | 38–45 kg/m³ |
| PIR core density | 45–55 kg/m³ |
| Compressive strength | ≥0.20 MPa |
| Panel configuration | Seamed or seamless |
| Surface profiles | Smooth, lightly ribbed or wide rib |
| Available colors | White, gray, silver, blue, red, orange and custom colors |
| Panel length | Customized according to project requirements |
| Accessories | Trim, flashing, fasteners, channels and sealants |
Typical Applications
- Commercial and industrial buildings
- Warehouse wall systems
- Manufacturing facilities
- Food and beverage processing plants
- Temperature-controlled production areas
- Refrigerated buildings
- Distribution and logistics facilities
- Agricultural and processing buildings
- Equipment and utility enclosures
- Interior insulated walls
- Exterior insulated wall systems
- Building expansion projects
Custom Project Configuration
Insulated metal wall panels should be selected according to the building dimensions, interior and exterior conditions, insulation requirements, panel span, surface finish and installation method.
Atlas Equipment Solutions can assist with panel selection, system configuration, accessory requirements, manufacturing coordination and delivery planning.
Structural loads, fastening requirements, fire-performance requirements and local building-code compliance must be confirmed for each project before ordering.
Request a Quote
Please provide:
- Project location
- Building or facility application
- Wall dimensions
- Interior or exterior wall application
- Preferred PUR or PIR core
- Required panel thickness
- Preferred seamed or seamless configuration
- Interior and exterior surface finish
- Required panel lengths
- Door, window and opening requirements
- Total estimated wall area
- Required delivery date
Contact Atlas Equipment Solutions for a customized quotation.
