PUR/PIR Insulated Metal Roof Panels

PUR/PIR Insulated Metal Roof Panels

Pricing: Available upon request

Lead time: Confirmed at time of quote

Customization: Supported

Request a Quote

Response within 24 hours

Custom Insulated Roof Panels for Commercial and Industrial Buildings

Atlas Equipment Solutions supplies custom PUR and PIR insulated metal roof panels for warehouses, manufacturing plants, processing facilities, temperature-controlled buildings and other commercial or industrial roofing applications.

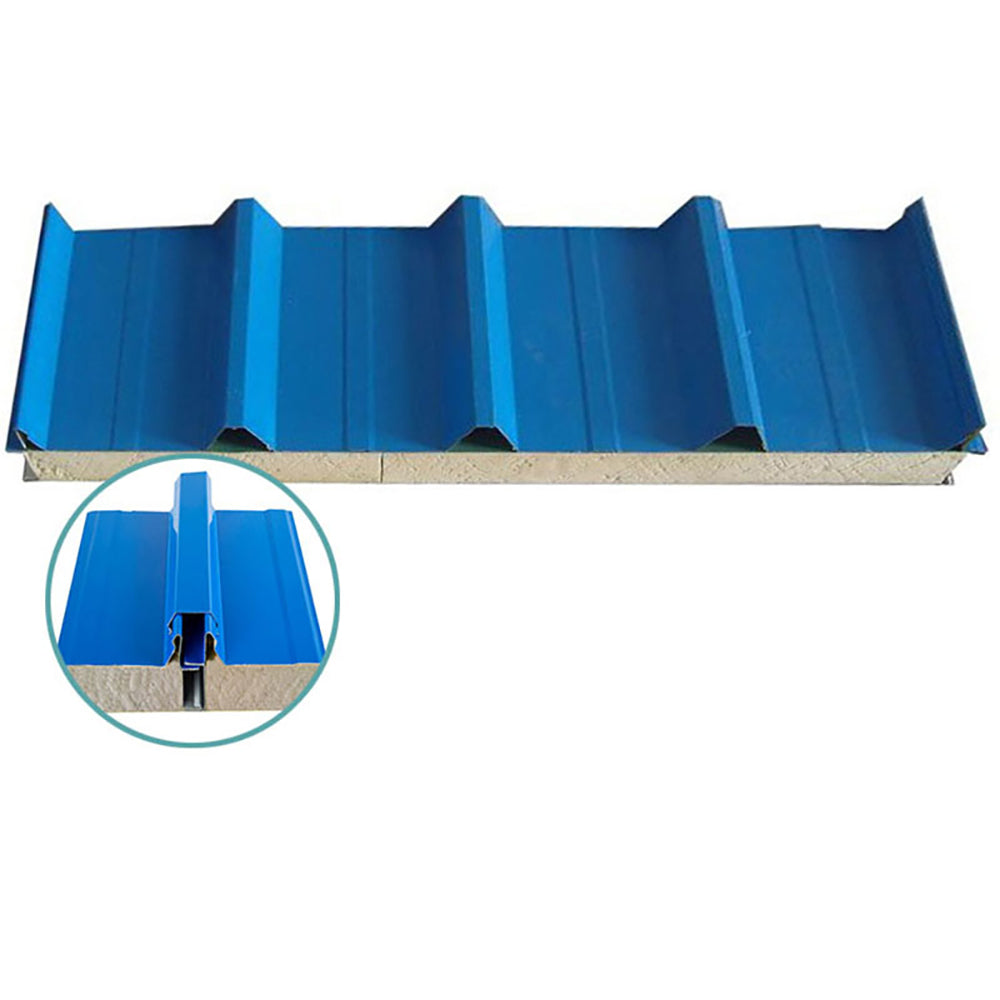

Each panel combines a profiled exterior metal facing, rigid PUR or PIR insulation core, and interior facing into one factory-manufactured roofing component. The integrated construction provides insulation, weather protection and a finished interior surface.

Panels can be customized according to the required core material, thickness, metal-facing configuration, panel length, color and project conditions.

Key Features

  • PUR or PIR rigid insulation core
  • Corrugated exterior roofing profile
  • Steel or aluminum-foil interior-facing options
  • Factory-manufactured insulated construction
  • Multiple panel thicknesses available
  • Custom panel lengths
  • Standard and custom colors
  • Modular overlapping or interlocking panel connections
  • Compatible with ridge caps, flashing, fasteners and sealants
  • Suitable for commercial and industrial roofing applications
  • Custom project configuration available

Specifications

Specification Available Configuration
Insulation core PUR or PIR
Typical panel thickness 50, 60, 75, 80 or 100 mm
Metal-facing thickness 0.4–0.8 mm
Aluminum-foil facing thickness 0.5–0.8 mm, where applicable
PUR core density 38–45 kg/m³
PIR core density 45–55 kg/m³
Compressive strength ≥0.20 MPa
Exterior profile Corrugated
Interior-facing options Metal facing or aluminum foil
Available colors White, gray, silver, blue, red, orange and custom colors
Panel length Customized according to project requirements
Accessories Ridge caps, flashing, fasteners, trim and sealants



Typical Applications

  • Commercial and industrial buildings
  • Warehouses and distribution facilities
  • Manufacturing plants
  • Food and beverage processing facilities
  • Temperature-controlled buildings
  • Refrigerated facilities
  • Agricultural and processing buildings
  • Equipment and utility buildings
  • Production and packaging facilities
  • Building expansions
  • Modular industrial structures

Custom Project Configuration

PUR/PIR insulated metal roof panels should be selected according to the building dimensions, roof slope, insulation requirements, environmental exposure, support spacing, surface finish and installation method.

Atlas Equipment Solutions can assist with panel selection, accessory requirements, manufacturing coordination and delivery planning.

Roof loads, panel spans, fastening requirements, drainage, wind-uplift resistance, fire-performance requirements and local building-code compliance must be independently confirmed for each project before ordering.

Request a Quote

Please provide:

  • Project location
  • Building or facility application
  • Roof dimensions
  • Roof slope
  • Preferred PUR or PIR core
  • Required panel thickness
  • Preferred interior-facing material
  • Exterior color and finish
  • Required panel lengths
  • Support-framing or purlin spacing
  • Ridge, flashing and drainage requirements
  • Total estimated roof area
  • Required delivery date

Contact Atlas Equipment Solutions for a customized quotation.
