PUR/PIR Cold Storage Insulated Metal Panels
PUR/PIR Cold Storage Insulated Metal Panels
Pricing: Available upon request
Lead time: Confirmed at time of quote
Customization: Supported
Request a QuoteResponse within 24 hours
Custom Insulated Panels for Cold Rooms, Coolers and Freezers
Atlas Equipment Solutions supplies custom PUR and PIR cold storage insulated metal panels for temperature-controlled rooms, refrigerated warehouses, food-processing facilities, walk-in coolers and freezer applications.

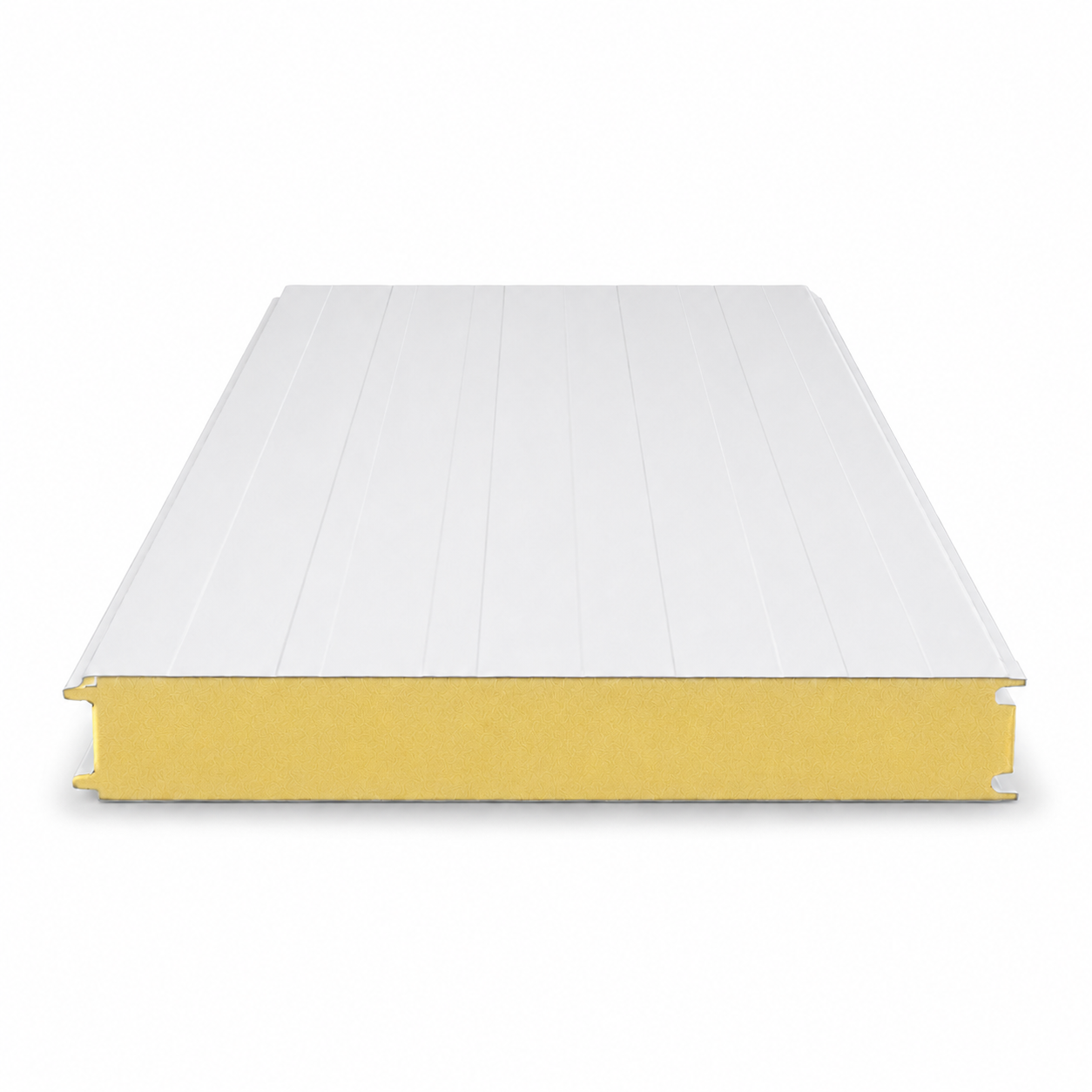

Each panel consists of durable metal facings bonded to a rigid PUR or PIR insulation core, creating a strong, lightweight and thermally efficient enclosure system. Interlocking panel joints help reduce air leakage and support fast modular installation.
Panels can be manufactured in different thicknesses, surface profiles, colors and lengths based on the project’s operating temperature, room dimensions and installation requirements.
Key Features
- PUR or PIR rigid insulation core
- Interior and exterior metal facings
- Interlocking panel-joint system
- Suitable for walls and ceilings
- Multiple panel thicknesses available
- Smooth, lightly ribbed and wide-rib surface options
- Standard and custom colors
- Custom panel lengths
- Modular installation
- Trim, flashing, sealants and connection accessories available

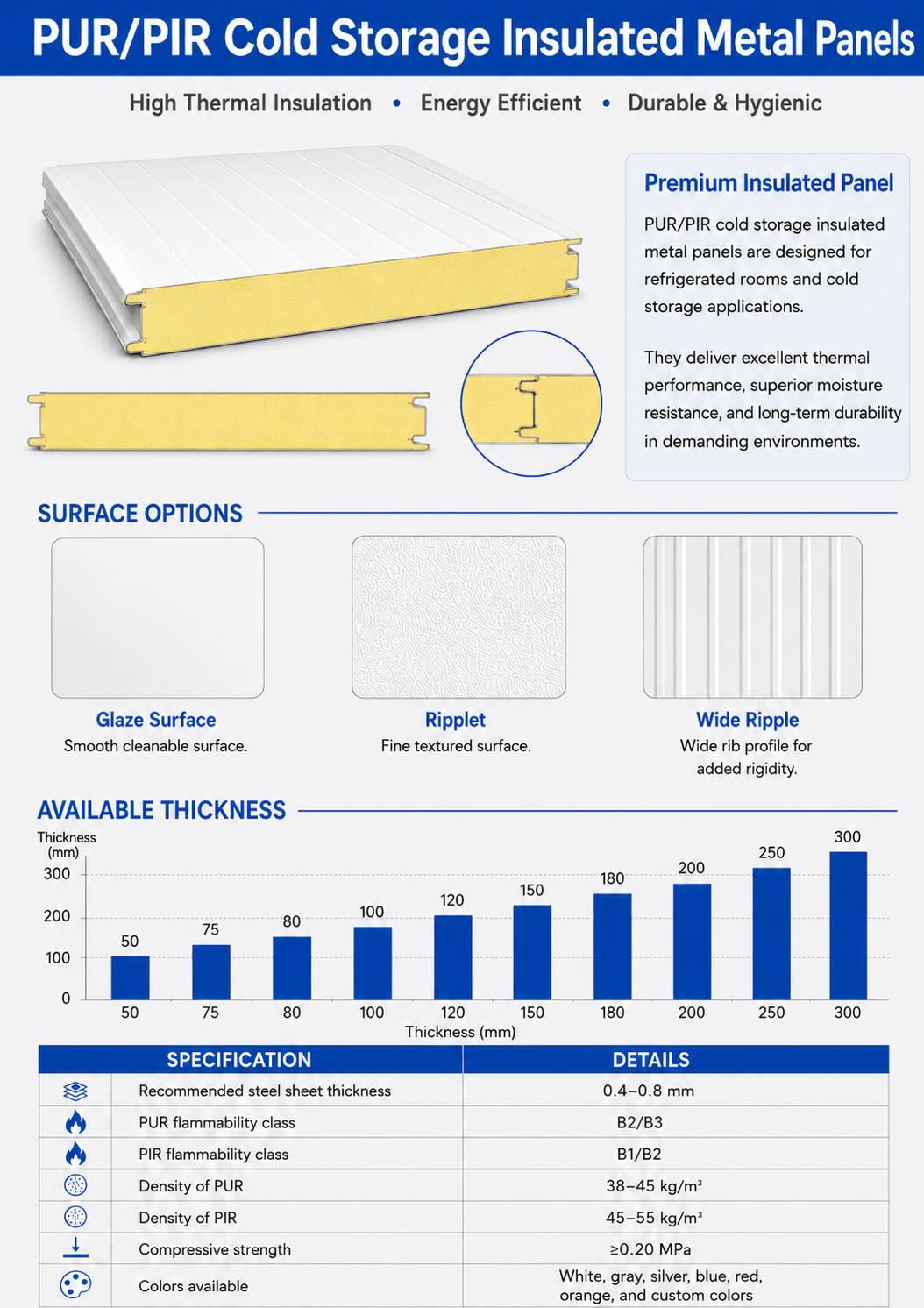

Specifications
| Specification | Available Configuration |
|---|---|
| Insulation core | PUR or PIR |
| Typical panel thickness | 50, 75, 80, 100, 120, 150, 180, 200, 250 or 300 mm |
| Metal-facing thickness | 0.4–0.8 mm |
| PUR core density | 38–45 kg/m³ |
| PIR core density | 45–55 kg/m³ |
| Compressive strength | ≥0.20 MPa |
| Surface profiles | Smooth, lightly ribbed or wide rib |
| Available colors | White, gray, silver, blue, red, orange and custom colors |
| Panel length | Customized according to project requirements |
| Accessories | Trim, flashing, fasteners, channels and sealants |
Typical Applications
- Walk-in coolers
- Walk-in freezers
- Refrigerated warehouses
- Food-processing rooms
- Meat and seafood processing facilities
- Dairy-processing facilities
- Produce and beverage storage
- Temperature-controlled production rooms
- Pharmaceutical cold rooms
- Distribution and logistics facilities
Custom Project Configuration
Cold storage panel systems should be selected according to the required room temperature, room dimensions, panel span, insulation thickness, surface finish and local project requirements.
Atlas Equipment Solutions can assist with panel selection, project configuration, accessories, manufacturing coordination and delivery planning.
Request a Quote
Please provide:
- Project location
- Room dimensions
- Required operating temperature
- Cooler or freezer application
- Preferred PUR or PIR core
- Required panel thickness
- Wall and ceiling dimensions
- Interior and exterior finish
- Required delivery date
Contact Atlas Equipment Solutions for a customized quotation.
