Custom Insulated Panels for Cleanrooms and Controlled Environments
Atlas Equipment Solutions supplies custom PUR and PIR cleanroom insulated metal panels for laboratories, pharmaceutical facilities, food-processing areas, electronics manufacturing, packaging rooms and other controlled environments.
Each panel consists of durable metal facings bonded to a rigid PUR or PIR insulation core. The modular panel system provides thermal insulation, a clean finished appearance and flexible installation for walls and ceilings.
Panels can be customized in different thicknesses, surface profiles, colors and lengths according to the facility layout, operating conditions and project requirements.
Key Features
- PUR or PIR rigid insulation core
- Interior and exterior metal facings
- Suitable for cleanroom walls and ceilings
- Modular interlocking panel construction
- Multiple panel thicknesses available
- Smooth, lightly ribbed and wide-rib surface options
- Standard and custom colors
- Custom panel lengths
- Compatible with trim, flashing and sealing accessories
- Designed for controlled-environment construction
- Custom project configuration available

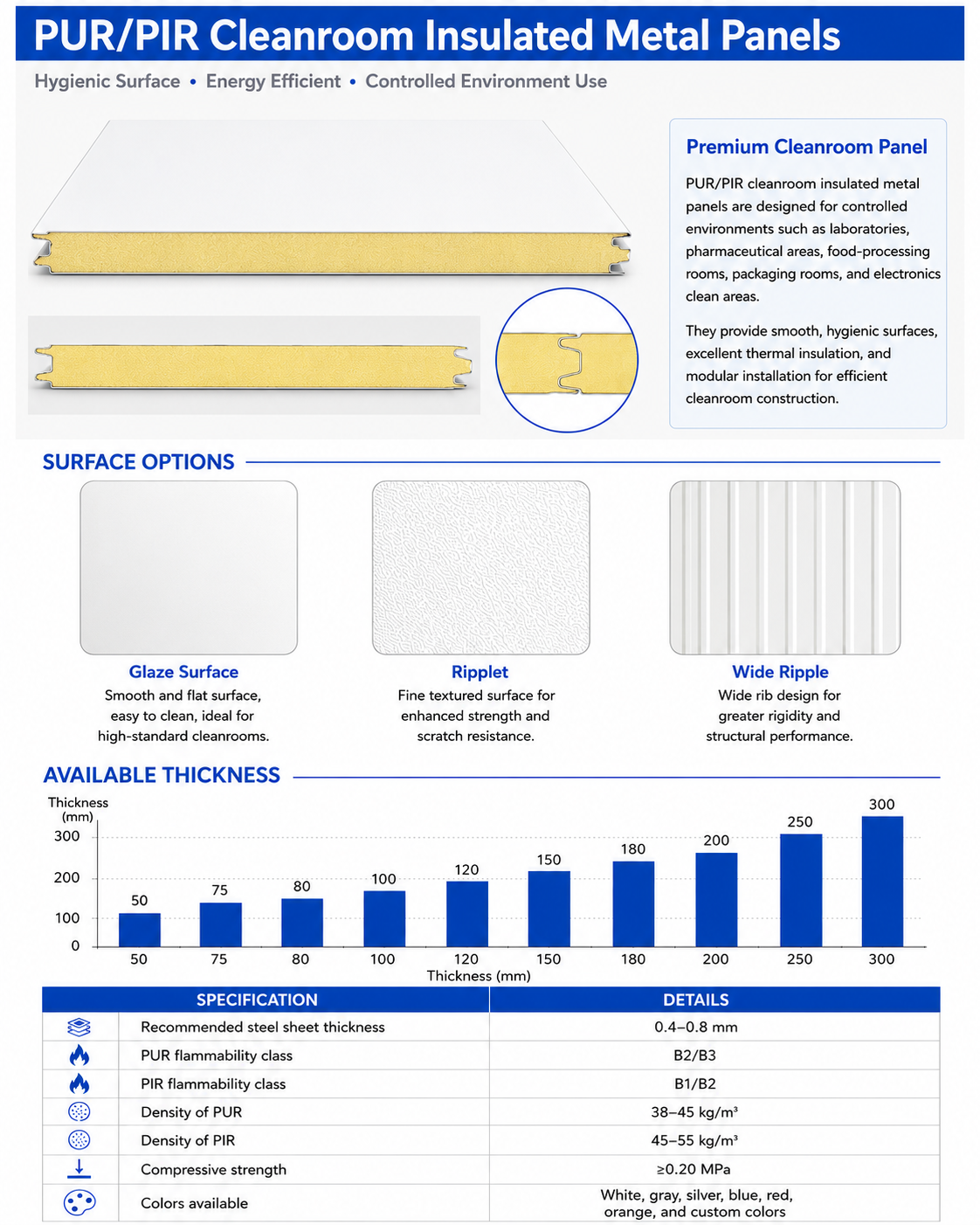

Specifications
| Specification | Available Configuration |
|---|---|
| Insulation core | PUR or PIR |
| Typical panel thickness | 50, 75, 80, 100, 120, 150, 180, 200, 250 or 300 mm |
| Metal-facing thickness | 0.4–0.8 mm |
| PUR core density | 38–45 kg/m³ |
| PIR core density | 45–55 kg/m³ |
| Compressive strength | ≥0.20 MPa |
| Surface profiles | Smooth, lightly ribbed or wide rib |
| Available colors | White, gray, silver, blue, red, orange and custom colors |
| Panel length | Customized according to project requirements |
| Accessories | Trim, flashing, fasteners, channels and sealants |
Typical Applications
- Pharmaceutical cleanrooms
- Biotechnology facilities
- Medical-device manufacturing
- Laboratory environments
- Food and beverage processing areas
- Electronics manufacturing
- Battery-production facilities
- Packaging rooms
- Controlled-temperature production areas
- Inspection and testing rooms
- General controlled environments
Custom Project Configuration
Cleanroom panel systems should be selected according to the required environmental conditions, room dimensions, panel layout, insulation thickness, surface finish and sealing requirements.
Atlas Equipment Solutions can assist with panel selection, project configuration, accessories, manufacturing coordination and delivery planning.
Specific cleanroom classifications, fire ratings and regulatory requirements must be confirmed for each project before ordering.
Request a Quote
Please provide:
- Project location
- Facility application
- Required room dimensions
- Wall and ceiling dimensions
- Required environmental conditions
- Preferred PUR or PIR core
- Required panel thickness
- Interior and exterior finish
- Door, window and opening requirements
- Required delivery date
Contact Atlas Equipment Solutions for a customized quotation.
