Magnetic stirrer
Magnetic stirrer
Pricing: Available upon request
Lead time: 7–21 days
Customization: Supported
Request a QuoteResponse within 24 hours

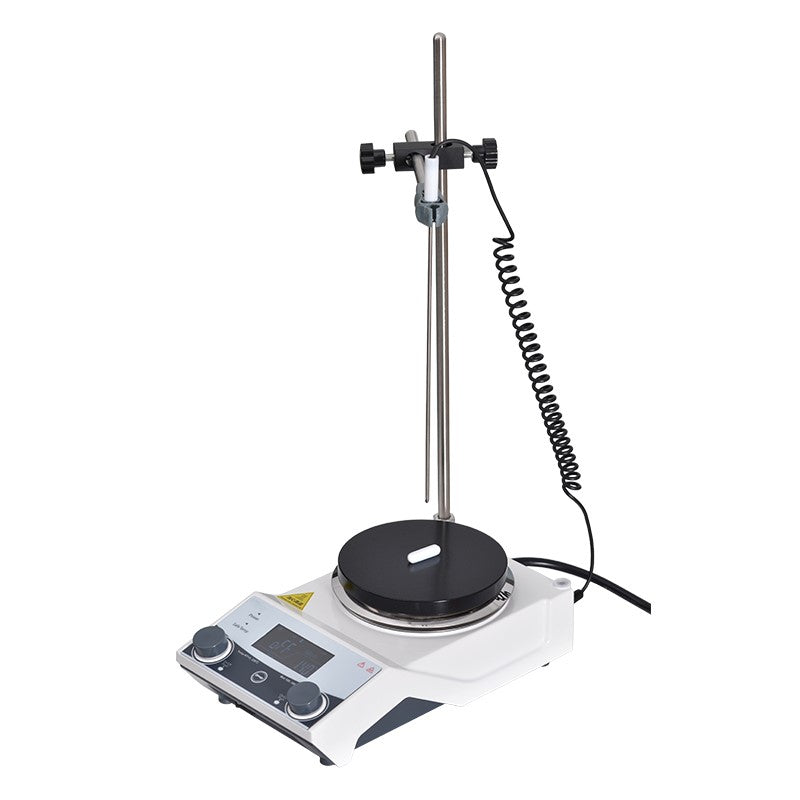

The MS-20L Pro Magnetic Stirrer is a laboratory stirring and heating device designed for precise mixing of liquids and low-viscosity solid–liquid mixtures. It is widely used in chemical laboratories, pharmaceutical research, biotechnology applications, and academic experiments where reliable heating and uniform stirring are required.
The unit combines magnetic stirring with an integrated heating plate, allowing simultaneous heating and mixing of samples. With a temperature range up to 320 °C and adjustable stirring speeds up to 1800 rpm, the system provides accurate control for a variety of laboratory processes.

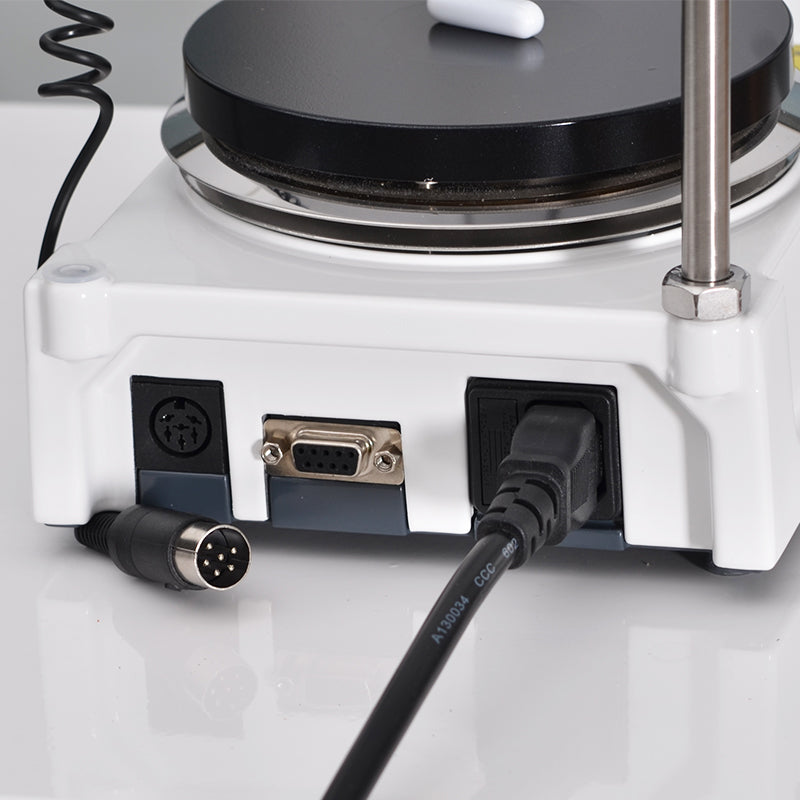

The magnetic stirrer features fast heating performance and precise temperature control, ensuring stable experimental conditions while protecting sensitive samples. The system also includes timing functionality and computer connectivity, allowing users to monitor and record the entire experimental process when connected to a PC.
Constructed with a durable nano-ceramic aluminum alloy heating plate, the unit offers excellent heat distribution, chemical resistance, and long-term durability in laboratory environments.
| Parameter | Specification |
|---|---|
| Model | MS-20L Pro |
| Mixing Capacity | 20 L |
| Mixing Speed | 100 – 1800 rpm |
| Temperature Range | RT +5 °C – 320 °C |
| Maximum Stirrer Length | 70 mm |
| Temperature Regulation Step | 1 °C |
| Speed Regulation Step | 10 rpm |
| Safety Temperature | 350 °C |
Heating Plate
| Parameter | Specification |
|---|---|
| Heating Plate Size | Ø135 mm |
| Heating Plate Material | Aluminum alloy nano-ceramic |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Voltage | 220V / 50Hz or 110V / 60Hz |
| Power | 600 W |
Environmental Conditions
| Parameter | Specification |
|---|---|
| Ambient Temperature | 5 – 40 °C |
| Ambient Humidity | ≤ 80% RH |
Physical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 281 × 164 × 85 mm |
| Weight | 3.2 kg |
| Protection Class | IP42 |
Additional Features
| Feature | Specification |
|---|---|
| PC Connectivity | Supported |
| Timer Function | Supported |
Applications
-
Chemical solution mixing
-
Laboratory heating and stirring experiments
-
Pharmaceutical formulation preparation
-
Biological and biochemical sample mixing
-
Academic laboratory research
-
Material and polymer testing
