Laboratory Short Path Distillation
Laboratory Short Path Distillation
Pricing: Available upon request
Lead time: 7–21 days
Customization: Supported
Request a QuoteResponse within 24 hours
The Laboratory Short Path Distillation System is designed for the separation and purification of heat-sensitive compounds under high vacuum conditions. In short path molecular distillation, the mean free path of vapor molecules is greater than the distance between the evaporation surface and the condenser, allowing vapor to travel directly to the condenser with minimal resistance.
Because the vapor path is extremely short, the material experiences very short residence time at elevated temperatures, which significantly reduces thermal decomposition. This makes the system ideal for processing thermally sensitive, high-boiling, or high-viscosity materials.
The system is commonly used in chemical laboratories, pharmaceutical research, natural product extraction, and cannabinoid purification. It is particularly suitable for distillation, purification, and solvent removal processes where high vacuum and precise temperature control are required.

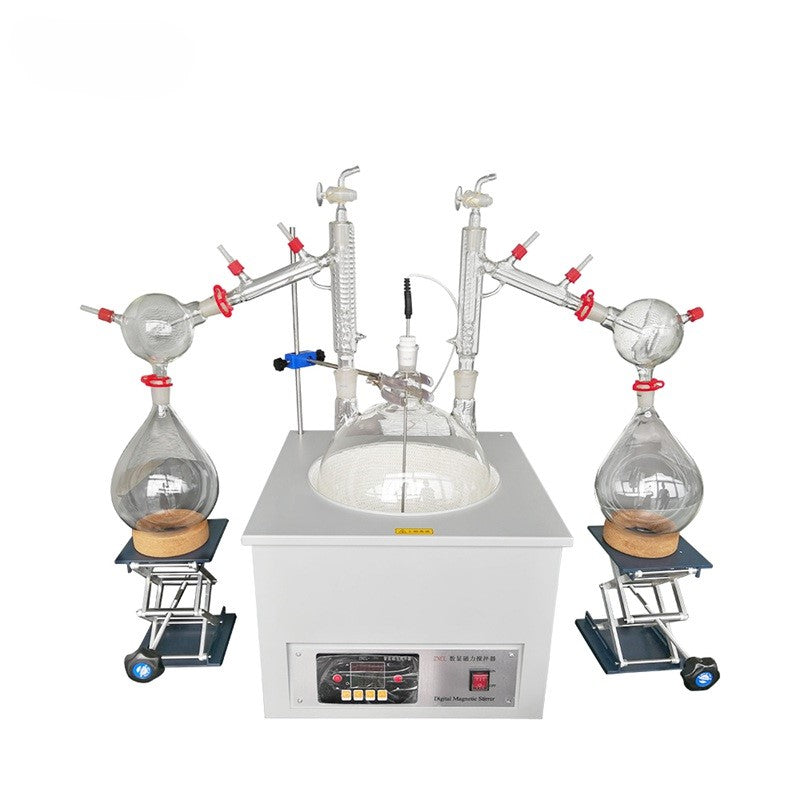

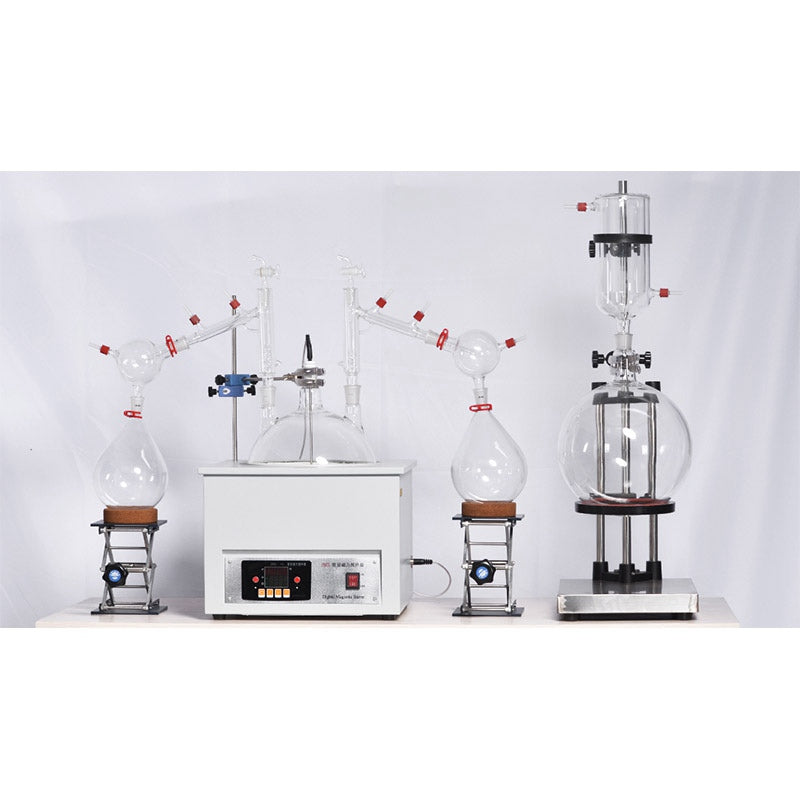

The equipment includes a heating mantle with magnetic stirring, short path distillation head, receiving flasks, condenser components, and laboratory support hardware, providing a complete laboratory distillation setup.

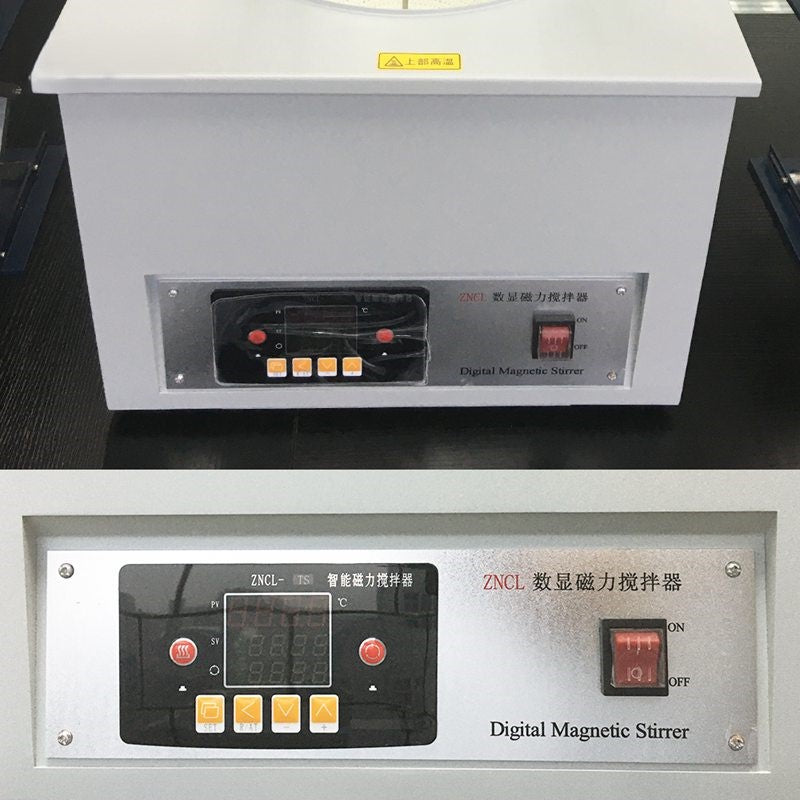

Heating Mantle with Magnetic Stirrer
| Parameter | Specification |
|---|---|
| Capacity Options | 500 mL – 2000 mL / 5 L / 10 L / 20 L |
| Heating Power | 220 W – 650 W / 1100 W / 2100 W / 3000 W |
| Stirring Power | 40 W |
| Stirring Speed | 50 – 1800 rpm |
| Temperature Range | RT – 380 °C |
| Quantity | 1 unit |
Short Path Distillation Glassware
| Component | Specification | Quantity |
|---|---|---|

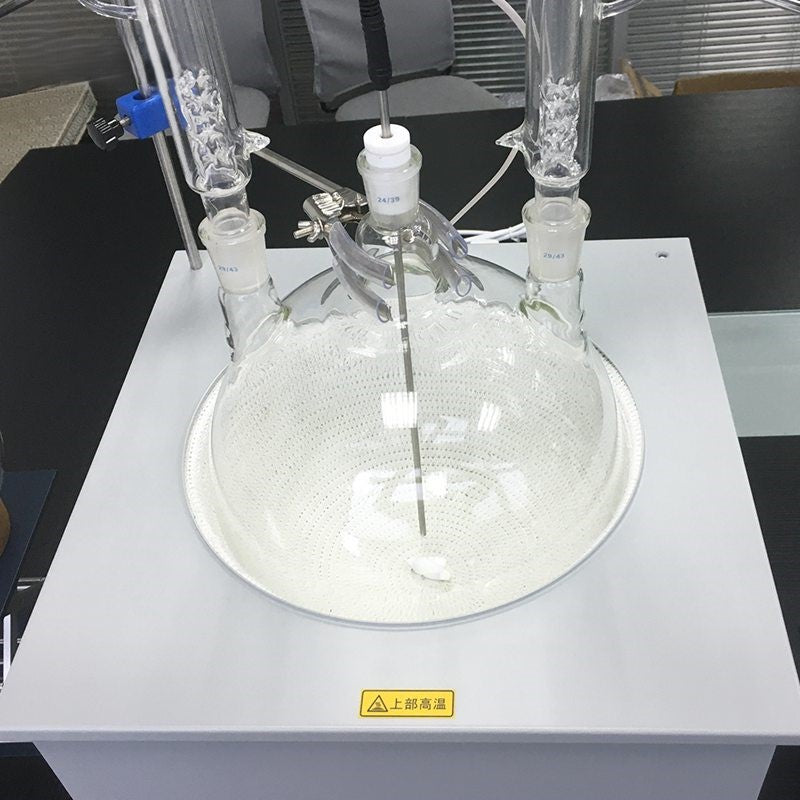

| Two-Neck Boiling Flask | 500 mL – 2000 mL / 5 L / 10 L / 20 L | 1 |
| Thermometer Adapter | 24/39 | 1 |
| Short Path Distillation Head | 24/39 | 1 |
| Glass Cock / Hollow Plug | 24/39 | 1 |

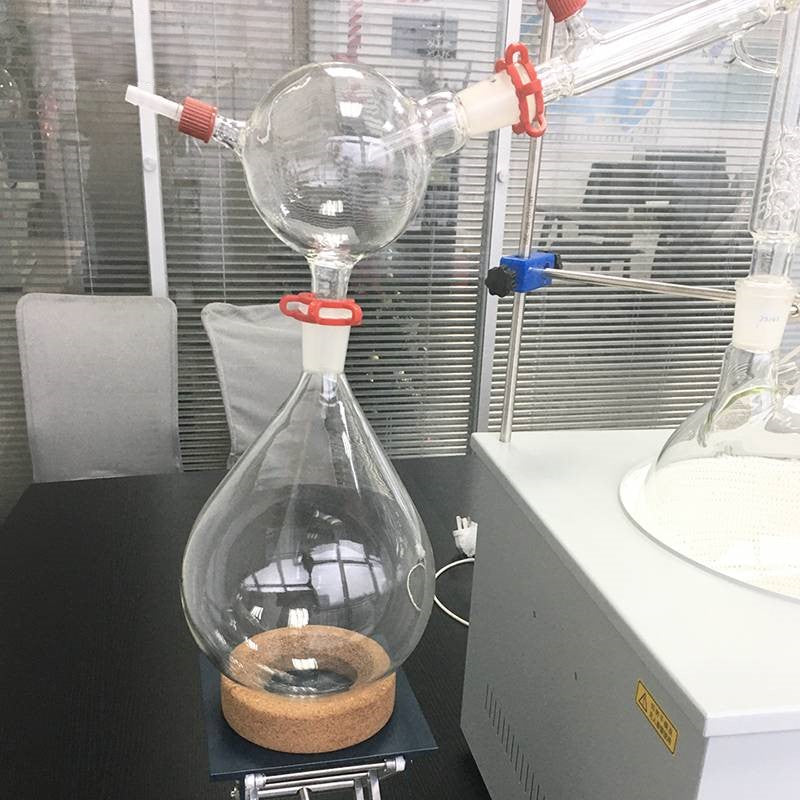

| Distillation Cow Receiver | 500 mL, 24/39 | 1 |
| Round Bottom Receiving Flasks | 100 mL / 250 mL / 500 mL / 1000 mL / 2000 mL | 3 |
Accessories
| Component | Specification | Quantity |
|---|---|---|
| Plastic Keck Clips | Standard laboratory clips | 6 |
| Detachable Hose Barbs | 3/8 in (10 mm) plastic | Included |
| Laboratory Jack | 150 mm × 150 mm top plate | 1 |
| Bracket Rings | For round bottom flasks and cold trap | 3 |
| Three-Finger Clamp | For securing distillation head | 3 |
Standard Equipment
| Equipment | Specification |
|---|---|
| Cold Trap | Standard laboratory cold trap |
| Glassware Material | High borosilicate glass |
Optional Equipment
| Equipment | Specification |
|---|---|
| Chiller | -30 °C to room temperature circulating chiller |
| Vacuum Pump | Circulating water pump or oil vacuum pump |
Applications
-
Molecular distillation of heat-sensitive materials
-
Purification of cannabinoids and natural extracts
-
Pharmaceutical compound purification
-
Fine chemical separation
-
Essential oil and natural product distillation
-
High-vacuum laboratory distillation processes
