Household vacuum pump freeze dryer
Household vacuum pump freeze dryer
Pricing: Available upon request
Lead time: 7–21 days
Customization: Supported
Request a QuoteResponse within 24 hours

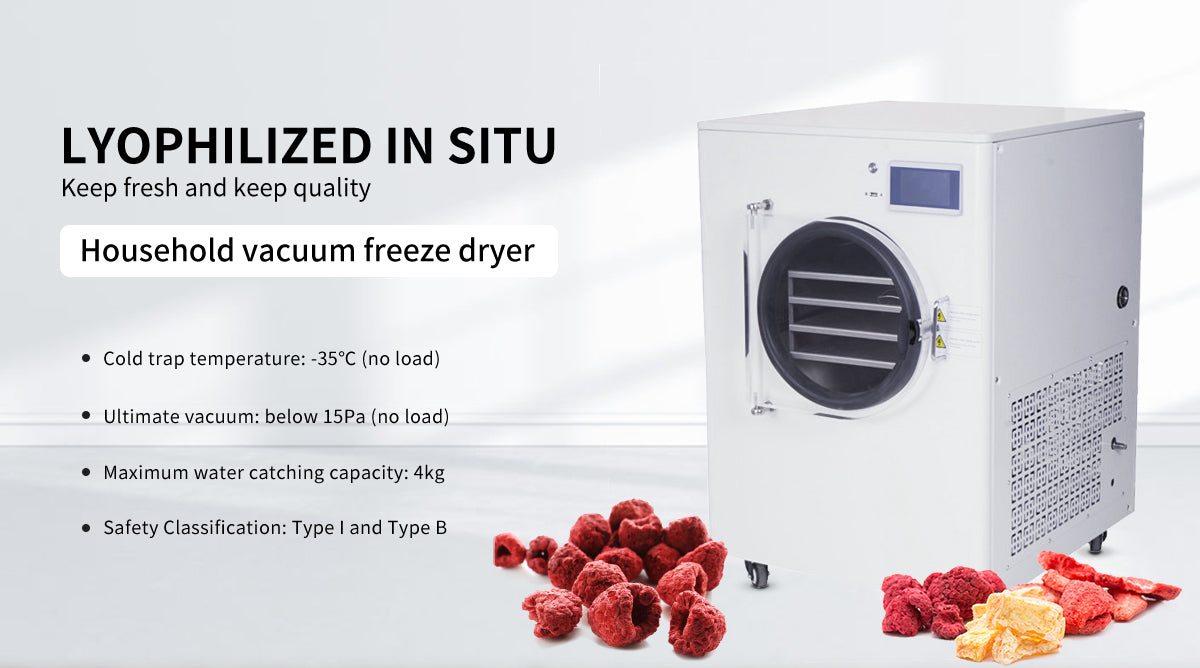

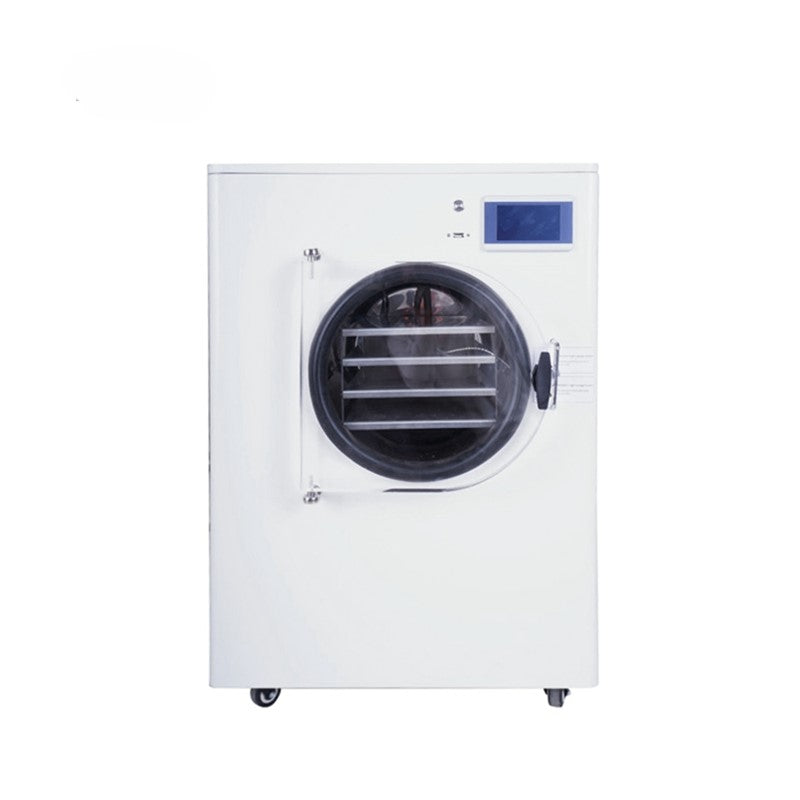

The Household Vacuum Freeze Dryer is designed for home and small-scale freeze-drying applications, allowing users to preserve food while maintaining its original structure, nutrients, and flavor. Freeze drying works by freezing the material first and then removing moisture through sublimation under high vacuum conditions.
During the freeze-drying process, the frozen water in the food transitions directly from solid to vapor, preventing structural damage caused by liquid water evaporation. As a result, the dried food retains its original shape, color, and biochemical properties.
The final product becomes lightweight, porous, and easy to store for long periods. When water is added, the food can quickly return to a state very close to its original form. This makes freeze-dried food ideal for long-term storage, camping, emergency food supply, and home food preservation.
The system is compact and designed for household or small laboratory use, offering reliable freeze-drying performance with simple operation.
Available Models
| Model | HFD-1 | HFD-4 | HFD-6 | HFD-8 |
|---|---|---|---|---|
| Freeze-Drying Area | 0.1 m² | 0.4 m² | 0.6 m² | 0.92 m² |
| Cold Trap Temperature | -40 °C | -40 °C | -40 °C | -50 °C |
| Ultimate Vacuum | 5 Pa | 5 Pa | 5 Pa | 2 Pa |
| Processing Capacity (per batch) | 1–2 kg | 4–6 kg | 6–8 kg | 10–12 kg |
| Shelf Spacing | 45 mm | 45 mm | 50 mm | 38 mm |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | 220V / 50Hz (customizable for different countries) |
| Power Consumption | 750 W – 2500 W |
Weight
| Model | Weight |
|---|---|
| HFD-1 | 73 kg |
| HFD-4 | 84 kg |
| HFD-6 | 125 kg |
| HFD-8 | 130 kg |
Shelf Dimensions
| Model | Shelf Size | Number of Shelves |
|---|---|---|
| HFD-1 | 140 × 278 mm | 3 trays |
| HFD-4 | 200 × 450 mm | 4 trays |
| HFD-6 | 300 × 400 mm | 4 trays |
| HFD-8 | 275 × 445 mm | 8 trays |
External Dimensions
| Model | Dimensions (L × W × H mm) |
|---|---|
| HFD-1 | 450 × 500 × 825 |
| HFD-4 | 500 × 640 × 900 |
| HFD-6 | 680 × 640 × 1180 |
| HFD-8 | 680 × 640 × 1180 |
Applications
-
Home food preservation
-
Freeze-dried fruit and vegetable preparation
-
Emergency food storage
-
Camping and outdoor food preparation
-
Small-scale food processing
-
Educational and laboratory freeze-drying experiments
