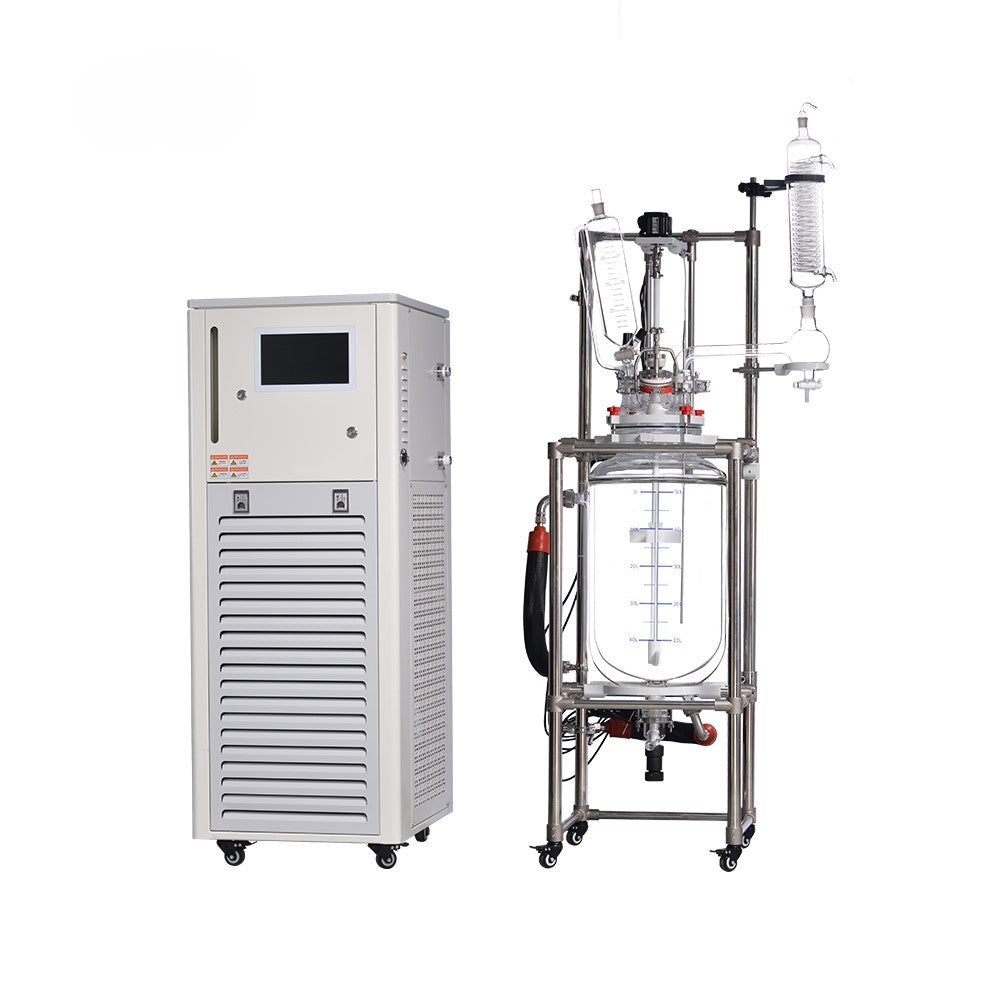

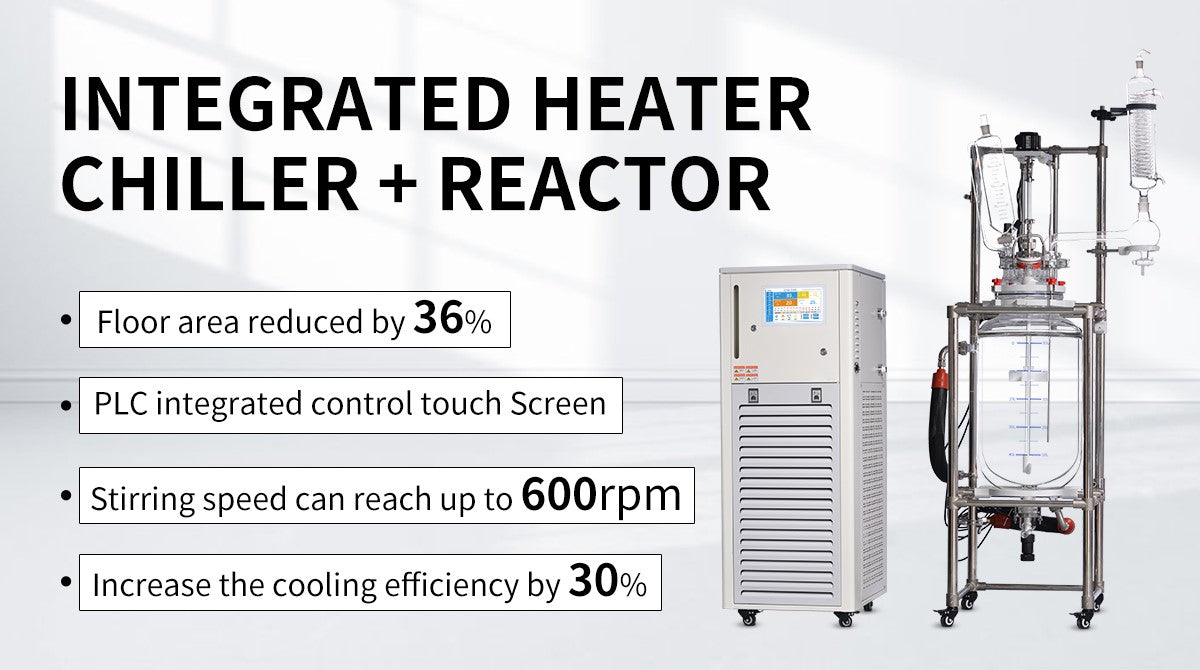

The High & Low Temperature Integrated Reaction System is a fully integrated laboratory solution designed to provide precise temperature control and efficient mixing for chemical and pharmaceutical processes. The system combines a temperature control unit with a glass reactor, allowing accurate heating, cooling, lifting, and rotation through an intuitive touch-screen PLC control system.

With programmable modules for heating, cooling, and automation, the system delivers stable temperature control across a wide range from -40°C or -80°C up to 250°C, enabling reliable reaction conditions for demanding laboratory and pilot-scale applications. The integrated PLC controller supports PID temperature control algorithms, ensuring fast response, precise regulation, and consistent operation.

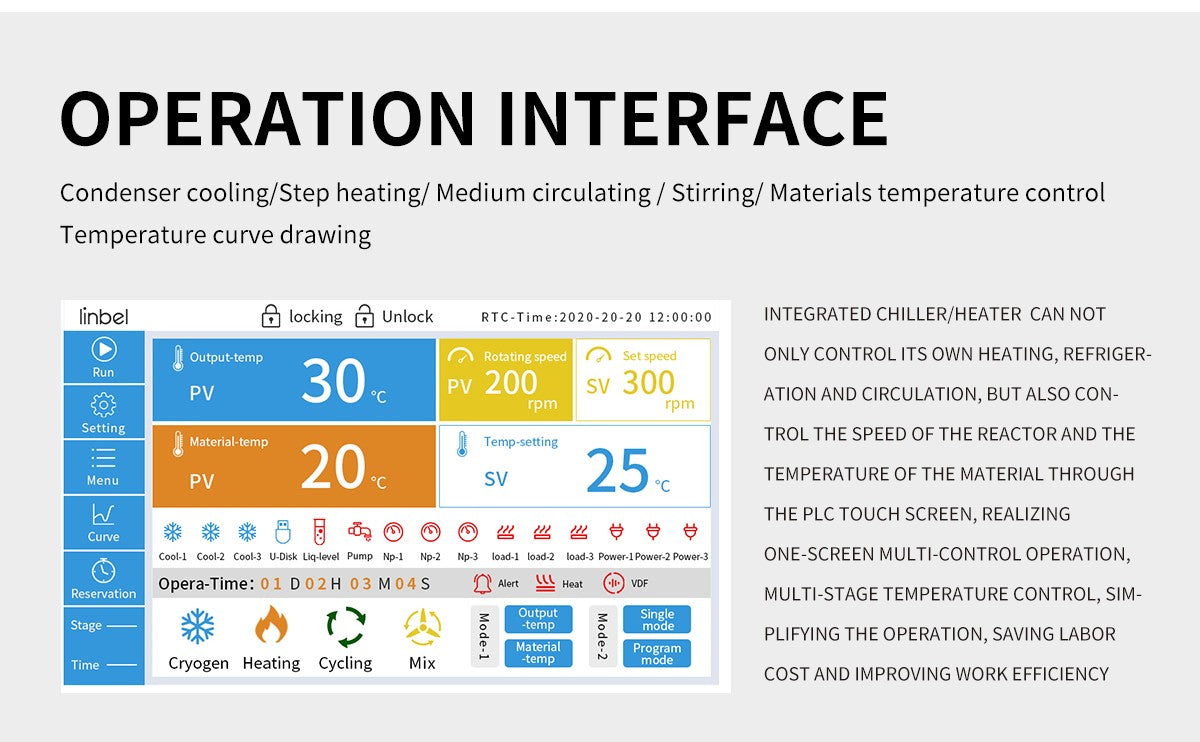

The system features a 7-inch colour touch screen interface that allows operators to monitor and control process parameters in real time. Temperature curves can be displayed, recorded, and exported to a computer for further analysis and process optimisation.

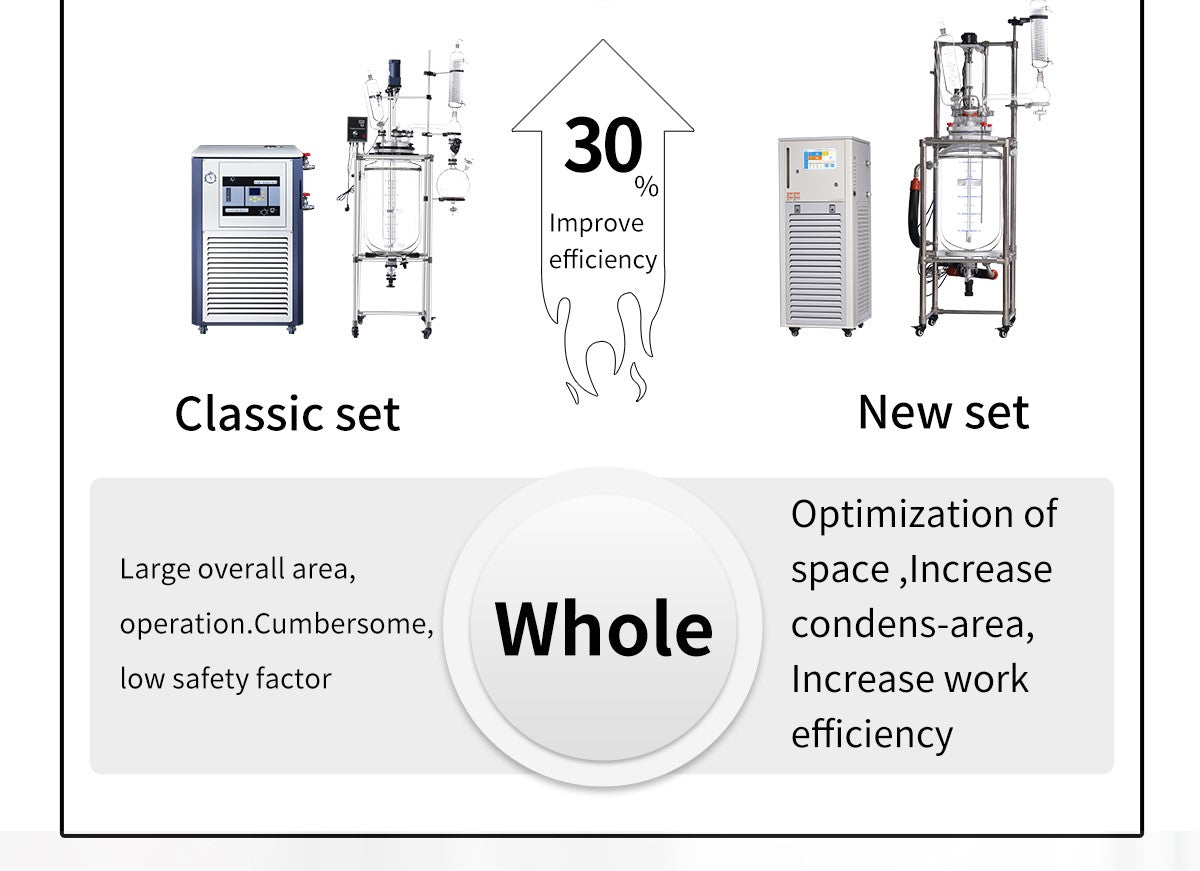

Designed for chemical synthesis, material development, and pharmaceutical research, this integrated reactor system provides a stable, automated, and highly efficient reaction environment.

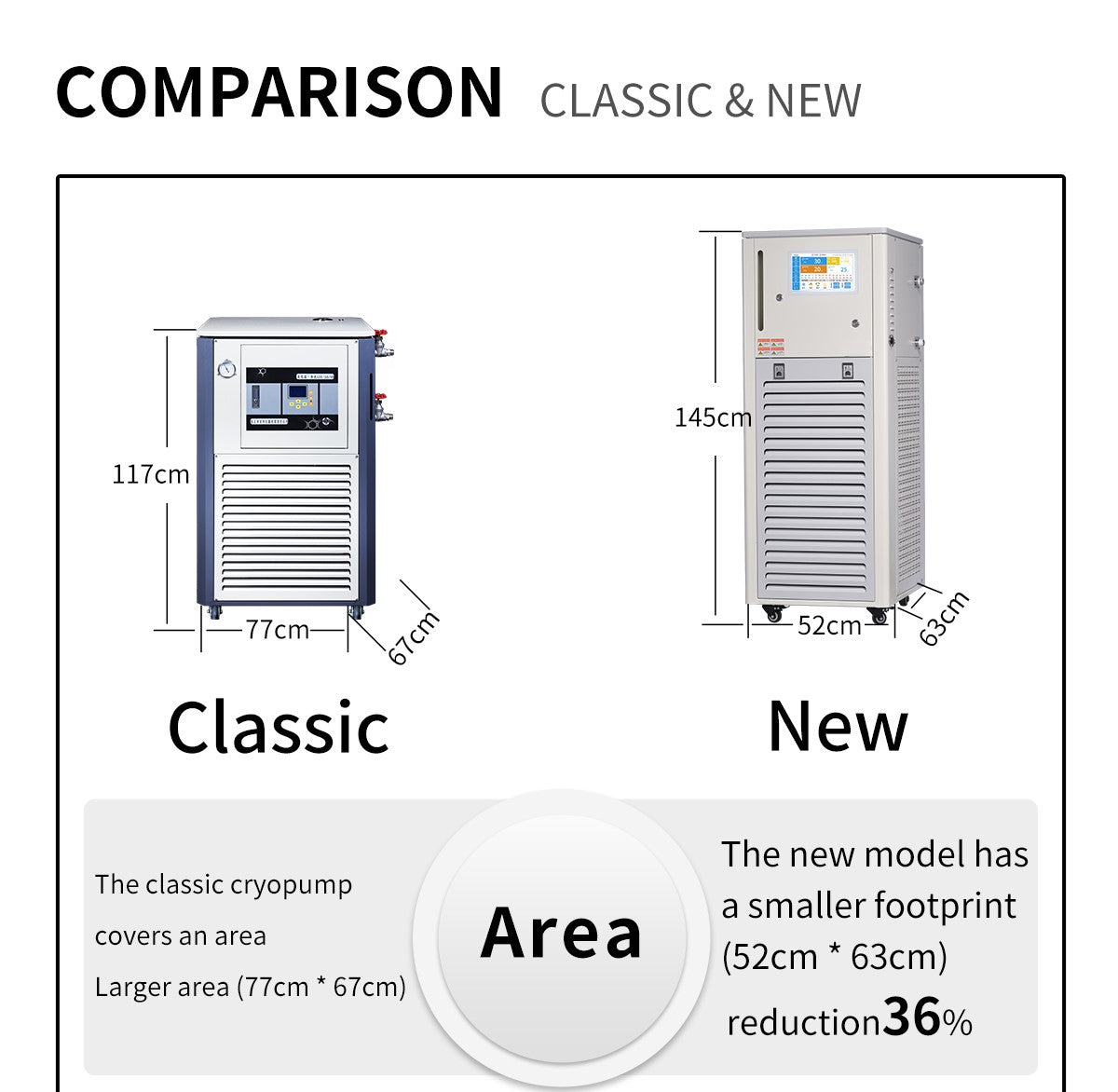

Temperature Control Unit

Model PLC-50/40 PLC-50/80 PLC-100/40 PLC-100/80
Reactor Volume 17 L 17 L 35 L 35 L
Temperature Range -40°C ~ 250°C -80°C ~ 250°C -40°C ~ 250°C -80°C ~ 250°C
Cooling Capacity 12,775 – 650 W 15,330 – 550 W 15,750 – 550 W 15,750 – 450 W
Circulation Flow 0 – 35 L/min (PLC Control) 0 – 43 L/min (PLC Control)
Pump Lift 12 m 20 m
Voltage 380 V
Cooling Current 11 A 20 A 11 A 20 A
Heating Current 12 A 18 A 12 A 18 A
Cooling Power 5,500 W 10,800 W 5,600 W 11,000 W
Heating Power 6,000 W 9,000 W
Compressor Tecumseh / Danfoss / Emerson Copeland
Circulation Pump Linbel magnetic circulation pump / German imported magnetic pump
Expansion Valve Thermal expansion valve / Electronic expansion valve

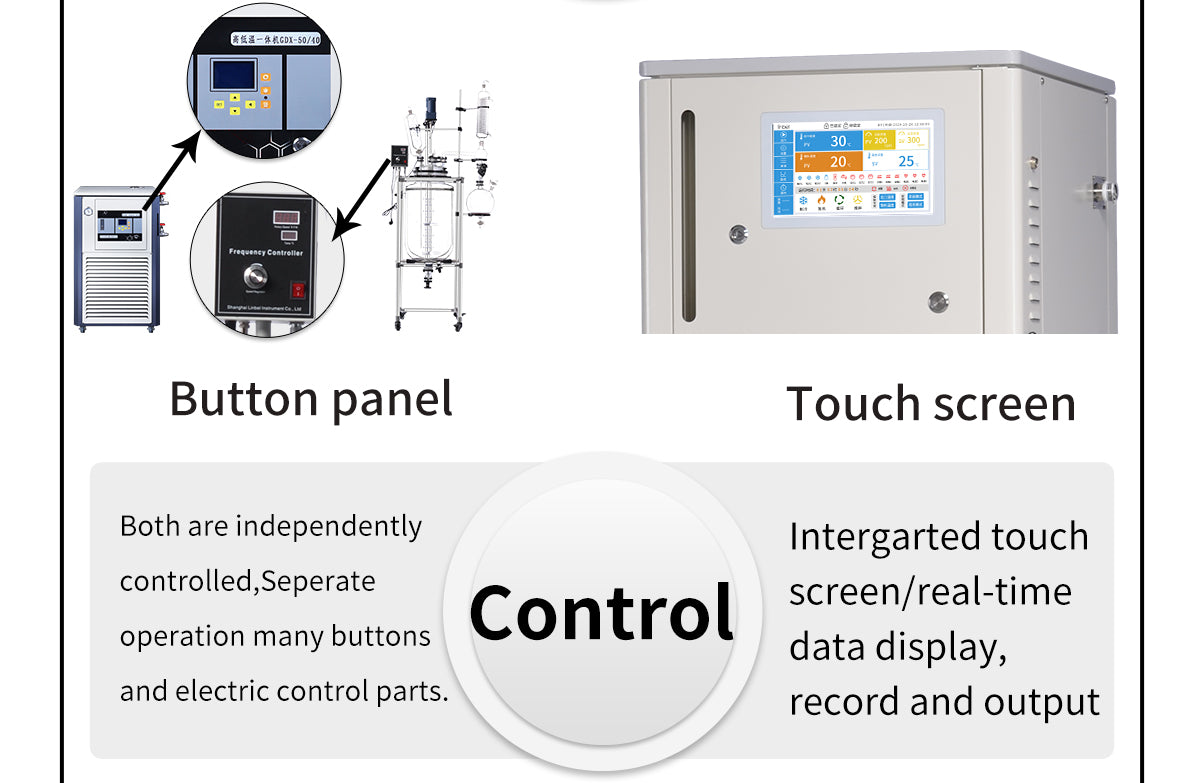

Operation Panel 7-inch colour touch screen with temperature curve display and recording
Control System Feedforward PID, model-free self-building tree algorithm, PLC controller
Temperature Control PLC control of outlet temperature and material temperature

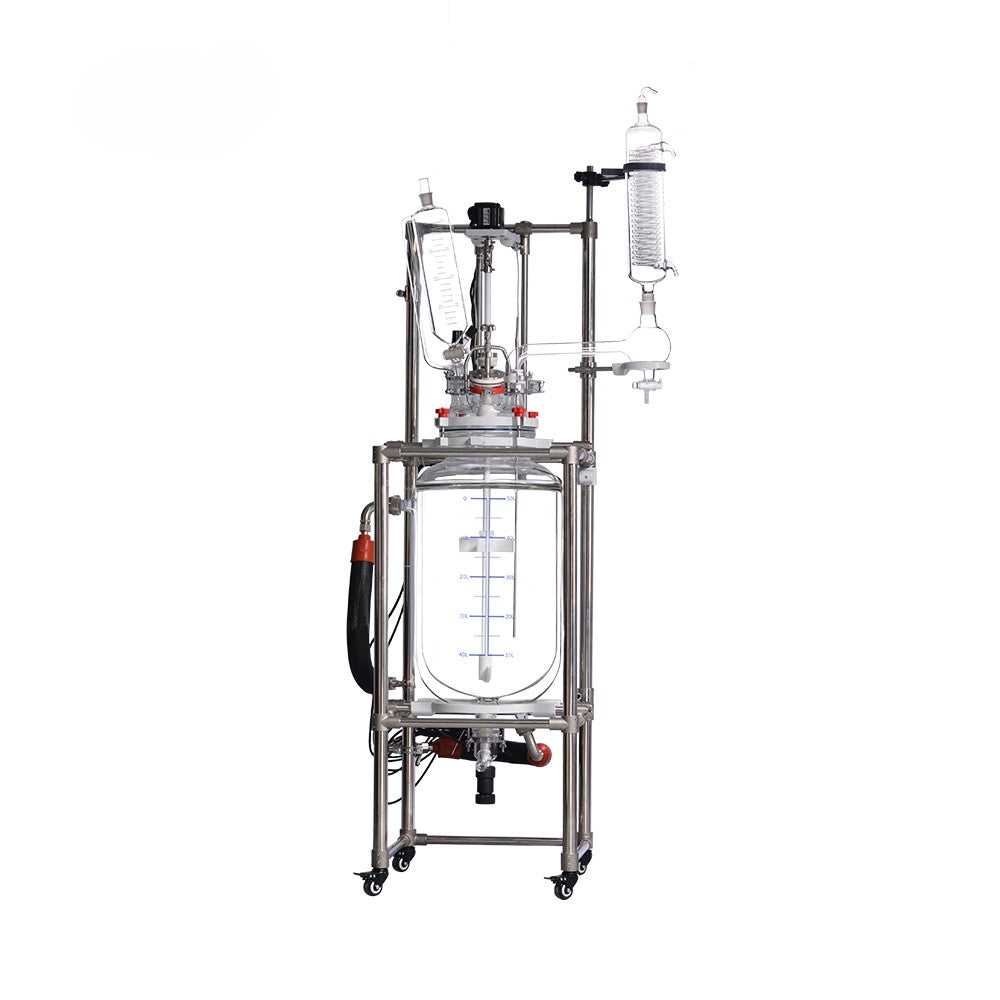

Glass Reactor

Model S212-30L S212-50L S212-80L S212-100L
Reactor Volume 30 L 50 L 80 L 100 L
Jacket Volume 10 L 16 L 24 L 30 L

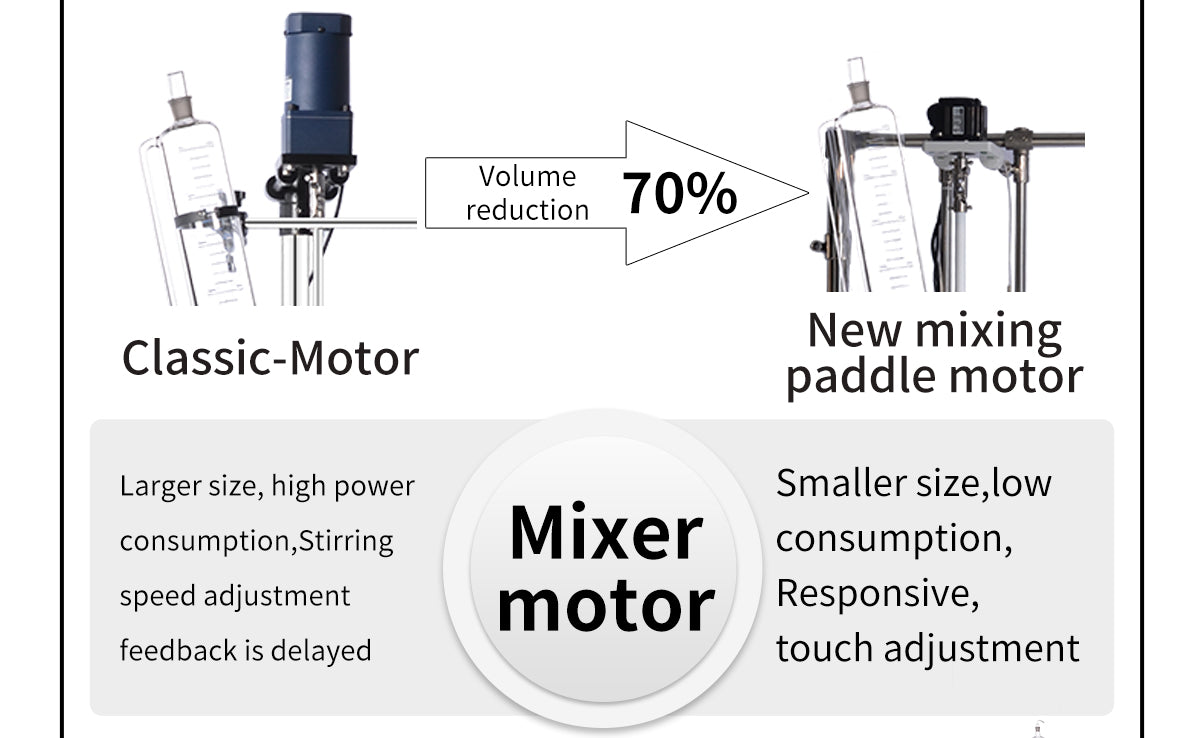

Motor Power 90 W 120 W 180 W
Rotation Speed 0 – 600 rpm (PLC Control)
Feeding Valve 40#
Temperature Tube Length 600 mm 650 mm 850 mm
Condenser Serpentine condenser
Collection Device Optional 5 – 50 L collection bottle
Power Supply 220V / 50Hz
Operation Panel 7-inch colour touch screen
Control System Feedforward PID with PLC controller
Temperature Control PLC control of outlet and material temperature
Frequency Converter Standard
PTFE Components Standard
Dimensions 70 × 60 × 240 cm 70 × 60 × 245 cm 100 × 75 × 230 cm

Applications

  • Chemical synthesis and reaction research

  • Pharmaceutical and biotechnology laboratories

  • Material science and polymer research

  • Temperature-controlled reaction processes

  • Pilot-scale laboratory production

  • Distillation and extraction experiments

  • Process development and reaction optimisation
