Heating temperature circulating oil bath

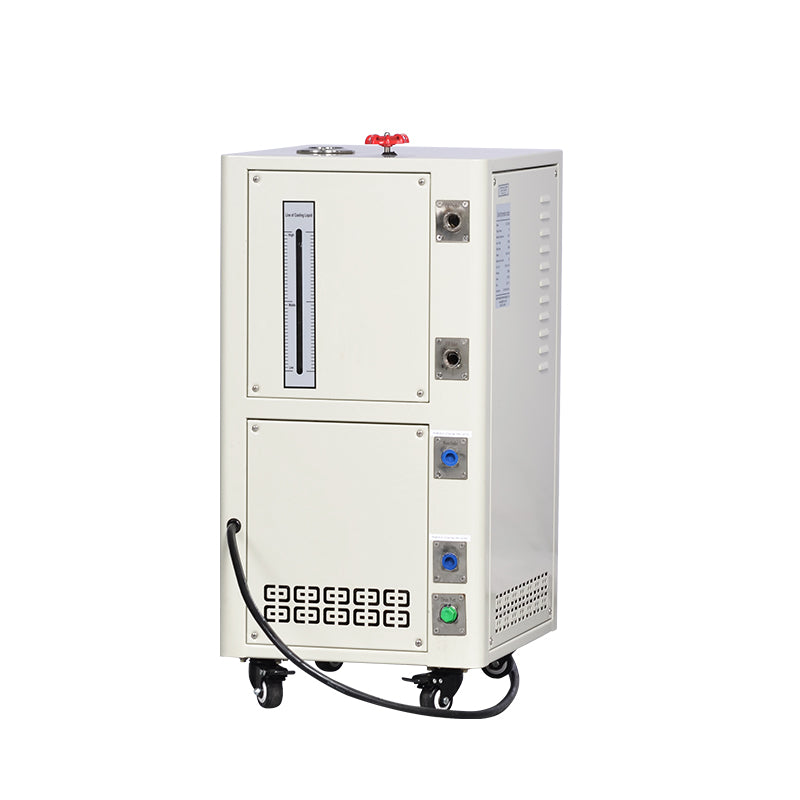

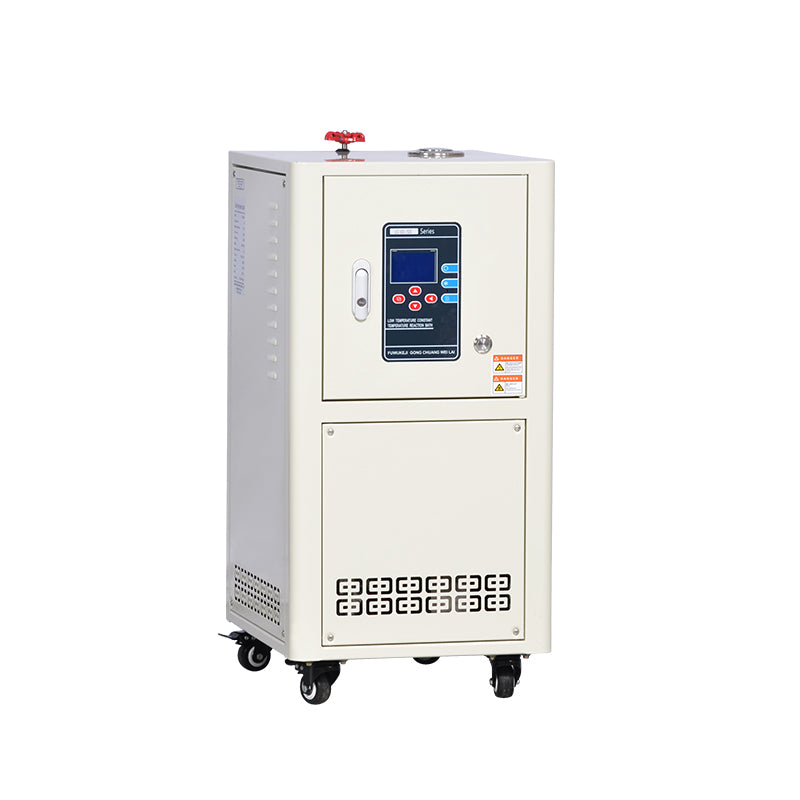

Name: Heating temperature circulating oil bath
Brand: Atlas Equipment Solutions
Availability: InStock

Pricing: Available upon request

Lead time: 7–21 days

Customization: Supported

Request a Quote

Response within 24 hours

The Heating Temperature Circulating Oil Bath is designed to provide stable and precise high-temperature circulation for laboratory and industrial processes. The system uses electric heating and a high-efficiency circulation pump to deliver uniform heat transfer to external equipment such as glass reactors, distillation systems, and chemical processing vessels.

With a temperature control range up to 200°C or 300°C (depending on model) and precise ±0.5°C temperature stability, the unit ensures reliable and consistent heating performance for demanding research and production applications.

The system incorporates PT100 temperature sensors and intelligent safety protection mechanisms, including self-diagnosis, high-pressure protection, overload relay, and thermal protection devices. A vortex circulation pump provides stable flow and pressure, ensuring efficient heat transfer throughout the connected system.

Designed for chemical laboratories, pharmaceutical manufacturing, materials research, and pilot-scale production, the circulating oil bath offers dependable performance, flexible installation options, and customizable configurations to meet specific process requirements.

General Specifications

Parameter	Specification
Ambient Temperature	5 ~ 30°C
Recommended Humidity	45 ~ 80% RH
Voltage	220V / 380V / 480V (Single or Three Phase)
Frequency	50 / 60 Hz
Heating Method	Electric Heating
Temperature Sensor	PT100
Heat Exchanger	Plate Heat Exchanger
Safety Protection	Self-diagnosis, High-pressure switch, Overload relay, Thermal protection
Circulation Pump Type	Vortex Pump
Customization	Available according to user process

Model Series: UC-200 (Temperature Range RT ~ 200°C)

Model	UC-200-3	UC-200-5	UC-200-10	UC-200-15	UC-200-25	UC-200-38	UC-200-60
Temperature Range	RT ~ 200°C ±0.5°C
Total Power (kW)	3.8	5.9	11	16.5	26.5	41	63
Tank Volume (L)	1.9	3.8	19	35	65	90	160
Heating Power (kW)	3	5	10	15	25	38	60
Pump Power (W)	250	370	700	750	1500	1500	2200
Pressure (bar)	2.0	2.5
Flow Rate (L/min)	25	35	50	50	110	110	250
Loop Interface	DN15	DN20	DN25	DN20	DN32
Cooling Water Interface	N/A	DN15	DN20	DN20	DN25
Weight (kg)	68	78	88	100	130	170	285
Overall Size (cm)	47×40×80	70×57×80	75×62×88	78×68×115	100×80×120	120×90×160
Package Size (cm)	52×47×86	75×64×86	80×69×94	83×75×121	105×87×126	125×97×166

Model Series: UC-300 (Temperature Range RT ~ 300°C)

Model	UC-300-3	UC-300-5	UC-300-10	UC-300-15	UC-300-25	UC-300-38	UC-300-60
Temperature Range	RT ~ 300°C ±0.5°C
Total Power (kW)	4.2	6.2	11.5	15.9	26.5	41	63
Tank Volume (L)	3.8	3.8	19	50	65	90	160
Heating Power (kW)	3	5.5	10	15	25	38	60
Pump Power (W)	500	500	1100	750	1500	1500	2200
Pressure (bar)	2.0	2.5
Flow Rate (L/min)	15	35	50	50	110	110	250
Loop Interface	DN20 / PN-10 Flange	DN25	DN20	DN32
Cooling Water Interface	DN15	DN20	DN25
Weight (kg)	85	95	105	115	130	170	285
Overall Size (cm)	47×40×80	70×57×80	75×62×115	78×68×115	100×80×120	120×90×160
Package Size (cm)	52×47×86	75×64×86	80×68×94	83×75×121	105×87×126	125×97×166
