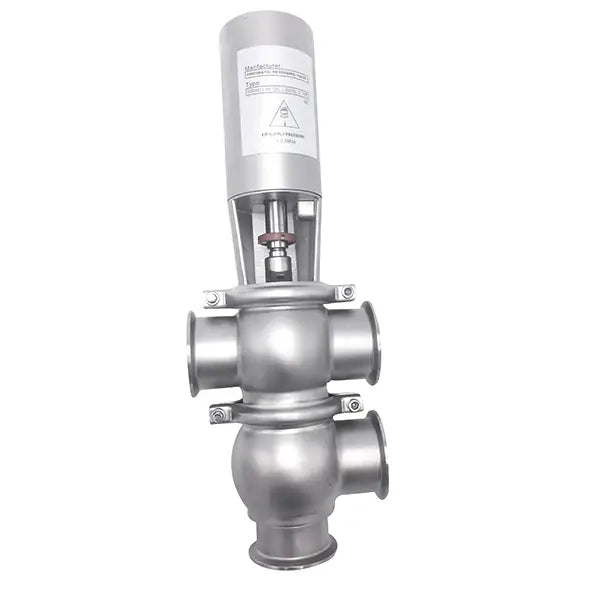

Sanitary TL-type pneumatic multi-way flow reversal valves are designed for hygienic flow control and reliable media diversion in sanitary processing systems. These valves allow operators to redirect product flow between multiple pipelines while maintaining strict sanitary standards required in food, beverage, dairy, pharmaceutical, and biotechnology industries.
Manufactured from high-quality stainless steel (SS304 or SS316L), the valve offers excellent corrosion resistance, durability, and reliable sealing performance. The precision-engineered internal structure ensures smooth switching between pipeline routes while minimizing pressure loss during operation.
The pneumatic actuator enables automated valve control and integration with modern processing systems. Optional position sensors and C-Top controllers can be installed to support advanced automation and monitoring.
Sanitary multi-way flow reversal valves are widely used in beer brewing, beverage production, dairy processing, fruit juice systems, pharmaceutical manufacturing, and biotechnology processing, where hygienic flow diversion and reliable operation are essential.
Standard
SMS, DIN, 3A
Material – Contact Parts
SS304 / SS316L (1.4301 / 1.4404)
Material – Non-contact Parts
SS304 (1.4301)
Size Range
1/2" – 4" (DN10 – DN100)
Connection Options
Butt Weld
Tri Clamp
Male Thread
Female-Male Thread
Union
Weld-Thread
Flange
Body Combination Models
20 Model, 30 Model
11 Model, 12 Model
21A Model, 22A Model
21 Model, 22 Model
31 Model, 32 Model
111 Model, 112 Model
121 Model, 122 Model
211 Model, 212 Model
221 Model, 222 Model
Power Options
Manual Operation
Pneumatic Actuator
Position Sensor
C-Top Controller
C-Top Controller (AS-I)
Seal Materials
Silicone
EPDM
FKM
Buna
(All seal materials comply with FDA 21 CFR 177.2600)
Working Pressure
≤ 10 bar (145 psi)
Air Supply Pressure
5 – 8 bar (72.5 – 116 psi)
External Surface Finish
Ra 0.8 – 1.6 μm
Internal Surface Finish
Ra 0.4 – 0.8 μm
Applications
Food Processing
Beverage Production
Dairy Processing
Pharmaceutical Manufacturing
Biotechnology Processing
