Electric heating blast drying oven
Electric heating blast drying oven
Pricing: Available upon request
Lead time: 7–21 days
Customization: Supported
Request a QuoteResponse within 24 hours

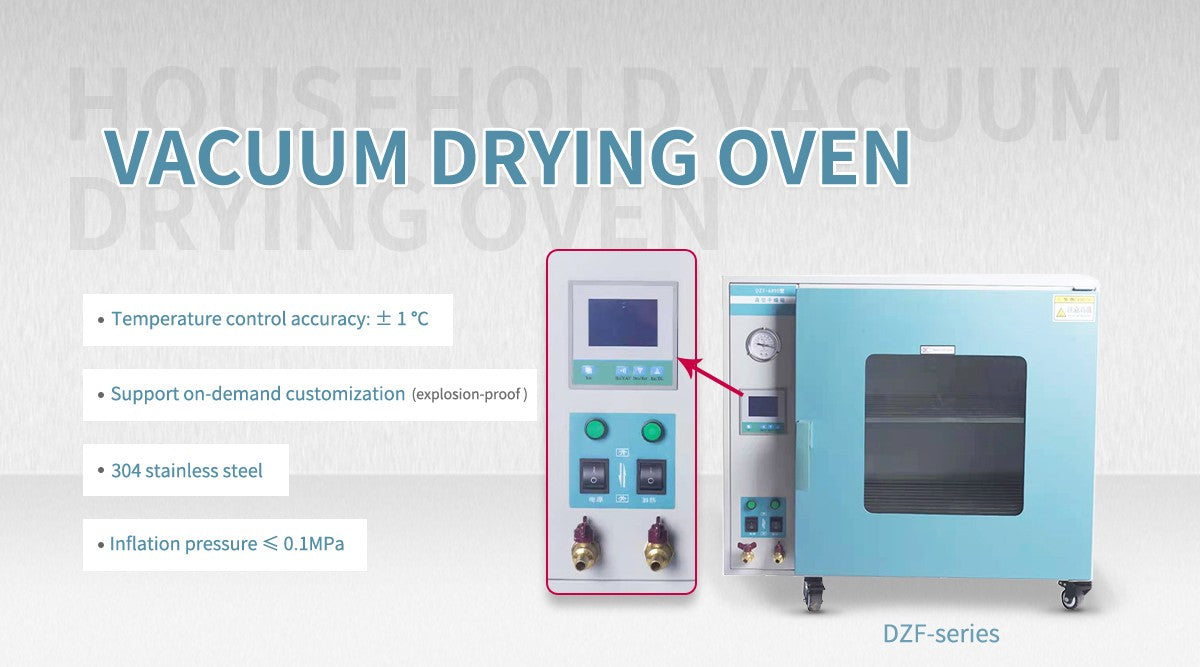

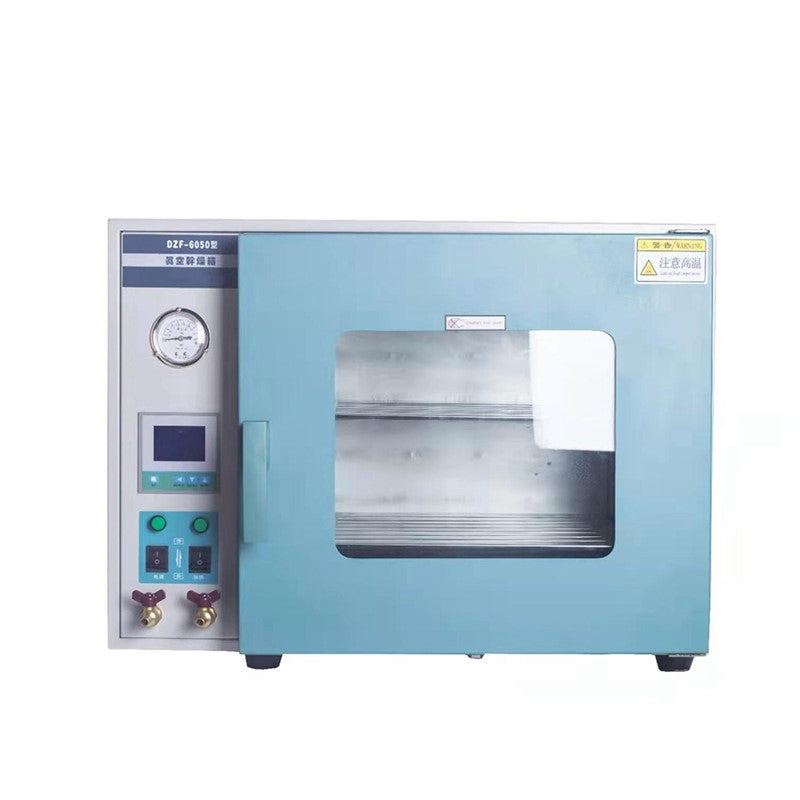

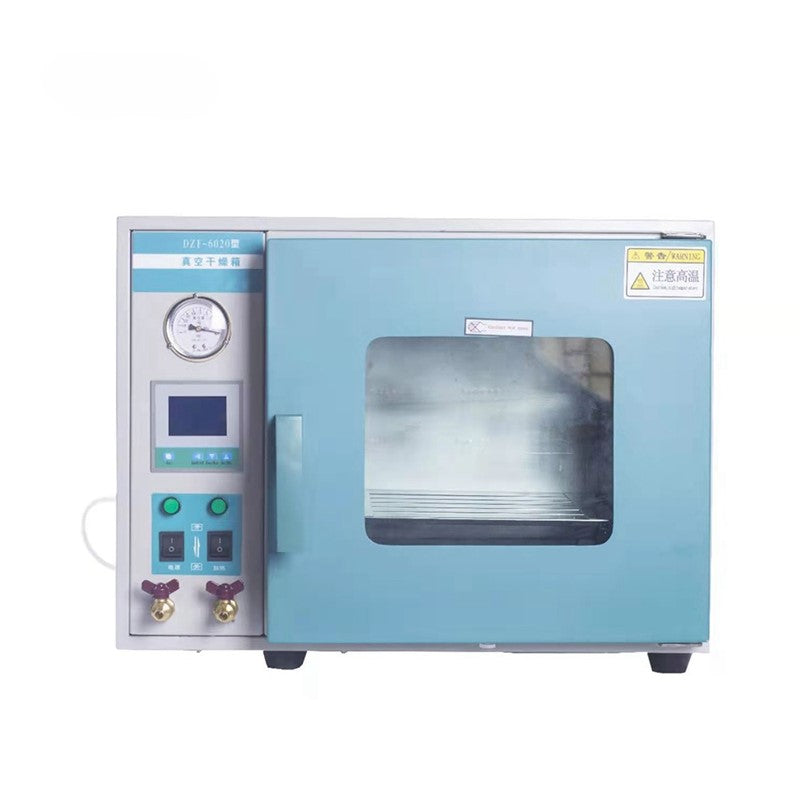

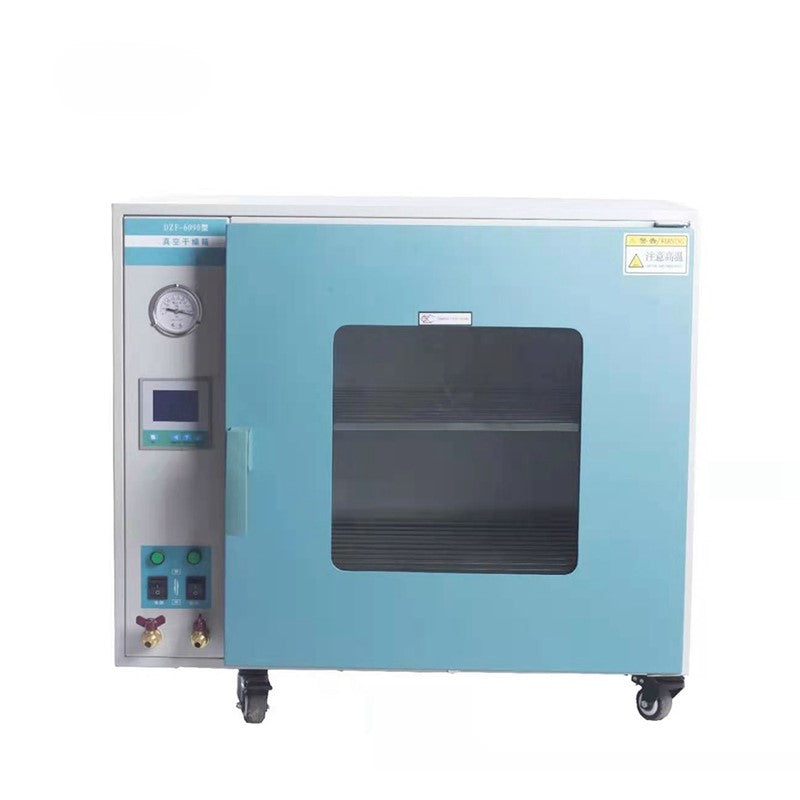

The Electric Heating Vacuum Drying Oven is designed for controlled drying, heating, sterilization, and thermal testing in laboratory and industrial environments. It is widely used in biochemistry, pharmaceuticals, medical research, agriculture, environmental testing, and chemical laboratories.
The oven operates under vacuum conditions, which significantly lowers the boiling point of liquids and allows materials to dry at lower temperatures. This makes it particularly suitable for heat-sensitive, easily oxidized, or easily decomposed materials, ensuring efficient drying while preserving material integrity.
The chamber is constructed with 304 stainless steel, providing corrosion resistance and easy cleaning. The external housing is made of cold-rolled steel with protective coating, ensuring durability and stable operation. The oven also features precise temperature control, adjustable timer functions, and optional explosion protection, making it suitable for a wide range of laboratory and industrial applications.
Available Models
| Model | DZF-6010 | DZF-6020 | DZF-6050 | DZF-6090 | DZF-6210 | DZF-6500 |
|---|---|---|---|---|---|---|
| Volume | 8 L | 25 L | 55 L | 91 L | 215 L | 431 L |
| Heating Power | 400 W | 700 W | 1400 W | 2000 W | 2060 W | 3000 W |
Electrical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | 220V / 50Hz |
| Temperature Range | RT +10 °C ~ 200 °C |
| Temperature Accuracy | ±1 °C |
| Maximum Vacuum | -0.098 MPa |
| Timer Range | 1 – 9999 minutes |
Environmental Conditions
| Parameter | Specification |
|---|---|
| Ambient Temperature | +5 °C ~ 40 °C |
Construction
| Component | Material |
|---|---|

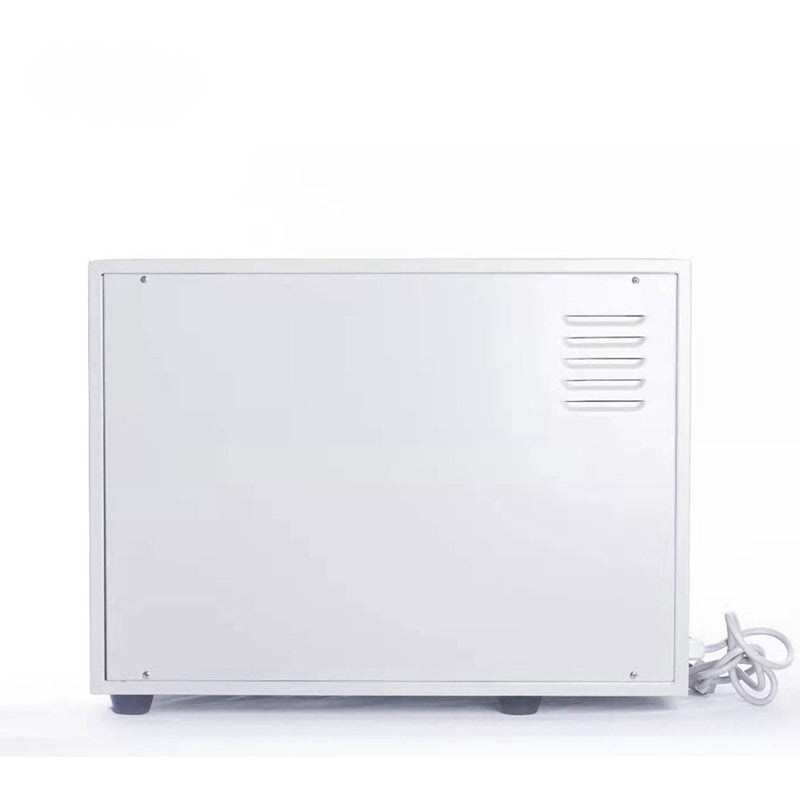

| Outer Shell | Cold-rolled steel with protective coating |

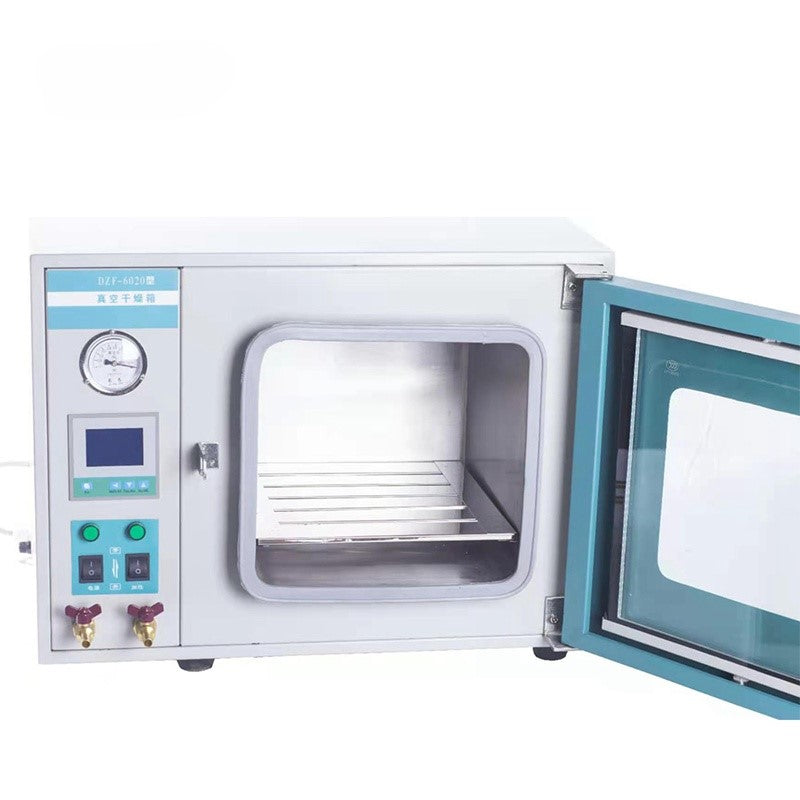

| Inner Chamber | 304 stainless steel (1Cr18Ni9Ti) |
Dimensions
| Model | Outer Size (W × D × H) | Inner Size (W × D × H) |
|---|---|---|
| DZF-6010 | 45 × 45 × 40 cm | 20 × 20 × 20 cm |
| DZF-6020 | 65 × 51 × 48 cm | 30 × 30 × 27 cm |
| DZF-6050 | 71 × 58 × 53 cm | 40 × 40 × 35 cm |
| DZF-6090 | 78 × 64 × 67 cm | 45 × 45 × 45 cm |
| DZF-6210 | 82 × 85 × 117 cm | 56 × 60 × 64 cm |
| DZF-6500 | 89 × 103 × 197 cm | 63 × 81 × 85 cm |
Load Tray Configuration
| Model | Number of Trays |
|---|---|
| DZF-6010 | 1 |
| DZF-6020 | 2 |
| DZF-6050 | 2 |
| DZF-6090 | 2 |
| DZF-6210 | 3 |
| DZF-6500 | 3 |
Optional Features
| Feature | Description |
|---|---|
| Explosion Protection | Suitable for volatile or flammable materials |
| Multi-stage PLC Control | Programmable automated drying process |
Applications
-
Laboratory sample drying
-
Pharmaceutical material processing
-
Chemical powder drying
-
Glassware sterilization and baking
-
Environmental testing laboratories
-
Agricultural and biological research
