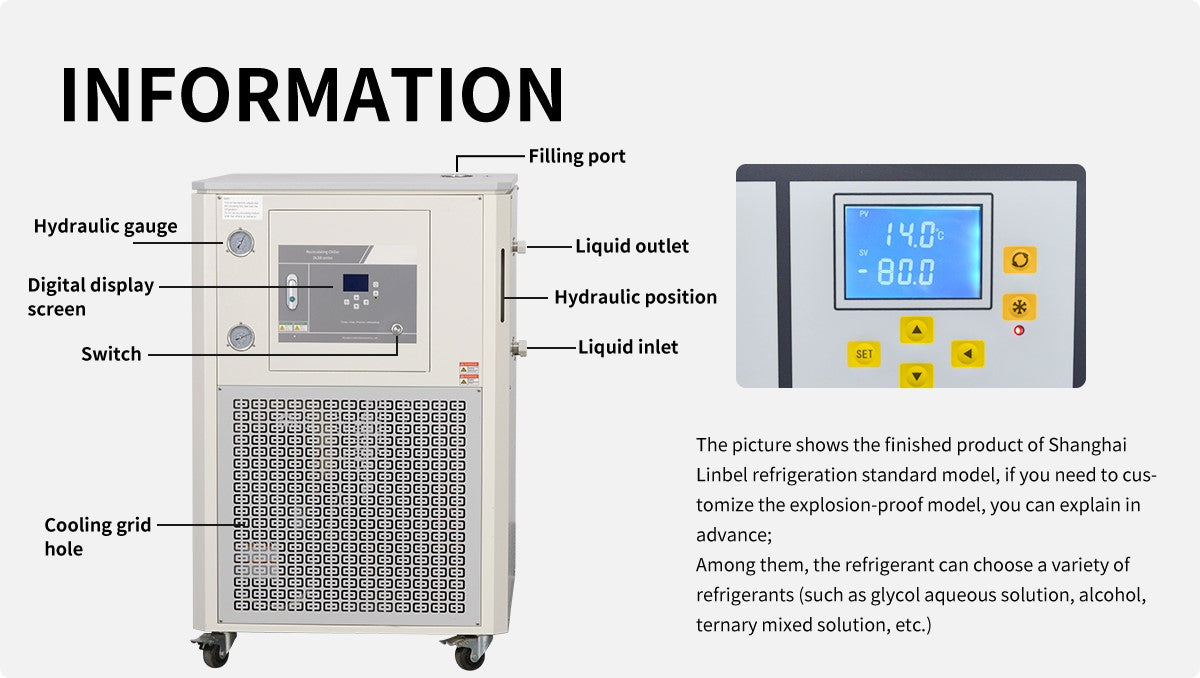

-80℃ Sealed Recirculating Chiller

Name: -80℃ Sealed Recirculating Chiller
Brand: Atlas Equipment Solutions
Availability: InStock

Pricing: Available upon request

Lead time: 7–21 days

Customization: Supported

Request a Quote

Response within 24 hours

The -80 °C Sealed Recirculating Chiller is an ultra-low temperature cooling system designed to provide stable and efficient circulation for laboratory and industrial equipment requiring deep cooling. The system can reach temperatures as low as -80 °C while maintaining precise temperature control and reliable performance.

The chiller uses a glycol–water mixture as the circulating coolant, which reduces water consumption and improves thermal efficiency. Its fully sealed circulation design prevents contamination and evaporation of the heat-transfer fluid, ensuring consistent cooling performance and extending the service life of the coolant. Advanced subcooling technology enhances temperature stability, particularly during ultra-low temperature operation.

Equipped with high-efficiency compressors, plate heat exchanger evaporators, and intelligent PID temperature control, the system ensures accurate temperature regulation and safe continuous operation. Multiple safety protections, including overvoltage, overcurrent, overheating, and leakage protection, provide reliable operation in demanding laboratory and industrial environments.

The -80 °C sealed recirculating chiller is widely used with glass reactors, rotary evaporators, molecular distillation systems, vacuum freeze dryers, condensers, and other laboratory temperature-control equipment. It is suitable for chemical laboratories, pharmaceutical research, biotechnology applications, and advanced materials development requiring ultra-low temperature cooling.

Models

Model	DLSB-5/80	DLSB-10/80	DLSB-20/80	DLSB-40/80	DLSB-50/80	DLSB-100/80	DLSB-200/80	DLSB-300/80
Temperature Range	-80 °C ~ RT (±0.5 °C)

Operating Conditions

Parameter	Specification
Ambient Temperature	≤30 °C
Ambient Humidity	≤60%
Voltage	110 V / 220 V / 380 V / 460 V
Phase	Single phase / Three phase
Frequency	50 / 60 Hz

Power

Model	Power
DLSB-5/80	1.6 kW
DLSB-10/80	2.3 kW
DLSB-20/80	3.5 kW
DLSB-40/80	5.6 kW
DLSB-50/80	10 kW
DLSB-100/80	13 kW
DLSB-200/80	16 kW
DLSB-300/80	20 kW

Cooling Capacity

Temperature	5	10	20	40	50	100	200	300
25 °C (W)	1200	2000	3200	6000	12000	16000	22000	29000
0 °C (W)	900	1700	2600	5200	10000	13000	20000	25000
-40 °C (W)	700	1100	2064	4100	7300	9000	10000	14000
-60 °C (W)	400	850	1400	2300	4000	5200	6200	8000
-80 °C (W)	120	450	650	1200	2000	2800	3500	5000

Refrigeration System

Parameter	Specification
Compressor Type	Closed
Compressor Brand	Danfoss / Tecumseh
Refrigerant	R404A / R23
Condenser	Air cooling
Fan Type	External rotor axial flow fan
Evaporator	Plate heat exchanger

Circulation System

Model	Tank Volume	Flow Rate
DLSB-5/80	5 L	25 L/min
DLSB-10/80	7 L	25 L/min
DLSB-20/80	10 L	25 L/min
DLSB-40/80	10 L	30 L/min
DLSB-50/80	17 L	30 L/min
DLSB-100/80	35 L	35 L/min
DLSB-200/80	100 L	180 L/min
DLSB-300/80	100 L	180 L/min

External circulation connection: DN15 – DN25

Circulating Pump

Parameter	Specification
Pump Type	Magnetic pump / Shield pump
Brand	Puneet / Shanghai Jingyi
Power	15 W – 550 W
Head	3 m – 15 m

Dimensions & Weight

Model	Length	Width	Height	Weight
5	600 mm	480 mm	700 mm	95 kg
10	770 mm	670 mm	1180 mm	210 kg
20	810 mm	710 mm	1240 mm	250 kg
40	810 mm	710 mm	1240 mm	255 kg
50	970 mm	800 mm	1245 mm	330 kg
100	970 mm	800 mm	1345 mm	350 kg
200	1400 mm	970 mm	1580 mm	570 kg
300	1400 mm	970 mm	1780 mm	590 kg

Optional PLC Control System

Feature	Specification
PLC System	Siemens S7-200 Smart PLC
Programming	Up to 5 programs with 40 steps each
Control Mode	Automatic switching between outlet temperature and material temperature
Communication	Modbus RTU RS485 (optional RS232 / Ethernet)
Display	7-inch Siemens touch screen (optional 10-inch)
Data Export	USB export of temperature data (TXT format)
